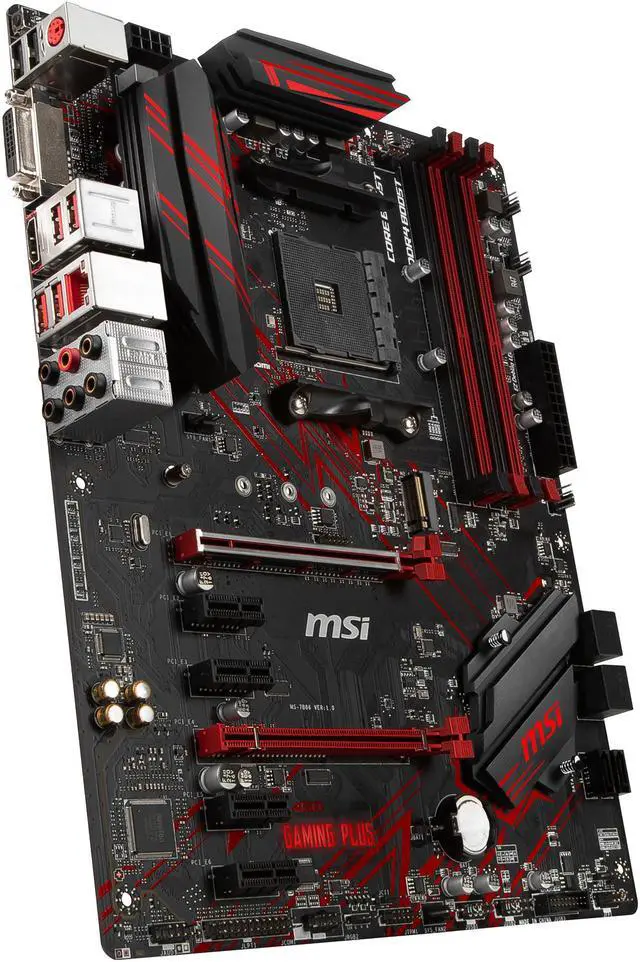

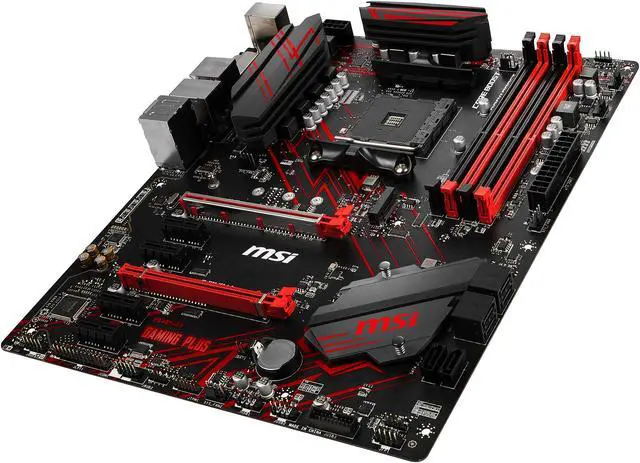

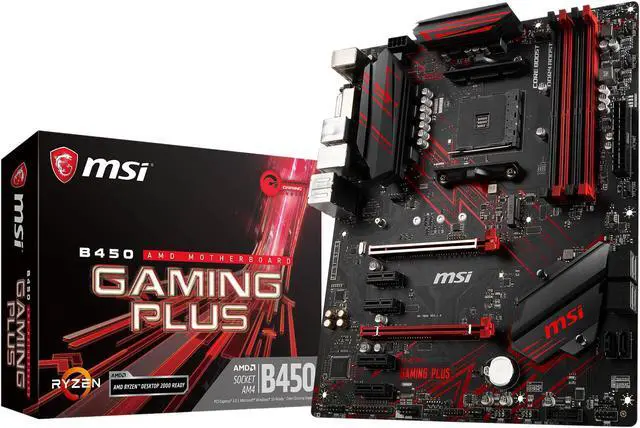

MSI PERFORMANCE GAMING B450 GAMING PLUS AM4 AMD B450 USB 3.1 HDMI ATX AMD Motherboard

OPEN BOX

AMD B450
Supports AMD Ryzen 1st and 2nd Generation / Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics Processors for Socket AM4
Supports 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz (by A-XMP OC MODE), 2667/ 2400/ 2133/ 1866 MHz (by JEDEC)

The Open Box Product Disclaimer applies to this product. Please note that this product is non-returnable and non-refundable.

Specs

Learn more about the MSI B450 GAMING PLUS

Supported CPU
CPU Socket Type	AM4
CPU Type	Supports AMD Ryzen 1st and 2nd Generation / Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics Processors for Socket AM4

Chipsets
Chipset	AMD B450

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	Supports 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz (by A-XMP OC MODE), 2667/ 2400/ 2133/ 1866 MHz (by JEDEC)
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	1 x PCIe 3.0 x16 slot (PCI_E1) Supports x16 speed with AMD Ryzen 1st and 2nd Generation processors Supports x8 speed with AMD Ryzen with Radeon Vega Graphics processors Supports x4 speed with AMD Athlon with Radeon Vega Graphics Processors
PCI Express 2.0 x16	1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)* * PCI_E4 will run x1 speed when installing devices in PCI_E2 / PCI_E3 / PCI_E5 slot.
PCI Express x1	4 x PCIe 2.0 x1 slots* * PCI_E4 will run x1 speed when installing devices in PCI_E2 / PCI_E3 / PCI_E5 slot.

Storage Devices
Serial ATA (SATA)	AMD CPU 2 x SATA 6Gb/s ports* AMD B450 Chipset 4 x SATA 6Gb/s ports * SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M.2 slot.
M.2	1 x M.2 ports (Key M)* Supports PCIe 3.0 x4 (AMD Ryzen 1st and 2nd Generation / Ryzen with Radeon Vega Graphics) or PCIe 3.0 x2 (AMD Athlon with Radeon Vega Graphics) and SATA 6Gb/s 2242/2260/2280/22110 storage devices * SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M.2 slot.
SATA RAID	0/1/10

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic: 1 x DVI-D port, support a maximum resolution of 1920x1200@60Hz 1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160@30Hz, 2560x1600@60Hz Only support when using AMD Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics Processors Maximum shared memory of 2048MB

Onboard Audio
Audio Chipset	Realtek ALC892
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Realtek 8111H
Max LAN Speed	1Gbps

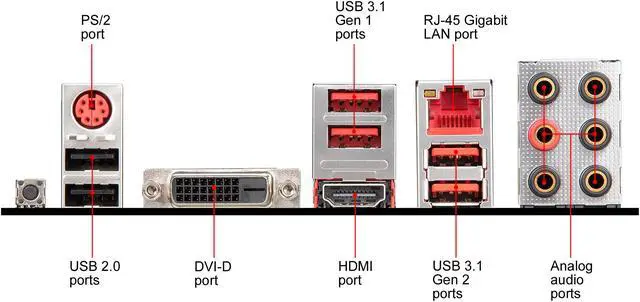

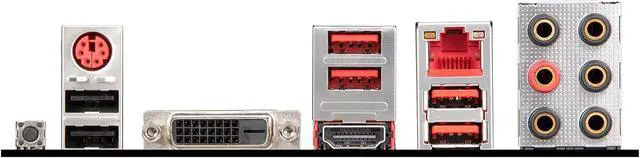

Rear Panel Ports
PS/2	1 x PS/2 keyboard/mouse port
Video Ports	1 x DVI-D
HDMI	1 x HDMI
RJ45	1 x RJ45
USB 3.1	2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A ports 2 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports
USB 1.1/2.0	2 x USB 2.0
Audio Ports	6 Ports

Internal I/O Connectors
Onboard USB	2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1 x USB 3.1 Gen1 connectors (support additional 2 USB 3.1 Gen1 ports)
Other Connectors	1 x 4-pin CPU fan connector 1 x 4-pin water-pump-fan connector 4 x 4-pin system fan connectors 1 x TPM module connector 1 x Front panel audio connector 2 x System panel connectors 1 x Serial port connector 1 x Parallel port connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 2 x 5050 RGB LED strip 12V connectors

Physical Spec
Form Factor	ATX
LED Lighting	RGB

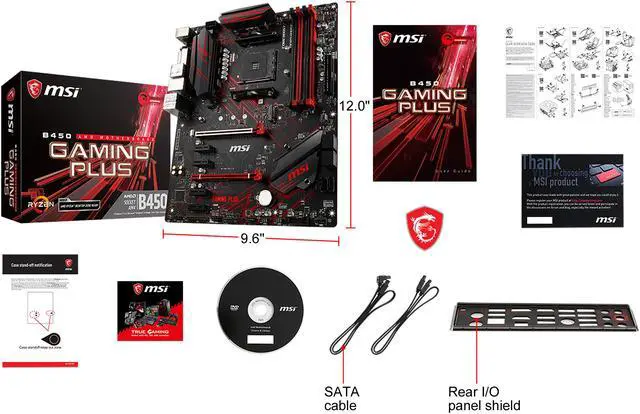

Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector

Features
Features	Supports AMD Ryzen 1st and 2nd Generation / Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics Processors for Socket AM4 Supports DDR4-3466(OC) Memory Lightning Fast Game experience: TURBO M.2, StoreMI, AMD Turbo USB 3.1 GEN2 Audio Boost with Nahimic: Reward your ears with studio grade sound quality for the most immersive gaming experience Core Boost: With premium layout and digital power design to support more cores and provide better performance DDR4 Boost: Give your DDR4 memory a performance boost with A-XMP MULTI-GPU: With STEEL ARMOR PCI-E slots. Supports 2-Way AMD Crossfire VR Ready: Automatically optimizes your system for VR usage, pushing for maximum performance BIOS FLASHBACK+: Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost GAMING CERTIFIED: 24-hour on and offline game and motherboard testing by eSports players

Additional Information
First Listed on Newegg	November 24, 2018
