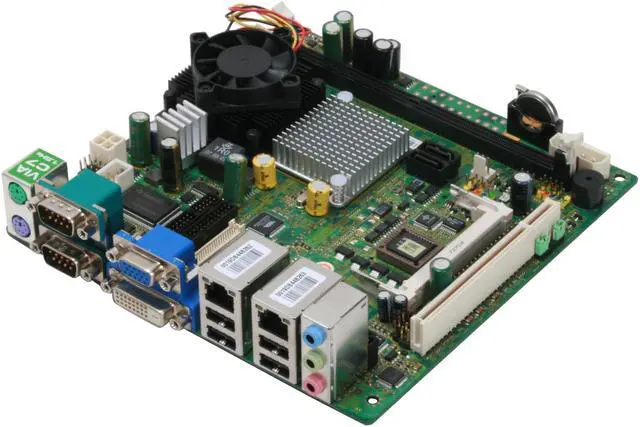

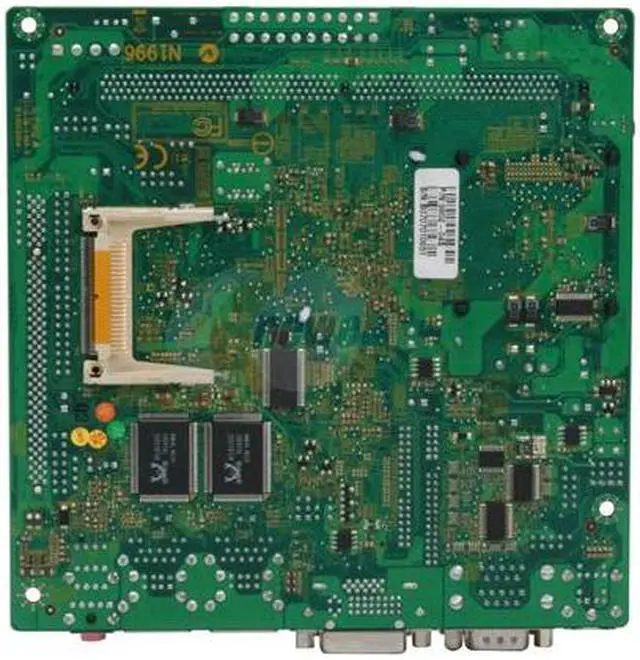

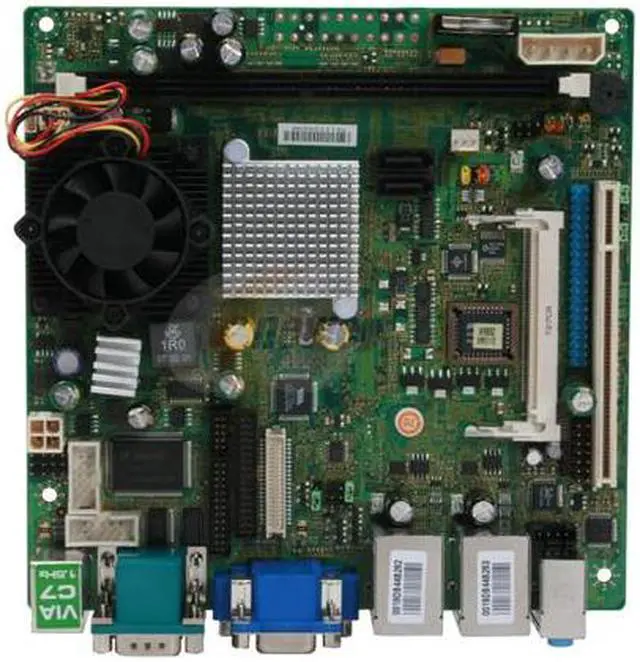

MSI MS-9802-020 VIA C7/Eden Nano BGA2 1GHz onboard 479 VIA CX700M Mini ITX Motherboard / CPU Combo
- VIA C7
- DDR2 533
- VIA UniChrome Pro II
Specs
Reviews (5)
Learn more about the MSI MS-9802-020
| Brand | MSI |
|---|---|
| Model | MS-9802-020 |
| Combo Type | Motherboard / CPU Combo |
| CPU | VIA C7/Eden Nano BGA2 1GHz onboard |
|---|---|
| With Cooler | Yes |
| CPU Socket Type | 479 |
|---|---|
| CPU Type | VIA C7 |
| FSB | 400/333 MHz |
| North Bridge | VIA CX700M |
|---|
| Number of Memory Slots | 1x240pin |
|---|---|
| Memory Standard | DDR2 533 |
| Maximum Memory Supported | 1GB |
| PCI Express x16 | None |
|---|---|
| PCI Slots | 1 x PCI Slot |
| Mini Card Slots | 1 x Mini PCI |
| PATA | 1 x ATA 100 2 Dev. Max |
|---|---|
| SATA | 2 x SATA 1.5Gb/s |
| SATA RAID | 0/1 |
| Onboard Video Chipset | VIA UniChrome Pro II |
|---|
| Audio Channels | 6 Channels |
|---|
| LAN Chipset | Realtek 8110SC |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Realtek 8110SC |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 2 x 1Gbps |
| PS/2 | 2 |
|---|---|
| COM | 2 |

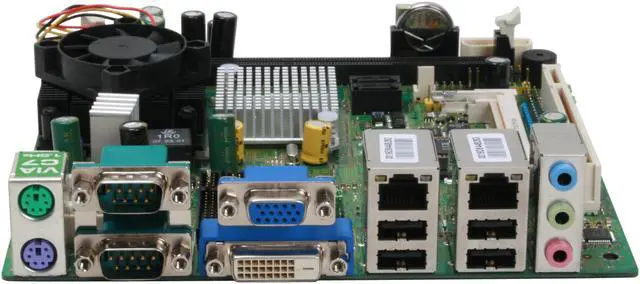

| Video Ports | D-Sub + DVI |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 2 x USB 2.0 |
|---|
| Features | Fuzzy CX700D |
|---|
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.7" x 6.7" |

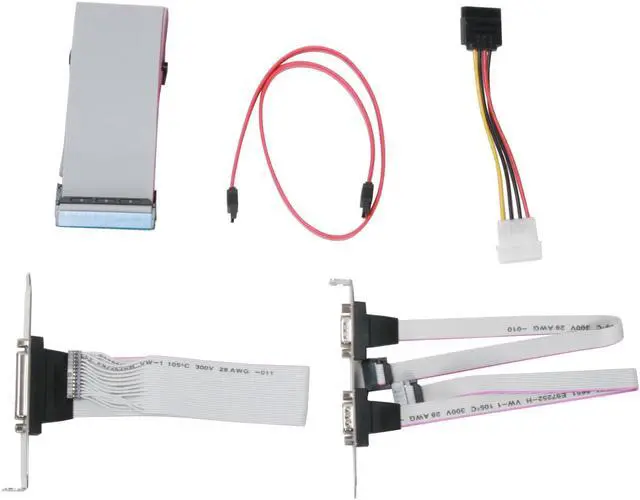

| Package Contents | MS-9802-020 User Manual IDE/PATA Cable SATA Cable 4-pin to SATA Power Cable COM Bracket LPT Bracket |
|---|
| First Listed on Newegg | February 08, 2008 |
|---|
