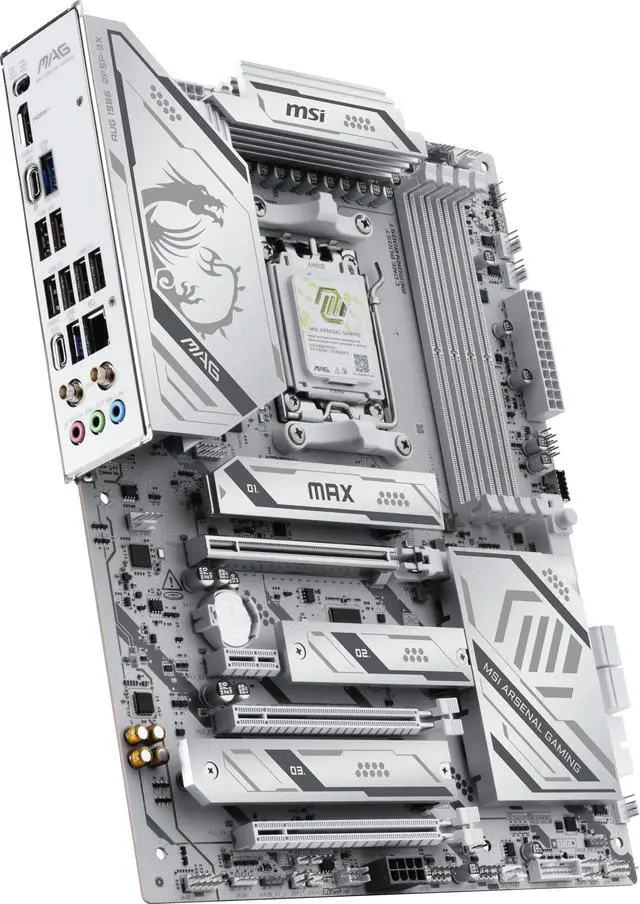

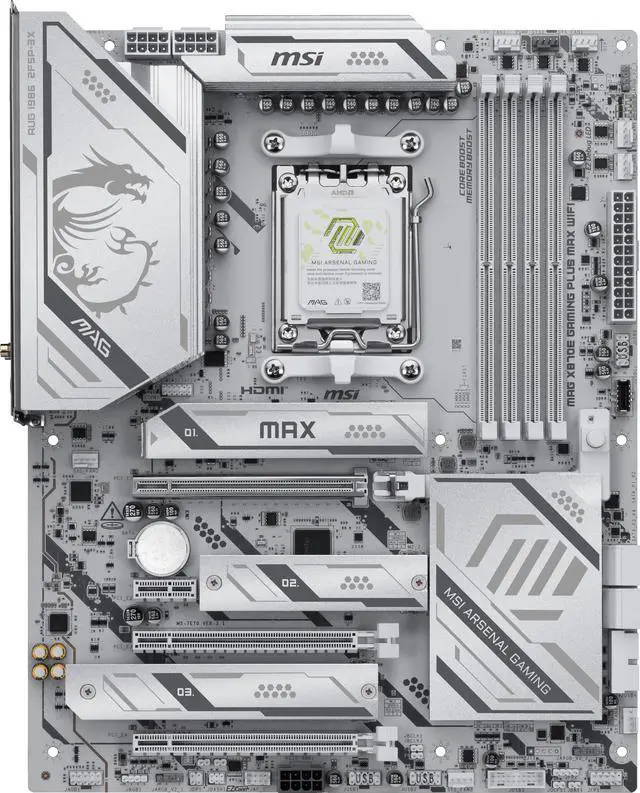

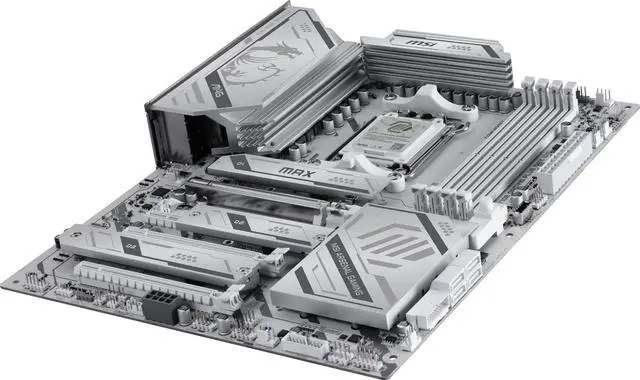

MSI MB MAG X870E GAMING PLUS MAX WIFI
- 64MB BIOS: A larger BIOS ROM capacity allows the motherboard to support
- next-level CPU upgrades with better compatibility.
- OC Engine: With the clock generator, the OC Engine technology releases the
- maximum power of CPU.
- EZ PCIe Release: A simple press of a button to effortlessly lock or unlock the PCIe slot, simplifying the installation and removal of the graphics card.
- EZ M.2 Shield Frozr II: The new tool-less design makes installing or removing your M.2 SSD and Shield Frozr much easier
- Lightning Gen 5: The latest PCIe 5.0 solution with up to 128GB/s bandwidth for
- maximum transfer speed.
- Triple M.2 Connectors: Onboard 3x M.2 connectors with one PCIe 5.0 solution,
- strengthened by M.2 Shield Frozr.
- Extended Heatsink Design: MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
- 5G Network Solution: Featuring premium 5G LAN to deliver better network experience.
- Wi-Fi 7: The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
- Audio Boost: Reward your ears with studio grade sound quality for the most
- immersive audio experience.
+
+
Specs
Reviews
Learn more about the MSI MAG X870E GAMING PLUS MAX WIFI
| Brand | MSI |
|---|---|
| Model | MAG X870E GAMING PLUS MAX WIFI |
| Part Number | MAG X870E GAMING PLUS MAX WIFI |
| CPU Socket Type | AM5 |
|---|---|
| CPU Type | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors |
| Chipset | AMD X870E |
|---|
| Number of Memory Slots | 4x DDR5 UDIMM |
|---|---|
| Memory Standard | Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8200+ MT/s 1DPC 2R Max speed up to 6400+ MT/s 2DPC 1R Max speed up to 6400+ MT/s 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. The DIMM slots on this motherboard have single-sided latches. Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| ECC Supported | Non-ECC |
| Buffer Supported | Un-buffered |
| PCI Express 5.0 x16 | PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E1 slot Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor) |
|---|---|
| PCI Express x16 | 2 x PCI Express x16 |
| PCI Express x1 | 1 x PCI Express x1 |
| Serial ATA (SATA) | 4x SATA 6G |
|---|---|
| M.2 | 3 x M.2 (Support PCIe 5.0 x4 & PCIe 4.0 x4) M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_1 slot (From CPU) Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors) M.2_2 slot (From CPU) Supports up to PCIe 4.0 x4 (For Ryzen 9000/ 8700/ 8600/ 8400/ 7000 Series processors) M.2_3 slot (From CPU) Supports up to PCIe 4.0 x4 (For Ryzen 9000/ 8700/ 8600/ 8400/ 7000 Series processors) |
| Audio Chipset | Realtek ALC897 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek 8126VB |
|---|---|
| Max LAN Speed | 5Gbps |
| Bluetooth | Yes |

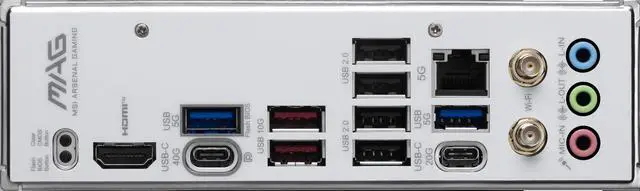

| Back I/O Ports | 4 x USB 2.0 2 x USB 5Gbps Type A 2 x USB 10Gbps Type A 1 x USB 20Gbps Type C 1 x USB 40Gbps Type C 1 x HDMI |
|---|---|
| HDMI | 1 x HDMI |
| DisplayPort | 1 x DisplayPort |
| Onboard USB | 1 x USB Type-C header, with USB 3.2 Gen 2x2 + 4 x USB 3.2 + 6 x USB 2.0 |
|---|---|
| Other Connectors | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 2x Direct OC Jumper (JBCLK) |
| Form Factor | ATX |
|---|---|
| LED Lighting | None RGB |
| Dimensions (W x L) | 243.84mm x 304.8mm |
| Windows 11 | Supported |
|---|
| Features | 4x EZ Debug LED 1x EZ Memory Detection LED |
|---|
| First Listed on Newegg | February 20, 2026 |
|---|
