MikroTik - RB912R-2ND-LTM - MikroTik LtAP Mini Series 2.4GHz 802.11b/g/n Dual-Chain 1.5dBi Access Point Without LTE card

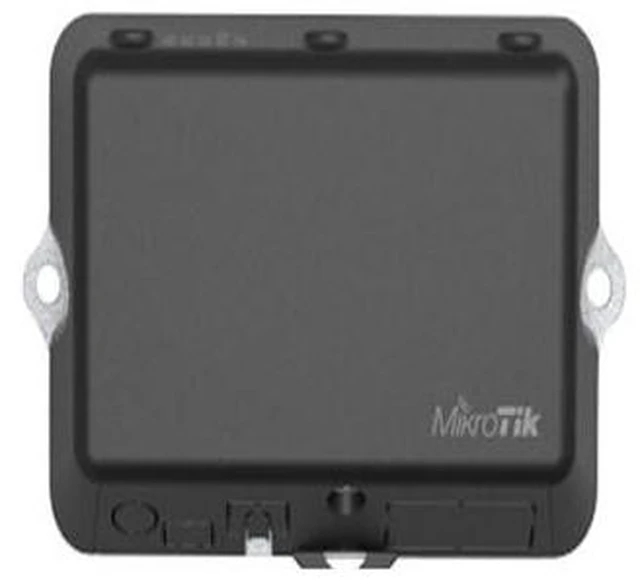

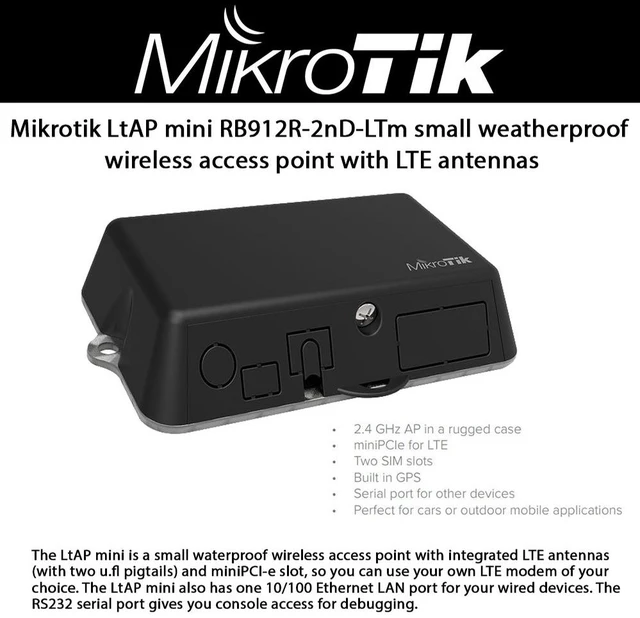

MikroTik RouterBOARD RB912R-2nD-LTm MikroTik RouterBOARD without LTE card installed (empty miniPCI-e slot) These products will not work on Verizons US network outside large metro areas because they do not run Band 13. They are also not certified on Verizon so use them at your own risk. Check with your cellular provider before using on that carriers network. The LtAP mini is a small waterproof 2.4 GHz wireless access point with integrated LTE antennas (with two u. fl pigtails) and miniPCI-e slot, so you can use your own LTE modem of your choice. The LtAP mini also has one 10/100 Ethernet LAN port for your wired devices.

The RS232 serial port gives you console access for debugging. The unit has several powering options: 9-30 V PoE-in by Ethernet port, DC jack and microUSB. LtAP mini has a special enclosure with a wall mounting kit, two SIM slots to alternate between cellular providers, and integrated GPS support, making this a perfect device for use in moving vehicles like cars, buses or trains. Use the built in GPS module to track the location of your vehicle in real time, we have even provided a simple tracking application example in the RouterOS documentation, to help you start development of your platform. External GPS antenna is available for ordering separately (not included, product code GPSANT).
Features: 2.4 GHz AP in a rugged case miniPCIe for LTE Two SIM slots Built in GPS Serial port for other devices Perfect for cars or outdoor mobile applications

Specifications

RB912R-2nD-LTm- Product code RB912R-2nD-LTm&R11e-LTE CPU QCA9531 650 MHz Size of RAM 64 MB Storage 16 MB 10/100 Ethernet ports 1 Wireless Built-in 2.4 GHz 802.11 b/g/n, dual-chain Wireless chip model QCA9531 Wireless regulations Specific frequency range can be limited by country regulations Antenna beam width 360° Wireless antenna gain 1.5 dBi GPS Built-in MT3337V, with uUFL RF connector and active antenna support PoE in Yes SIM slot 2 Mini SIM slots LTE modem None (slot for miniPCI-e LTE card available) LTE antenna gain 3.5 dBi (with uFL connector) Serial port RS232 (shared with GPS port) Supported input voltage
PoE in: 10 V - 57 V (Passive PoE and 802.3 af/at with unshielded cable)
DC jack: 8 - 30
V MicroUSB: 5 V Dimensions 139 x 77 x 28, 5 mm Operating temperature -40°C.. +70°C tested License level 4 Operating System RouterOS Max Power consumption 4 W
