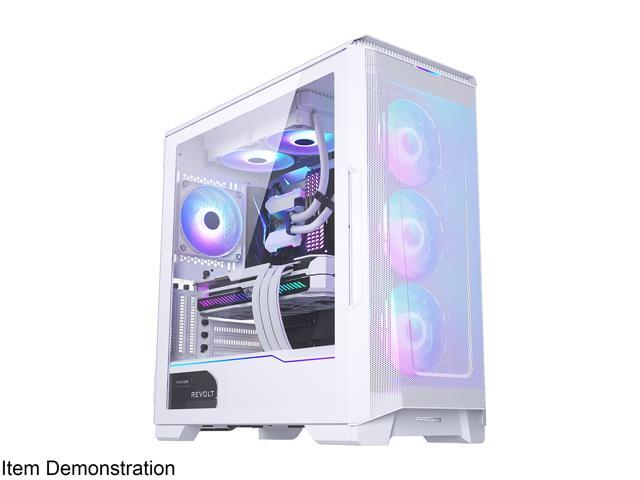

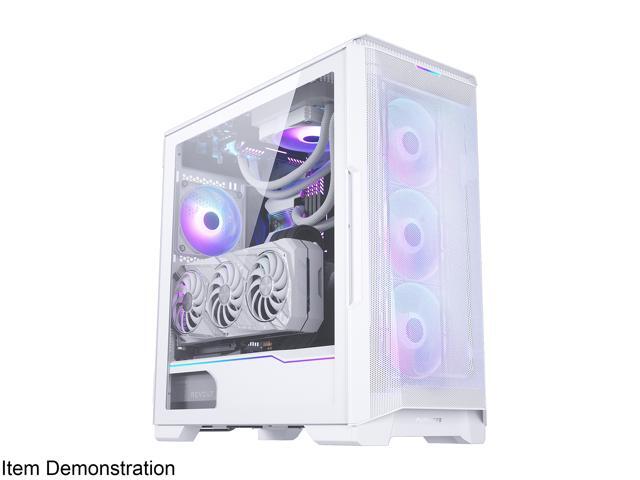

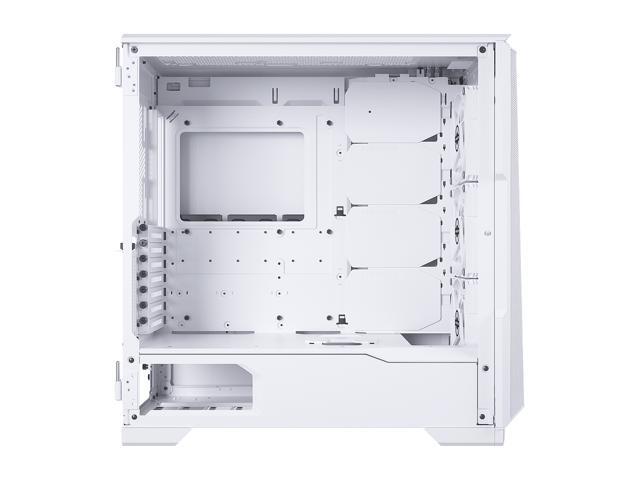

Phanteks Eclipse P500A PH-EC500ATG_DMW01 Matte White Steel / Tempered Glass ATX Mid Tower Computer Case

(477)(120) Write a Review
In stock.
Ships from Canada.
  • Black
  • Matte White
  • Steel / Tempered Glass ATX Mid Tower
  • 2 x USB 3.0 / USB-C GEN 2 / Audio Front Ports
  • 10 (2 x included, also supports 2.5" drives) Internal 3.5" Drive Bays
Specs
Reviews

Learn more about the Phanteks Company PH-EC500ATG_DMW01

Model
Brand Phanteks
Series Eclipse P500A
Model PH-EC500ATG_DMW01
Details
Type ATX Mid Tower
Color Matte White
Case Material Steel / Tempered Glass
With Power Supply No
Motherboard Compatibility Micro ATX / ATX / Mini ITX / E-ATX (E-ATX up to 280mm wide)

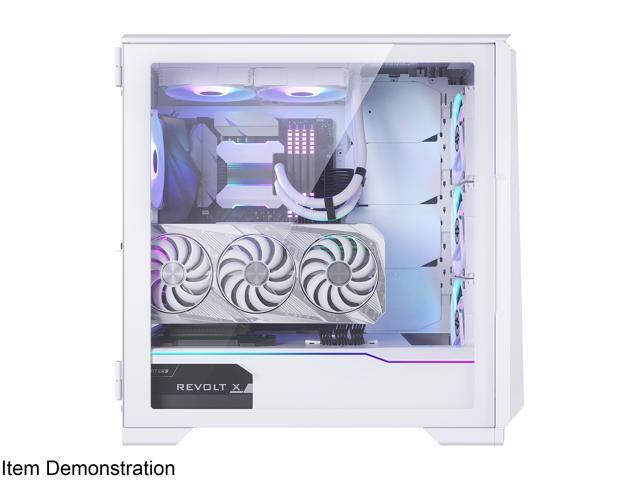

Side Panel Window Yes
LED DRGB
Expansion

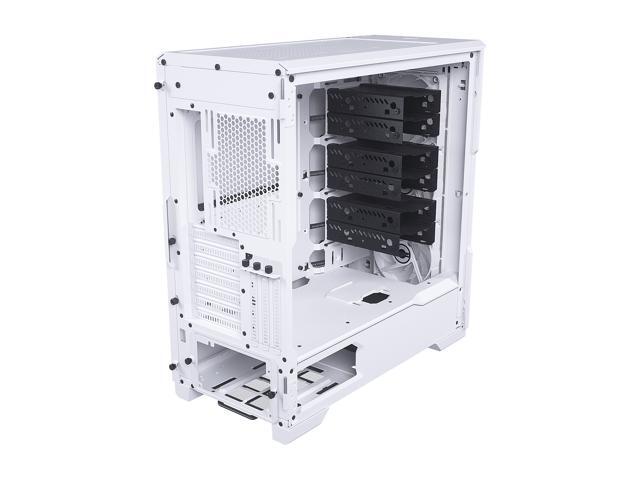

Internal 3.5" Drive Bays 10 (2 x included, also supports 2.5" drives)
Internal 2.5" Drive Bays 3 (3 x included)

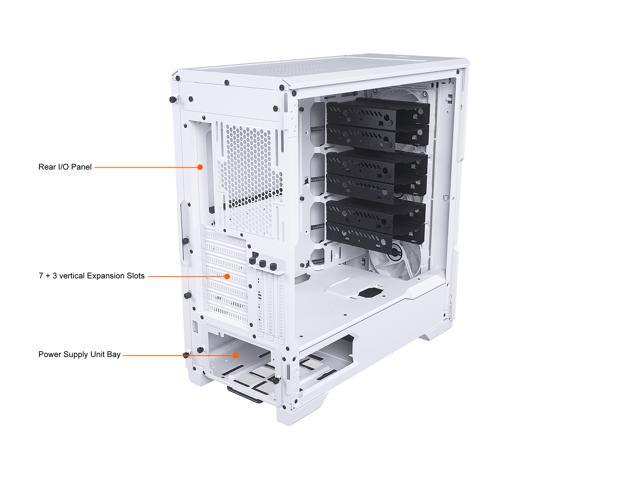

Expansion Slots 7 + 3 vertical
Front Panel Ports
Front Ports 2 x USB 3.0 / USB-C GEN 2 / Audio
Cooling System

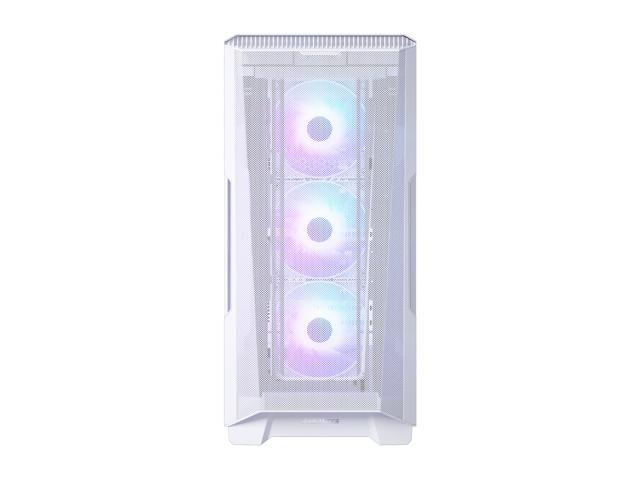

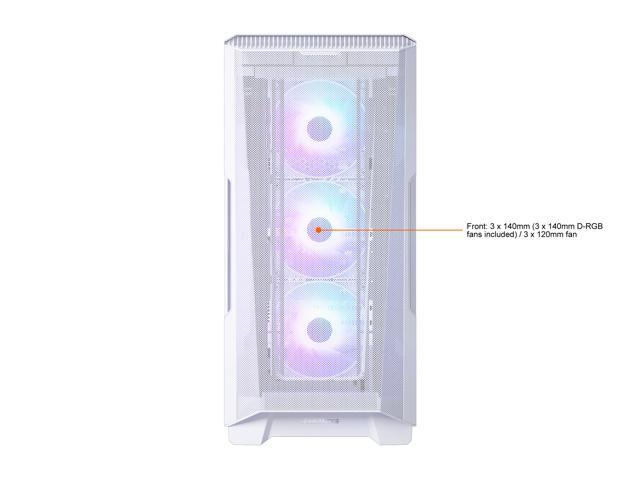

Fan Options Front: 3 x 140mm (3 x 140mm D-RGB fans included) / 3 x 120mm fan

Top: 3 x 120mm / 2 x 140mm fan

Rear: 1 x 120mm / 1 x 140mm fan
Radiator Options Front: 420mm / 360mm

Top: 360mm / 280mm

Rear: 140mm / 120mm
Dimensions & Weight
Max GPU Length 435 mm
Max CPU Cooler Height 190 mm
Max PSU Length 195 mm (if all 4 bottom HDD positions used) / 250 mm (if 2 bottom HDD used)

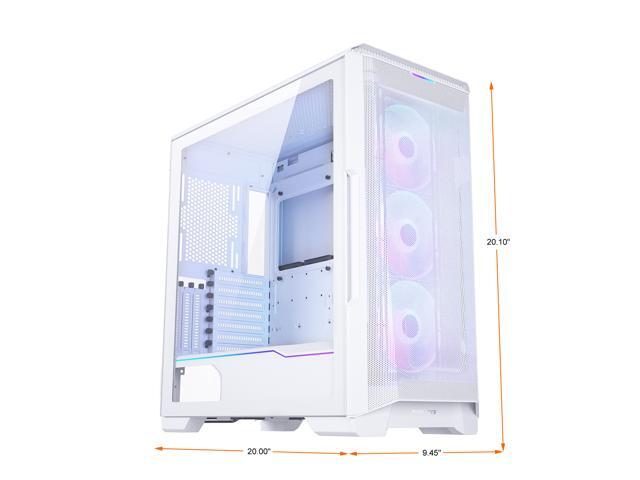

Dimensions (H x W x D) 20.10" x 9.45" x 20.00"
Weight 17.60 lbs.
Additional Info
Features Ultra-fine Performance Mesh front panel for the best optimal cooling performance; Tempered glass side panel to showcase your build

Spacious open interior supports dual system (with PH-ITXKT_R01), vertical GPU mounting support (with PH-CBRS2.0_FL22), up to 420mm front/280mm top radiator

Easy accessibility to I/O featuring USB-C GEN2, 2x USB 3.0, Microphone/Headphone, Power button, D-RGB Mode button, D-RGB Color button

Integrated Digital-RGB controller that can sync with compatible motherboards and Phanteks DRGB products to create stunning lighting effects and comes with 3x DRGB Phanteks fans

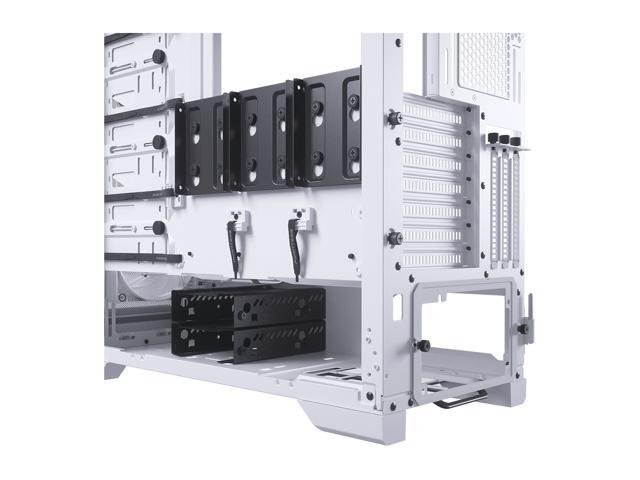

Extensive Storage options: Support massive Storage capacity (10x HDD and 3x SSDs)
Package Content P500A Chassis:

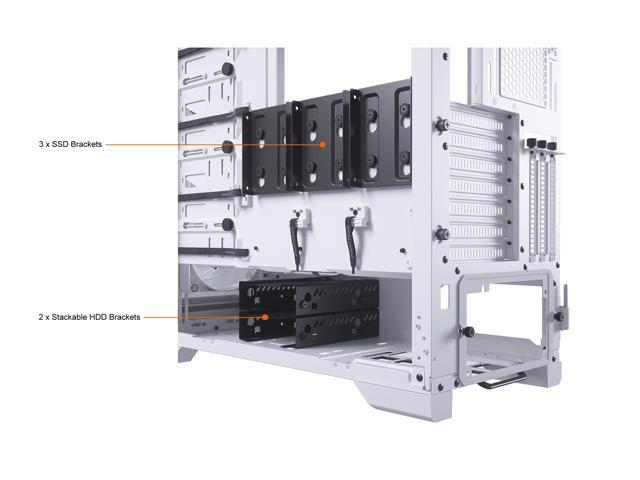

- SSD bracket: 3x
- 140mm D-RGB Fan: 3x
Accessory Box:
- Stackable HDD Bracket: 2x
- GPU Anti-Sag Bracket: 1x
- Vertical GPU Mount: 1x
- Zip ties: 6x
- MB/SSD Screw: 22x
- Thumb Screw: 12x
- Fan Screw: 8x
- HDD Screw: 8x
- Standoff Removal Tool: 1x
- MB stand-off: 1x
- PSU Screw: 7x
- Case Screw: 6x
- Riser Cable Screw: 3x
- Dual System stand-off: 4x
Additional Information
Date First Available May 11, 2022

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 5 years
  • Limited Warranty period (labor): 5 years
