NZXT H510 Elite - Premium Mid-Tower ATX Case PC Gaming Case - Dual-Tempered Glass Panel - Front I/O USB Type-C Port - Vertical GPU Mount - Integrated RGB Lighting - Water-Cooling Ready - White/Black, CA-H510E-W1
MORE MODERN: USB 3.1 Gen 2-compatible USB-C connector on the front panel makes it easier than ever to connect smartphones, high-speed external storage, and the latest peripherals to your PC.
SMART DEVICE V2: Includes two HUE 2 RGB lighting channels, and three fan channels that support 0dB modes for voltage-regulated or PWM fans.
EXTRAORDINARILY BEAUTIFUL: The clean, modern design, iconic cable management bar, and uninterrupted tempered-glass panels all showcase your stunning build.
POWERED BY NZXT CAM: Use the intuitive NZXT CAM application to monitor and control your build, choosing from presets or custom controls for your RGB lighting and fans to create your dream PC
NEW FEATURES: Front I/O USB Type-C Port, Dual Tempered Glass, Vertical GPU Mount, and two 140mm AER RGB 2 Fans (included)
MOTHERBOARD SUPPORT: Mini-ITX, MicroATX, and ATX
+
+
Overview
Specs
Reviews
Learn more about the NZXT CA-H510E-W1
Model
Brand
NZXT
Series
H Series H510 Elite
Model
CA-H510E-W1
Details
Type
ATX Mid Tower
Color
Matte White
Case Material
SGCC Steel / Tempered Glass
With Power Supply
No
Power Supply Mounted
Bottom
Motherboard Compatibility
Micro ATX / ATX / Mini-ITX
Side Panel Window
Yes
LED

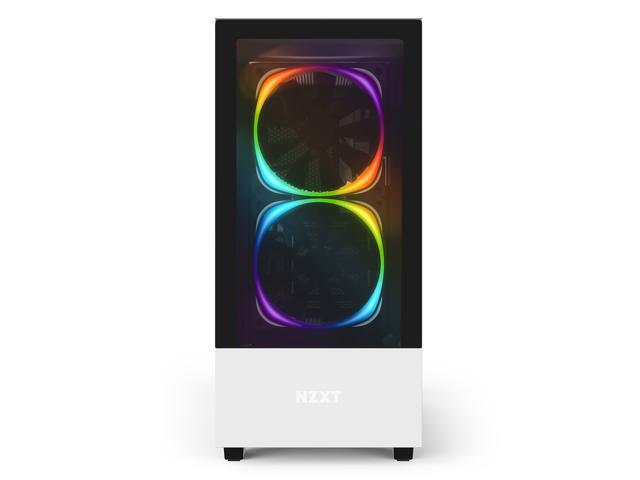

2 x Integrated Aer RGB 2 140mm Fans 1 x Integrated addressable LED Strip
Dust Filters
Bottom
Expansion
Internal 3.5" Drive Bays
2+1
Internal 2.5" Drive Bays
2+1

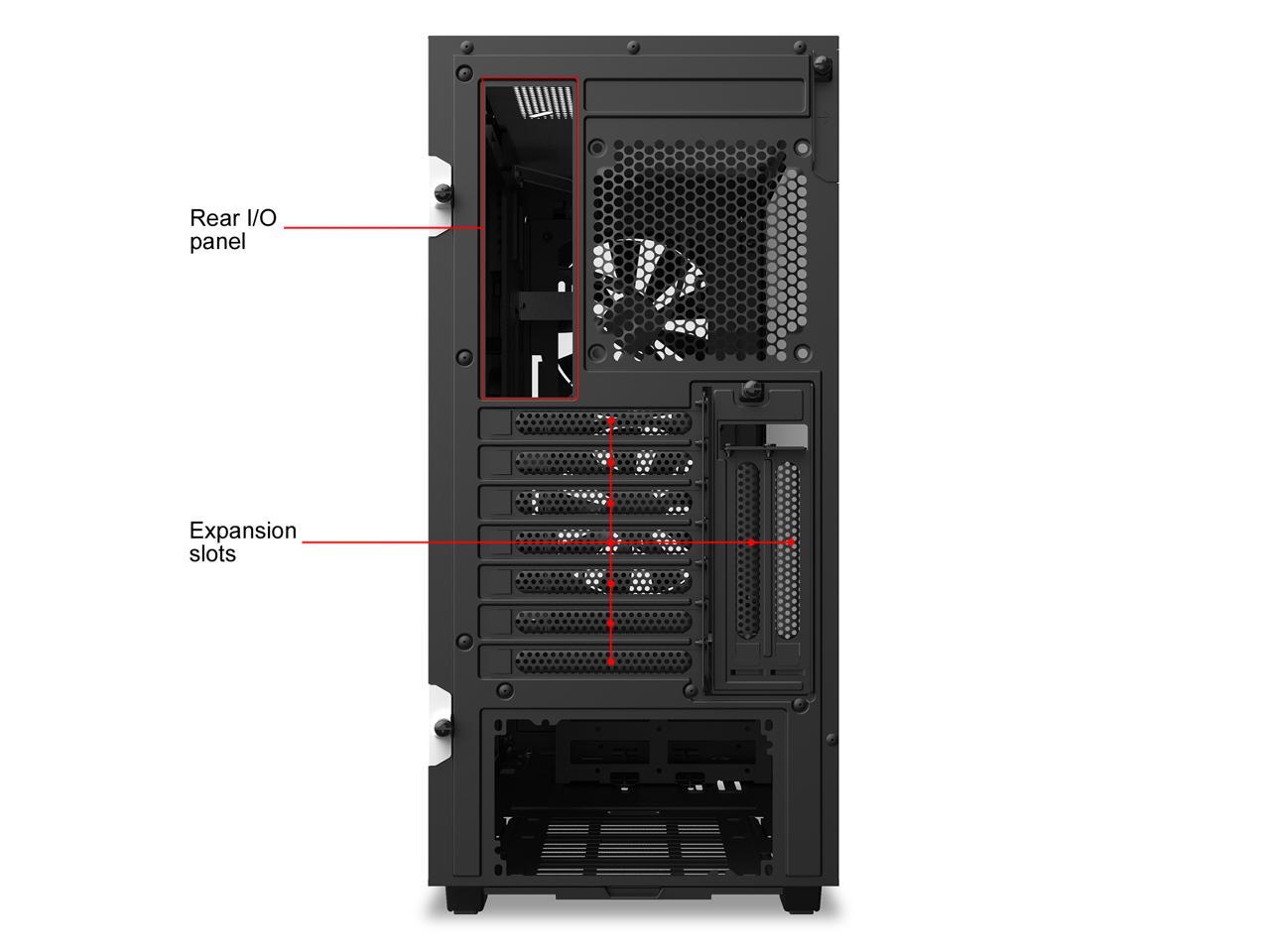

Expansion Slots
7+2 Vertical

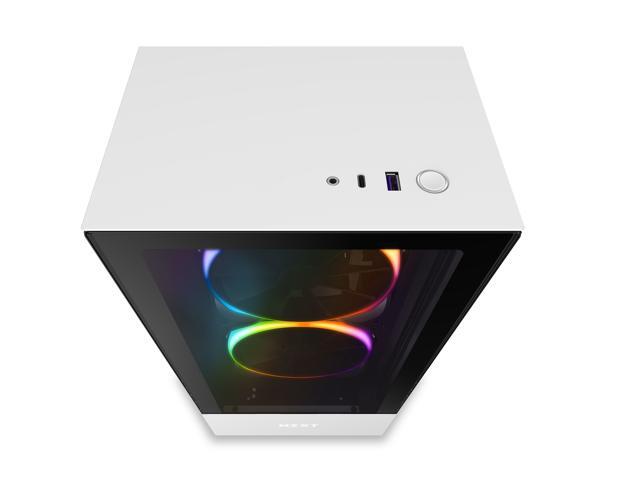

Front Panel Ports
Front Ports
1 x USB 3.0 Type-A / 1 x USB 3.1 Gen 2 Type-C / 1 x Headset Audio Jack
Cooling System
Fan Options
Front: 2 x 120 or 2 x 140mm fan (2 x AER RGB 2 140mm included)
Top: 1 x 120mm or 1 x 140mm fan
Rear: 1 x 120mm fan (1 x 120mm AER F120 Case Version Included)
Front: 2 x 140 or 2 x 120mm with Pull Rear: 1 x 120mm
Dimensions & Weight
Max GPU Length
381 mm
Max CPU Cooler Height
165 mm
Max PSU Length
160 mm

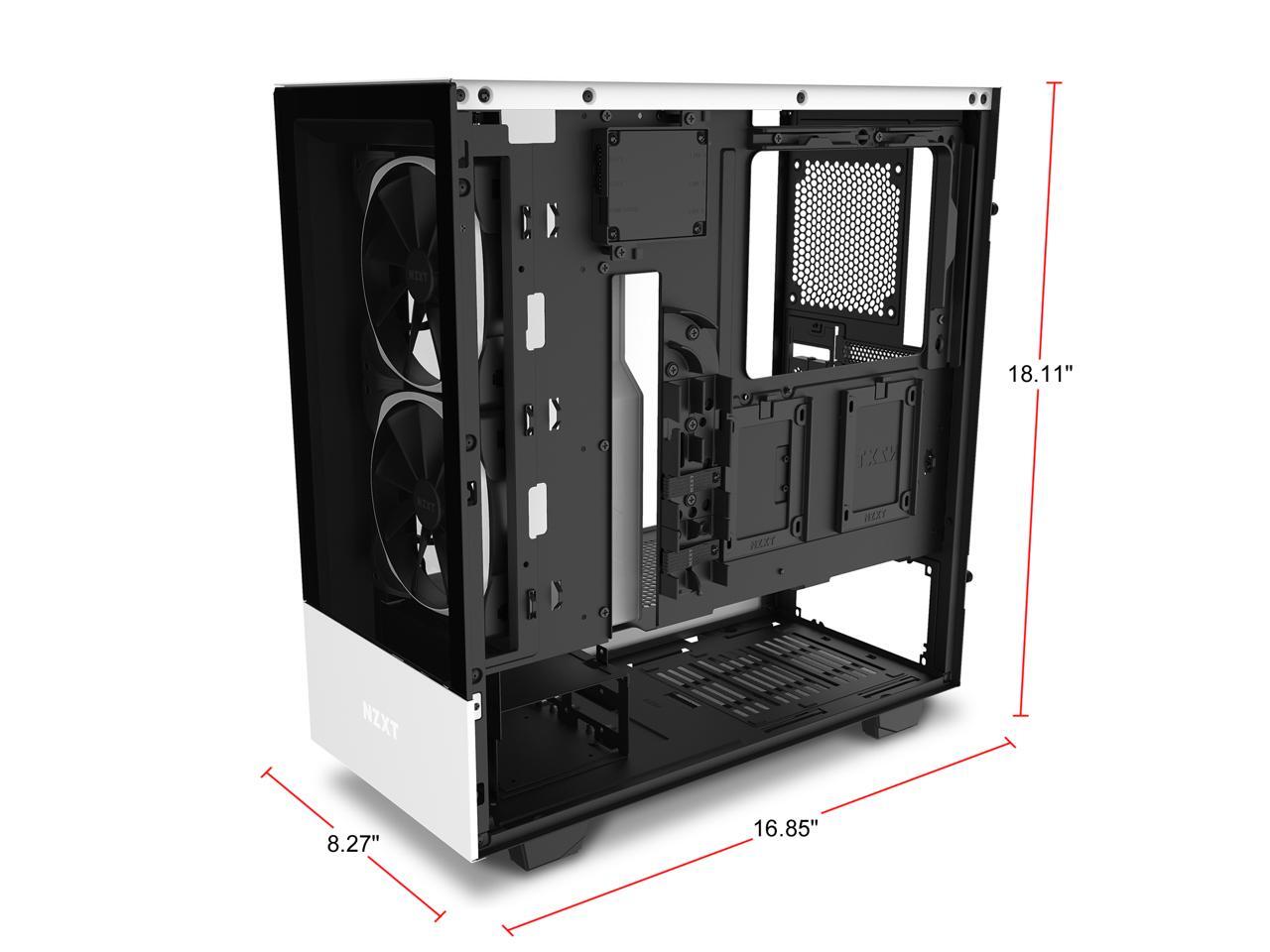

Dimensions (H x W x D)
18.11" x 8.27" x 16.85" w/ feet 17.13" x 8.27" x 16.85" w/o feet
Weight
16.53 lbs.
Additional Info
Features

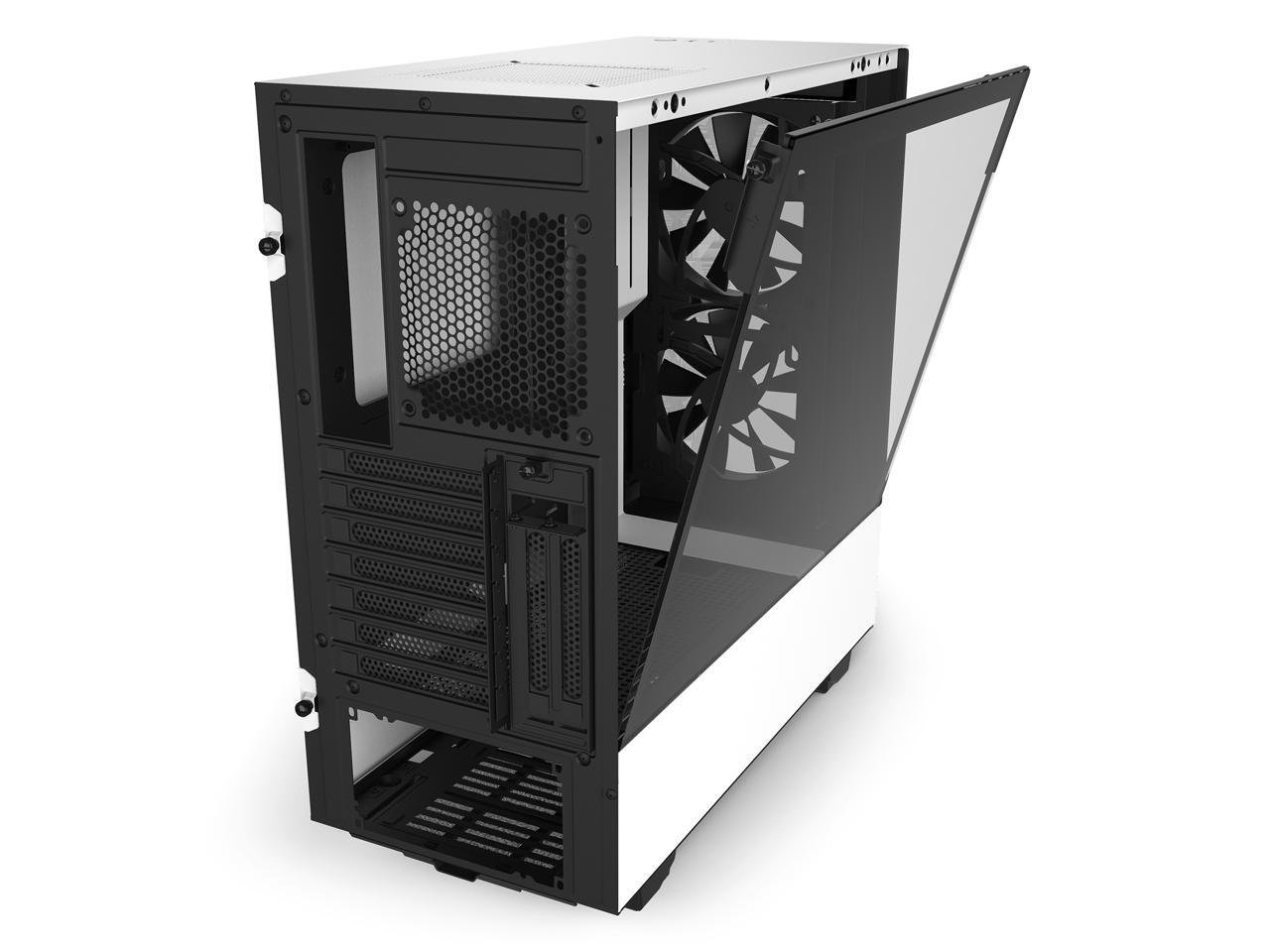

Two tempered glass panels top off your build, perfectly showcasing your RGB build. We’ve included two Aer RGB 2 fans and an RGB LED strip to get you started.
The H510 Elite features a removable radiator mounting bracket, simple-to-use SSD trays, and a patented cable management system for a smarter, easier build experience. The new Smart Device 2 includes two HUE 2 RGB lighting channels, and three fan channels that support 0dB modes for voltage-regulated or PWM fans.
The USB 3.1 Gen 2-compatible USB-C connector on the front panel makes it easier than ever to connect smartphones, high-speed external storage, and the latest peripherals to your PC.
The clean, modern design, iconic cable management bar, and uninterrupted tempered-glass panels all showcase your stunning build.
Use the intuitive NZXT CAM application to monitor and control your build, choosing from presets or custom controls for your RGB lighting and fans to create your dream PC.
