NZXT H510 - Compact ATX Mid-Tower PC Gaming Case - Front I/O USB Type-C Port - Tempered Glass Side Panel - Cable Management System - Water-Cooling Ready - Steel Construction - Black, CA-H510B-B1
Front I/O USB Type-C Port and Tempered glass side panel with single screw installation
ENHANCED CABLE MANAGEMENT: Our patented cable routing kit with pre-installed channels and straps makes wiring easy and intuitive
STREAMLINED COOLING: Two Aer F120mm fans* included for optimal internal airflow and the front panel and PSU intakes include removable filters, removeable bracket designed for radiators up to 240mm - simplifies the installation of either closed-loop or custom-loop water cooling
MOTHERBOARD SUPPORT: Mini-ITX, MicroATX, and ATX
+
+
Overview
Specs
Reviews
Learn more about the NZXT CA-H510B-B1
Model
Brand
NZXT
Series
H Series H510
Model
CA-H510B-B1
Details
Type
ATX Mid Tower
Color
Matte Black
Case Material
SGCC Steel / Tempered Glass
With Power Supply
No
Power Supply Mounted
Bottom
Motherboard Compatibility
Micro ATX / ATX / Mini-ITX
Side Panel Window
Yes
Dust Filters
Bottom / Front
Expansion
Internal 3.5" Drive Bays
2+1
Internal 2.5" Drive Bays
2+1
Hot-Swap Drive Bays
0
Expansion Slots
7
Front Panel Ports
Front Ports

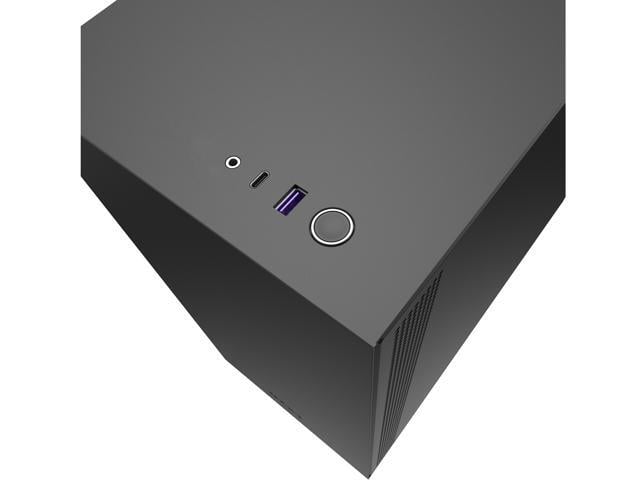

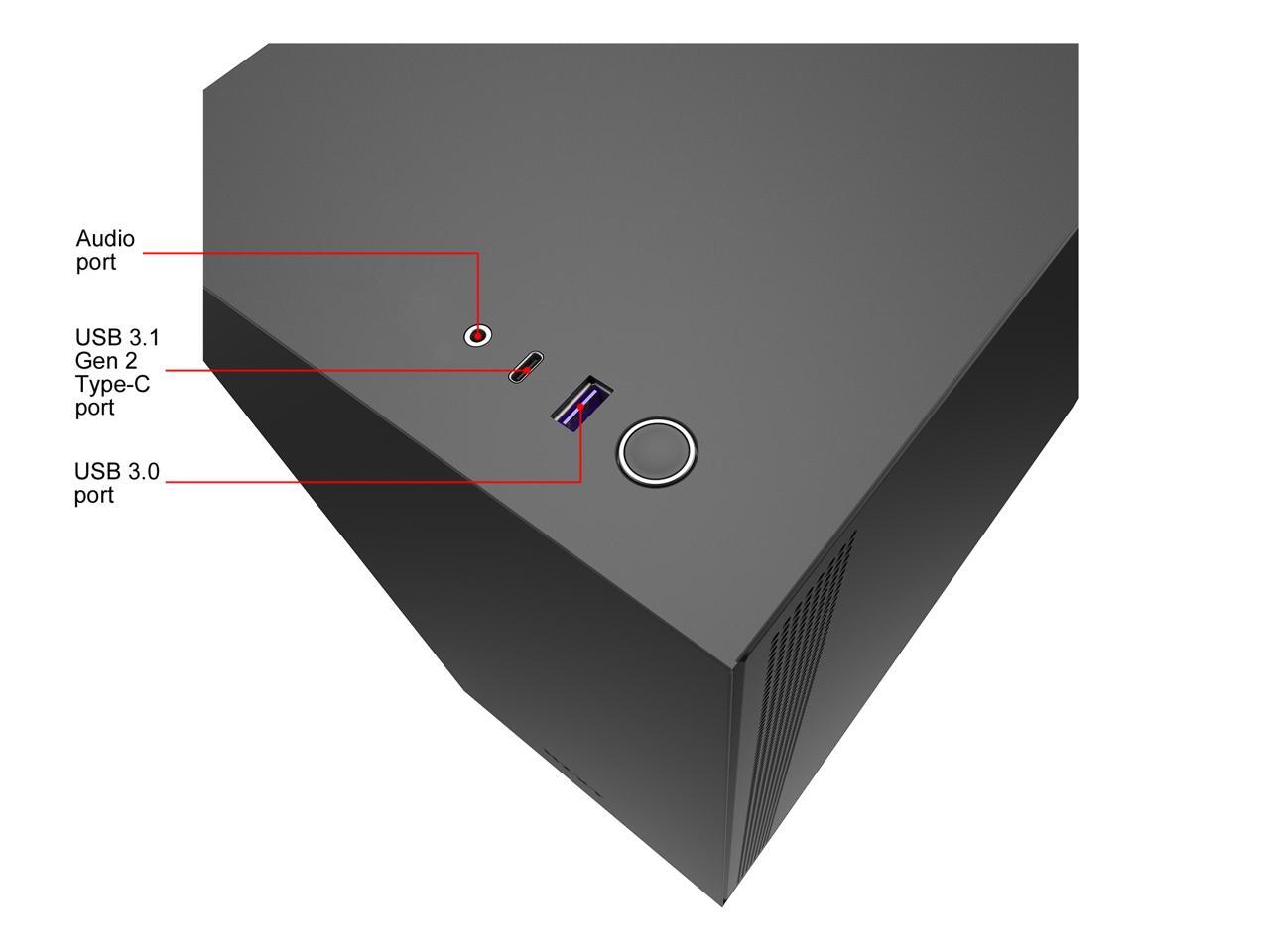

1 x USB 3.0 Type-A / 1 x USB 3.1 Gen 2 Type-C / 1x Headset audio Jack
Cooling System
Fan Options
Front: 2 x 120mm or 2 x 140mm fan
Top: 1 x 120mm (1 x 120mm Aer F120 Case Version included) or 1 x 140mm fan
Rear: 1 x 120mm fan (1 x 120mm Aer F120 Case Version included)
Front: 2 x 140mm or 2 x 120mm with Pull Rear: 1 x 120mm
80mm Fans
No
120mm Fans
2
140mm Fans
No
Side Air duct
Yes
Dimensions & Weight
Max GPU Length
381 mm
Max CPU Cooler Height
165 mm
Max PSU Length
150 mm
Dimensions (H x W x D)
18.11" x 8.27" x 16.85" w/ feet 17.13" x 8.27" x 16.85" w/o feet
Weight
14.55 lbs.
Additional Info
Features
With a USB 3.1 Gen2-compatible USB-C connector on the front panel, it’s easier than ever to connect smartphones, high-speed external storage, or the latest peripherals to your PC
The clean, modern design, iconic cable management bar, and uninterrupted tempered-glass side panel showcase your stunning build.
Cable management can often take more time than assembly. We designed a cable routing kit with pre-installed channels and straps, for intuitive and easy wiring.
Two Aer F120mm fans are included for optimal internal airflow and the front panel and PSU intakes include removable filters. Includes a removeable bracket designed for radiators up to 280mm simplifies the installation of either closed-loop or custom-loop water cooling.
