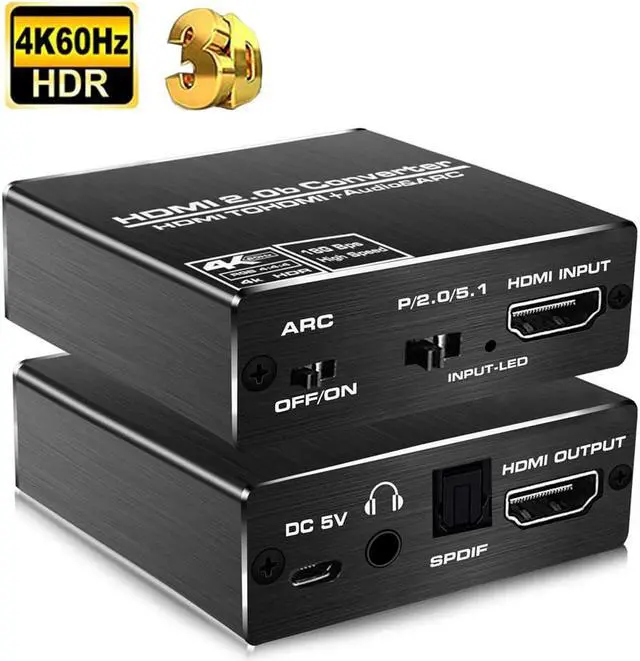

Aluminum Shell HDMI Audio Extractor Splitter 4K@60Hz hdmi to hdmi SPDIF 3.5mm Audio Adapter Converter Output Support 18Gbps, HDCP 2.2, 1080P@120Hz, 1080P@144Hz 3D Compatable for PS4 Fire Stick

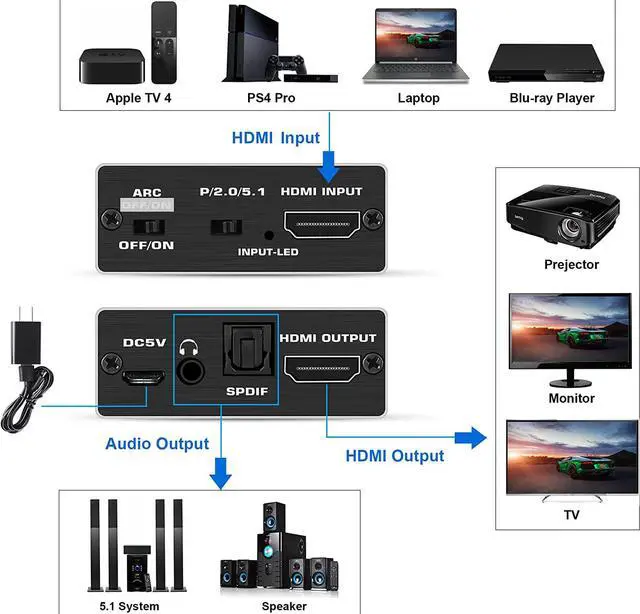

One HDMI Input to one HDMI Output(Pass Mode), Toslink SPDIF (Optical) digital audio output(2.0CH/5.1CH Mode), and 3.5mm stereo audio output(2CH Mode), achieving the synchronization of audio signal separation, guarantees audio and video transmission with high-fidelity and lossless



• Specifications:
• HDMI Resolution: 4K2K/3D/1080P/720P/576P/480P/480i
• Support video color format: 24bit/deep color 30bit,36bit
• Max bandwidth: 600MHZ
• Max baud rate: 18Gbps

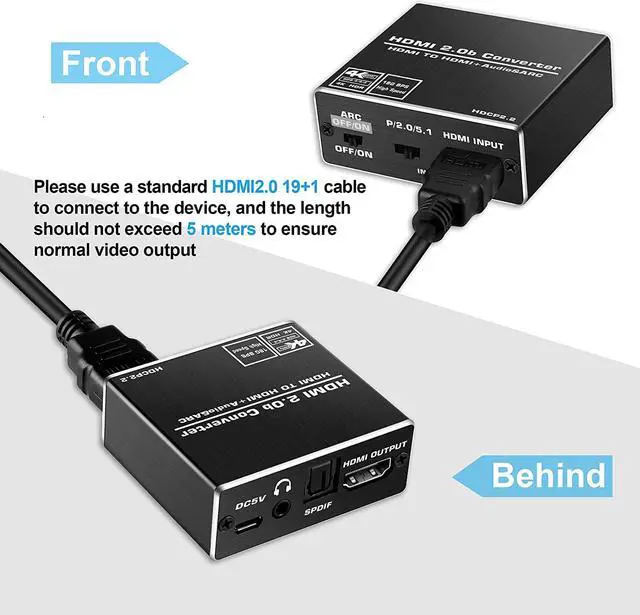

• Input cable distance: 10m AWG26 HDMI standard cable
• Output cable distance: 10m AWG26 HDMI standard cable
• Max working current: 350mA



Features:

• Support 4K x 2K@60Hz, Support 3D
• Support blue-ray 24/50/60fs/HD-DVD/XVYCC
• Digital audio format, as dts-hd/dobly-truehd/LPCM7.1/DTS/dobly-ac-3(not support always Dobly Digital plus)
• Need DC5V power supply.

Package include:

• 1 X HDMI Audio Extractor
• 1 x 5V/1A Power Adapter
• 1 X User Manual



[HDMI 2.0b Specification compliant]

Our HDMI 2.0b Audio Extractor supports up to 4Kx2K at 60Hz RGB4:4:4, Ultra HD/3D, HDR, ARC(Audio Return Channel); Supports HDCP2.2 with 18Gbps bandwidth and 24/30/36 bit deep color.(Note: You must plug in the HDMI ARC port when starting the ARC function.

[Wide Compatibility]

This 4k HDMI Audio Extractor is suitable for most devices with standard HDMI interface. Such as Blu-ray/ DVD/ HD player, cable/satellite box, Amazon Fire TV, Apple TV, PS3/4, PS5, Xbox, PC/laptop, HD camera, HD DVR etc.(Need DC5V power supply)

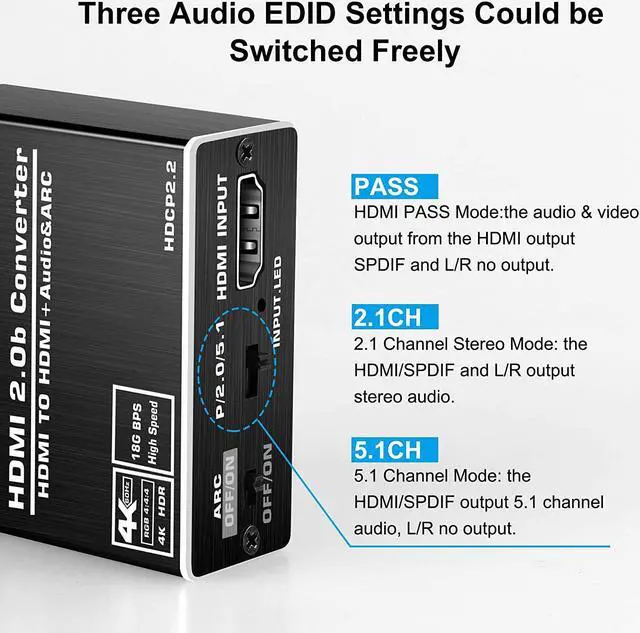

[Three Audio EDID Settings]

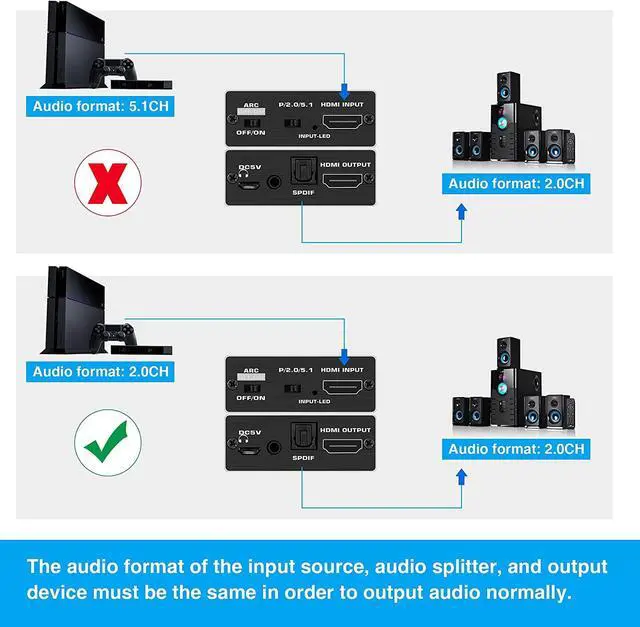

There are Pass, 2.0CH and 5.1CH three kinds of audio mode options. 3.5mm audio output supports 2.0CH PCM LPCM stereo audio. Toslink SPDIF Output supports 2.0CH PCM, 5.1CH Dobly Digital, Dobly TrueHD, DTS-HD, DTS. (Note: Our Audio Extractor can't decode these audio formats. If your Amplifier or soundbar can't support these audio formats, there will no audio on your soundbar or amplifier, so please set audio format on HDMI Source to PCM/ LPCM audio format.)





NOTE:

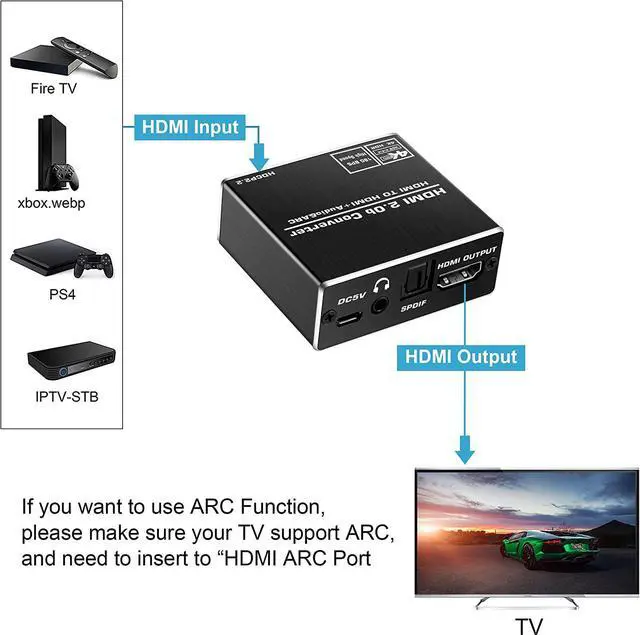

1. When you use ARC Function, please make sure the spdif port light is red on,' that is means the converter get signal. And the TV need support ARC.
2. When you open the ARC, then the TV remote will can not control the volume, you can only adjust the volume on your speaker/sounder/home theater.
3. Please do not plug HD TV to HDMI input of converter otherwise you could not get any signal.

Support ARC Function:

Our HDMI Audio Extractor supports ARC Function, you can listen to music in night or anytime without worring to disturb others.

How to use:

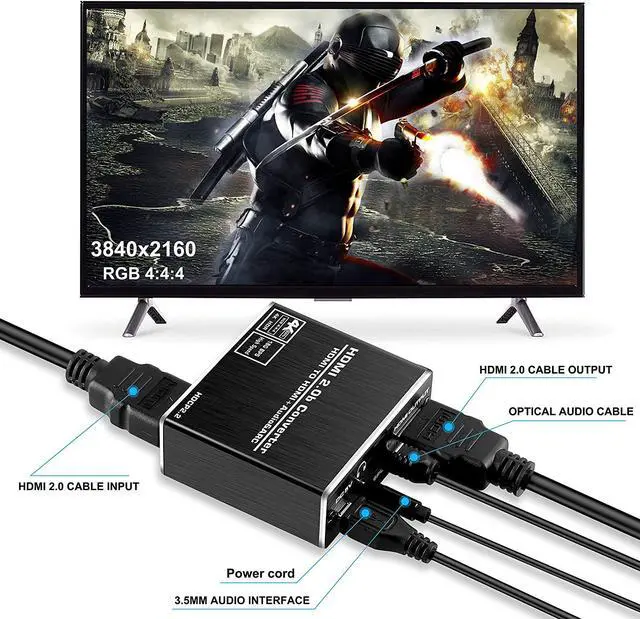

Connect your TV HDMI(ARC) Port to this switch HDMI Output Port with HDMI Cable, then using optical cable to the soundbar, Speaker, home theater, A/V receivers etc./3.5mm cable to the headphone. No distortion of audio or



High resolution

Support up to 4K@60hz, HDCP 2.2, HDMI 2.0b, HDR, RGB4:4:4

High speed bandwidth of 18.2 Gbps and stable transmission of high-definition video signals with smooth and undistorted picture quality.
