Features:
Support signal amplify
Support deep color 36bit
Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
HDMI resolution: Up to 4K/30HZ 1080P/60HZ, 3D
POWER SUPPLY PORT
For stable AV signal
Power source: DC 5V
Working current:500MA
HDMI SPLITTER FOR DUAL MONITOR RESOLUTION SUPPORT
Support 4K, 3480x2160p, 3D, and 480i@60Hz | 480p@60Hz | 576i@50Hz | 576P@50Hz | 720p@50/60Hz | 1080i@50/60Hz | 1080p@50/60Hz | 1080P/24Hz | 3D/720 60Hz | 4K@30HZ [For 4K resolution, The frequency can't above 30Hz]Not compatible with HDCP2.2.
---What it can do?

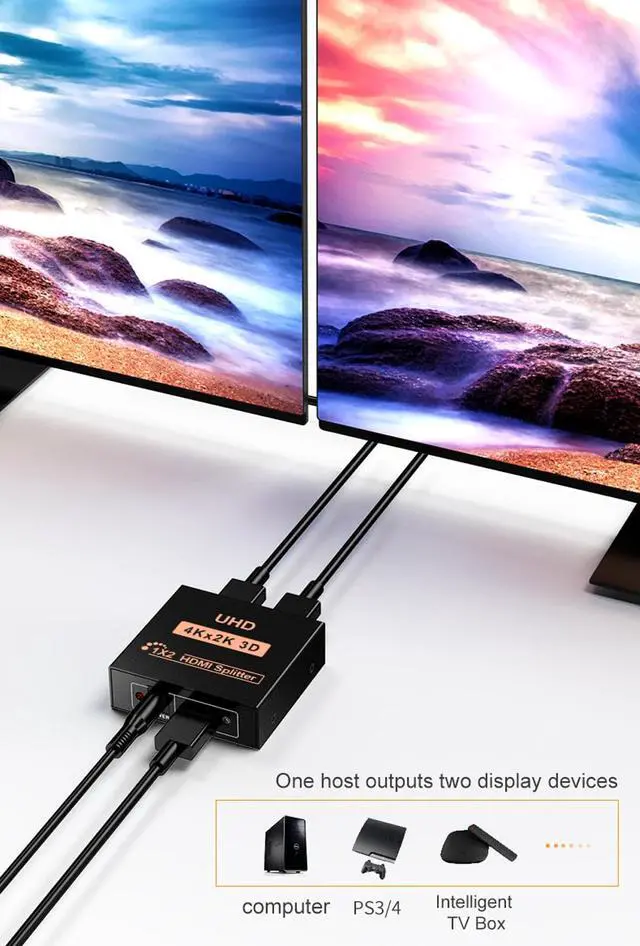

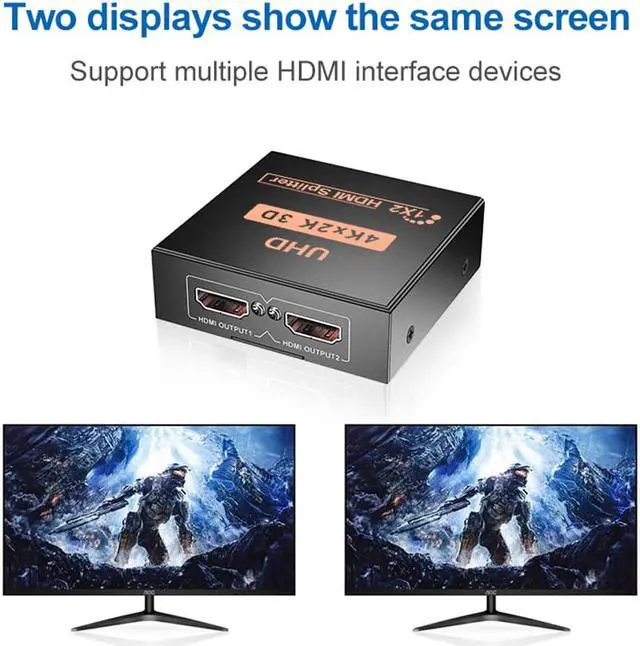

- This 1 in 2 out hdmi splitter supports mirror/duplicate(A-AA) mode.
- But if you use laptop or PC as input source, so you have 3 screens, you can extend 2 same screen like the picture. Meanwhile press 'win+p' in the laptop to use extended mode. At that time, you can work on laptop, and show the 2 same screens. (This is A-BB mode)
---What it can't do?
- It can't output 2 different screens. Can't extended 2 different screens.

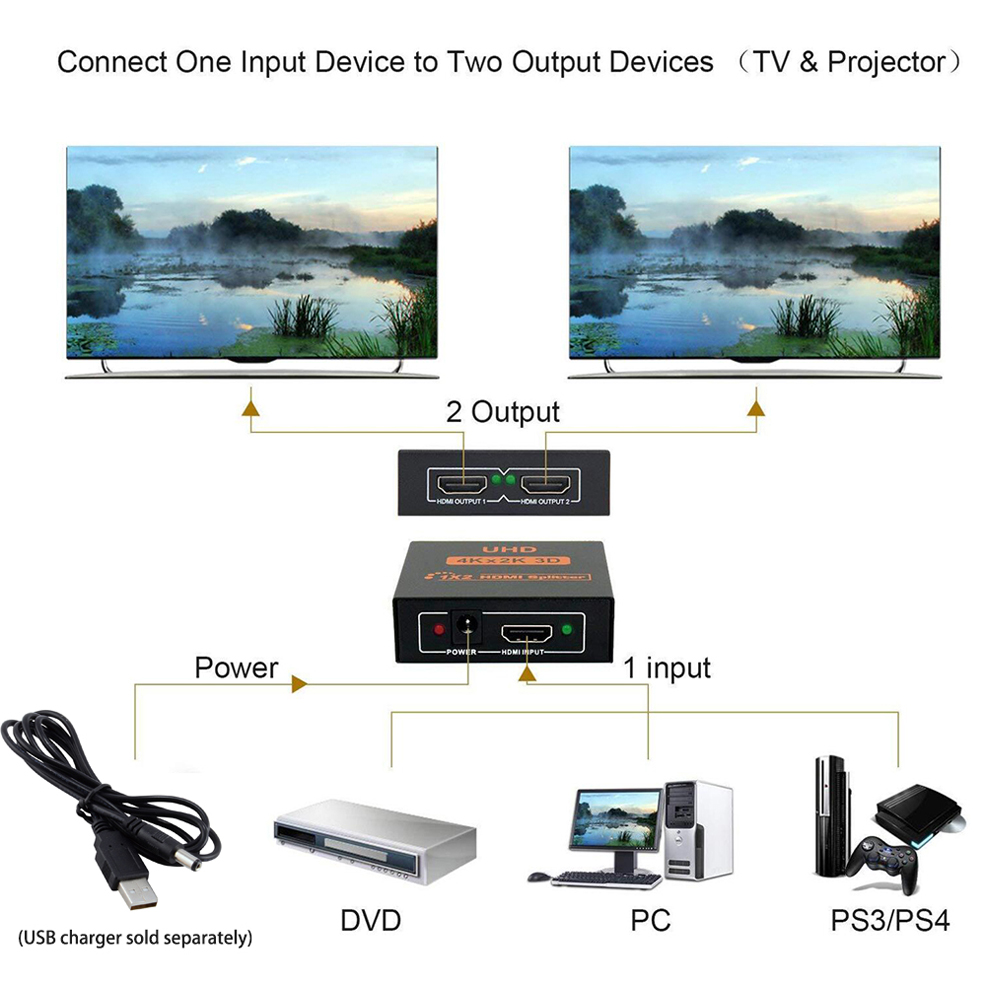

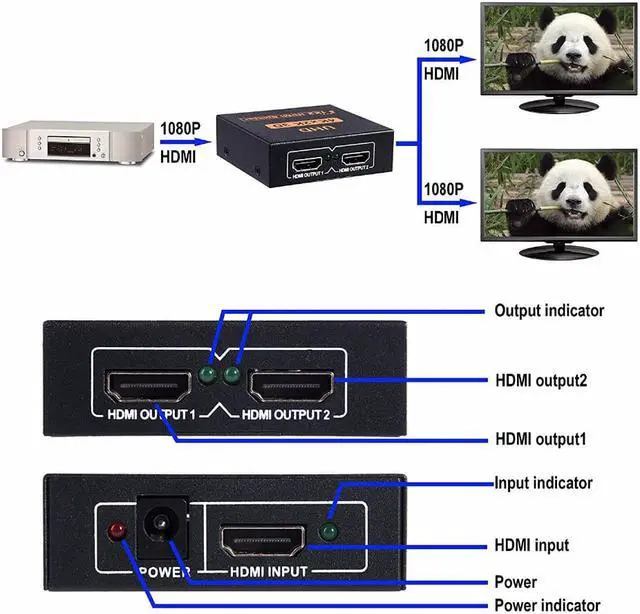

2PORT HDMI Splitter, HDMI Splitter 1 in 2 out allows 2 monitors to share 1 HDMI source at 4K HD video quality. ( IMPORTANT NOTE: Just mirror/duplicate, can not extended or split, output the same display into 2 monitors)
HDMI Splitter dual monitors supports 4KX2K@30HZ, 1080p@60Hz,720p@60Hz frequency Rate at 10.2 Gbp. Compatiable with HDMI 1.4/1.3/1.2, Support HDCP 1.4 (HDMI SPLITTER BYPASS HDCP). Plug and play. It can't work for HDMI 2.0/2.1
This 4k 1x2 HDMI splitter supports distance up to 110ft (50ft from splitter to moitor, 60ft to PC/ps4) and daisy chain for more monitors. Heavy metal shell for heat dissipation.
4K Power HDMI splitter suitable for most devices with standard HDMI interface. Input: Computer, XBox one, PS3, PS4 Pro, Fire Stick, Blu-Ray DVD player, Roku, etc. Output: Full HsD TVs, monitors, etc.
Warm Note:
1. if the resolution of the 2 monitors is different like 720P and 1080P, it automatically outputs the lower resolution 720P on bother monitors. So 4K monitors are prefered as this splitter is 4K splitter.
2. This hdmi splitter for dual monitors can't output two different screen (screen extension). But if your graphic card support screen extension with 2 valid ports like (vga and hdmi) on the computer, it won't prevent from using other computer port for extension.
3. Why it's no audion after hooking up on TV or monitor with audio?
If your computer is being connected with audio device like headphone or amplifier, that means the computer doesn't send audio to the TV. Please right click Audio icon on the botton right of your computer, click open Audio Setting, then select the audio name of the TV. Normally, Realtek Digital Output or Realtek High Definition Audio is not audio for TV.
