LSI 9361-24i x8 lane PCI Express 3.0 Low Profile SATA / SAS High Port Count 12Gb/s PCI Express SATA + SAS RAID Controller
Be the first to review this product...
RAID 0/1/5/6/10/50/60
6 x SFF-8643 mini-SAS HD Internal Connectors
Up to 12Gb/s
+
+
Overview
Specs
Reviews

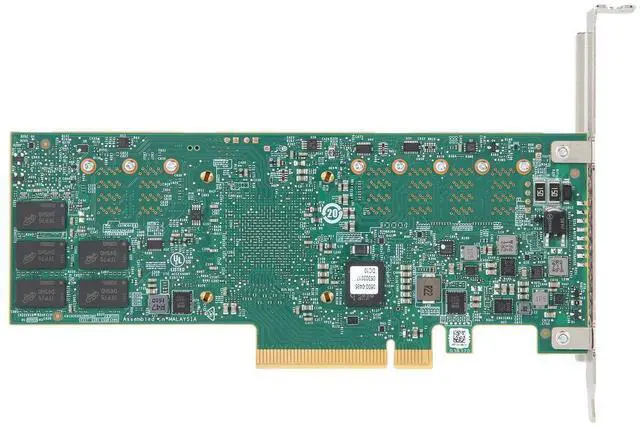

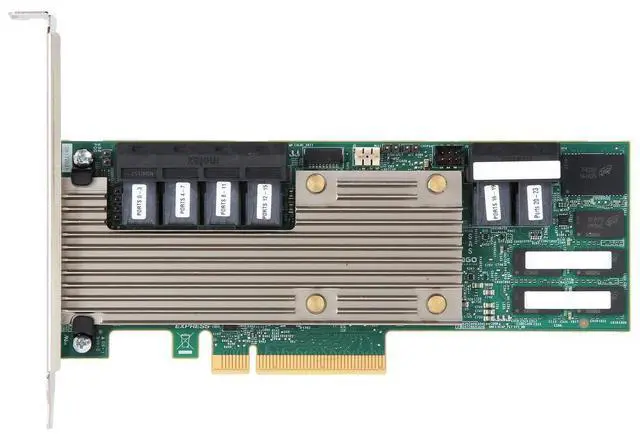

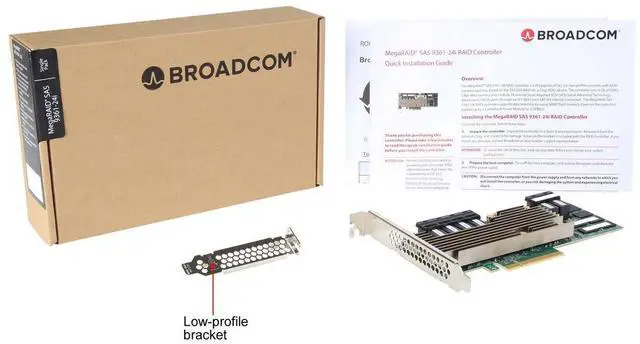

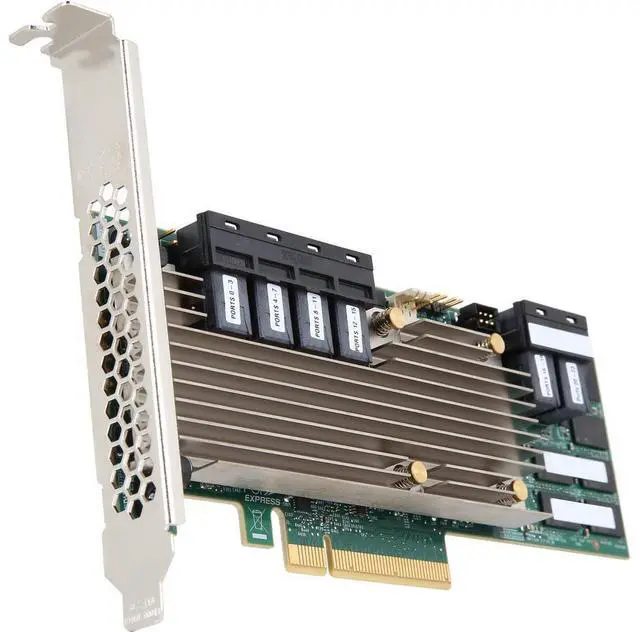

LSI 9361-24i x8 lane PCI Express 3.0 Low Profile SATA / SAS High Port Count 12Gb/s PCI Express SATA + SAS RAID Controller
Learn more about the LSI 9361-24i
Model
Brand
LSI
Model
9361-24i
Part
05-50022-00
Form Factor
Low Profile
Details
Type
SATA / SAS
Internal Connectors
6 x SFF-8643 mini-SAS HD
Interface
x8 lane PCI Express 3.0
Transfer Rate
Up to 12Gb/s
Cache Memory
4GB 2133 MHz DDR4 SDRAM
RAID
RAID 0/1/5/6/10/50/60
Operating Systems Supported
Microsoft Windows, Linux (Oracle, SuSE, Red Hat), Solaris, VMware, FreeBSD, CentOS, Canonical, Citrix, Fedora, Debian.
Dimensions
2.72" x 6.60" (H x W)
Features
Features
High performance 12Gb/s data transfer rates Twenty-four internal 12 Gb/s SATA+SAS ports Six mini-SAS SFF8643 internal connectors SAS3324 RAID-on-Chip Dual-core 1.2 GHz PowerPC 476 24 Native 12Gb/s SAS / SATA ports PCI Express 3.0 host interface 4GB DDR3 cache memory RAID levels 0, 1, 5, 6, 10, 50, and 60 Support for CacheVault flash cache protection
