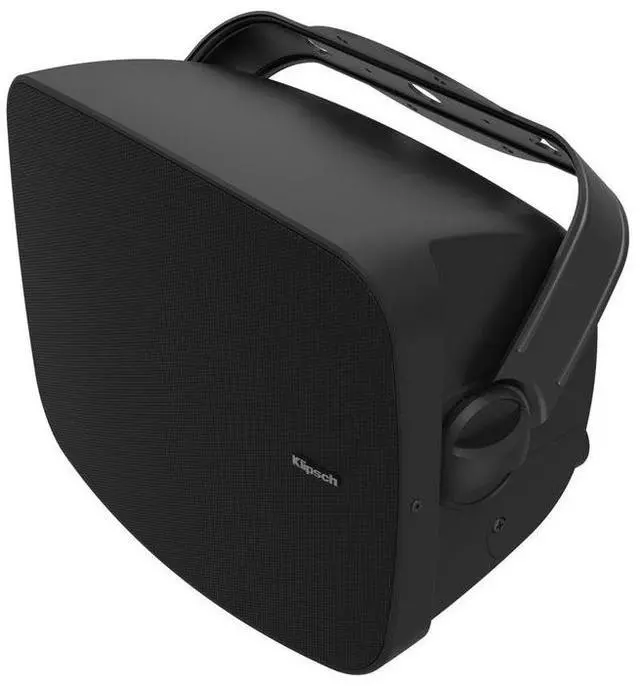

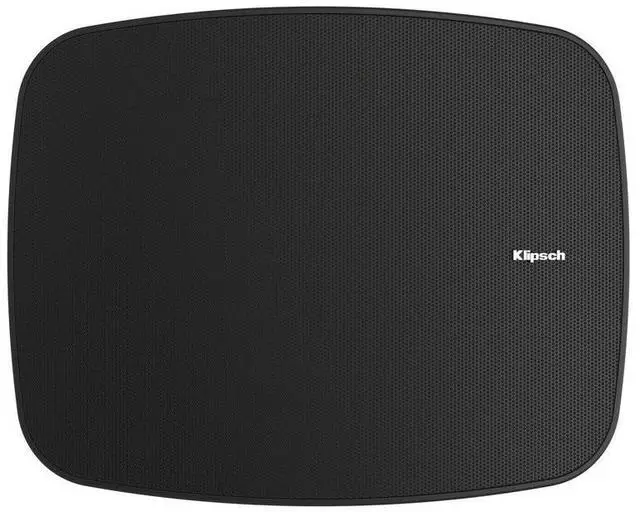

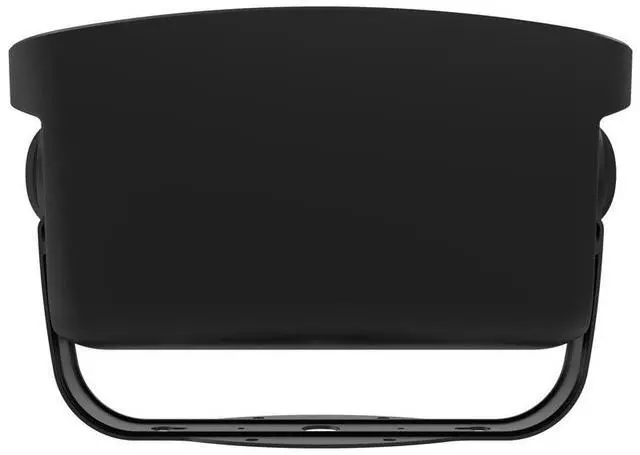

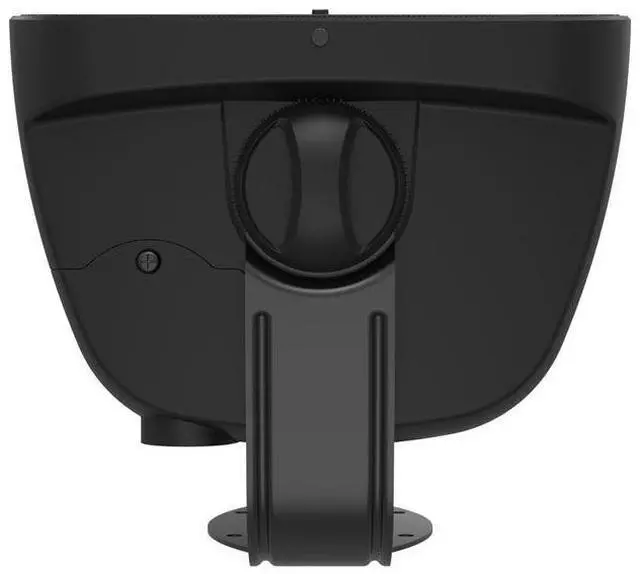

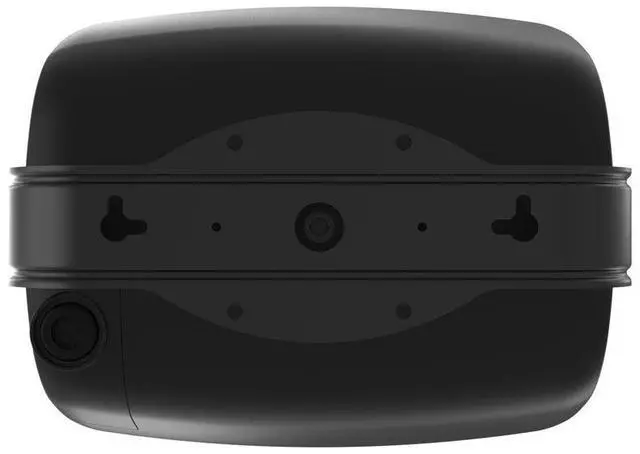

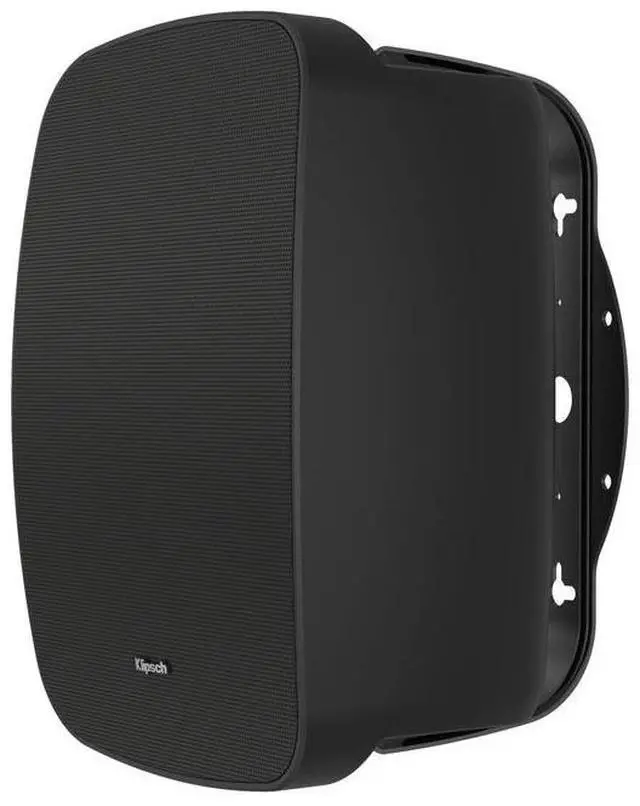

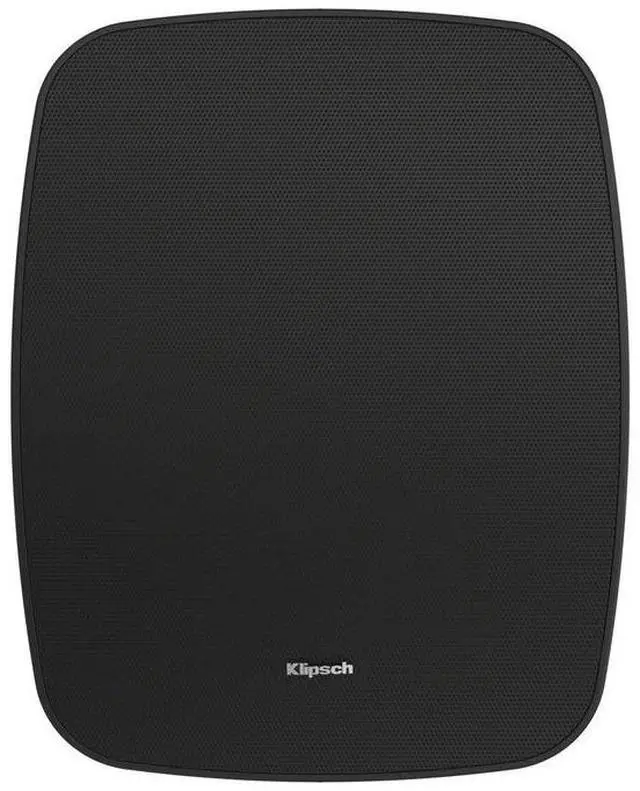

Klipsch PSM-525-T Commercial Loudspeaker
- Big Bass: The Tractrix Hyperfold Port features a 5-step folded design to maximize bass output in a compact size. It eliminates port noise for clean sound and wide dispersion.
- IPX6 Weatherproof: Built for tough commercial environments. These speakers are water-resistant and rainproof for safe indoor and outdoor use.
- Clear Highs: A 1-inch Titanium compression driver and mumps technology provide even, ultra-wide coverage across the room.
- Versatile Power: Includes a multi-tap transformer for 70V or 100V commercial setups, plus an 8-ohm bypass position.
- Easy Install: Phoenix connectors ensure fast, intuitive wiring, while included set screws keep the grilles permanently secured in any environment.
Klipsch PSM-525-T Full-Range 5.25" Indoor/Outdoor Professional Surface Mount Loudspeaker
Specifications
| FREQUENCY RESPONSE | 58Hz-20kHz +/-4dB, 48Hz -10dB |
|---|---|
| POWER HANDLING | 65 watts (16.7V) 55Hz-10kHz (260 watts peak) |
| CALC. MAX. CONT. OUTPUT | 104dB |
| SENSITIVITY | 89dB |
| COVERAGE | 100-degree +/-20-degree 1kHz-20kHz |
| DIRECTIVITY INDEX | 7dB +/-1.5dB 1kHz-20kHz |
| NOMINAL IMPEDANCE | 8 ohms 4.3 ohms at 175Hz minimum |
| ACOUSTIC CROSSOVER | 2kHz |
| TRANSDUCERS | 5.25" woofer, 1" titanium compression driver, on a K-1200M horn/tweeter bridge |
| ENCLOSURE MATERIAL | All Weather ABS Plastic, Paintable |
| IP RATING | IPX6 |
| ENCLOSURE TUNING | Vented via 3 folded Tractrix ports |
| INPUT CONNECTORS | 4 pin euro block |
| TRANSFORMER TAPS | 70V: 30W, 15W, 7.5W, 3.8W / 100V: 30W, 7.5W, 3.8W / Bypass position: 8 ohms nominal |
| DIMENSIONS [WITH BRACKET] | 12.13" (309mm) x 9.5"(242mm) x 6.5"(166mm) [8.38"(213mm)] |
| WEIGHT | 7.75 lbs (3.52kg) |
