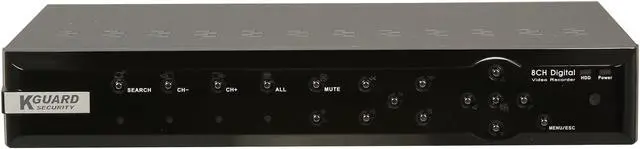

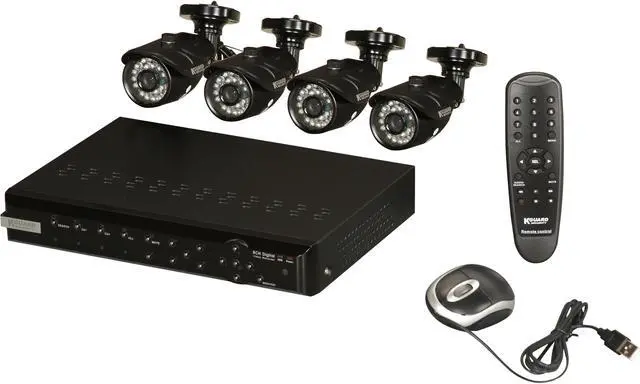

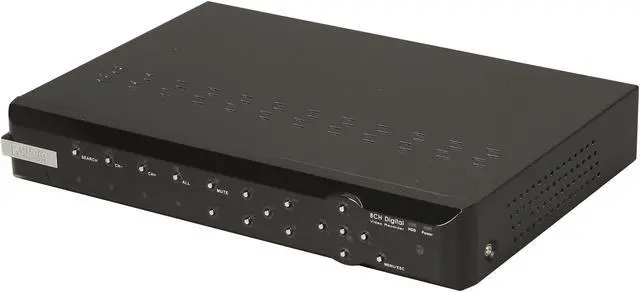

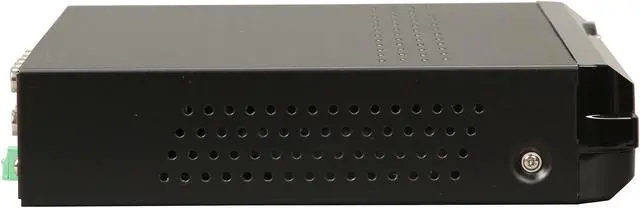

KGuard NS801-4CW214H 8 Channel H.264 Level Surveillance DVR Kit

(4) Write a Review
  • 8 x BNC
  • H.264 Level
  • Up to 2TB / 1 SATA Fixed HDD Rack
  • 8 Channel
  • Bundled Camera Number 4
Specs
Reviews (4)

Learn more about the KGuard NS801-4CW214H

Model
Brand KGuard
Model NS801-4CW214H
Type Kit Solution
Recording
Camera inputs 8 Channel
Video Input 8 x BNC
Audio Input 1 x RCA
Resolution Recording NTSC: CIF(352x240) / HD1(704x240) / D1(704x480)
PAL: CIF(352x288) / HD1(704x288) / D1(704x576)
Recording Frame Rate NTSC: 240fps-CIF / 120fps-HD1 / 60fps-D1
PAL: 200fps-CIF / 100fps-HD1 / 50fps-D1
Recording Mode Always / Schedule / Motion Detection
Recording Compression H.264 Level
Display

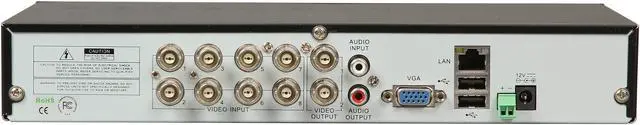

Video Output 2 x BNC, 1 x VGA
Audio Output 1 x RCA
Resolution Display NTSC: 704x480, PAL: 704x576
Display Frame Rate NTSC: 240fps, PAL: 200fps
Details
Storage Capacity Up to 2TB / 1 SATA Fixed HDD Rack
Backup Device USB 2.0 Flash Disk / USB 2.0 HDD drive / Network
Network
Network Connection RJ45, 10M/100M
Network Protocol Supports TCP/IP, DHCP,DDNS, PPPoE
Network Remote Internet Viewing: IE and Safari Browser Supported

Mobile Phone Viewing on 3G Network: Symbian, Windows Mobile, iPhone, Blackberry and Android Phone

Tablet Device Viewing: iPad, Android Pad
Features
Operating System Linux
Power Supply DC12V / 2A
System Requirement OS: Windows 2000, XP, Vista and 7

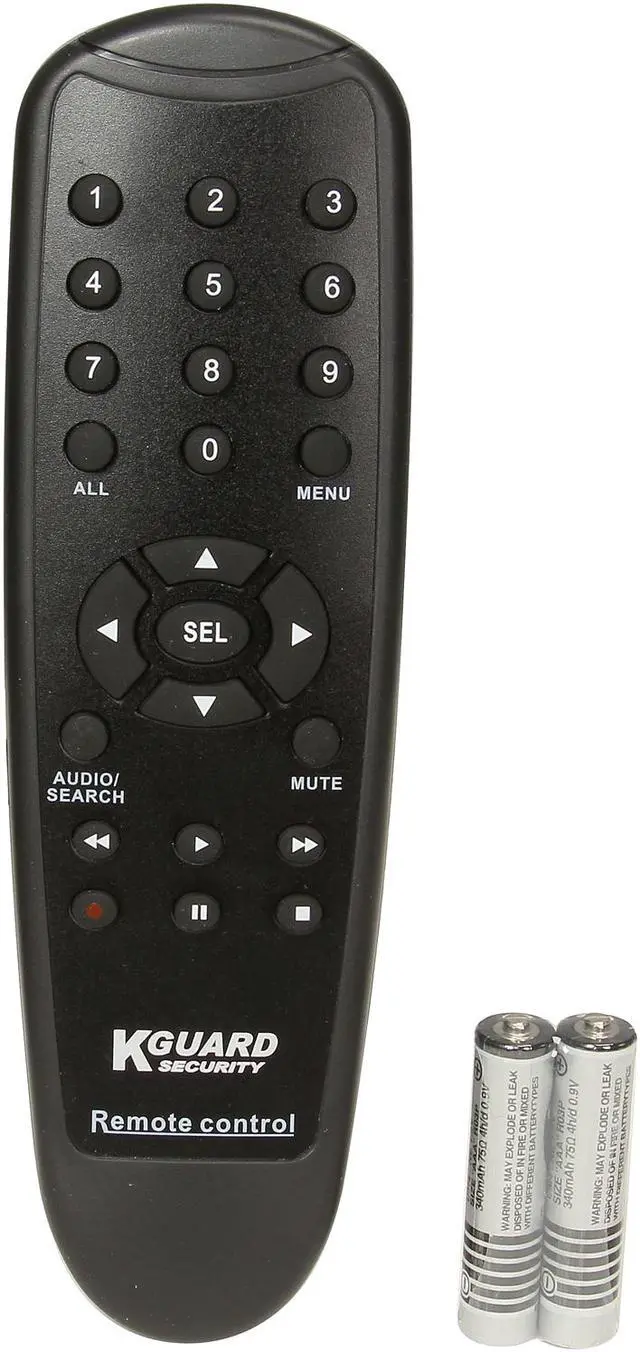

Remote Control Yes
Bundle

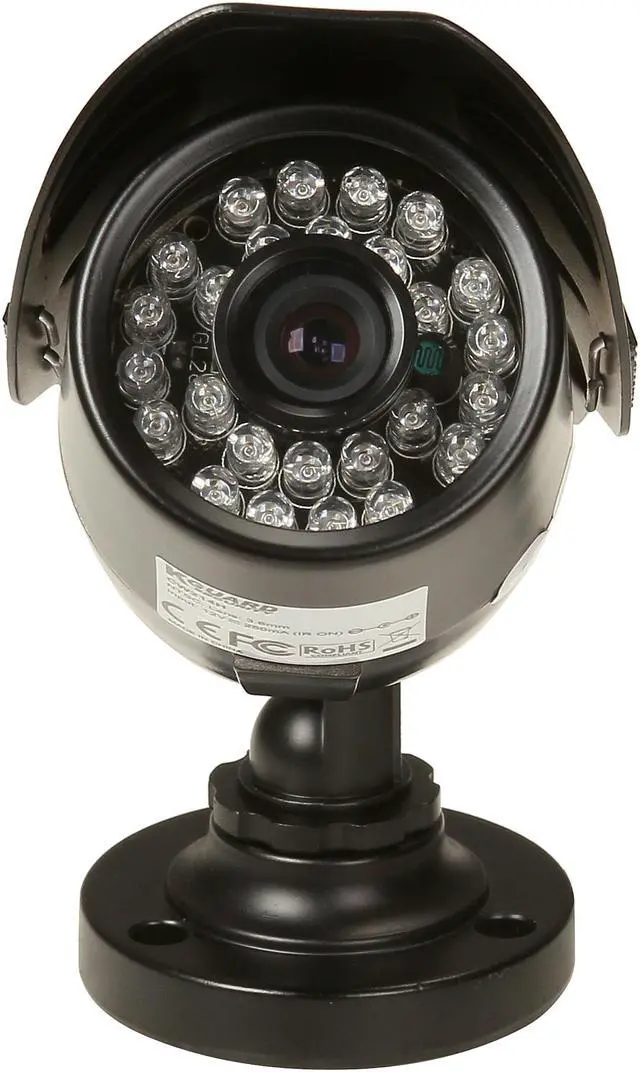

Bundled Camera Number 4

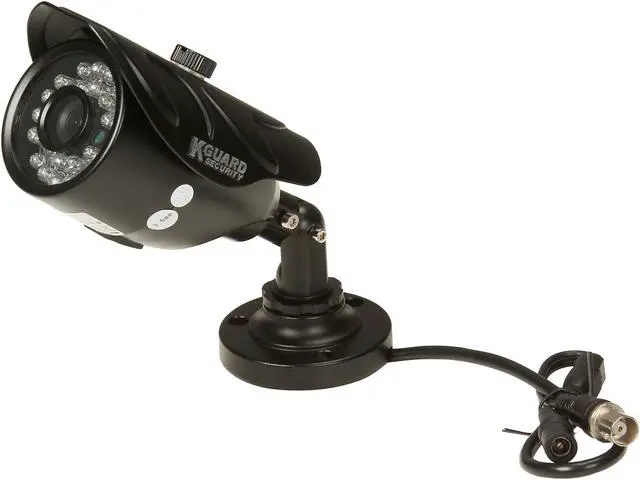

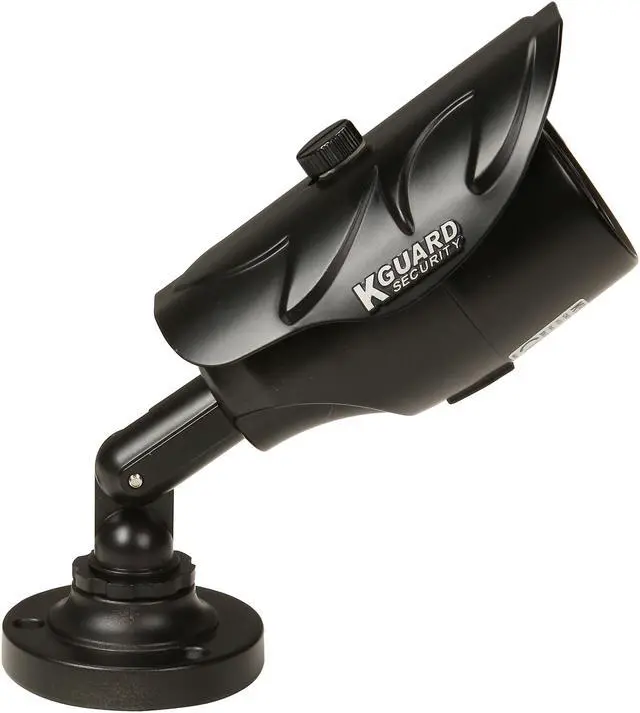

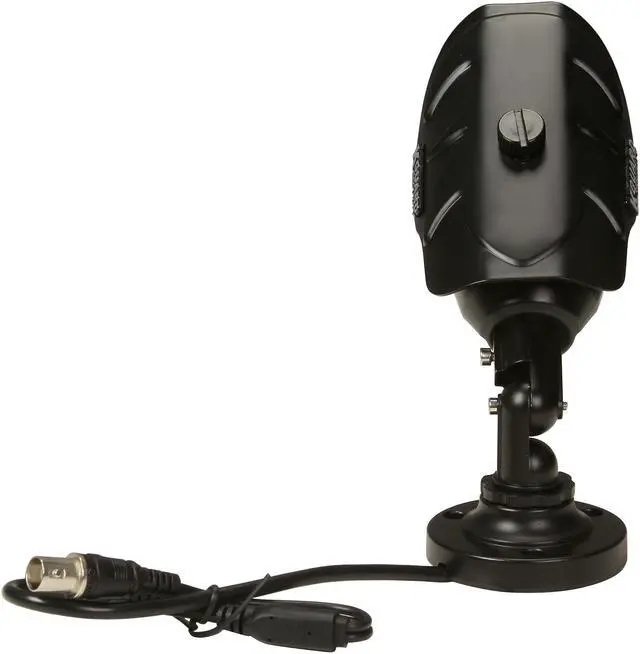

Bundled Camera Spec Sensor: 1/4 SHARP Color CCD

Number of effective pixels NTSC: 512(H) x 492(V)

Number of effective pixels PAL: 500(H) x 582(V)

TV System: NTSC / PAL

Minimum Illumination: While Infrared LED ON 0 lux

Horizontal Resolution: 420 TV Lines

Electronics Shutter NTSC: 1/60-1/120,000(sec)

Electronics Shutter PAL: 1/50-1/120,000(sec)

Len: 3.6mm

View Angle: 65 Degrees

Infrared Distance: 20M (60 ft.)

Infrared LED: 24 pcs

Weatherproof Housing

Anti-cut Bracket
Packaging

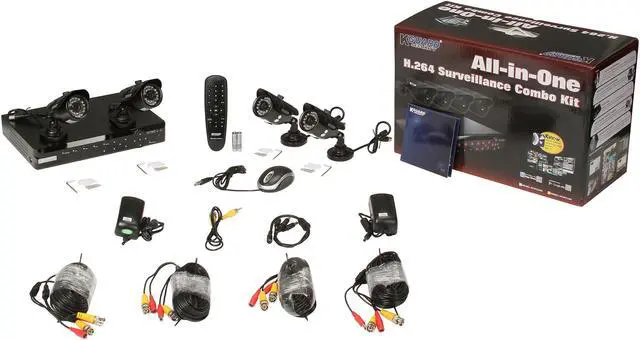

Package Contents 1 x DVR
1 x Remote Control
1 x USB Mouse
1 x Remote Control
1 x Power Adapter
1 x DVR Quick Guide
1 x Software CD
1 x RCA to BNC Cable
1 x Screw Kit

4 x Camera
4 x Slim Cable
4 x Screw Kit
1 x 4-Way Split Power Cable
1 x Camera Quick Guide
1 x Camera Adapter
1 x Position Gasket
Additional Information
First Listed on Newegg September 06, 2012

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
