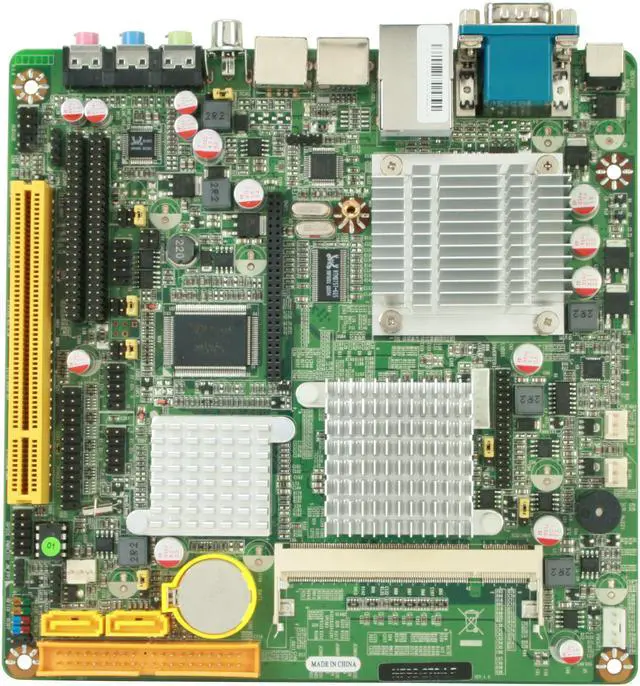

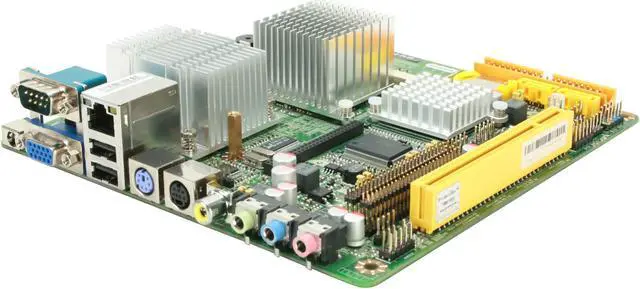

JetWay JNF92-270-LF Intel Atom N270 PBGA437 Intel 945GSE Mini ITX Motherboard / CPU Combo

Be the first to review this product...
  • Intel Atom
  • DDR2 533/400
  • Intel GMA 950
Specs
Reviews

Learn more about the JETWAY JNF92-270-LF

Model
Brand JetWay
Model JNF92-270-LF
Combo Type Motherboard / CPU Combo
Bundle
CPU Intel Atom N270
Supported CPU
CPU Socket Type PBGA437
CPU Type Intel Atom
FSB 533MHz
Chipsets
North Bridge Intel 945GSE
South Bridge Intel ICH7-M
Memory
Number of Memory Slots 1x200pin SO-DIMM
Memory Standard DDR2 533/400
Maximum Memory Supported 2GB
Expansion Slots
PCI Slots 1 x PCI Slot
Storage Devices
PATA 1 x ATA 100 2 Dev. Max
SATA 2 x SATA 3.0Gb/s
Onboard Video
Onboard Video Chipset Intel GMA 950
Onboard Audio
Audio Chipset Realtek ALC662
Audio Channels 6 Channels
Onboard LAN
LAN Chipset Realtek 8111DL
LAN Speed 10/100/1000Mbps

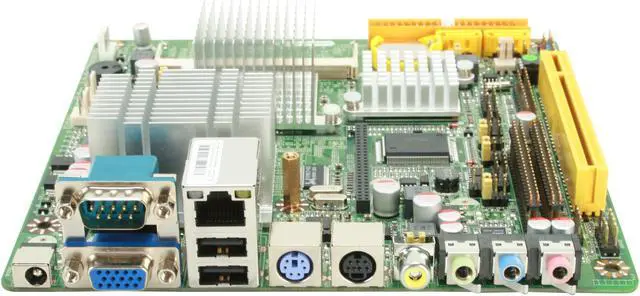

Rear Panel Ports
PS/2 1 x Keyboard connector
COM 1
Video Ports D-Sub
S-Video 1
USB 1.1/2.0 2 x USB 2.0
S/PDIF Out 1 x Coaxial
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 2 x USB 2.0/1.1 headers for 4 USB 2.0 ports
Features
Features Power On Board
Onboard 18-bit dual channel LVDS connector
Support Watch dog Technology
Physical Spec
Form Factor Mini ITX
Dimensions (W x L) 6.7" x 6.7"
