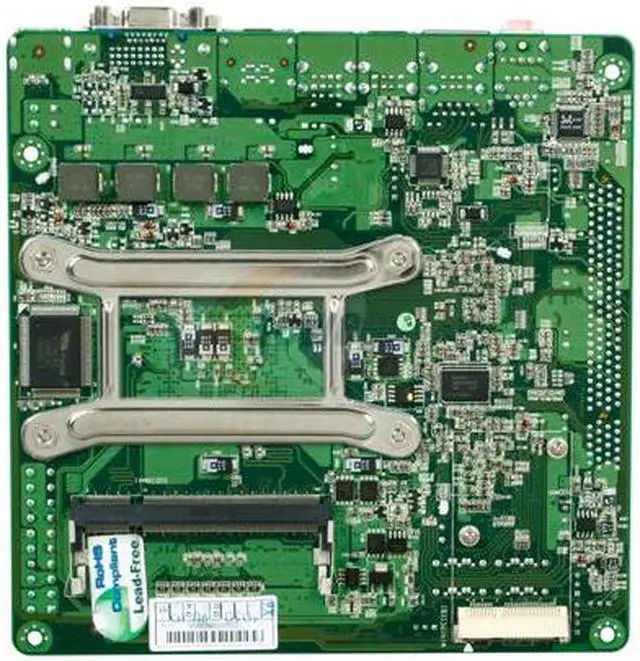

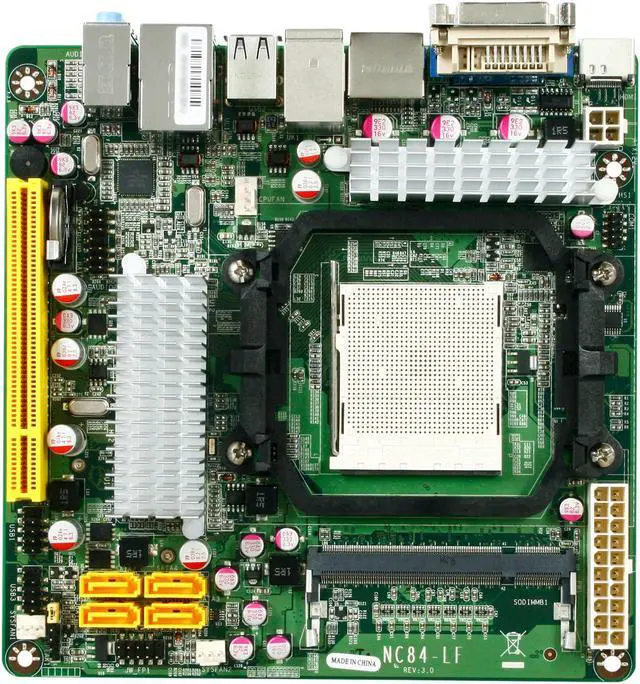

JetWay JNC84-LF AM3/AM2+/AM2 AMD 785G HDMI Mini ITX AMD Motherboard
- AMD 785G
- Phenom II / Phenom / Athlon II / Athlon64 /Sempron
- DDR2 667/800
Specs
Reviews (1)
Learn more about the JETWAY JNC84-LF
| Brand | JetWay |
|---|---|
| Model | JNC84-LF |
| CPU Socket Type | AM3/AM2+/AM2 |
|---|---|
| CPU Type | Phenom II / Phenom / Athlon II / Athlon64 /Sempron |
| Chipset | AMD 785G |
|---|---|
| South Bridge | AMD SB750 |
| Number of Memory Slots | 2x200pin SO-DIMM |
|---|---|
| Memory Standard | DDR2 667/800 |
| Maximum Memory Supported | 4GB |
| Channel Supported | Dual Channel |
| PCI Slots | 1 x PCI Slot |
|---|---|
| Mini Card Slots | 1 x Mini PCIe |
| SATA RAID | 0/1/5/10 |
|---|
| Onboard Video Chipset | ATI Radeon HD 4200 |
|---|
| Audio Chipset | Realtek ALC662 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Realtek 8111DL |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x D-Sub / 1 x DVI / 1 x HDMI / 1 x PS/2 / 3 x Audio Jacks / 6 x USB 2.0/1.1 |
|---|---|
| PS/2 | 1 |
| Video Ports | D-Sub + DVI |
| HDMI | 1 x HDMI |
| USB 1.1/2.0 | 6 x USB 2.0 |
| eSATA | 2 x eSATA 3Gb/s |
| Audio Ports | 3 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.7" x 6.7" |
| Power Pin | 20 Pin |
| Features | Advanced 3+1 PWM Design, 20-pin ATX Power OC-CON High-Polymer Solid Capacitors Support CPU Smart FAN, Ready for Windows 7 |
|---|
| First Listed on Newegg | March 30, 2010 |
|---|
