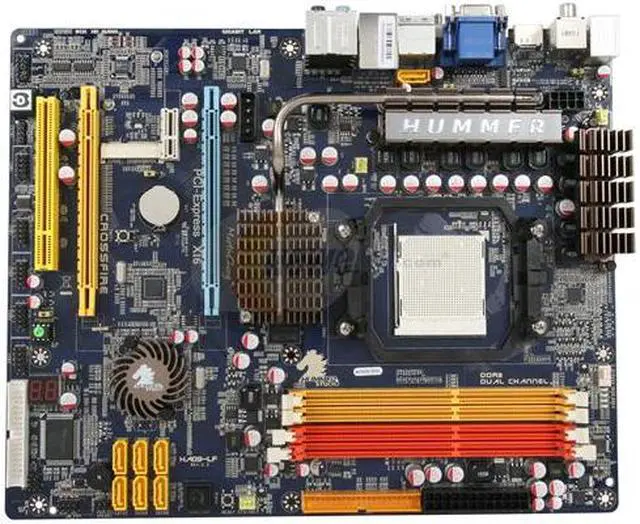

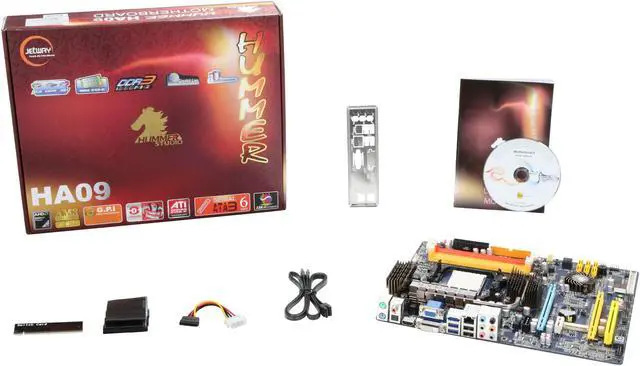

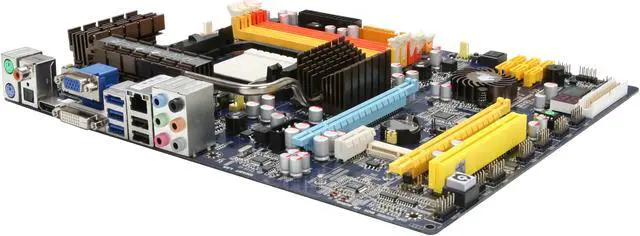

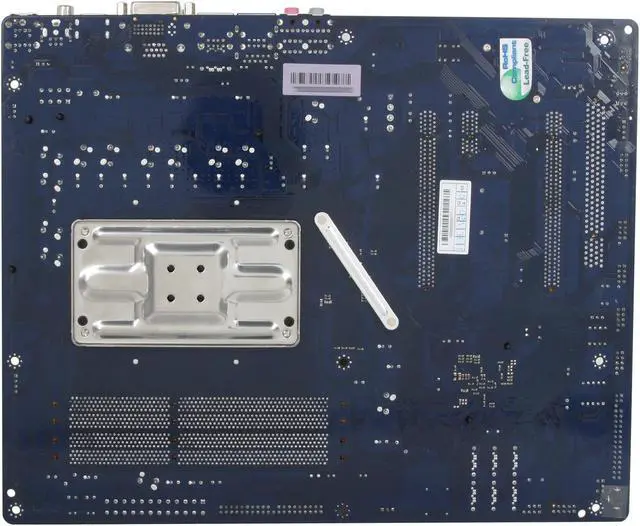

JetWay HUMMER JHA-09-LF AM3 AMD 890GX HDMI SATA 6Gb/s ATX AMD Motherboard
- AM3
- AMD 890GX
- 4×240pin DDR3 1333/1066
Specs
Reviews (5)
Learn more about the JETWAY JHA-09-LF
| Brand | JetWay |
|---|---|
| Model | JHA-09-LF |
| CPU Socket Type | AM3 |
|---|---|
| CPU Type | Phenom II / Athlon II / Sempron |
| Chipset | AMD 890GX |
|---|---|
| South Bridge | AMD SB850 |
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR3 1333/1066 |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 2 (x16, x8) Running at x8/x8 in CrossFireX mode |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 1 x PCI Slot |
| Mini Card Slots | 1 x Mini PCIe |
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
|---|---|
| SATA RAID | 0/1/5/10/JBOD |
| Onboard Video Chipset | ATI Radeon HD 4290 |
|---|
| Audio Chipset | Realtek ALC888 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8111DL |
|---|---|
| Max LAN Speed | 1Gbps |

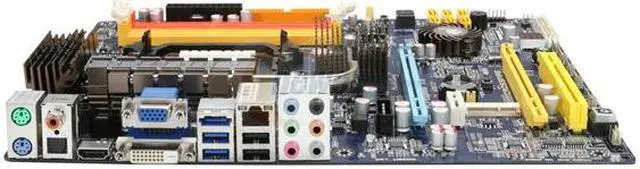

| Back I/O Ports | 1 x D-Sub / 1 x DisplayPort / 1 x DVI / 1 x HDMI / 1 x PS/2 |
|---|---|
| PS/2 | 1 |
| Video Ports | D-Sub + DVI |
| HDMI | 1 x HDMI |
| USB 1.1/2.0 | 4 x USB 2.0 |
| eSATA | 1 x eSATA port (enabling requires the use of one internal SATA port) |
| S/PDIF Out | 1 x Optical, 1 x Coaxial |
| Audio Ports | 6 Ports |
| Onboard USB | 4 x USB 2.0 headers for 8 USB 2.0 ports |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 24 Pin |
| Features | AM3 X6 Processor Ready, supports up to 125W Integrated ATI Radeon HD 4290 Graphics Dedicated 128MB DDR3 Sideport Video Memory Supports ATI CrossFireX & Hybrid CrossFire Technology Mini-PCI Express Slot Unique 3D Audio Technology G.P.I Technology, OC-CON Capacitors Debug LCD, DIY Reset/Clear/Power Buttons |
|---|
| First Listed on Newegg | June 14, 2010 |
|---|
