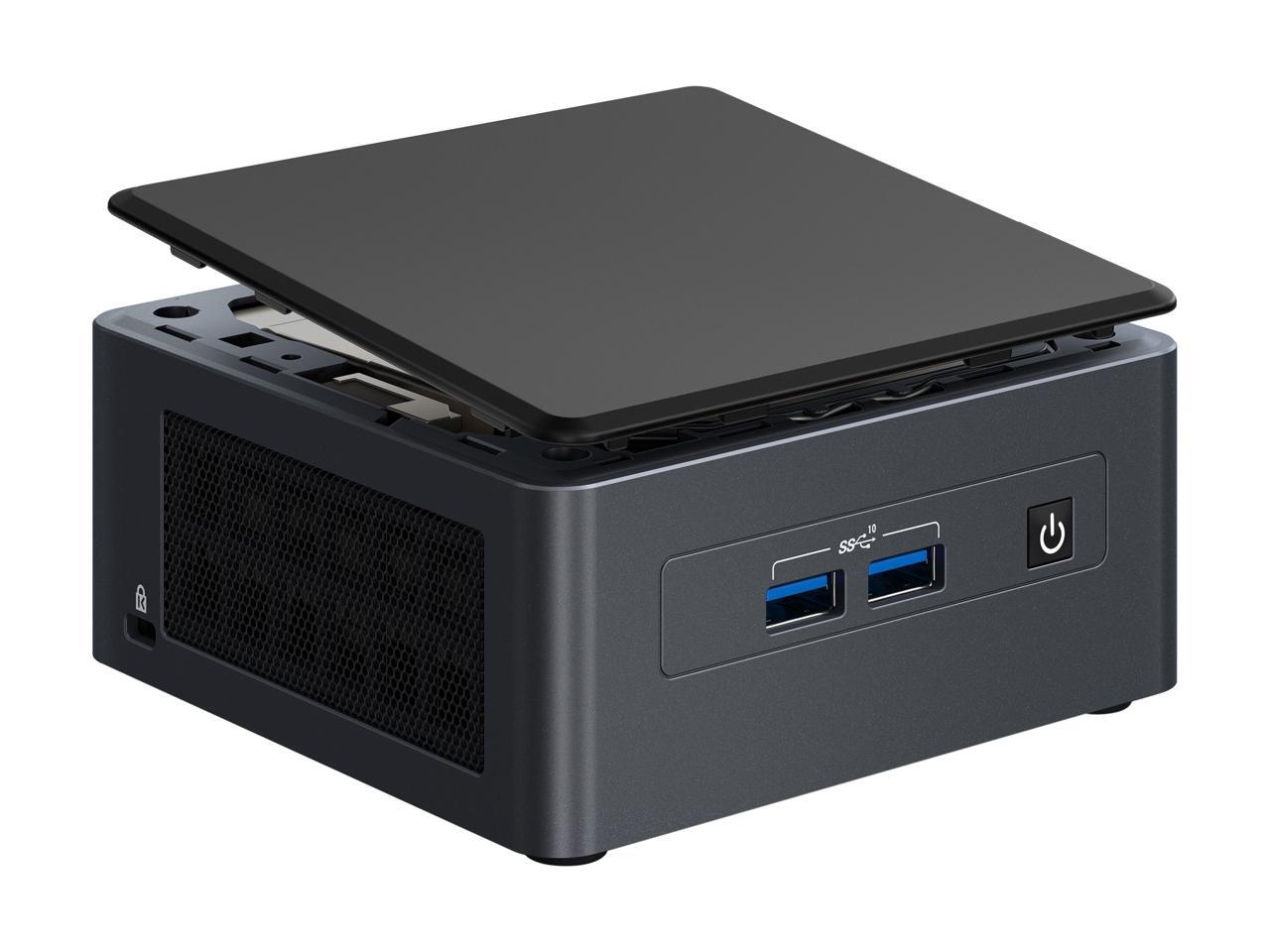

Intel NUC 11 Tiger Canyon 11th gen Core i5-1135G7 BNUC11TNHi50001 Mini PC Barebone System supports M.2 and 2.5" Drive, Dual HDMI 2.0b w/HDMI CEC, Dual DP 1.4a via Type C
Intel Core i5-1135G7 Processor (8M Cache, up to 4.20 GHz)
Memory Supported
Memory installed
No Memory
Memory slot
2 x 260Pin SO-DIMM
Memory Type Supported
DDR4 3200
Max Memory Supported
64GB
Dual Channel Memory Supported
Yes
Expansion Slots
Other
M.2 22x30 (E) PCIe x1: M.2 22x30 (key E)
Storage
Hard Drive Installed
No Hard Drive
Serial ATA
1 x SATA 6.0Gb/s
M.2
M.2 22x80 NVMe (M); 22x42 SATA (B) PCIe x4 Gen 4: M.2 22x80 (key M) PCIe x1 Gen 3: M.2 22x42 (key B)
Graphics
Onboard Video
Intel Iris Xe Graphics
Audio
Channel
7.1 Channel
Communications
LAN
Intel i225-LM
Max LAN Speed
10/100/1000/2500Mbps
Wireless LAN
Intel Wi-Fi 6 AX201 IEEE802.11ax
Bluetooth
Bluetooth 5
Extension Bays
2.5" Internal Bays
1
Front Panel Ports
Front USB

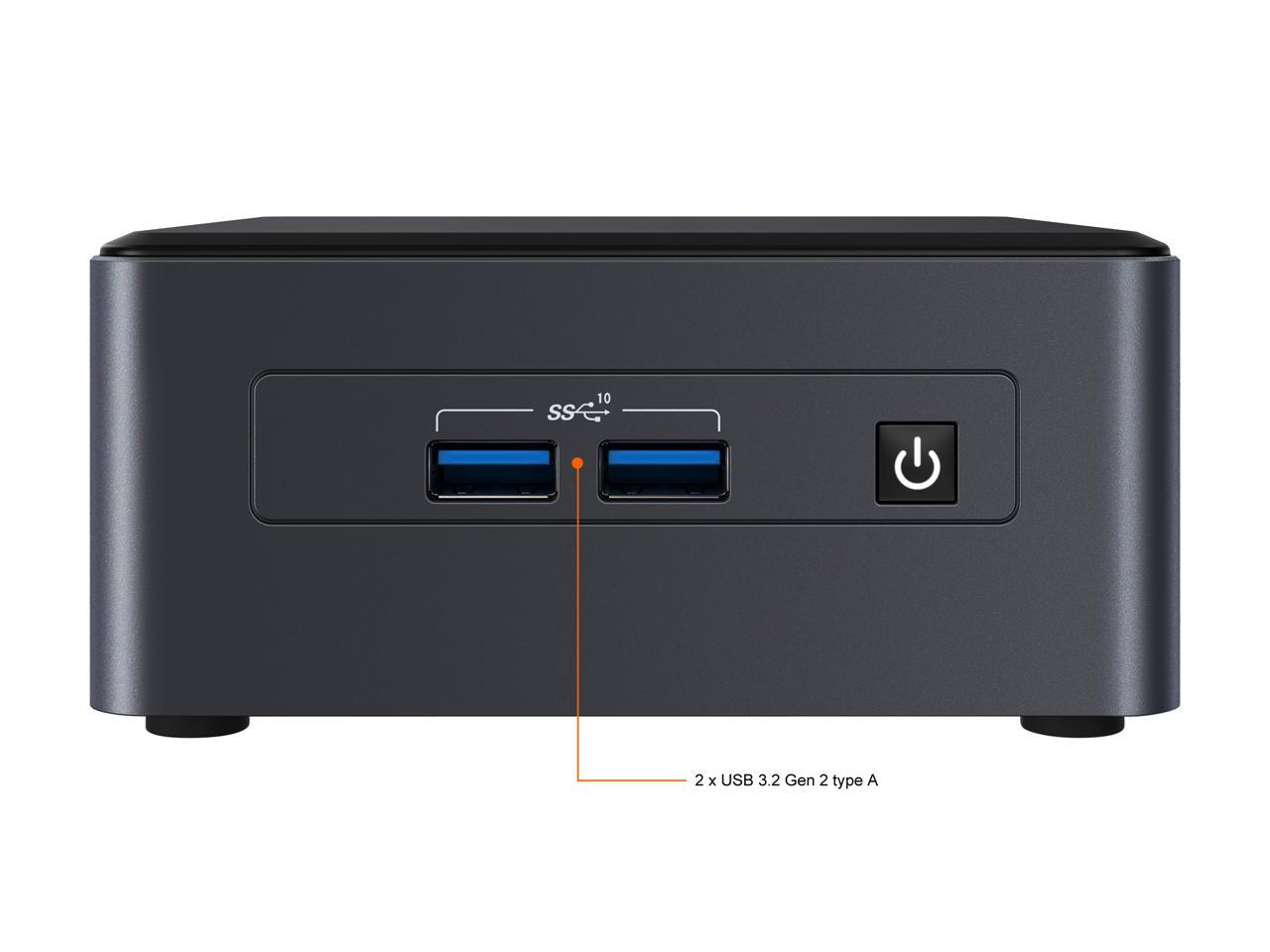

2 x USB 3.2 Gen 2 type A ports
Back Panel Ports
HDMI
2
Thunderbolt 3
Yes
Rear USB
2
Power Supply
Input
DC Input Voltage Supported: 12-24 VDC
Features
Features
Intel NUC 11 Pro kits are compact systems built to drive the future of business. 11th Gen Intel Core i5 processors and Intel Iris Xe graphics deliver breakthrough performance for edge compute, office productivity, and collaboration, plus support for up to four 4K displays. Complete this kit with Memory, Storage and Operating system of Choice. This kit comes with US cord.
