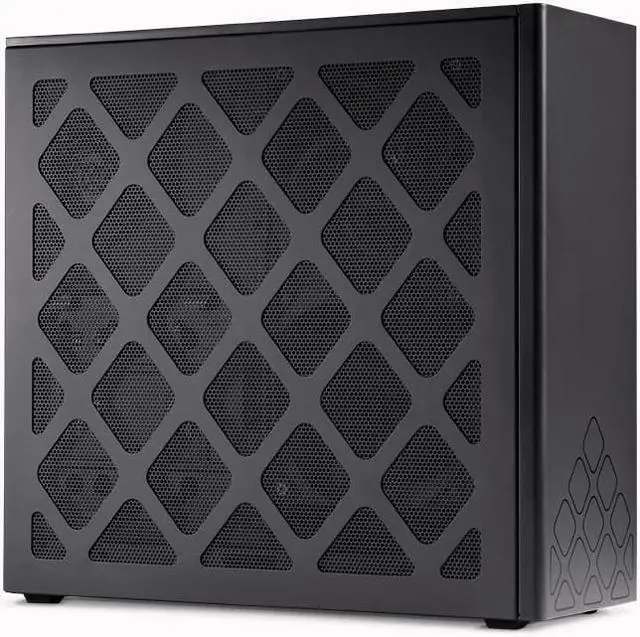

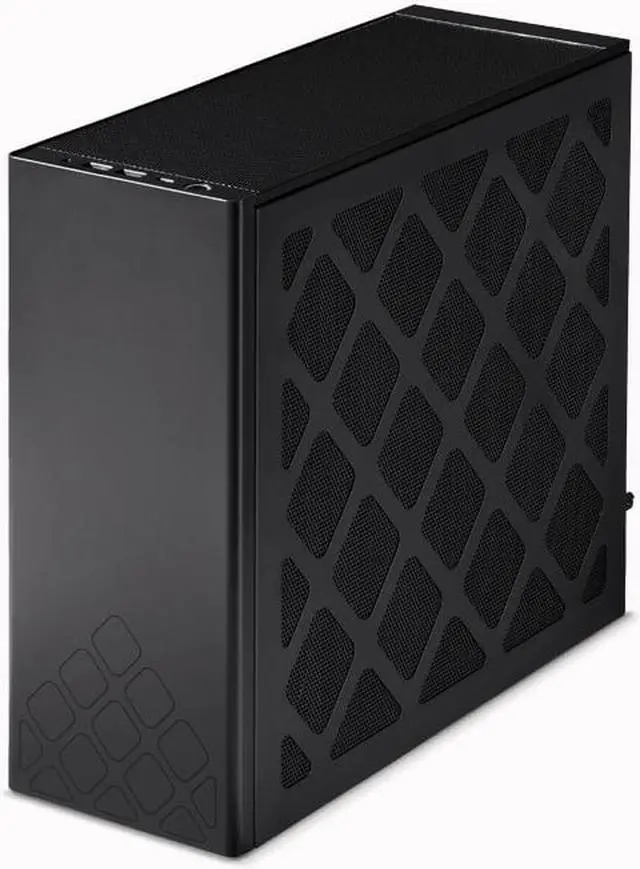

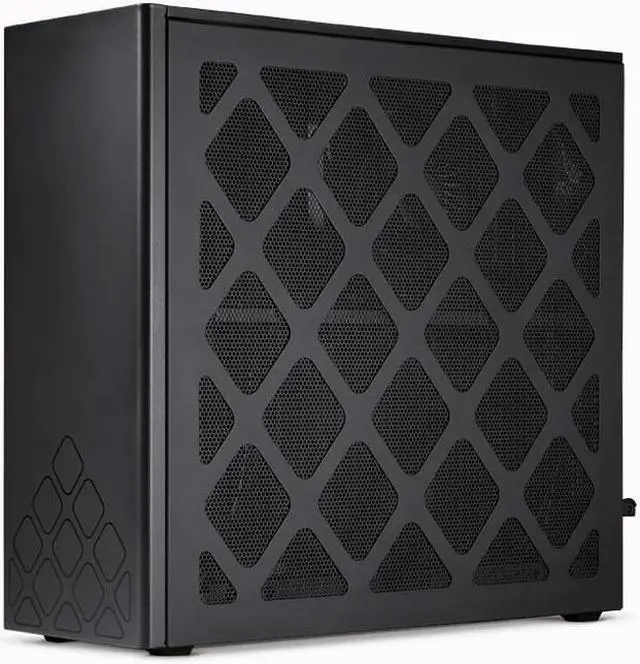

Intel NUC 13 Extreme Kit NUC13RNGi9 13th Generation, Z690 Chipset, Core i9-13900K, Custom Gaming Mini PC - Barebone Systems(No SSD, no Memory)

Essentials
Product Collection Intel® NUC Kit with 13th Generation Intel® Core Processors
Code Name Products formerly Raptor Canyon
Marketing Status Launched
Launch Date Q4'22
Supported Operating Systems Windows 11 | 64-bit*
Board Number NUC13SBBi9
Board Form Factor PCIe
Internal Drive Form Factor M.2 and 2.5" Drive
# of Internal Drives Supported 5
TDP 125 W
Board Chipset Intel® Z690 Chipset
Processor Included Intel® Core i9-13900K Processor (36M Cache | up to 5.80 GHz)
Total Cores 24
Total Threads 32
Lithography Intel 7
Max Turbo Frequency 5.80 GHz

Supplemental Information
Embedded Options Available No

Memory & Storage
Max Memory Size (dependent on memory type) 64 GB
Memory Types DDR5 SODIMM
Max # of Memory Channels 2
Max # of DIMMs 2
ECC Memory Supported No

Processor Graphics
Integrated Graphics Yes
Graphics Output 2x Thunderbolt 4 | HDMI 2.1 TMDS compatible (4K60)
# of Displays Supported 3

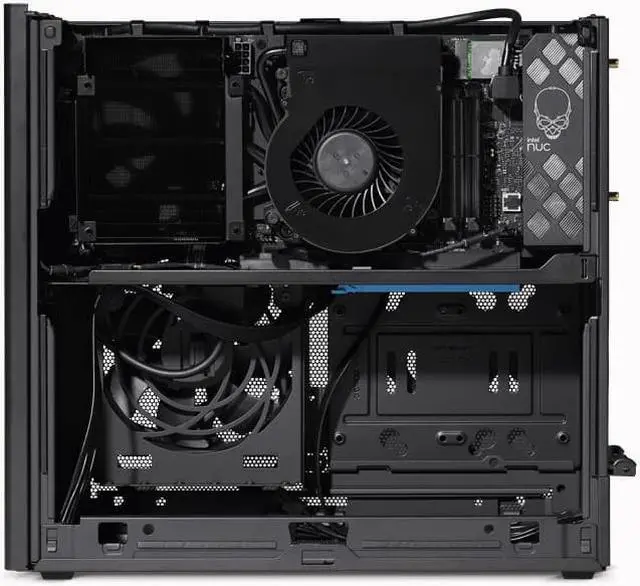

Discrete Graphics Supports PCIe x16 Gen5 3-slot wide GPU

Expansion Options
PCI Express Revision Gen5 | Gen4
PCI Express Configurations M.2 PCIe X4 Gen4 slots (CPU) | 2x M.2 PCIe X4 Gen4 slots (PCH); Triple-wide PCIe X16 Gen5 (CPU) slot | 12" max card length
M.2 Card Slot (wireless) Killer Wi-Fi 6E AX1690i
M.2 Card Slot (storage) 2x via PCH + 1x via CPU (NVMe)

I/O Specifications
# of USB Ports 11

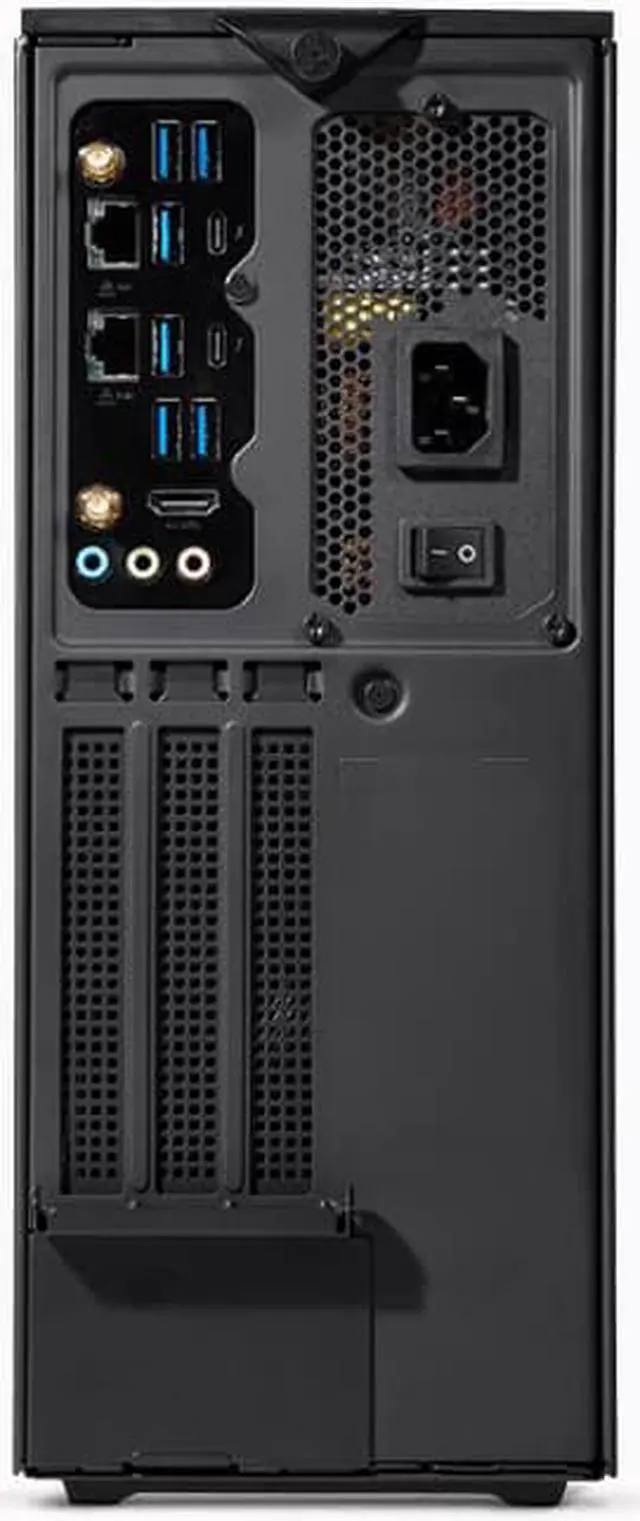

USB Configuration Rear: 6x USB 3.2g2 | 2x TB4 (USB4); Front: 2x USB 3.2g1 Type-A | USB 3.2g2x2 Type-C
USB Revision 3.2 Gen1 | Gen2 | Gen2x2 | USB4
Total # of SATA Ports 4
Max # of SATA 6.0 Gb/s Ports 4
RAID Configuration RAID-0 or RAID-1
Audio (back channel + front channel) (R) 7.1 digital | 3x 3.5mm + (F) 3.5mm
Integrated LAN 10GbE (AQC113) + Intel® i226-V
Integrated Wireless Intel® Killer(tm) Wi-Fi 6E AX1690 (i/s)
Integrated Bluetooth Yes
Additional Headers FRONT_PANEL
# of Thunderbolt Ports 2x Thunderbolt 4

Package Specifications
Chassis Dimensions 337 x 318 x 129mm

Advanced Technologies
Intel® Optane Memory Supported Yes
Intel® Virtualization Technology for Directed I/O (VT-d) Yes
Intel® Rapid Storage Technology Yes
Intel® Virtualization Technology (VT-x) Yes
Intel® Platform Trust Technology (Intel® PTT) Yes

Security & Reliability
Intel® AES New Instructions Yes
