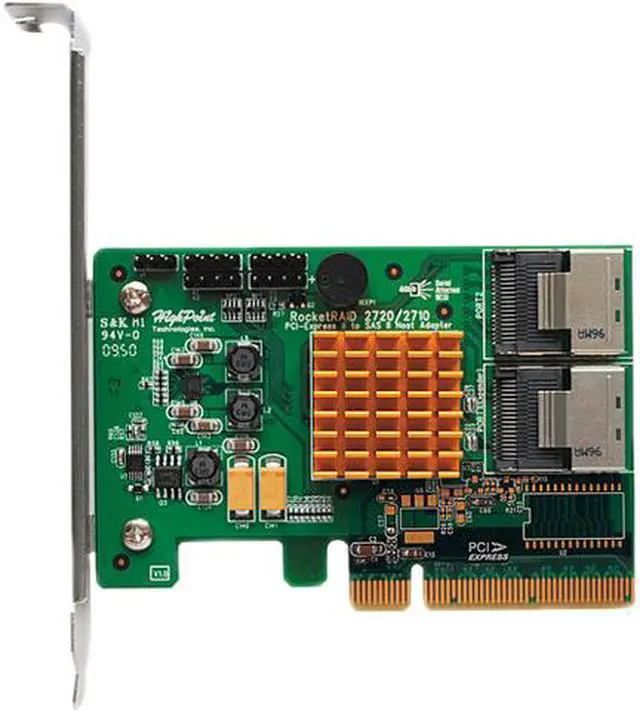

HighPoint RR2720SGL PCI-Express 2.0 x8 SAS 8-port RAID Controller

(3) Write a Review
  • RAID 0/1/5/6/10/50 JBOD
  • 2 x SFF-8087 mini-SAS Internal Connectors
  • Up to 600 MB/sec
Overview
Specs
Reviews (3)
HighPoint RocketRAID 2700 HBA's are cost-effective, high-performance PCI-Express 2.0 6GB/s SAS RAID controllers, and are ideal for SMB server and workstation configurations.

HighPoint Hardware-Assisted RAID Solution
RocketRAID 2700 series are powered by HighPoint Industry proven RAID technology and support a wide selection of RAID levels including 0, 1, 5, 6, 10, 50 and JBOD. Our Comprehensive RAID Storage Management suite is available for all major operating systems and includes BIOS-level management, an intuitive Web-based interface, and a selection of CLI packages available for Linux and FreeBSD platforms.

Complete, Flexible Upgrade Paths
RocketRAID 2700 HBA's are fully backwards compatible with SAS/SATA 3Gb/s devices, PCI-Express 1.0 and 2.0 motherboards, and are compliant with all major operating systems including Windows, Linux, FreeBSD & Mac OS X.
RAID arrays can be freely moved to any other RocketRAID 2700 HBA. Upgrading, scaling and expanding storage has never been easier.

HighPoint Storage Expansion Compatible
RocketRAID 2700 external-port HBA's were designed to work in conjunction with Rocket EJ Series SATA JBOD Expander and SAS-Expansion modules, which can dramatically expand the storage capability of each Mini-SAS connector.
The RocketRAID 2720SGL package significantly reduces up-front costs, yet retains all features of the standard retail product. SGL HBA's allow Solution Providers to configure storage platforms to meet a client's exact specifications, while avoiding unwanted expenses and incompatible cabling hardware.The RocketRAID 2720SGL two standardized SFF-8087 ports are fully compatible with the latest 6TB hard disks, and can support SAS and SATA devices in a multitude of storage configurations, including non-RAID JBOD's, single disks, and RAID arrays including 0, 1, 5, 6, 10 and 50. The RocketRAID 2720SGL is compliant with all major operating systems including Windows, Linux and FreeBSD, and utilizes Highpoint's Unified Web-Based Management interface, which allows both novices and experts to quickly configure, manage and monitor storage configurations.Dual-Storage Modes: LTO Tape ...Host Interface: PCI Express 2.0 x8Controller Type: 6Gb/s SASRAID Supported: YesRAID Levels: 0RAID Levels: 1RAID Levels: 5RAID Levels: 6RAID Levels: 10RAID Levels: 50RAID Levels: JBODTotal Number of SAS Ports: 2Number of SAS Ports (Internal): 2Height: 0.1Width: 2.6"Depth: 3.8"Form Factor: Plug-in CardPlatform Supported: PCGreen Compliant: YesGreen Compliance Certificate/Authority: RoHSCountry of Origin: China"

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
