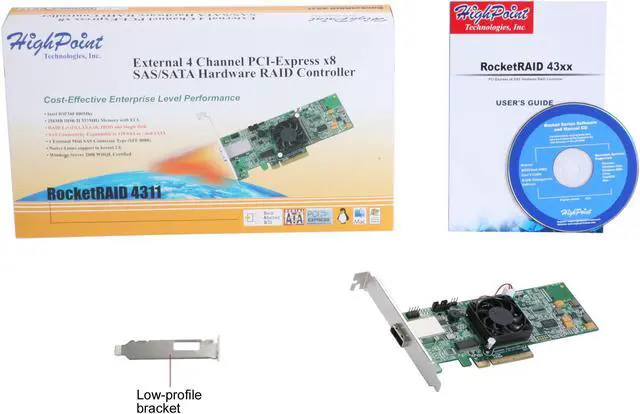

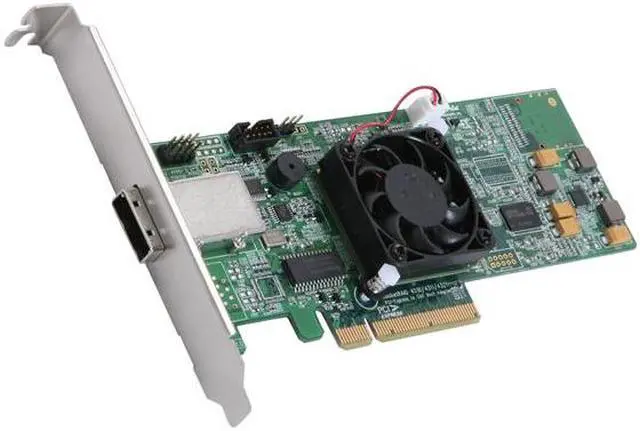

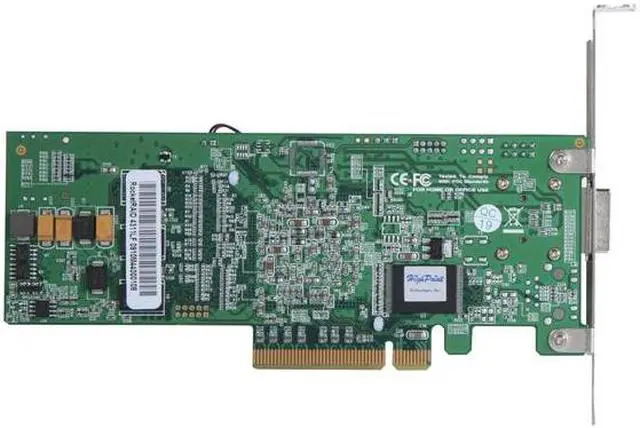

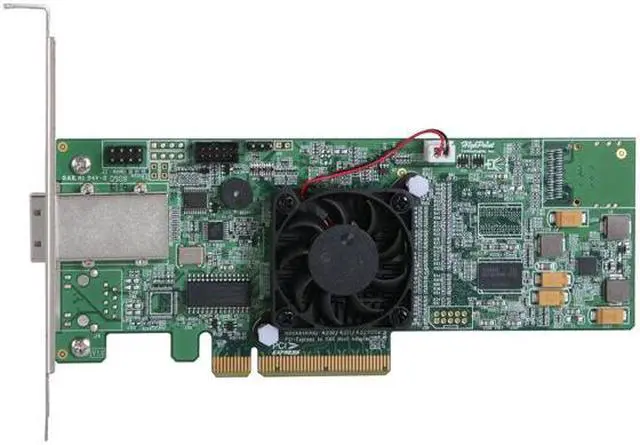

HighPoint RocketRAID 4311 PCI-Express x8 SATA / SAS Controller Card
- RAID 0/1/3/5/6/10/ JBOD
- 4 x SAS External Connectors
Overview
Specs
Reviews
The RocketRAID 4300 series controllers feature the Intel IOP348 at 800MHz I/O Processor, the fastest I/O processor in Intel’s product line. Unparalleled design flexibility supports both high performing SAS and lower-cost SATA hard drive configurations. By using the Intel IOP348, the RocketRAID 4300 series offers unlimited storage design flexibility from scalability, cost and performance perspectives. It supports both direct-attach and SAS expander connectivity modes.
The RocketRAID 4300 family series are powered by Intel IOP348 and have a maximum of 256MB of ECC DDR-II onboard cache. It supports the fastest bus speeds at PCI-Express x8 and offer complete port connectivity with 8 internal, 8 external and hybrid (4 internal and 4 external) configurations.
The RocketRAID 4300 series controllers feature the Intel IOP348 at 800MHz I/O Processor, the fastest I/O processor in Intel’s product line. Unparalleled design flexibility supports both high performing SAS and lower-cost SATA hard drive configurations. By using the Intel IOP348, the RocketRAID 4300 series offers unlimited storage design flexibility from scalability, cost and performance perspectives. It supports both direct-attach and SAS expander connectivity modes.
The RocketRAID 4300 family series are powered by Intel IOP348 and have a maximum of 256MB of ECC DDR-II onboard cache. It supports the fastest bus speeds at PCI-Express x8 and offer complete port connectivity with 8 internal, 8 external and hybrid (4 internal and 4 external) configurations.
The RocketRAID 4300 family series are powered by Intel IOP348 and have a maximum of 256MB of ECC DDR-II onboard cache. It supports the fastest bus speeds at PCI-Express x8 and offer complete port connectivity with 8 internal, 8 external and hybrid (4 internal and 4 external) configurations.

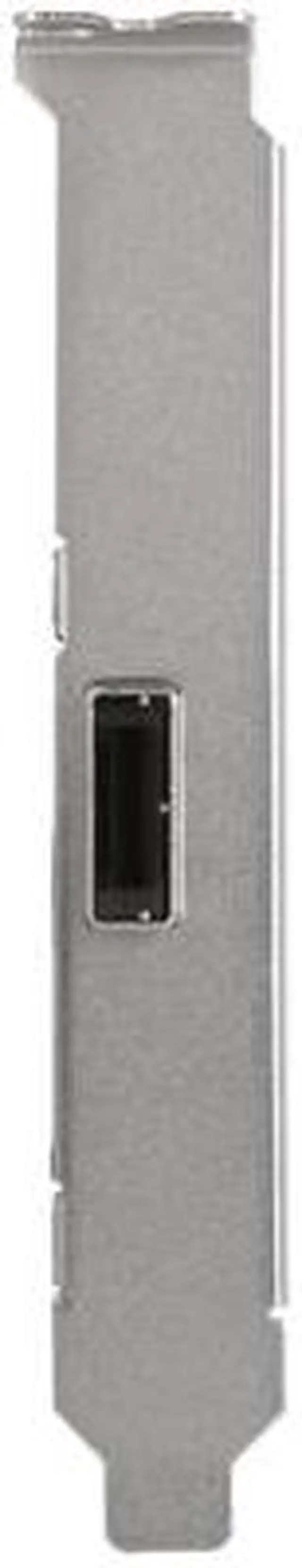

Serial Attached SCSI InterfaceWith an external mini-SAS port, the HighPoint RocketRAID 4311 supports both SAS and SATA devices for enhanced flexibility and speed.
RAID SupportThe HighPoint RocketRAID 4311 supports multi-level RAID configuration including RAID 0, 1, 3,5, 6, 10 and JBOD for better performance, enhanced data security and flexible capacity upgrades..
256MB On-board MemoryThe HighPoint RocketRAID 4311 features 256MB on-board DDR2 533 SDRAM with ECC protection for maximum data integrity.
On-board I/O ProcessorThe HighPoint RocketRAID 4311 features an integrated 800MHz Intel IOP348 processor for fast hardware RAID parity calculations.
PCI Express x8 InterfaceCompatible with PCI Express x16 slot, the PCI Express x8 interface provides sufficient throughput and full-duplex operation for enhanced performance.
Serial Attached SCSI InterfaceWith an external mini-SAS port, the HighPoint RocketRAID 4311 supports both SAS and SATA devices for enhanced flexibility and speed.
RAID SupportThe HighPoint RocketRAID 4311 supports multi-level RAID configuration including RAID 0, 1, 3,5, 6, 10 and JBOD for better performance, enhanced data security and flexible capacity upgrades..
256MB On-board MemoryThe HighPoint RocketRAID 4311 features 256MB on-board DDR2 533 SDRAM with ECC protection for maximum data integrity.
On-board I/O ProcessorThe HighPoint RocketRAID 4311 features an integrated 800MHz Intel IOP348 processor for fast hardware RAID parity calculations.
PCI Express x8 InterfaceCompatible with PCI Express x16 slot, the PCI Express x8 interface provides sufficient throughput and full-duplex operation for enhanced performance.Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.ca's Standard Return Policy.
- Read full return policy for details.
