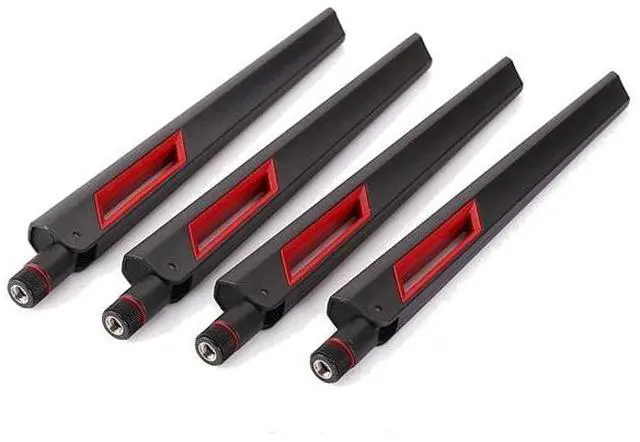

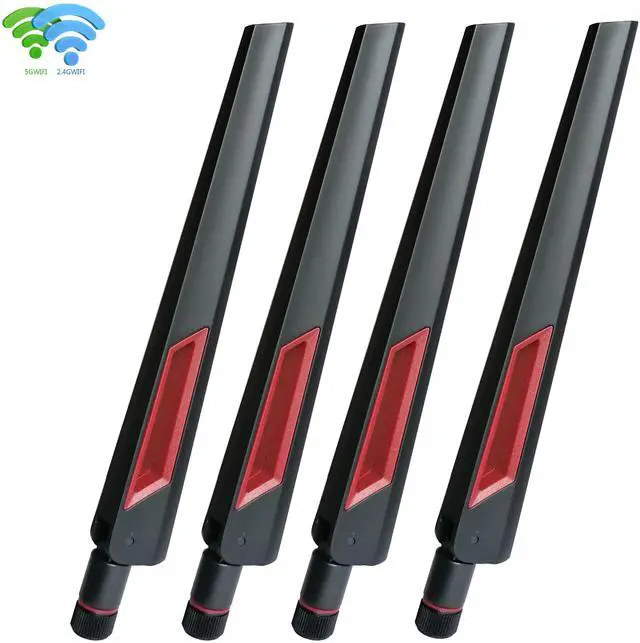

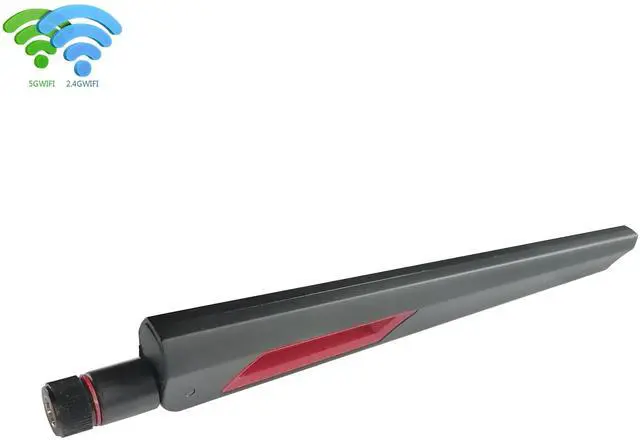

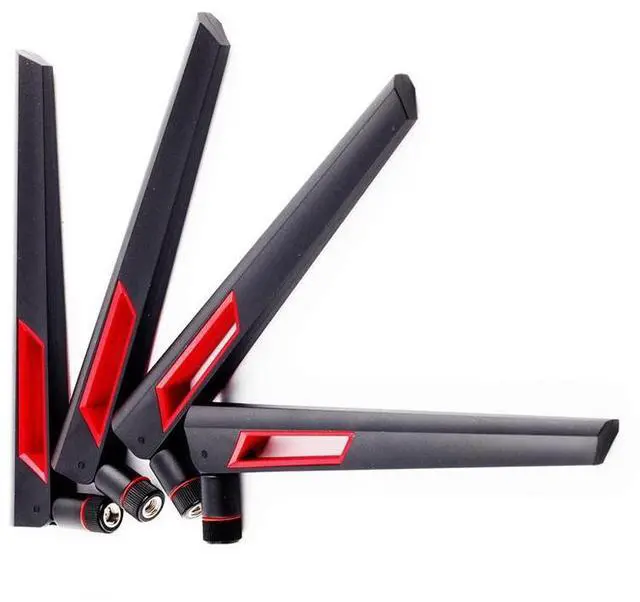

High-Gain Dual-Band WiFi Antenna (2.4GHz & 5.8GHz) RP-SMA(Female) interface 50Ohm 90° foldable e.g. ASUS Wi-Fi Router
- Dual-Band Support: Operates at 2.4GHz (24002500 MHz) and 5.8GHz (50005850 MHz) frequencies.
- High Gain: 10dBi omnidirectional radiation for extended coverage.
- Durable Materials: Radiator made of copper (Cu), housing from TPEE/ABS blend.
- Flexible Connector Options: Compatible with SMA Male or RP-SMA Female connectors.
- Robust Design: Compact size (195mm length, 13mm diameter) and lightweight (25g ±1g).
- Weather Resistance: Operational in temperatures from -30°C to +75°C.
- High Power Handling: Supports up to 20W power capacity.
+
+
Overview
Specs
Reviews
Mechanical
1. )
Part Number: H2_10DB_ 2.45 _01 ( 2.4G / 5.8G dual-band)
2. )
Material: TPEE/ABS (housing), Copper (Cu) radiator
3. )
Connector Type: RP-SMA Female
4. )

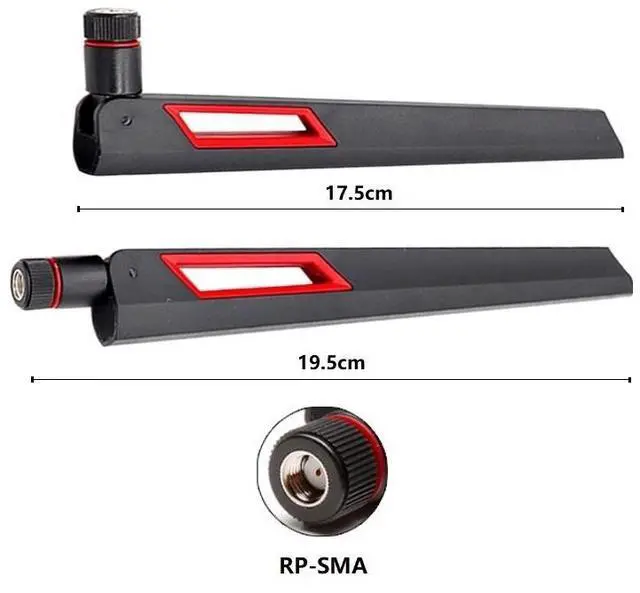

Dimensions: 195mm (length) × 13mm (outer diameter)
5. )
Weight: 25g ±1g
Electrical
1. )
Frequency Range: 2.4GH
z: 24002500 MHz 5.8GH z: 50005850 MHz
2. )
Gain: 10dBi (omnidirectional)
3. )
Polarization: Linear (vertical)
4. )

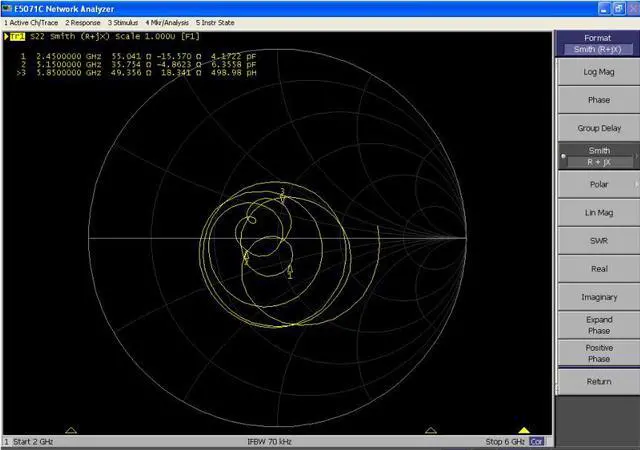

Impedance: 50 (standard)

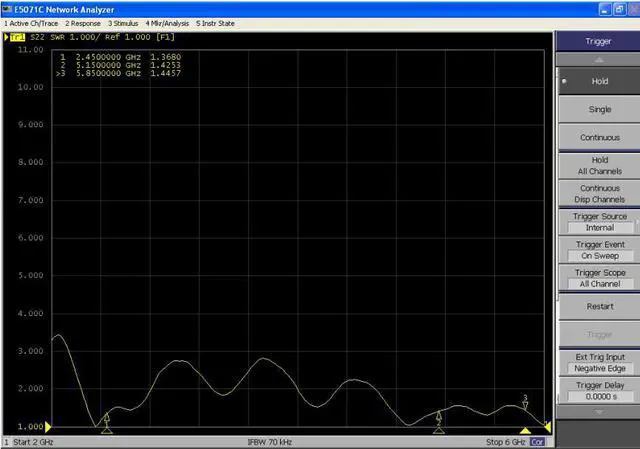

5. ) SWR (Standing
Wave Ratio): 2.0 (low signal reflection)
6. )
Power Capacity: 20W (suitable for high-power applications)
Environmental
1. )
Operating Temperature Range: -30°C to +75°C
2. )
Storage Temperature Range: -30°C to +75°C
Potential Applications:
1. )
WiFi Routers/Extenders: Enhances signal range for home/office networks.
2. )
Outdoor Wireless Systems: Ideal for weather-resistant deployments (e. g., IoT, surveillance).
3. )
Drones/FPV Devices: Provides stable high-frequency communication.
4. )
Industrial Equipment: Supports robust connectivity in factories or warehouses.
5. )
Public Hotspots: Ensures wide coverage in open areas (parks, campuses).
Specifications
:1. )
Part Number: H2_10DB_ 2.45 _01 ( 2.4G / 5.8G dual-band)
2. )
Material: TPEE/ABS (housing), Copper (Cu) radiator
3. )
Connector Type: RP-SMA Female
4. )
Dimensions: 195mm (length) × 13mm (outer diameter)
5. )
Weight: 25g ±1g
Electrical
Specifications
:1. )
Frequency Range: 2.4GH
z: 24002500 MHz 5.8GH z: 50005850 MHz
2. )
Gain: 10dBi (omnidirectional)
3. )
Polarization: Linear (vertical)
4. )
Impedance: 50 (standard)
5. ) SWR (Standing
Wave Ratio): 2.0 (low signal reflection)
6. )
Power Capacity: 20W (suitable for high-power applications)
Environmental
Specifications
:1. )
Operating Temperature Range: -30°C to +75°C
2. )
Storage Temperature Range: -30°C to +75°C
Potential Applications:
1. )
WiFi Routers/Extenders: Enhances signal range for home/office networks.
2. )
Outdoor Wireless Systems: Ideal for weather-resistant deployments (e. g., IoT, surveillance).
3. )
Drones/FPV Devices: Provides stable high-frequency communication.
4. )
Industrial Equipment: Supports robust connectivity in factories or warehouses.
5. )
Public Hotspots: Ensures wide coverage in open areas (parks, campuses).
