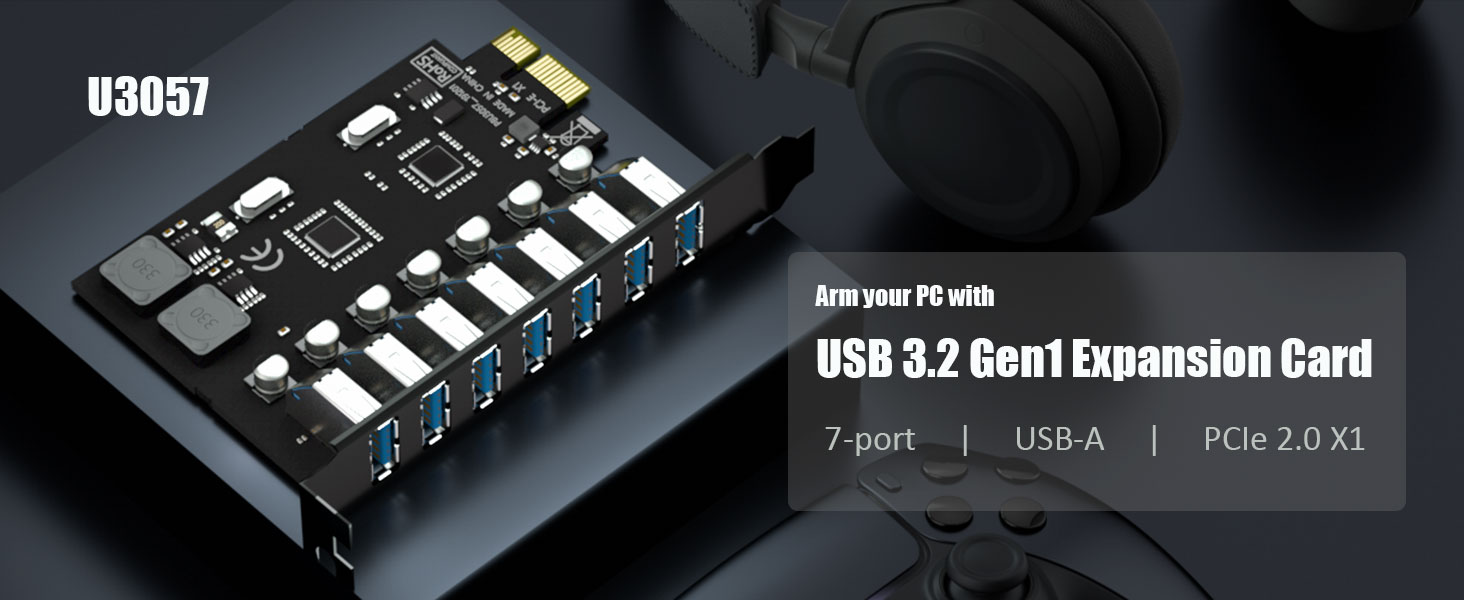

Model: U3057
| Internal Interface | PCI-Express 3.0 x1 |
|---|---|
| External Interface | 7 x USB 3.0 TYPE-A |
| Chip | NEC720201+NEC720210 |
| Power Consumption | 5V2A=10 Watts (max) for port 1-4; 5V2A=10 Watts (max) for port 5-7 |
| Total Bandwidth | 8Gbps for PCIe 3.0 X1; 4Gbps for PCIe 2.0 X1 |

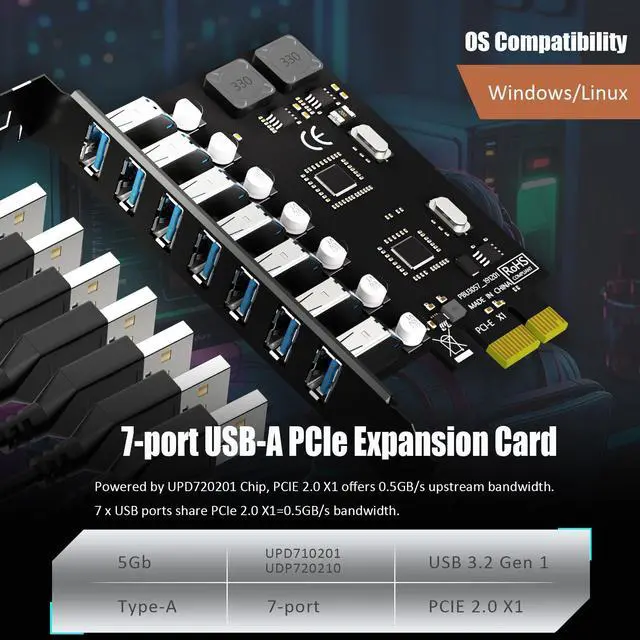

| OS Compatibility | Windows/Linux/No support Mac OS ( Note: Need to install driver on Windows XP, Vista, 7 ) |

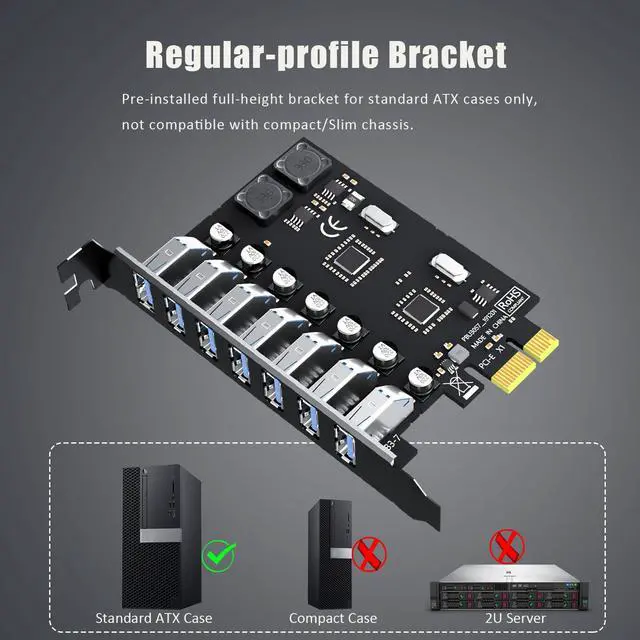

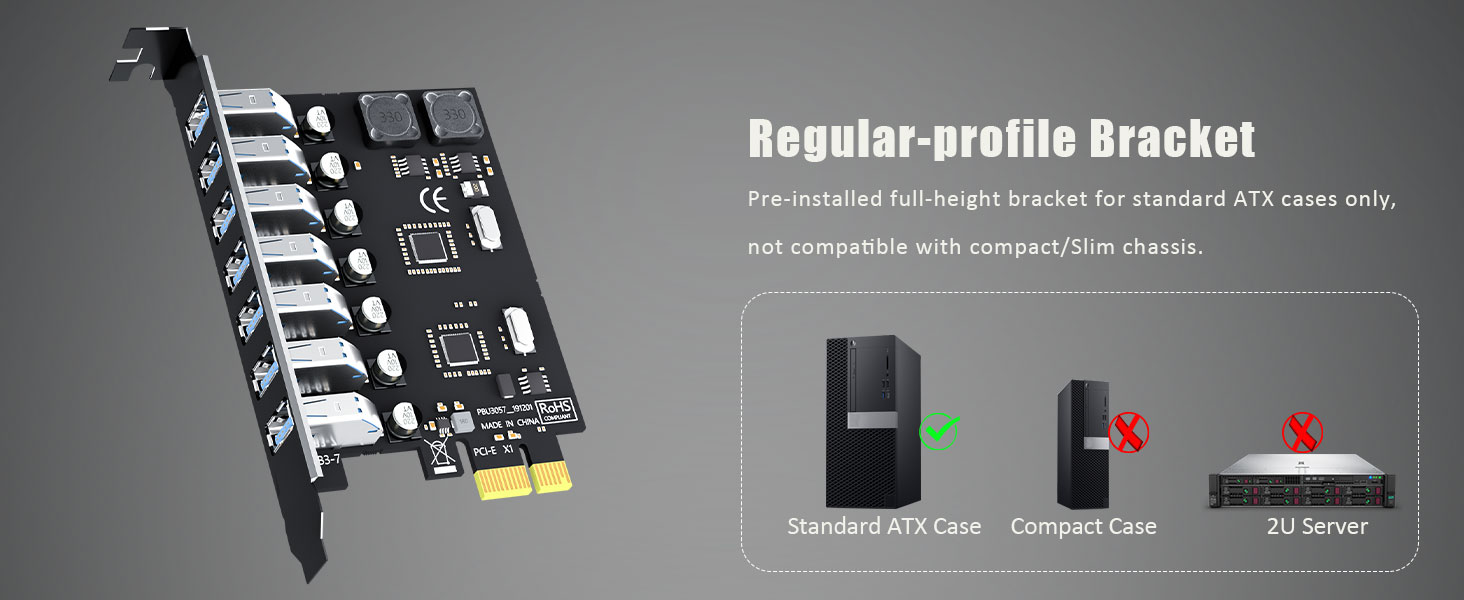

| Mounting Bracket | 12 cm Regular Profile Bracket |

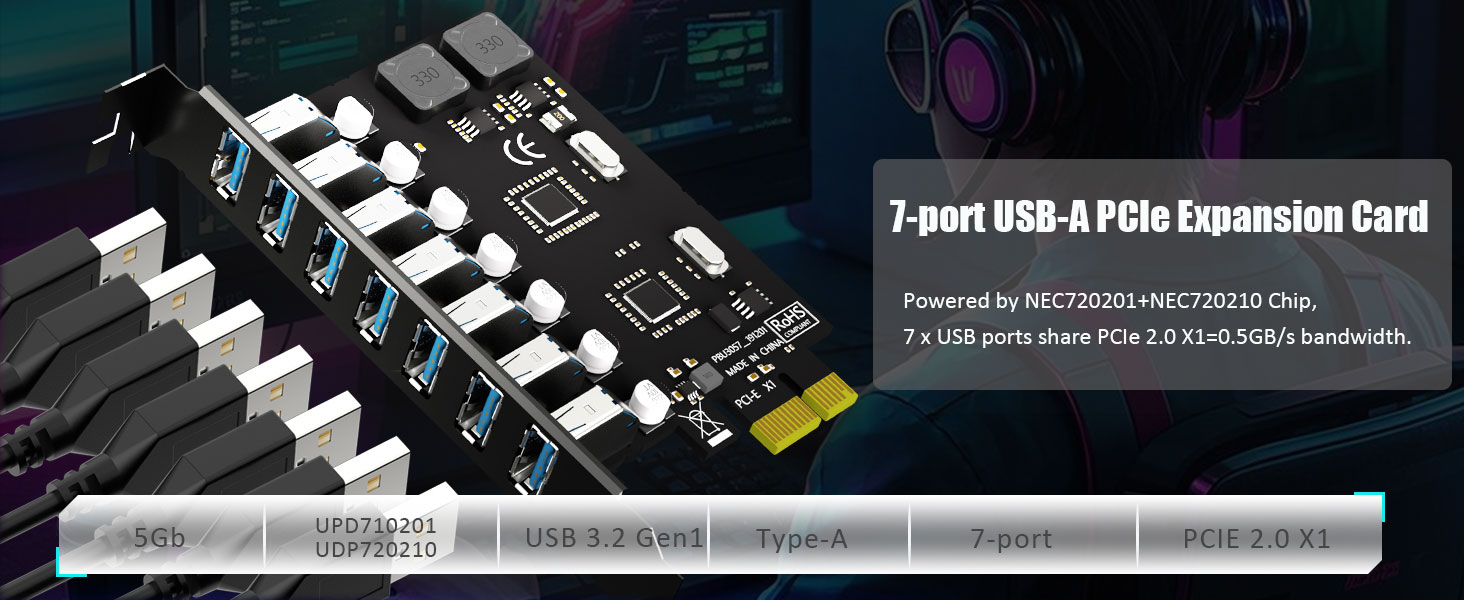

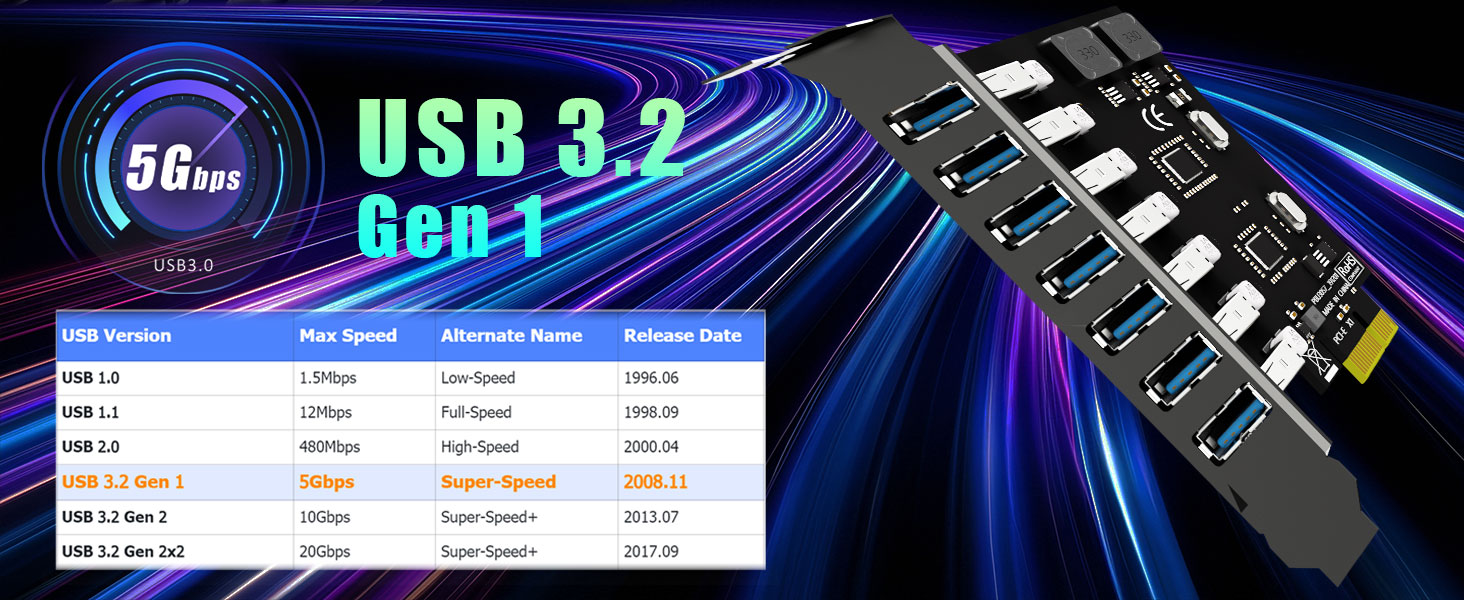

PCI-Express USB 3.0 Expansion Card with 7 x USB-A Ports
- Add 7 x USB-A devices at the same time, such as Keyboard, Mice, Speakers, KVM switch, USB HUB, USB flash drives, Printers, and other High Power Consumption USB 3.0 devices, etc.
- Based on NEC720201+NEC720210 chip solution: Plug and Play on Windows 11, 10, 8.x (32/64bit), Need to install the driver on Windows XP, Vista, 7 (32/64bit).
- Plug and Play on most Linux kernels.
- Not support Mac OS

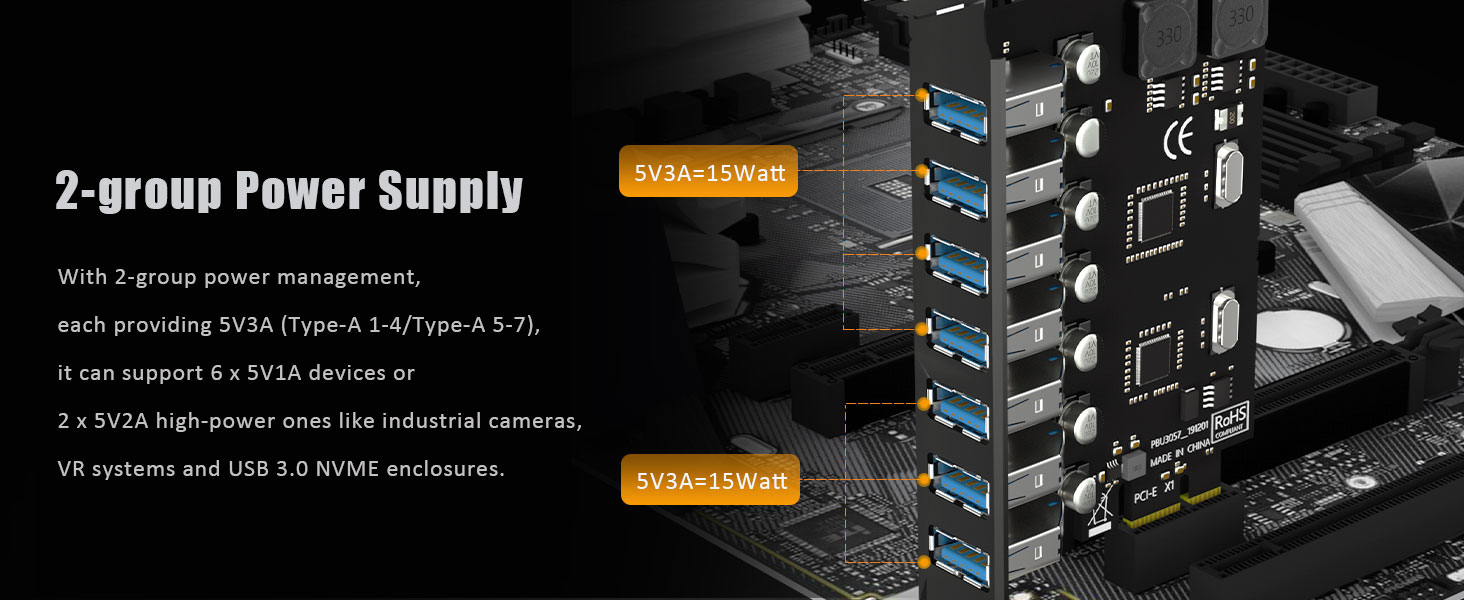

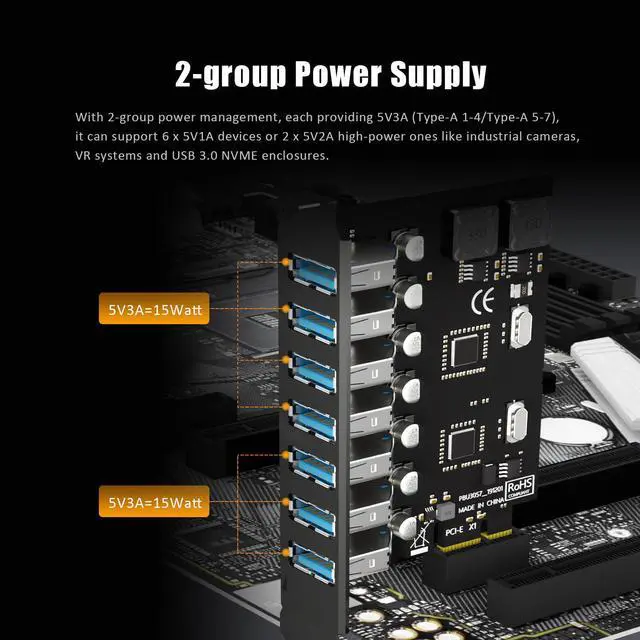

Power Consumption
- 5V2A=10 Watts (max) power supply for port 1-4
- And 5V2A=10 Watts (max) power supply for port 5-7
- However, it's important to note that it does not support fast charging. The maximum charging capability per port is 5V/0.5A.
PCI-Express 3.0 X1 Bandwidth and PCI-Express X1 Slot installation
- For PCIe 3.0 X1 slot, 7 x USB-A ports share 8Gbps bandwidth;
- For PCIe 2.0 X1 slot, 7 x USB-A ports share 4Gbps bandwidth.
Package Including
- 1 x U3057 PCI-Express USB 3.0 Expansion Card
| Products | |||||
|---|---|---|---|---|---|
| Internal Interface | PCI-Express 3.0 X1 | PCI-Express 3.0 X1 | PCI-Express 3.0 X1 | PCI-Express 3.0 X1 | PCI-Express 3.0 X1 |
| External Interface | 2 x USB 3.0 Type-A | 4 x USB 3.0 Type-A | 2 x USB 3.0 Type-A + 19PIN USB | 7 x USB 3.0 Type-A | 6 x USB 3.0 Type-A + 2 x USB 3.0 Type-C |
