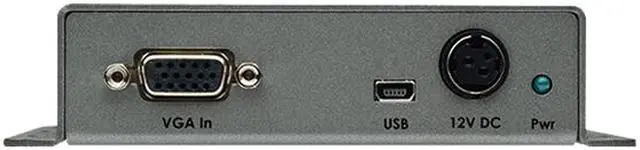

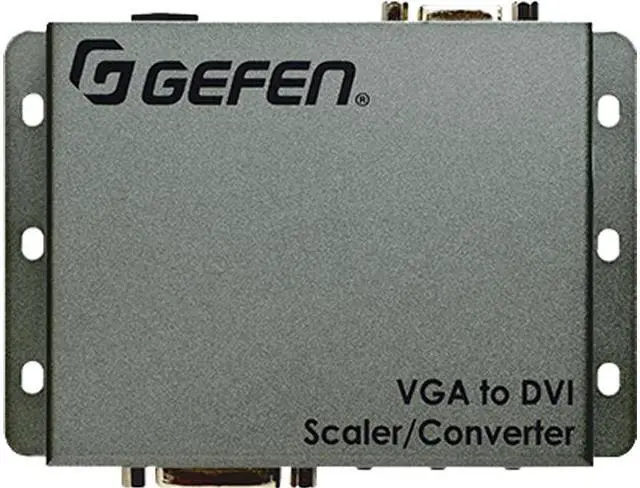

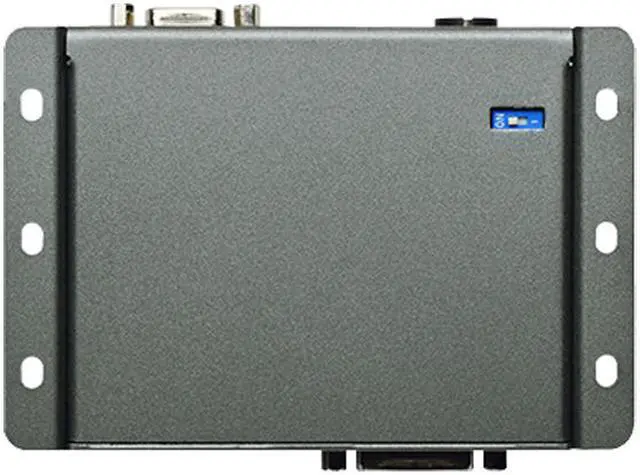

Gefen VGA to DVI Scaler/Converter EXT-VGA-DVI-SC
Be the first to review this product...
VGA to DVI
+
+
Overview
Specs
Reviews
VGA TO DVI SCALER / CONVERTER (PRE-ORDER)
Learn more about the Gefen EXT-VGA-DVI-SC
Model
Brand
Gefen
Model
EXT-VGA-DVI-SC
Converter Type
VGA to DVI
Power
Power Consumption
2W maximum
Power Supply
12V DC nominal (6V to 24V DC operating range)
Specification
Specification
Maximum Pixel Clock: 165 MHz
Maximum TMDS Clock: 165 MHz
Video Input Connector: (1) VGA HD-15, female
Video Output Connectors: (1) DVI-I, 29-pin, female (digital only)
USB Connector: (1) Mini-B
Menu/Navigation Switches: (3) tact-type
Power Indicator: (1) LED, blue
Power Supply Connector: (1) 3-pin, locking
Operating Temperature: +32 to +122 °F (0 to +50 °C)
Operating Humidity: 5% to 90% RH, non-condensing
Storage Temperature: -4 to +185 °F (-20 to +85 °C)
Storage Humidity: 0% to 95% RH, non-condensing
MTBF: 50000 hours
Feature
Feature
Converts and scales VGA to DVI
Input resolutions up to 1920 x 1200 (WUXGA)
Output resolutions up to 1080p60 and 1920 x 1200 (WUXGA)
On-screen display (OSD) menu allows easy set-up and control
Aspect Ratio Control: Full Screen, Panoramic, Letter/Pillar, Extract/Crop
Test Pattern Generator for quick system configuration
Gefen Syner-G simplifies in-field firmware updates and advanced EDID management including custom input timings
USB port for use with Gefen Syner-G
Wide power supply operating range (6V to 24V DC)
Locking power supply connector
Surface mountable
Dimensions & Weight
Dimensions
4.9" x 1" x 3.2" (excluding connectors, W x H x D)
Weight
0.4 lbs. (0.2kg)
