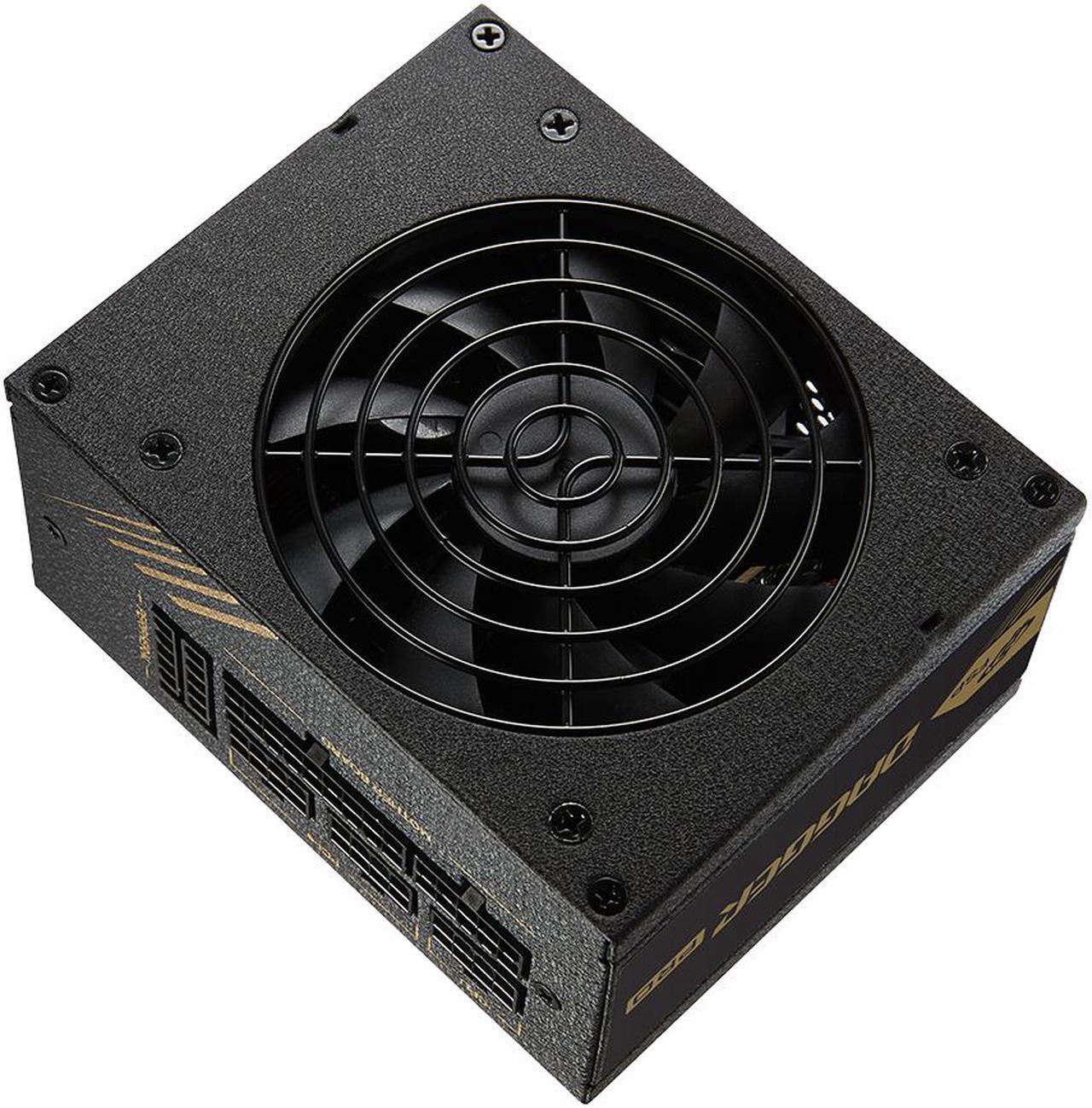

The DAGGER PRO series is compatible with most Mini-ITX and Micro ATX small form factor PCs. It is not only ideal for living room PCs, but also an alternative option for mini-PC enthusiasts.

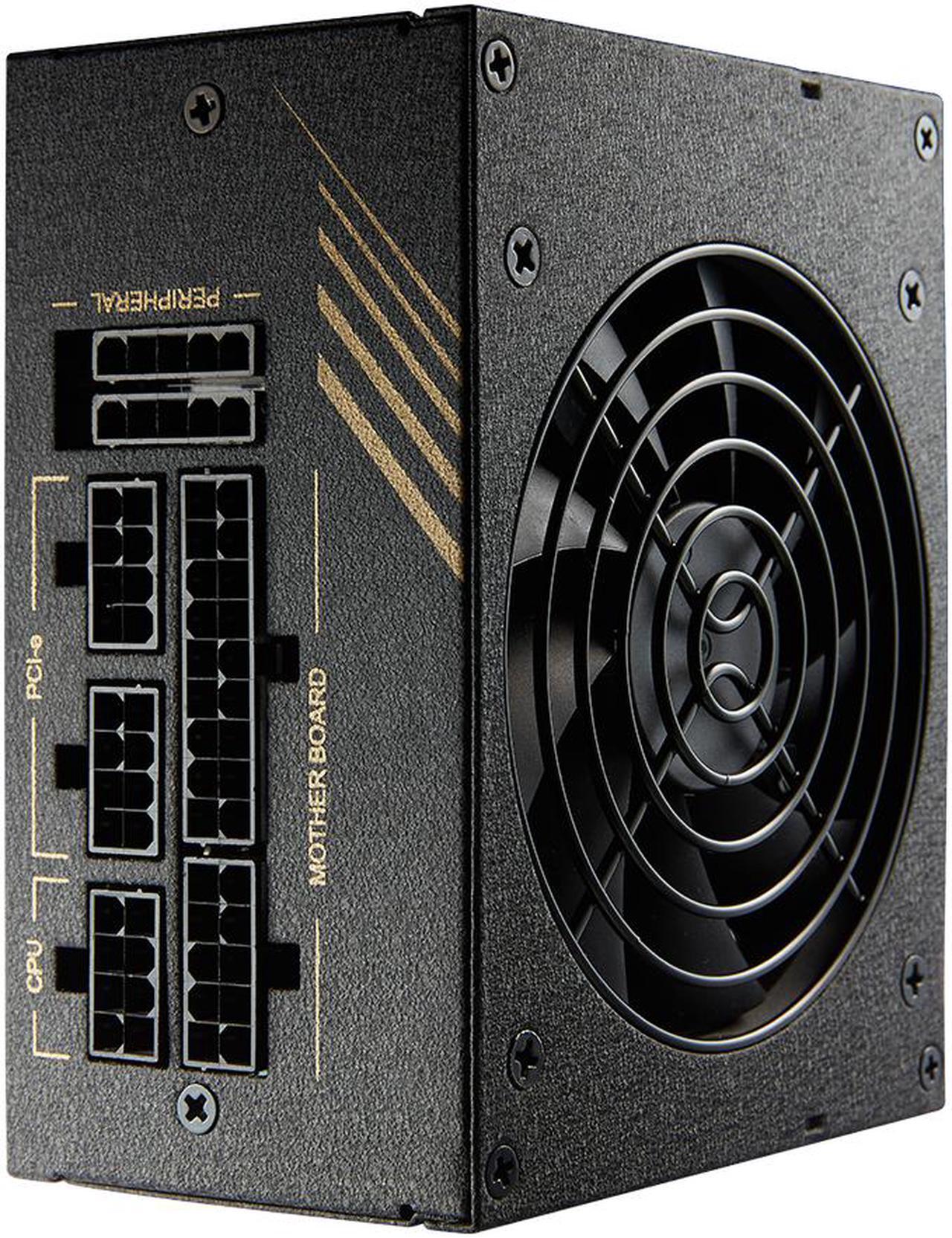

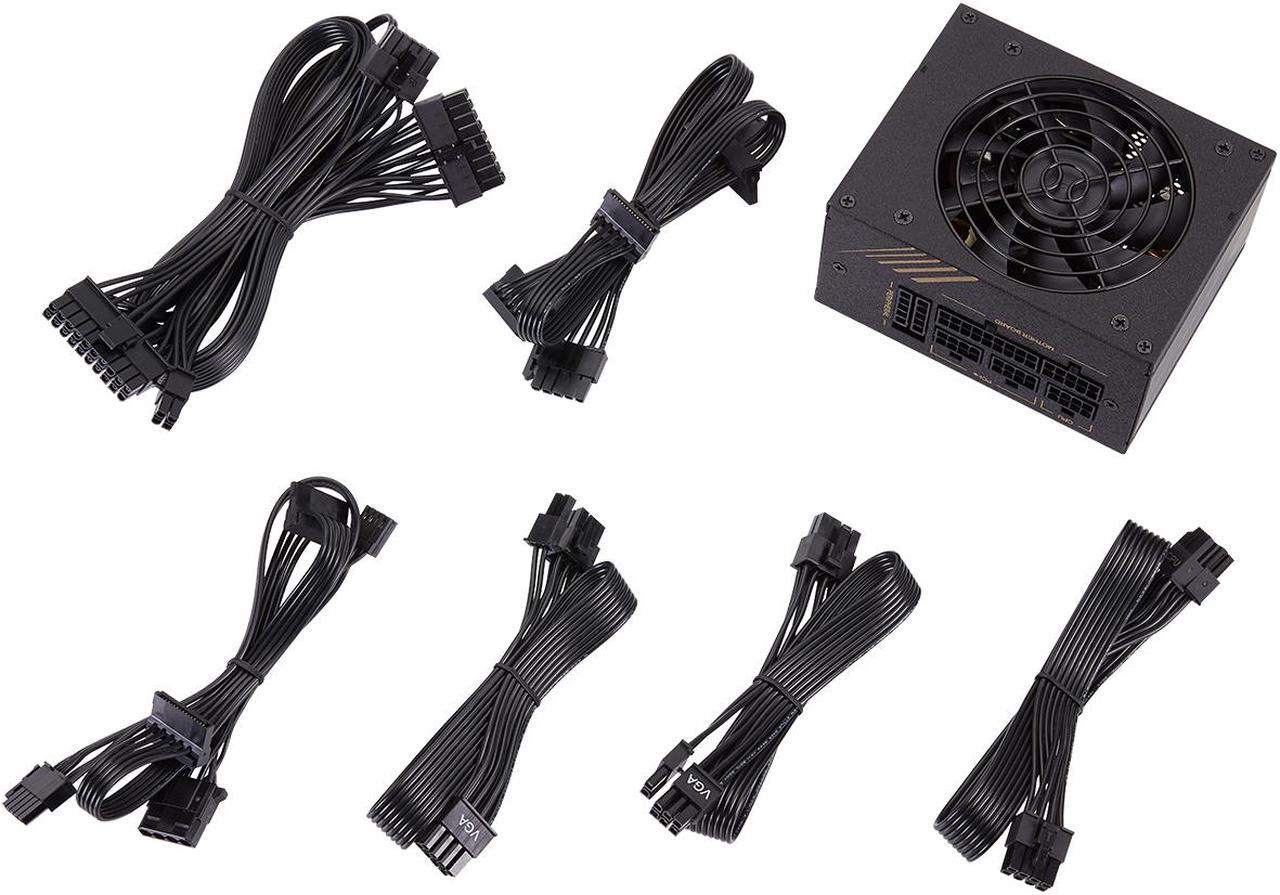

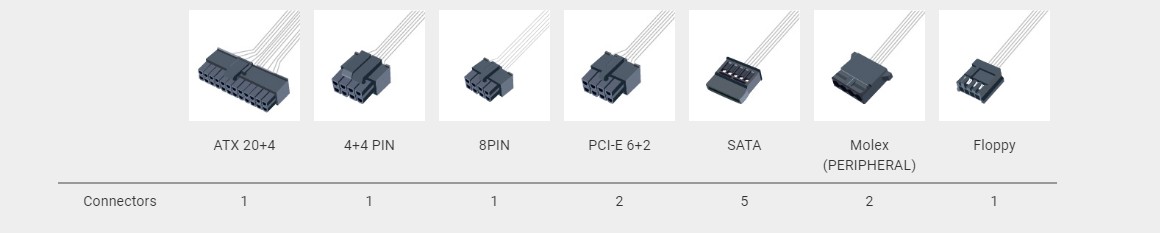

Fully-modular design and flat ribbon cables provide easier installation. An ideal solution for applications with space constraints, enhancing overall airflow efficiency and cable management.

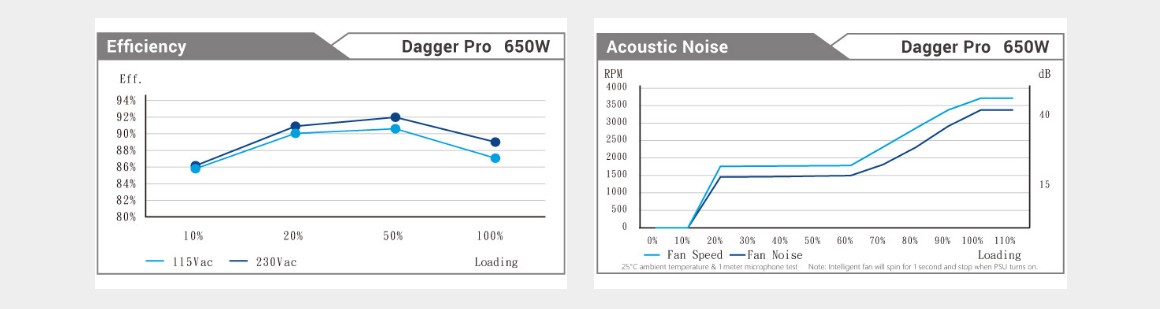

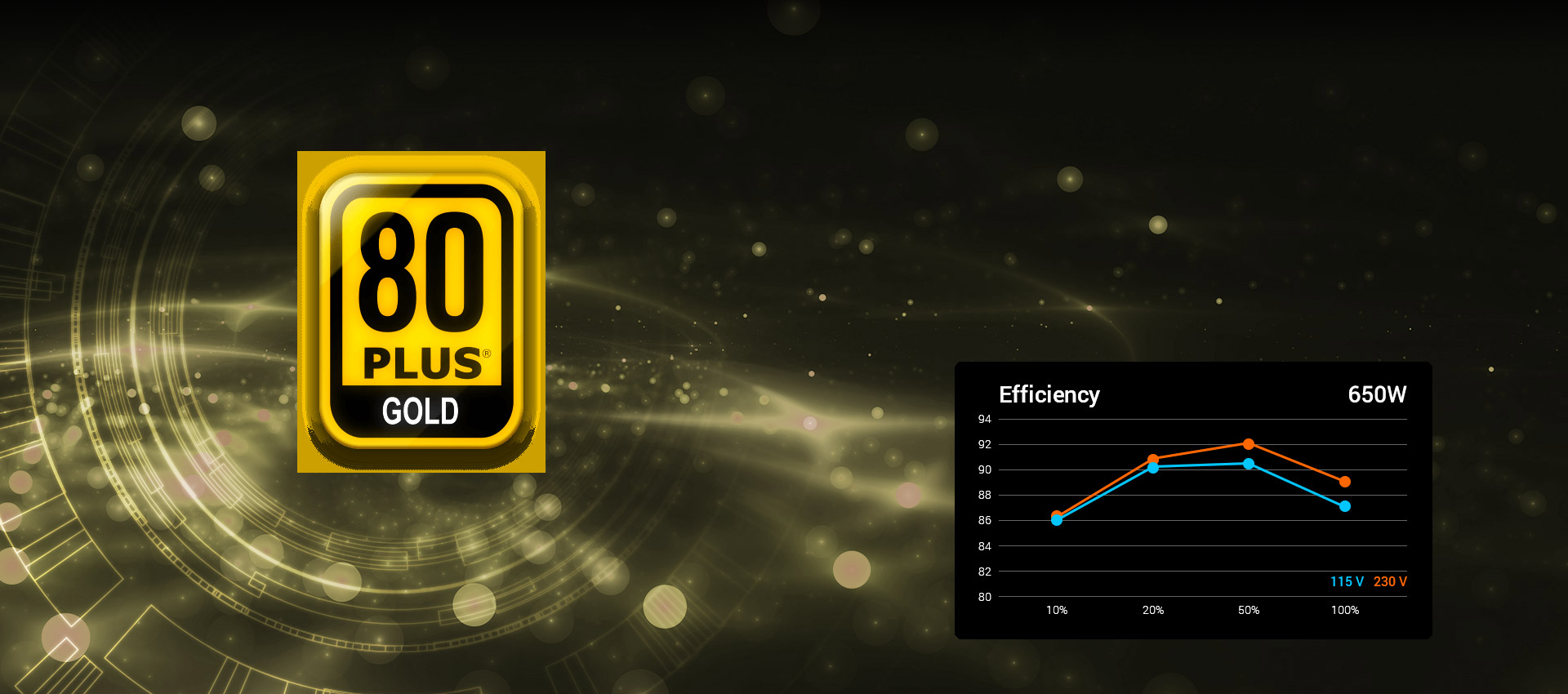

Dagger PRO series is a power supply with 80 PLUS® Gold Certification that guarantees to operate at a minimum of 90% efficiency at 50% load of PSU rated power and reduces electricity cost.

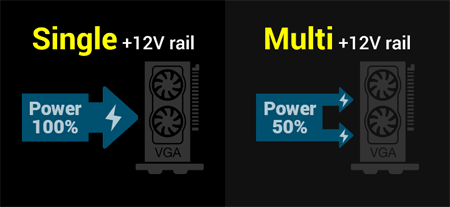

VGA card is a component which requires stable power. The compact size DAGGER PRO series comes with a single +12V rail design that offers VGA cards full power individually and avoids any overloading conditions.

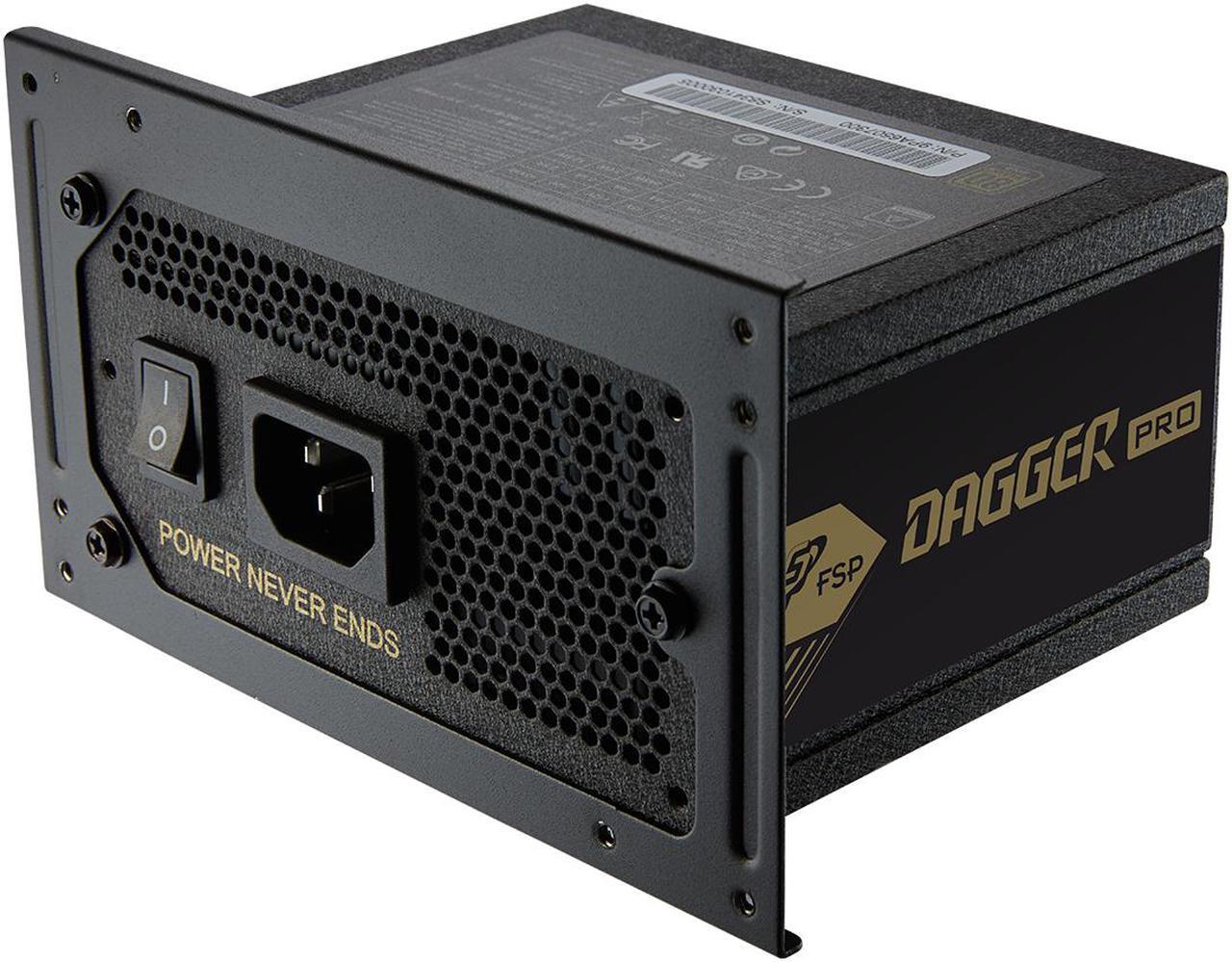

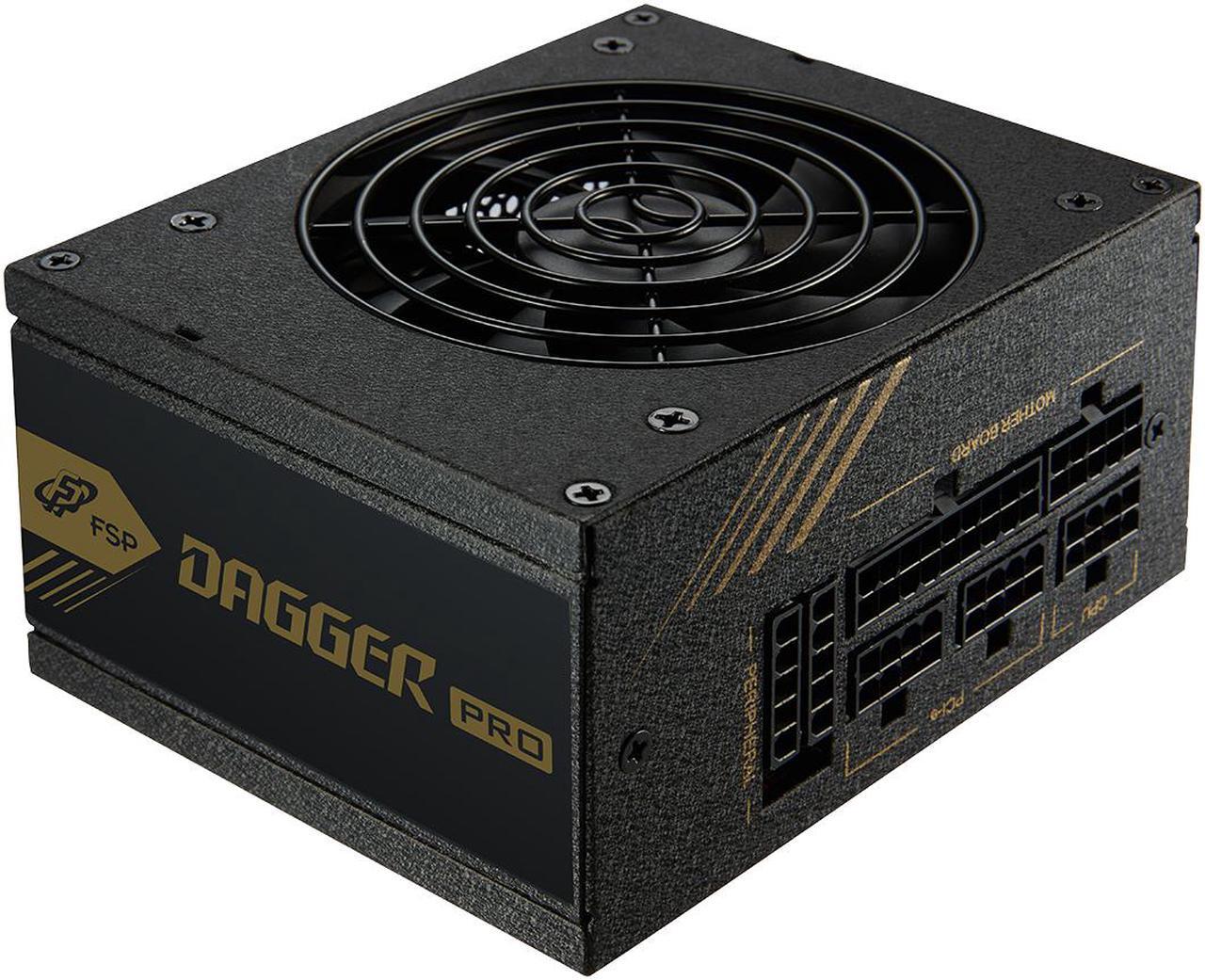

Not only does it fit into cases with the SFX form factor, but it can also be installed simply into regular ATX, Micro-ATX or Mini-ITX cases.

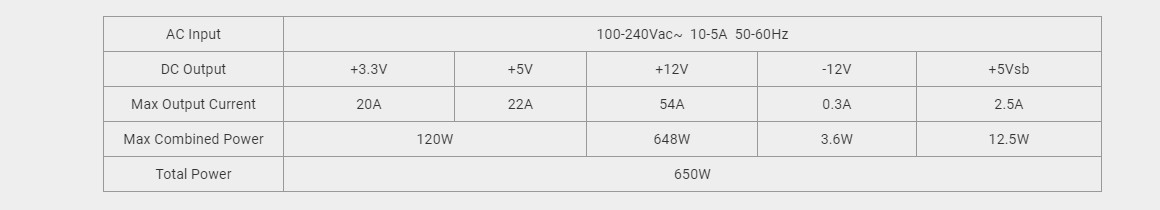

| Model | SDA2-650 |
| Rated Output Power | 650W |
| Form Factor | SFX |
| 80 PLUS Certification | Gold |
| Input Voltage | 100-240V |
| Input Current | 10-5A |
| Input Frequency | 50-60Hz |
| Efficiency | 90% |
| Fan Type | ball bearing fan,92mm |
| Dimensions(L x W x H) | 125 × 100 × 63.5 mm |
| Operation Temp. | 200,000 Hrs |
| Protection | OCP, OVP, SCP, OPP, OTP |
