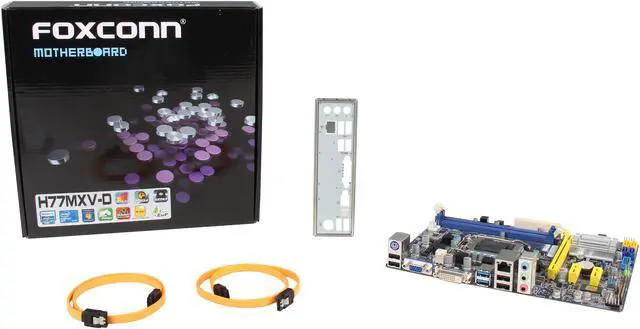

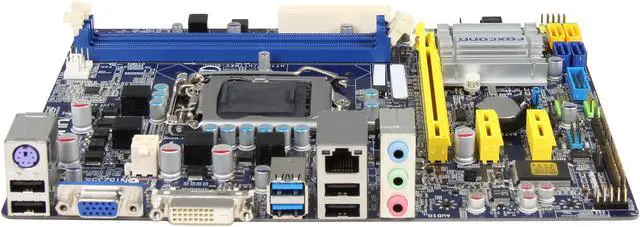

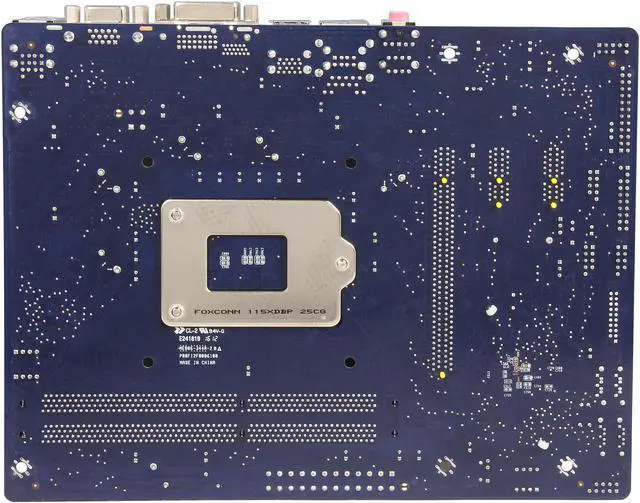

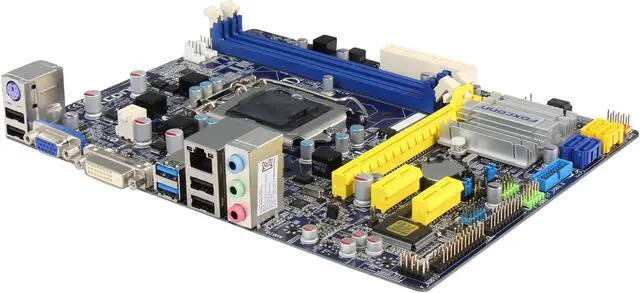

Foxconn H77MXV-D Intel H77 USB 3.0 Micro ATX Intel Motherboard
- Intel H77
- Support INTEL Ivy Bridge/Sandy Bridge LGA1155 processors. Supports Intel 22/32nm Hi-K CPU Max. 95W
- DDR3 1600/1333
Specs
Reviews (3)
Learn more about the Foxconn H77MXV-D
| Brand | Foxconn |
|---|---|
| Model | H77MXV-D |
| CPU Type | Support INTEL Ivy Bridge/Sandy Bridge LGA1155 processors. Supports Intel 22/32nm Hi-K CPU Max. 95W |
|---|
| Chipset | Intel H77 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR3 1600/1333 |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 |
| Serial ATA (SATA) | 2 x SATA 6Gb/s |
|---|---|
| SATA RAID | 0/1/5/10 |
| Audio Channels | 5.1 Channels |
|---|
| Max LAN Speed | 1Gbps |
|---|
| Back I/O Ports | 1 x PS/2 / 2 x USB 3.0 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 1 |
| Video Ports | D-Sub + DVI |
| USB 3.0 | 2 x USB 3.0 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 2 x USB 3.0 + 4 x USB 2.0 |
|---|---|
| Other Connectors | 1x ATX 24-Pin power connector. 1x 4-pin ATX 12V power connector. 2x 4-pin CPU/SYS Fan 1x Front pannel header 1x Front Audio header 1x SPDIF OUT header 1x TPM header 1x LPT header 1x COM header 1x CLR_CMOS header 1x INTR header 1x CIR header 1x Speaker header |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.2" x 7" |
| Power Pin | 24 Pin |
| Features | Support INTEL last 22nm Ivy Bridge/Sandy Bridge LGA1155 processors Intel HD Graphics, support VGA and DVI-D display interface 2* dual-channel DDR3 1600/1333MHz, up to 16GB Support 2* USB3.0, 2* SATAIII, 2* SATAII Support 5.1channel HD Audio and GigaLan 100% solid cap |
|---|
| First Listed on Newegg | April 09, 2013 |
|---|
