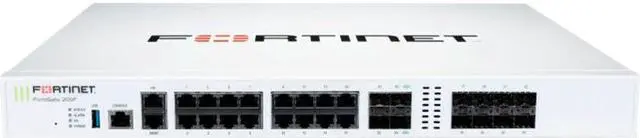

Fortinet FortiGate 200F - security appliance - with 1 year 24x7 FortiCare Support + 1 year FortiGuard Unified Threat Protection (UTP) FG-200F-BDL-950-12

Specifications
General
Device Type Security appliance
Bundled Services 1 year 24x7 FortiCare Support + 1 year FortiGuard Unified Threat Protection (UTP)
Height (Rack Units) 1U
Width 17 in
Depth 13.5 in
Height 1.7 in
Weight 9.92 lbs
Processor / Memory / Storage
Processors Installed Fortinet FortiASIC CP9/NP6XLite
Networking
Form Factor Rack-mountable
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Network / Transport Protocol TCP/IP, UDP/IP, IPSec, HTTP, HTTPs
Remote Management Protocol HTTP, HTTPS
Performance IPS throughput: 5 Gbps ¦ NGFW throughput: 3.5 Gbps ¦ Threat protection throughput: 3 Gbps ¦ Firewall throughput (1518-byte UDP): 27 Gbps ¦ Firewall throughput (512-byte UDP): 27 Gbps ¦ Firewall throughput (64-byte UDP): 11 Gbps ¦ Firewall latency (64-byte UDP): 4.78 µs ¦ Firewall throughput: 16.5 Mpps ¦ VPN throughput (512-bit IPSec): 13 Gbps ¦ VPN throughput (SSL): 2 Gbps ¦ SSL inspection throughput: 4 Gbps ¦ Application control throughput: 13 Gbps ¦ CAPWAP throughput: 20 Gbps
Capacity Concurrent TCP sessions: 3000000 ¦ New TCP sessions per second: 280000 ¦ Firewall policies: 10000 ¦ Gateway to gateway IPSec VPN Tunnels: 2500 ¦ Client to gateway IPSec VPN tunnels: 16000 ¦ Concurrent SSL VPN users: 500 ¦ SSL inspection CPS: 3500 ¦ SSL inspection concurrent sessions: 300000 ¦ Virtual domains: 10 ¦ Maximum virtual domains: 10 ¦ Number of FortiSwitches: 64 ¦ Number of FortiAP devices: 256 ¦ Number of FortiAP devices (tunnel): 128 ¦ Number of FortiToken devices: 5000
Status Indicators Power, status, alarm, HA
Features VPN support, Trusted Platform Module (TPM), SD-WAN support
Encryption Algorithm SSL, TLS 1.3
Expansion / Connectivity
Interfaces 2 x 10GBase-X - SFP+ ¦ 16 x 1000Base-T - RJ-45 ¦ 1 x console - RJ-45 ¦ 1 x USB 3.0 - Type A ¦ 8 x 1000Base-X - SFP (mini-GBIC) ¦ 1 x 1000Base-T (management) - RJ-45 ¦ 1 x 1000Base-T (HA) - RJ-45 ¦ 2 x FortiLink - SFP+
Miscellaneous
Compliant Standards UL, VCCI, BSMI, ICSA IPSec certified, ICSA Firewall certified, cUL, ICSA Antivirus, CB, FCC Part 15 B Class A, RCM, ICSA SSL-VPN, ICSA IPS, ICSA IPv6
Power
Power Device Internal power supply
Max Supported Qty 2
Power Redundancy Optional
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 101.92 Watt
Software / System Requirements
OS Provided FortiOS
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 20 - 90% (non-condensing)
