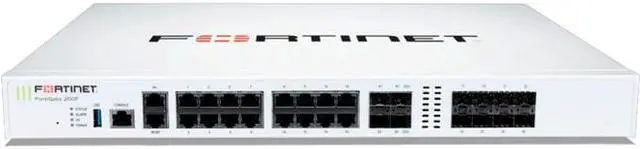

FG-200F-BDL-950-12 - Fortinet FortiGate NGFW Middle-range Series FortiGuard Unified (UTM) Protection

Manufacturer :Fortinet
Brand :Fortinet
Product Line :Fortinet FortiGate
Model :200F
Packaged Quantity :1
Processor
Type :FortiASIC CP9/NP6XLite
Manufacturer :Fortinet
Performance
Performance :Firewall latency (64-byte UDP): 4.78 µs, Firewall throughput (512-byte UDP): 27 Gbps, Firewall throughput (64-byte UDP): 11 Gbps, Firewall throughput (1518-byte UDP): 27 Gbps, CAPWAP throughput: 20 Gbps, SSL inspection throughput: 4 Gbps, VPN throughput (512-bit IPSec): 13 Gbps, VPN throughput (SSL): 2 Gbps, Firewall throughput: 16.5 Mpps, Threat protection throughput: 3 Gbps, NGFW throughput: 3.5 Gbps, Application control throughput: 13 Gbps, IPS throughput: 5 Gbps
Capacity
Capacity :Number of FortiToken devices: 5000, SSL inspection CPS: 3500, Virtual domains: 10, Gateway to gateway IPSec VPN Tunnels: 2500, Concurrent SSL VPN users: 500, New TCP sessions per second: 280000, Concurrent TCP sessions: 3000000, Number of FortiSwitches: 64, Firewall policies: 10000, Number of FortiAP devices: 256, Client to gateway IPSec VPN tunnels: 16000, Maximum virtual domains: 10, Number of FortiAP devices (tunnel): 128, SSL inspection concurrent sessions: 300000
Networking
Type :Security appliance
Form Factor :Rack-mountable
Connectivity Technology :Wired
Data Link Protocol :Ethernet, Fast Ethernet, Gigabit Ethernet
Network / Transport Protocol :IPSec, HTTP, UDP/IP, HTTPs, TCP/IP
Remote Management Protocol :HTTPS, HTTP
Status Indicators :Alarm, Power, Status, HA
Features :SD-WAN support, Trusted Platform Module (TPM), VPN support
Interface Provided
Interfaces :1 x 1000Base-T (management) - RJ-45, 1 x USB 3.0 - Type A, 2 x 10GBase-X - SFP+, 8 x 1000Base-X - SFP (mini-GBIC), 1 x 1000Base-T (HA) - RJ-45, 1 x console - RJ-45, 16 x 1000Base-T - RJ-45, 2 x FortiLink - SFP+
OS Provided
Type :FortiOS
Power Device
Type :Internal power supply
Power Redundancy :Optional
Max Supported Qty :2
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Power Consumption Operational :101.92 watt
Miscellaneous
Color Category :White
Height (Rack Units) :1
Encryption Algorithm :SSL, TLS 1.3
Compliant Standards :ICSA Firewall certified, CB, ICSA SSL-VPN, ICSA IPS, VCCI, RCM, BSMI, ICSA IPSec certified, ICSA IPv6, UL, FCC Part 15 B Class A, cUL, ICSA Antivirus
Dimensions & Weight
Width :17 inch
Depth :13.5 inch
Height :1.7 inch
Weight :9.92 lbs
Service & Support
Bundled Services :1 year 24x7 FortiCare Support + 1 year FortiGuard
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :20 - 90% (non-condensing)
