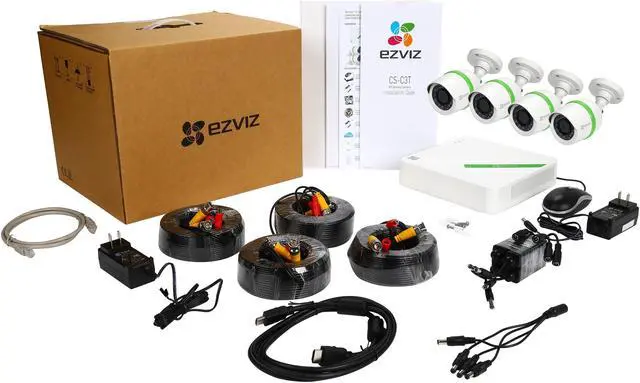

EZVIZ 4 Channel HD 1080p Analog TVI Security System w/ 1TB HDD and 4 Weatherproof 1080p Bullet Cameras, Works with Alexa and Google Home Using IFTTT (BD-1424B1)
(18)
Write a Review
4 Ch. HD Analog Security System w/ 1TB HDD
4 x HD 1080P, 1/3 CMOS, 2.8mm Lens
Up to 100 ft. Night Vision
IP66 Weatherproof For Outdoor
Free EZVIZ Cloud Access for Easy Setup & Remote Viewing
Playback / Reverse Playback for Multi-Channel
Works with Alexa and Google Home using IFTTT
Overview
Specs
Reviews
(18)
SECURITY CAMERA TVI 1080P 4X4 1TB
Learn more about the EZVIZ Inc. BD-1424B1
Model
Brand
EZVIZ
Model
BD-1424B1
Type
Surveillance System / Security Camera Kit
Recording
Camera Type
Analog Camera
Camera inputs
4 Channel

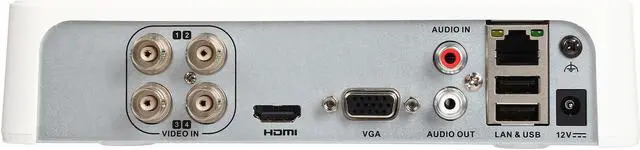

Video Input
4-ch
BNC interface (1.0 Vp-p, 75 O)
Audio Input
1-ch, RCA (2.0 Vp-p, 1K Ohms)
Display
Video Output
1 x VGA, 1 x HDMI
Audio Output
1-ch, RCA (Linear, 1K Ohms)
Max Resolution
1080P (1920 x 1080)
Details
Built-In HDD
Built-in 1-TB HDD
Backup Device
2 x USB 2.0
Serial Connectors
1 x standard RS-485 serial interface, half-duplex
Network
Network Connection
1 x 10M / 100M self-adaptive Ethernet interface
Features
Features
Crystal-clear 1080p 4-camera analog HD security system with 1TB HDD
Upgrade exsisting standard definition systems to 1080p without replacing the cabling infrastructure
Weatherproof cameras for indoor and outdoor use
Supports synchronous playback and reverse playback for multi-channel
Supports live view, storage, and playback of connected cameras
4 BNC connectors for video inputs
Includes 60 ft. network cables
Support up to 100 ft. night vision
EZVIZ robust app allows you to set up, configure, and view your videos and feeds shared with you
Instant alerts via push notifications
Free EZVIZ cloud access for easy setup and secure remote view
Triple-layer security including bank-level encryption to safeguard the precious moments you capture
Works with Alexa and Google Home using IFTTT
Operating System
Android
Power Supply
Power supply: 12V DC
Consumption: <=20W
Bundle
Bundled Camera Number
4

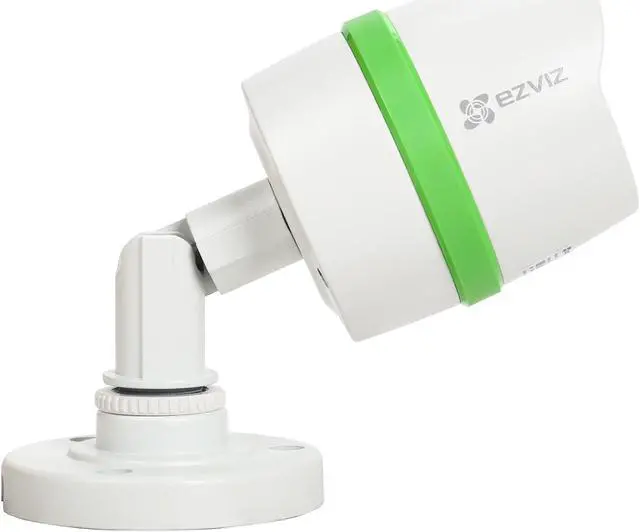

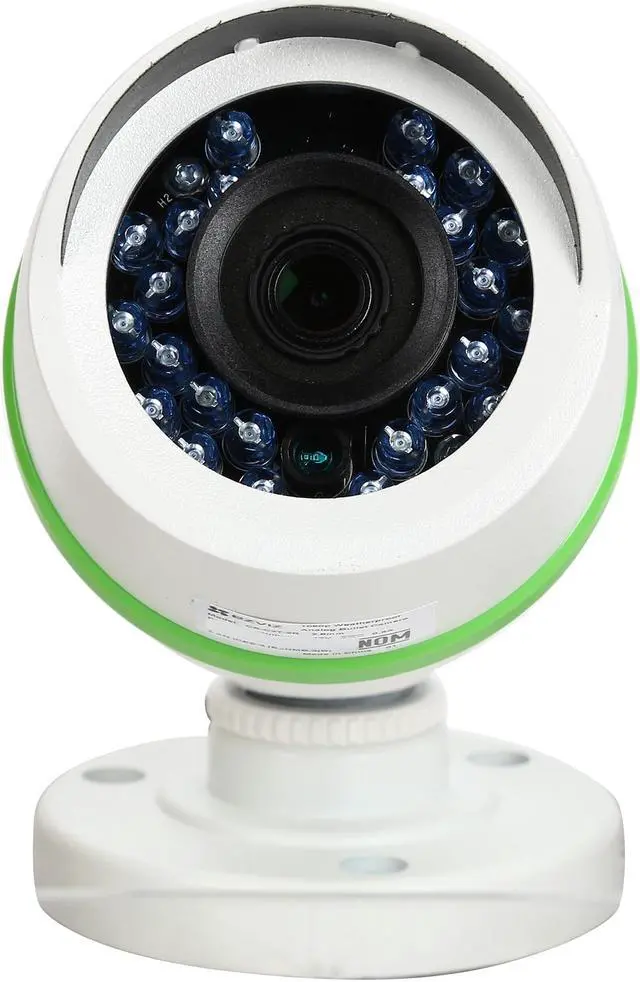

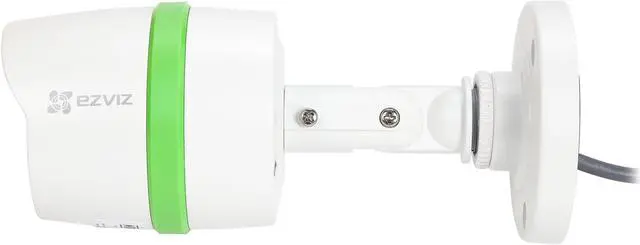

Bundled Camera Spec
Image Sensor: 1/3" Progressive Scan CMOS
Signal System: PAL / NTSC
Effective Pixels: 1930 (H) x 1088 (V)
Min. Illumination: 0.1 Lux @ (F1.2, AGC ON), 0 lux with IR
Shutter Time: 1/30s to 1/50,000s
Lens: 2.8mm @ F2.0, View Angle: 105.8 degree (horizontal)
Lens Mount: M12
Angle Adjustment Pan: 0 - 360 degree, Tilt: 0 - 90 degree, Rotation: 0 - 360 degree
Day & Night: ICR
Video Frame Rate: 1080p @ 30 fps
HD Video Output: 1 HD output
S/N Ratio: More than 52 dB
Power Supply: 12V DC
Power Consumption: Maximum. 4W
Weather Proof Ratings: IP66
Dimensions & Weight
Dimensions
DVR: 1.80" x 7.90" x 7.90"
Camera: 6.20" x 2.75" x 2.75" / Each
Weight
DVR: 2.20 lbs.
Camera: 0.41 lb. / Each
