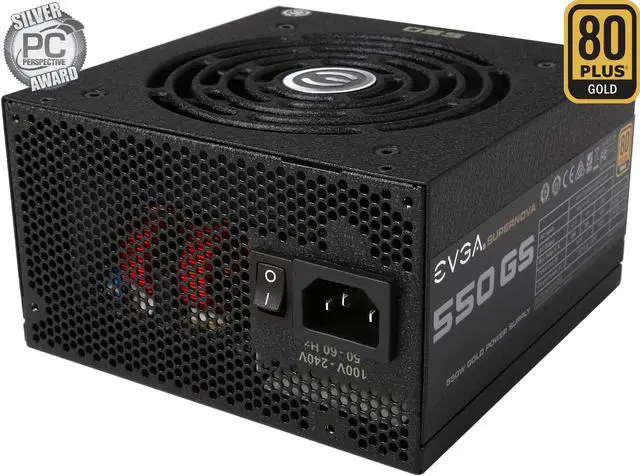

EVGA SuperNOVA 550 GS 220-GS-0550-V1 80+ GOLD 550W Fully Modular EVGA ECO Mode Includes FREE Power On Self Tester Power Supply

Specs

Reviews

Learn more about the EVGA 220-GS-0550-V1

General
Brand	EVGA
Model	220-GS-0550-V1

Details
Type	ATX12V / EPS12V
Maximum Power	550 W

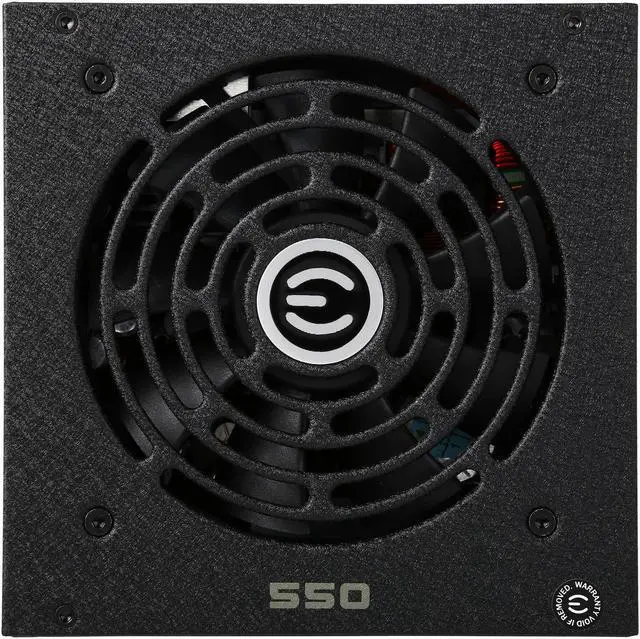

Fans	120mm Teflon NanoSteel Bearing
Main Connector	24Pin
PCI-Express Connector	4 x 6+2-Pin
SATA Power Connector	6
SLI	SLI Ready
Haswell Support	Yes
CrossFire	CrossFire Ready
Modular	Full Modular
Efficiency	90% (115VAC) / 92% (220VAC~240VAC) or Higher Typical
Energy-Efficient	80 PLUS GOLD Certified
Over Voltage Protection	Yes
Overload Protection	Yes

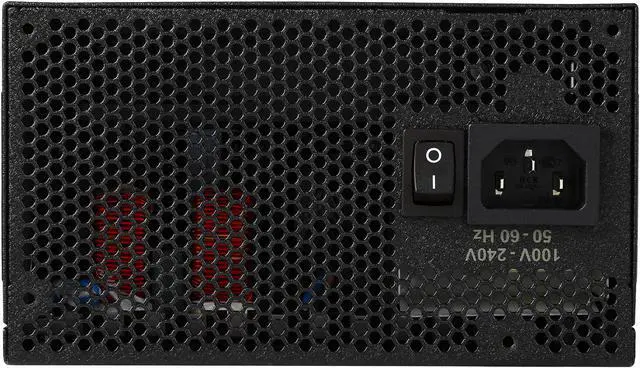

Input Voltage	100 - 240 V
Input Frequency Range	50/60 Hz
Input Current	12-6A

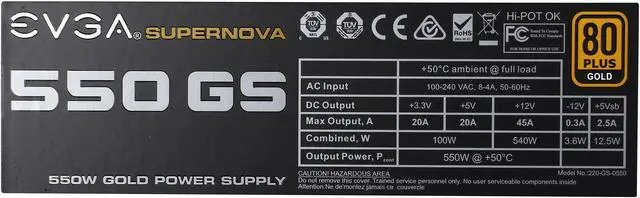

Output	+3.3V@20A, +5V@20A, +12V@45A, [email protected], [email protected]
MTBF	>100,000 Hours

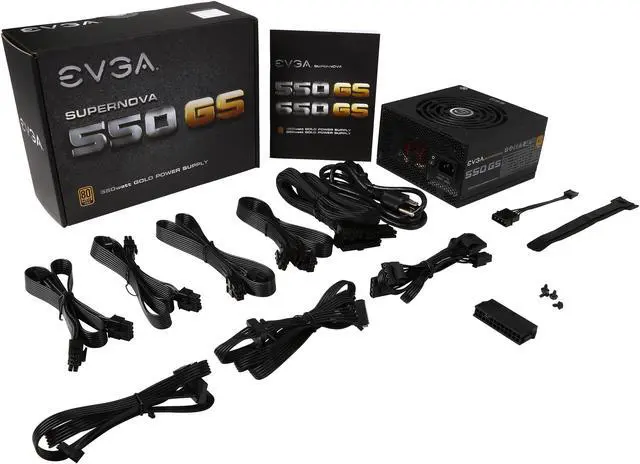

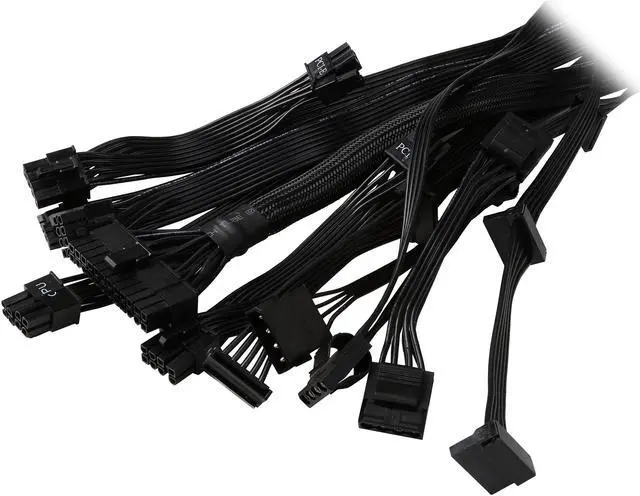

Connectors	24 Pin ATX 1x EPS (CPU) 1x 8pin (4+4) + 8pin PCIE 4x 8pin (6+2) SATA 6x FourPin Peripheral 4x Floppy 1x

Features
Features	80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads Highest quality Japanese brand capacitors ensure longterm reliability Fully Modular to reduce clutter and improve airflow NVIDIA SLI & AMD Crossfire Ready Unbeatable 5 Year Warranty and unparalleled EVGA Customer Support Heavyduty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OPP (Over Power Protection), and SCP (Short Circuit Protection)

Dimension & Weight
Dimensions	3.39" x 5.91" x 5.91"
Weight	5.00 lbs.

Additional Information
First Listed on Newegg	May 16, 2017

Return for refund within: Non-refundable

Return for replacement within: 30 days
