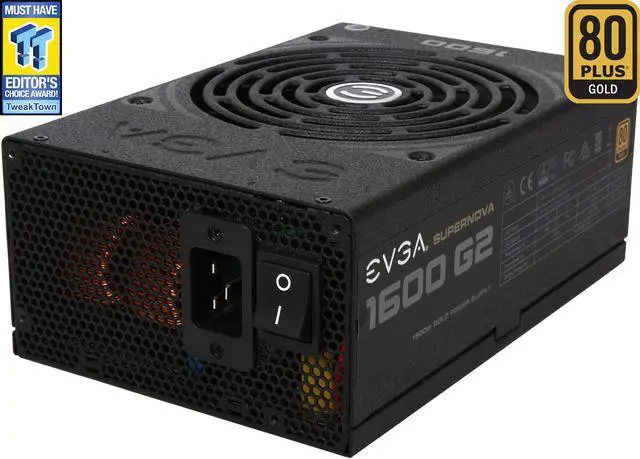

EVGA SuperNOVA 1600 G2 120-G2-1600-X1 80+ GOLD 1600W Fully Modular Includes FREE Power On Self Tester Power Supply

Specs

Reviews

Learn more about the EVGA 120-G2-1600-X1

General
Brand	EVGA
Model	120-G2-1600-X1

Details
Type	ATX12V / EPS12V
Maximum Power	1600 W

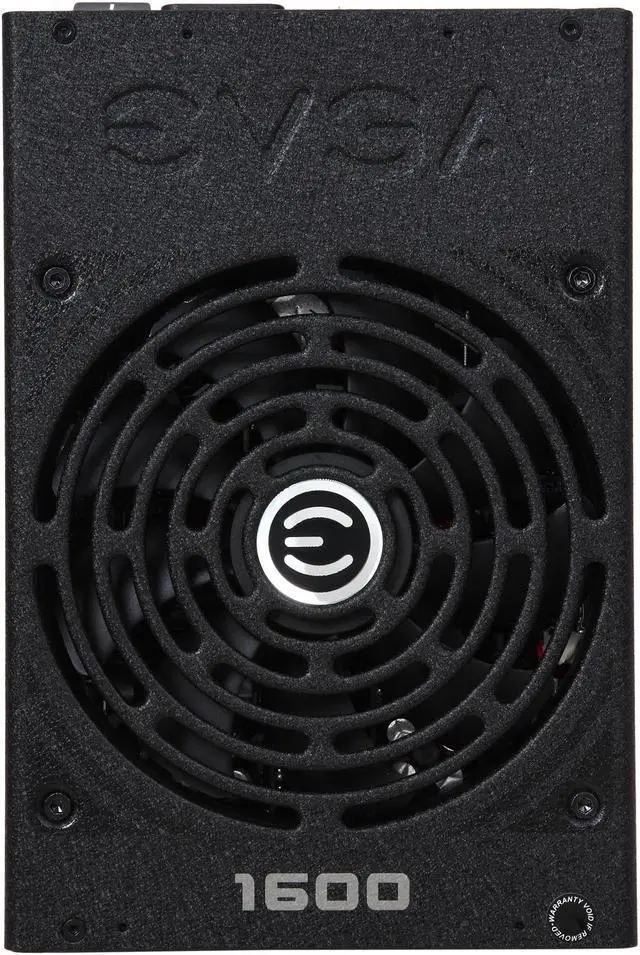

Fans	140mm Double Ball Bearing
Main Connector	24Pin
+12V Rails	Single
PCI-Express Connector	9x 8pin (6+2), 5x 6pin
SATA Power Connector	16
SLI	SLI Ready

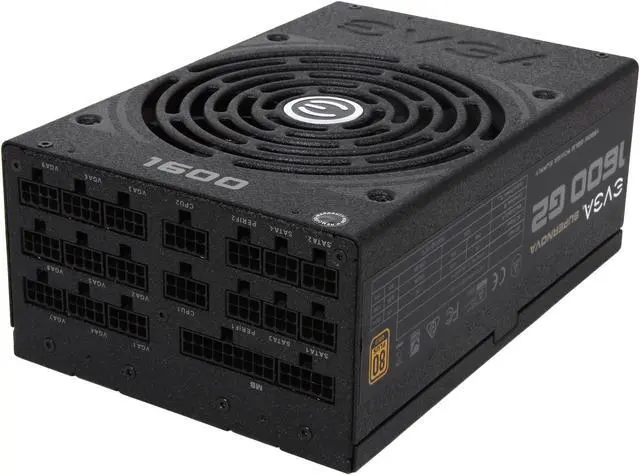

Modular	Full Modular
Efficiency	90%
Energy-Efficient	80 PLUS GOLD Certified
Over Voltage Protection	Yes
Overload Protection	Yes

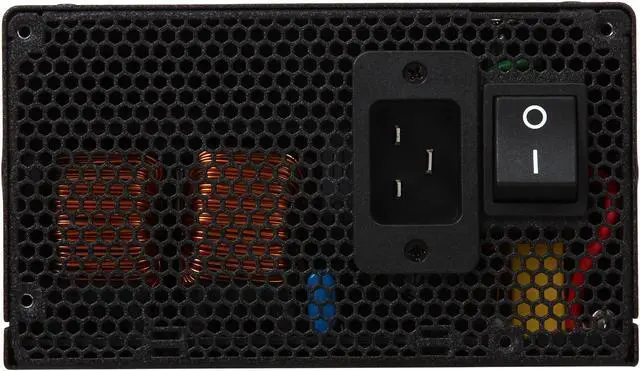

Input Voltage	115 - 240 V
Input Frequency Range	50/60 Hz
Input Current	17-10A

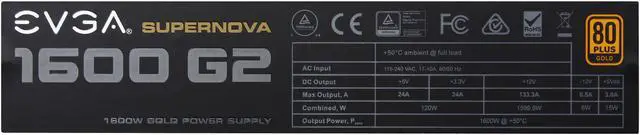

Output	+3.3V@24A, +5V@24A, [email protected], +5VSB@3A, [email protected]
MTBF	>100,000 Hours
Approvals	TUV, CB, CE, FCC, RCM, cTUVus, BSMI, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement

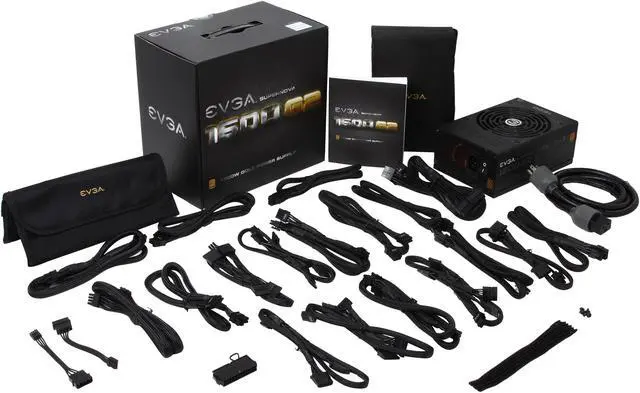

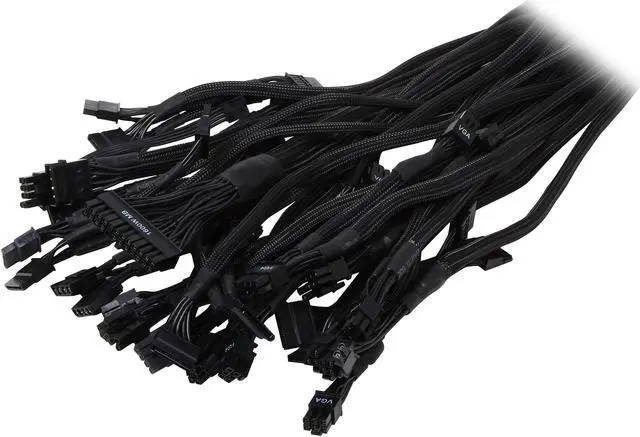

Connectors	1 x 24 Pin ATX EPS (CPU): 2 x 8pin (4+4) PCIE: 9 x 8pin (6+2), 5 x 6pin 16 x SATA 6 x Four-Pin Peripheral 2 x Floppy

Features
Features	Unbeatable 10 Year Warranty and unparalleled EVGA Customer Support 80 PLUS Gold certified, with up to 90% efficiency under typical loads Highest quality Japanese brand capacitors ensure long-term reliability Fully Modular to reduce clutter and improve airflow NVIDIA SLI Ready Double Ball Bearing fan for exceptional reliability and quiet operation Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), and SCP (Short Circuit Protection)

Dimension & Weight
Dimensions	3.34" x 5.90" x 8.66" (H x W x L)
Weight	8.00lbs

Details
Modular	Yes

Additional Information
First Listed on Newegg	February 21, 2017
