EVGA 600 B1 100-B1-0600-KR 80+ BRONZE 600W Includes FREE Power On Self Tester Power Supply
- ATX12V / EPS12V
- 80 PLUS BRONZE Certified
- 100 - 240 V 50/60 Hz
- +5V@20A, +3.3V@24A, +12V@49A, [email protected], +5VSB@3A
Overview
Specs
Reviews (1,883)
EVGA 600 BRONZE 600W Power Supply
With price and performance in mind, the EVGA 600B is the best value power supply for your next build on a budget. With 80 Plus Bronze standard, over 80% efficiency under typical loads, the EVGA 600B is a great choice. Combining 600W of continuous power and single +12V High AMP rail design, gain maximum power and efficiency while staying protected with a series of multiple safety protections all bundled into one!
- Exceptional three-year warranty and unparalleled EVGA customer support
- 80 PLUS Bronze-certified, with up to 85% efficiency under typical loads
- High amperage single-rail design for maximum power and efficiency
- Quiet and intelligent auto fan for near-silent operation
- Heavy-duty power protection provides peace of mind during operation
Trust EVGA to label all of our power supplies in Continuous Power, the steady power a PSU can output continuously, rather than the amount delivered at its short-lived peak.
A single +12V rail offers the best power output, rail stability and compatibility with the latest hardware.
With an exceptional three-year warranty and EVGA's legendary customer support, you can rest easy knowing that you've got the best protection in the industry.
INPUT:
| Input Voltage | 100VACA ~ 240VACA |
| Input Frequency Range | 50Hz ~ 60Hz |
| Efficiency | 85% Typical |

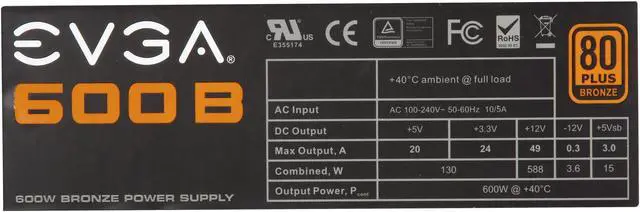

OUTPUT:
| Rail | +5V | +3.3V | +12V | -12V | +5VSB |
| Max output | 20A | 24A | 49A | 0.3A | 3A |
| 130W | 588W | 3.6W | 15W | ||
| Total | 600W @ +40° | ||||
ADDITIONAL DETAILS:
| Operating Temperature | 0° ~ 40° |
| Net Weight | 4.4lbs / 2kg |
| Size | 85mm (H) x 150mm (W) x 140mm (L) / 3.3in. (H) x 5.9in. (W) x 5.5in. (L) |
| Approvals | UL, CUL, FCC, TUV, CE |
| MTBF | 100,000 hours |
| Fan | 120mm |
Efficiency: 85%Number of Fans: 1Modular: NoInput Voltage: 110 V AC, 220 V ACNumber of +12V Rails: 1Output Voltage: 3.3 V DC @ 24 A, 5 V DC @ 20 A, 12 V DC @ 49 A, -12 V DC @ 300 mA, 5 V @ 3 AOutput Power: 600 WForm Factor: InternalHeight: 3.3"Width: 5.9"Depth: 5.5"Weight (Approximate): 4.40 lbCompatibility: Intel 4th Generation Core Processors (C6/C7 Idle Mode)Green Compliant: YesGreen Compliance Certificate/Authority: 80 Plus Bronze, RoHSLimited Warranty: 3 YearReady for 4th Generation Intel Core Processors (C6/C7 Idle Mode)With price and performance in mind, the EVGA 600B is the best value power supply for your next build on a budget. With 80 Plus Bronze standard, over 80% efficiency under typical loads, the EVGA 600B is a great choice. Combining 600W of continuous power and Single +12V High AMP rail design, gain maximum power and efficiency while staying protected with a series of multiple safety protections all bundled into one!
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Return for refund within: Non-refundable
- Return for replacement within: 30 days
- This item is covered by Newegg.ca's Replacement Only Return Policy.
- Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-888-880-3842
- Support Website
- View other products from EVGA
