4K@60Hz HDMI Audio Extractor: 18Gbps HDMI eARC audio extractor can extract audio from a HDMI source signal to AV Receiver with HDMI input port. It supports HDMI signal loop out and no-latency. Will pass through high resolution video to TV with ARC / eARC function.
High-Quality Sound: HDMI eARC audio extractor converter support all available audio options basically. Such as PCM 2.0, LPCM 5.1/ 7.1, Doby Digital, Doby digital plus, Doby True-HD, Doby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS: X.
Ultra HDMI2.0b eARC Extractor: HDMI sound extractor supports ultra HDR10, 4Kx2K @ 60Hz, 3D, HDCP 2.3, max bandwidth of 18Gbps. It can support loop out, can realize audio and video simultaneous to split, no lag, no loss. provides impressive high-quality UHD video, bringing you an amazing visual experience.
HDMI eARC & ARC Function: This HDMI to HDMI audio converter allows eARC/ ARC function, which can extracts the Audio from TV to Speaker, Sound bar or Amplifier. Can support independent audio output. NOTE: The HDMI AUDIO output port can only be 4K@60Hz HDMI AUDIO EXTRACTOR- HDMI audio splitter extractor extracts audio from a digital HDMI signal to HDMI 7.1CH ATMOS Audio.And original video/audio signal is passed through the HDMI output,achieving the synchronization of audio signal separation,provide audio and video transmission with high-fidelity and lossless.
Wide Compatibility: 4K 60Hz HDMI2.0b audio splitter are suitable for various HDMI source devices. HDMI input: Blu-ray, DVD, TV box, PS5, Xbox, HD camera, etc. HDMI Output: HD TV, Monitor, Projector. Audio output: Speaker, Amplifier, Soundbar or other sound systems. With this you can get the high quality audio and video transmission.
4K@60Hz HDMI AUDIO EXTRACTOR- HDMI audio splitter extractor extracts audio from a digital HDMI signal to HDMI 7.1CH ATMOS Audio.And original video/audio signal is passed through the HDMI output,achieving the synchronization of audio signal separation,provide audio and video transmission with high-fidelity and lossless.
HDMI 2.0b and HDCP 2.2,4K@120Hz 4K@60Hz HDMI audio extractor with eARC for 7.1CH AUDIO ONLY & ARC .support RGB 8:8:8(7.1CH Dolby atmos),EDID,Dolby Vision,HDR 10 .
SPECIFICATIONS
Input ports: 1XHDMI
Output port: 2 XHDMI(Female type )
1 XHDMI Audio output: support ARC/eARC function
Audio support: LPCM 7 .1CH,Dolby TrueHD ,and DTS -HD Master Audio
Video Resolution: up to 4k@60/120Hz RGB 8 :8:8
Dimensions: 62X58X20M

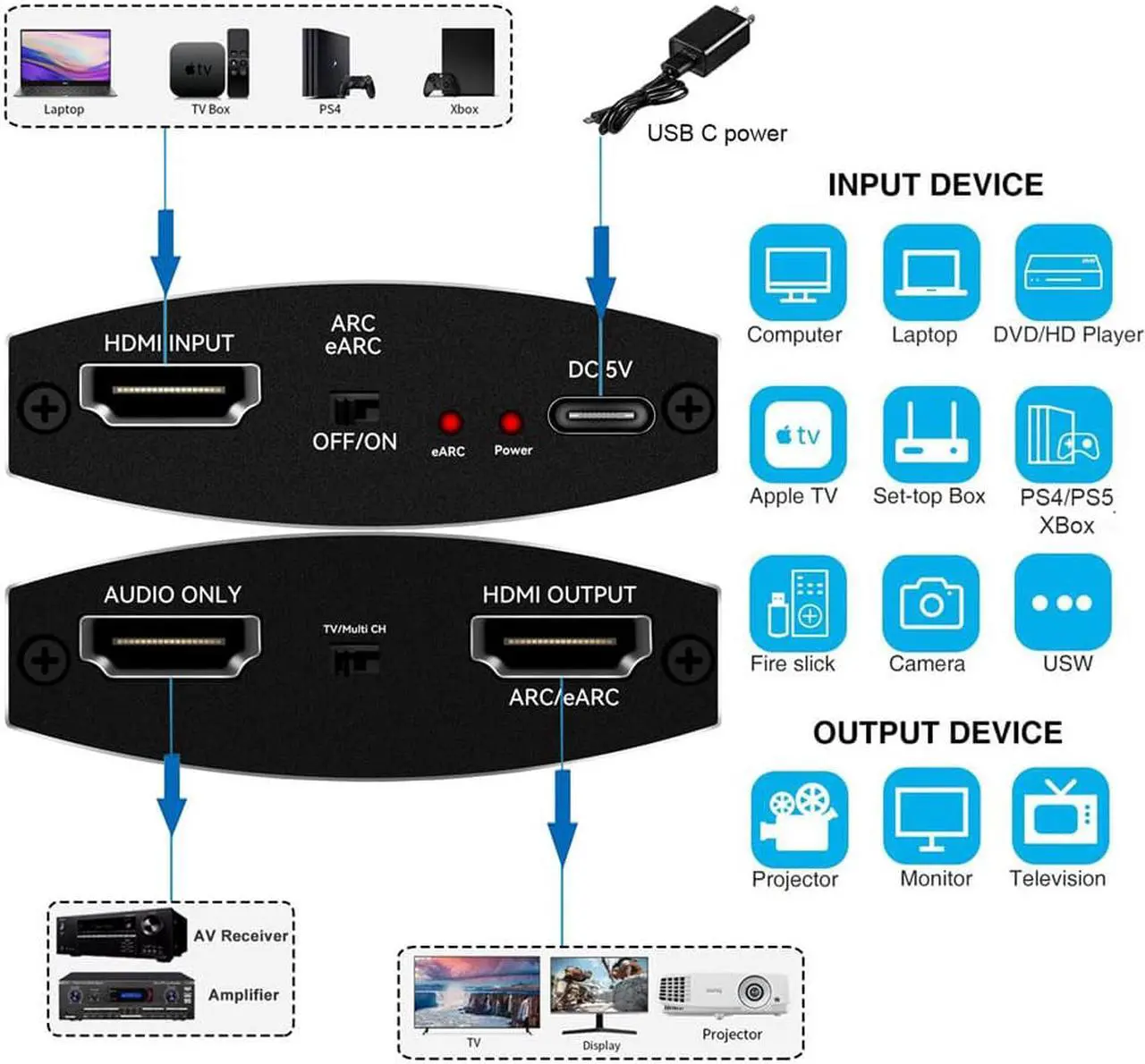

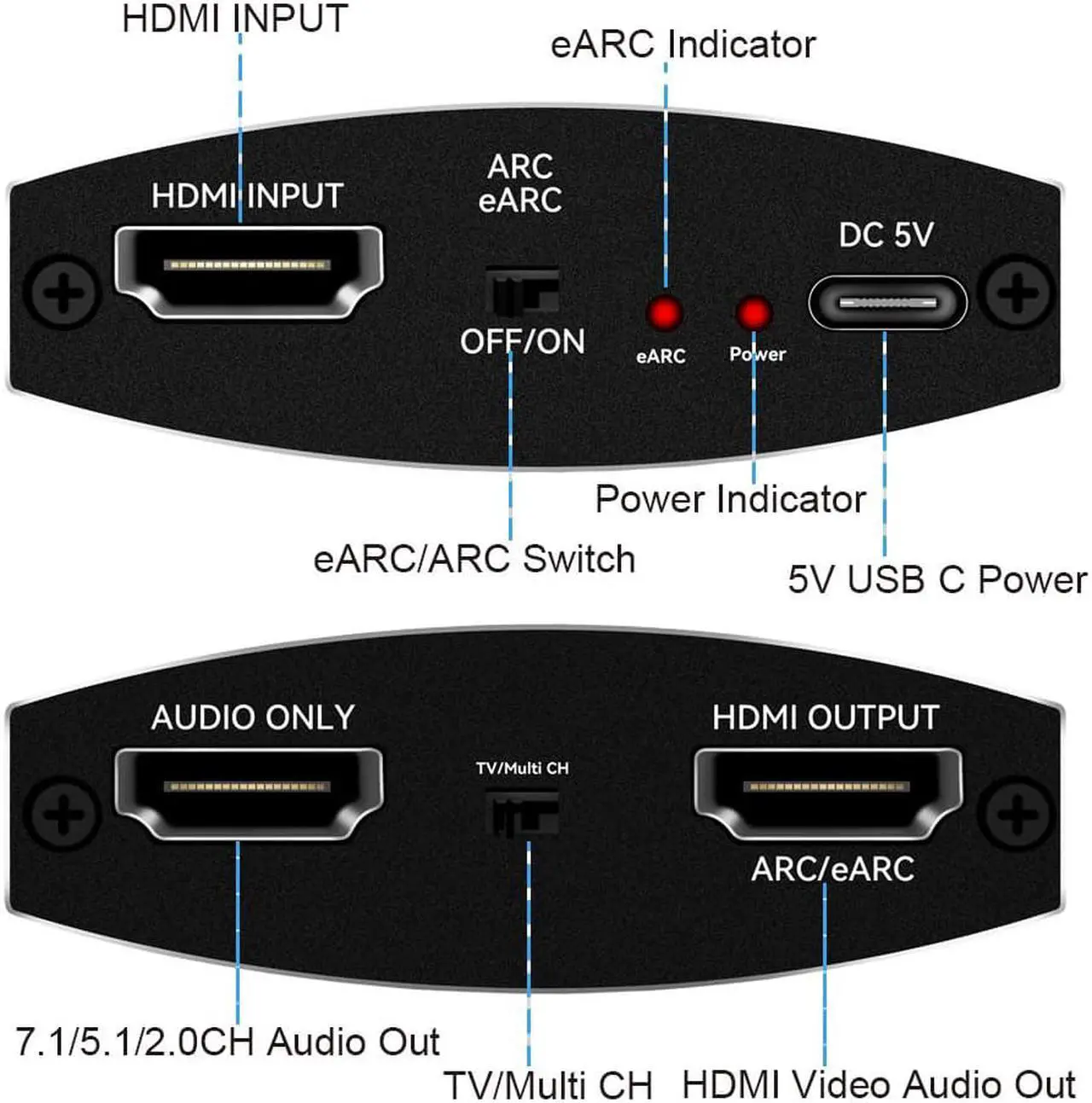

There are 1 HDMI input ,1 port HDMI output ,1 port HDMI audio output,1 USB-C power port .
