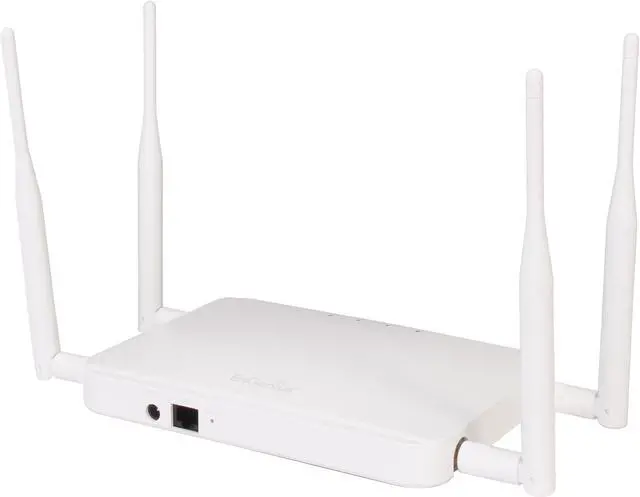

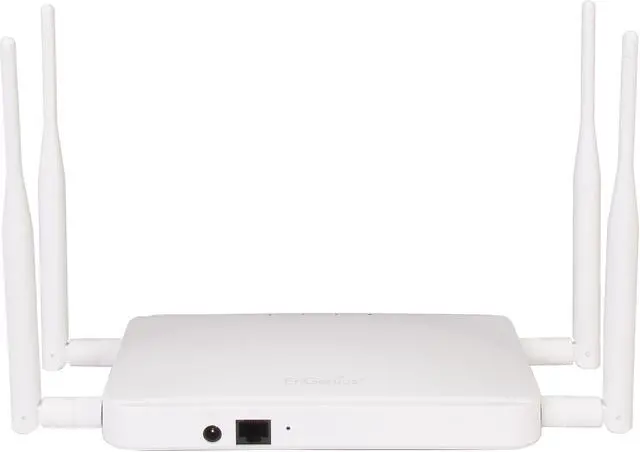

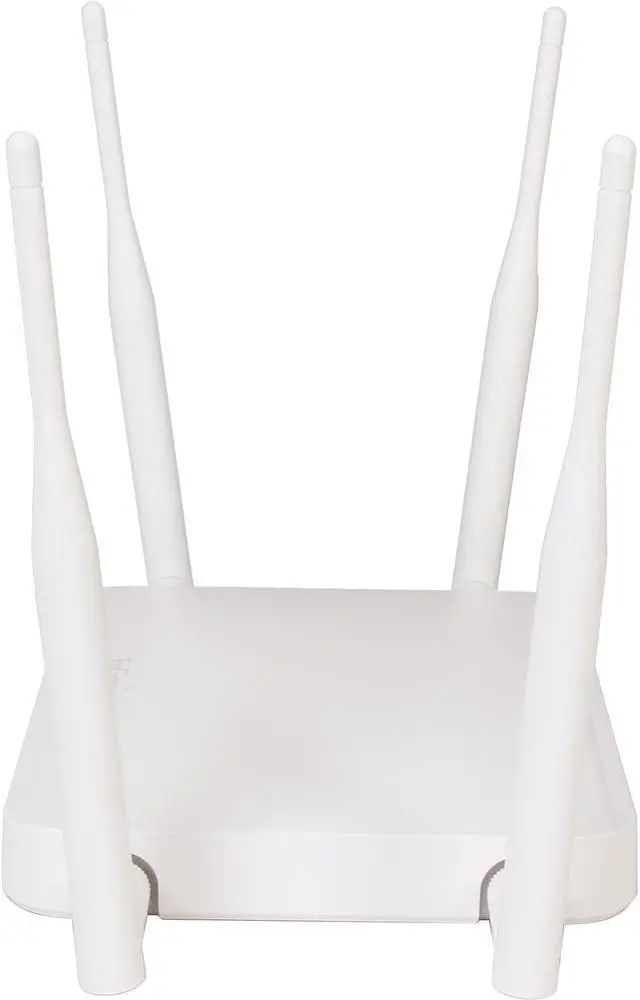

EnGenius ECB600 High-Powered Concurrent Dual Band Wireless-N Access Point/Client Bridge
- Up to 300+300Mbps Wireless Data Rates
- IEEE 802.3/3u/3ab, IEEE 802.11a/b/g, IEEE802.11n
- Ethernet Port
- 2.4 GHz / 5 GHz
Specs
Reviews
Learn more about the EnGenius Technologies ECB600
| Brand | EnGenius |
|---|---|
| Model | ECB600 |
| Standards | IEEE 802.3/3u/3ab, IEEE 802.11a/b/g, IEEE802.11n |
|---|---|
| Wireless Data Rates | Up to 300+300Mbps |
| Security | WPA/WPA2 Personal (WPA-PSK using TKIP or AES) WPA/WPA2 Enterprise (WPA-EAP using TKIP) 802.1X RADIUS Authenticator: MD5/TLS/TTLS, PEAP SSID broadcast enable/disable MAC Address Filtering, Up to 50 field L2 Isolation (Access Point mode) Wireless STA (Client) connected list (Idle/Connection Time, Pkt statistics) |
| Frequency Band | 2.4 GHz / 5 GHz |
| Channels | 2.4 GHz: US/Canada 1-11 5 GHz: Country dependent for the following ranges: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 149, 153, 157, 161, 165 |
| Antenna | Four (4) External 5 dBi Omni-Directional Antennas |
| Receiver Sensitivity | 802.11n (5 GHz) -94dBm @ MCS0 -76dBm @ MCS7 -91dBm @ MCS8 -73dBm @ MCS15 802.11n (2.4 GHz) -95dBm @ MCS0 -77dBm @ MCS7 -91dBm @ MCS8 -75dBm @ MCS15 802.11a (5 GHz) -95dBm @ 6Mbps -80dBm @ 54Mbps 802.11b (2.4 GHz) -95dBm @ 1Mbps -91dBm @ 11Mbps |
| Modulation | OFDM: BPSK, QPSK, 26-OAM, 64-QAM, DBPSK, DQPSK, CCK |
| Interface | Ethernet Port |
| Buttons | Reset Button |
| WAN Ports | 1 x 10/100/1000M |
| Power Supply | Power Supply: 90 to 240 VDC +/- 10%, 50/60 Hz (depends on different countries) Active Ethernet (Power-over-Ethernet, IEEE 802.3at/af) Power Adapter (United States) 48VDC/0.375A Device: 12V/2A |
| Temperature | 0°C - 50°C (32°F - 122°F) |
|---|---|
| Humidity | 90% Maximum, Non-Condensing |
| Dimensions | 7.44" x 5.50" x 1.0" |
|---|---|
| Weight | 1.06 lbs. |
| Features | Radio I: 11b/g/n: 2.412~2.484 GHz Radio II: 11a/n: 5.18-5.24 and 5.26-5.32 and 5.5-5.7 and 5.745-5.825 GHz Memory: 64MB Flash Memory: 8MB Topology: Infrastructure/Ad-Hoc Operation Modes: Access Point, WDS Bridge, WDS Access Point, Universal Repeater VPN: Pass-through (PPTP, L2TP, IPSec) |
|---|

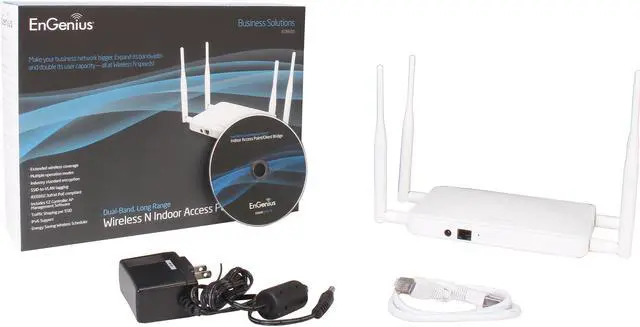

| Package Contents | ECB600 Dual band Wireless-N Access Point/Client Bridge/WDS 12V/2A Power Adapter RJ-45 Ethernet Cable Quick Installation Guide CD with User Manual |
|---|
| First Listed on Newegg | December 30, 2016 |
|---|
