192KHz DAC Digital to Analog Audio Converter Bluetooth5.0 Transmitter Receiver with aptX HD aptx Low Latency Wireless Audio Adapter

1.Built-in Bluetooth version 5.0KEY_TAB transmitter and receiver high-tech Bluetooth module, the transmitter mode supports the simultaneous connection of two pairs of Bluetooth headsets or Bluetoothspeakers

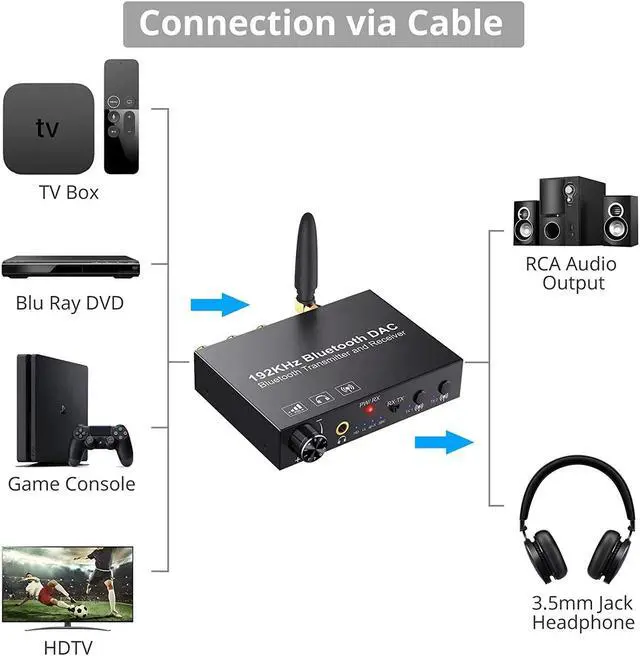

2.Support digital optical coaxial to analog RCA/3.5mm audio conversion signal

3.Support Bluetooth automatic search and connection receiver

4.Support Bluetooth connection indicator

5.Built-in high-performance DAC chip, support 192K/24bit sampling rate.

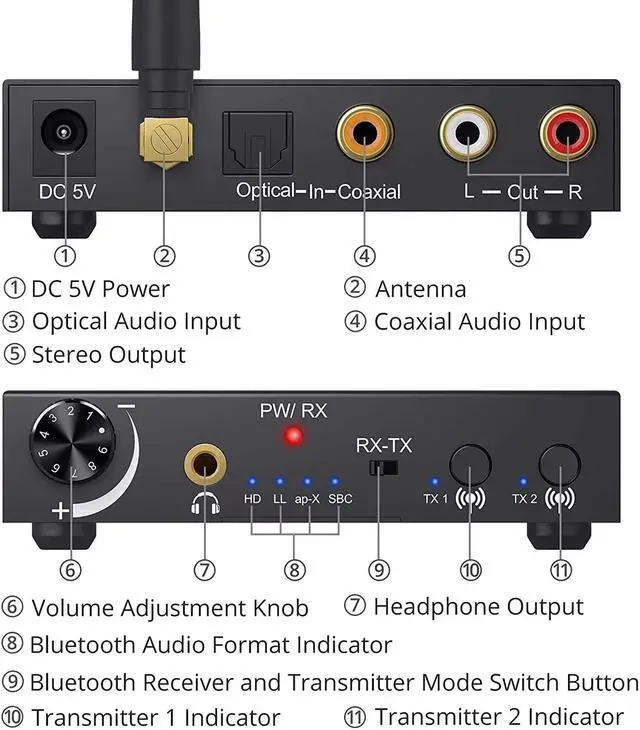

6.Bluetooth 5.0KEY_TAB transmitter supports optical or coaxial output interface, AndKEY_TAB receiver supports RCA and 3.5mm audio output interface

7.Support output volume adjustment

8.Ultra low power consumption

9.Support power-off memory, Bluetooth automatic connection function



Specifications:

Optical/Coaxial Input Audio Formats: PCM

Audio Sample Rate: 32~192K/24bit

Bluetooth decoding format: aptX-LL, aptX-HD, aptX, sbc

Bluetooth Version: 5.0 Version

Bluetooth Protocol:A2DP, AVRCP

Bluetooth distance:=25m

RCA output maximum level:9Vrms

3.5mm audio interface maximum output level:9Vrms

3.5mm audio port maximum output power:32O/35mW

Maximum working current:5V/100mA

Working environment temperature:-10~+55°C

Storage environment temperature:-26~+60°C

Working environment humidity:10~90%RH (no condensation)

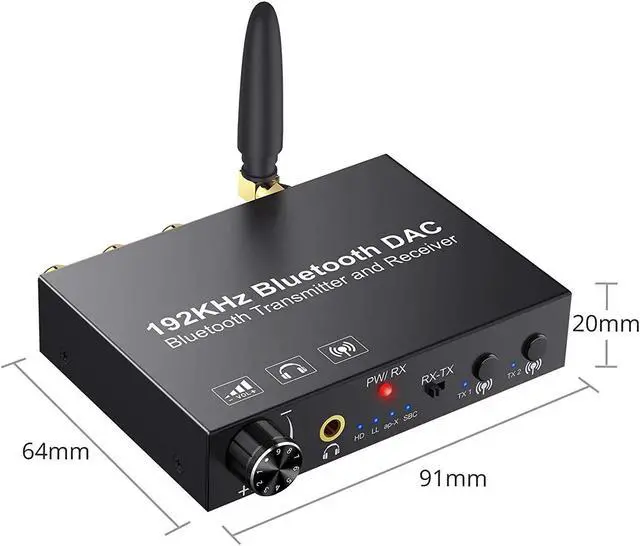

Dimension:90KEY_TAB x 81 x 19.5mm

Bare weight:156g

Shell material:Metal



Notice:

1.Please setKEY_TAB your TV's Audio Output to the PCM/LPCM Format. Not Supports 5.1 Channel Such As Not Support Dolby and DTS.

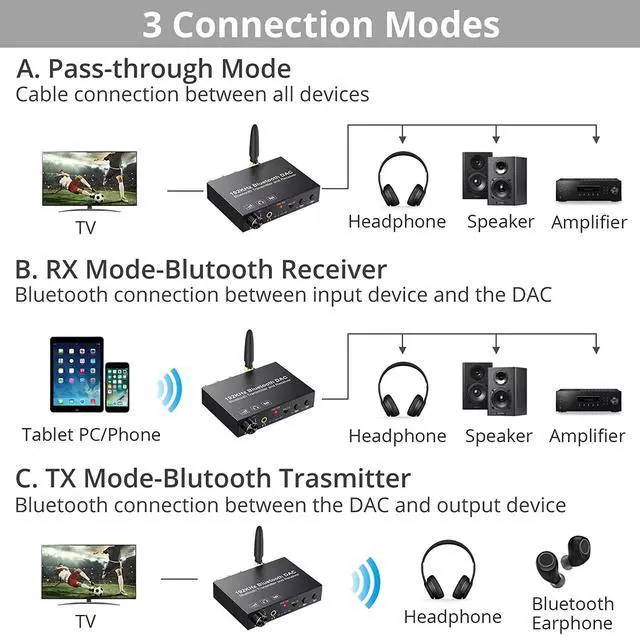

2.Works as either a transmitter or a receiver NOT simultaneously.

3.For non- aptX LL supported headphones / speakers,DAC will still work but with 70-200ms Lip-sync delay; could be noticed by sensitive users. To eliminate latency effect, use a headphone that supports aptX Low Latency.

4.aptX HD and aptX Low Latency cannot run simultaneously, only one at a time.

5.Not recommended for use with Musical Instruments.

6.Depending on the TV, the TV speaker may be muted when you plug the transmitter into its Optical audio output jack.

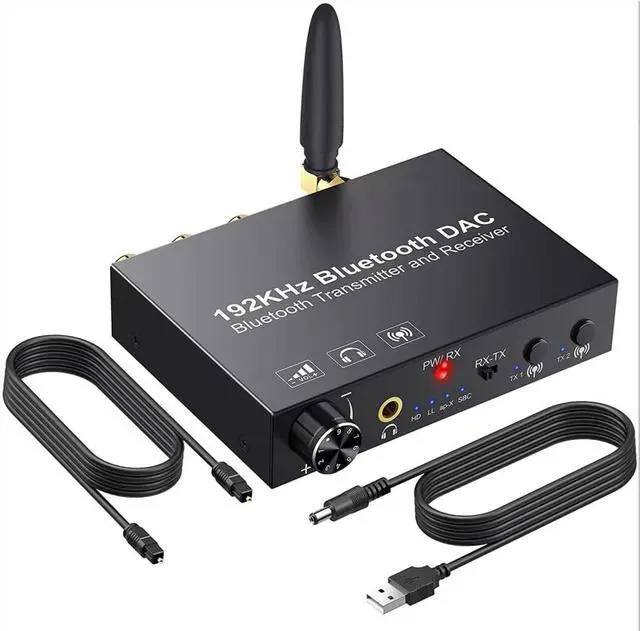

Package Content:

1 x 192KHz DAC BluetoothTransmitter and Receiver

1 x 1m(3ft) USB Power Cable

1 x 1m(3ft) Optical Cable

1 x User's Manual
