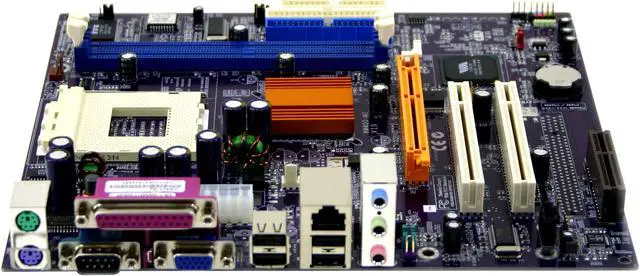

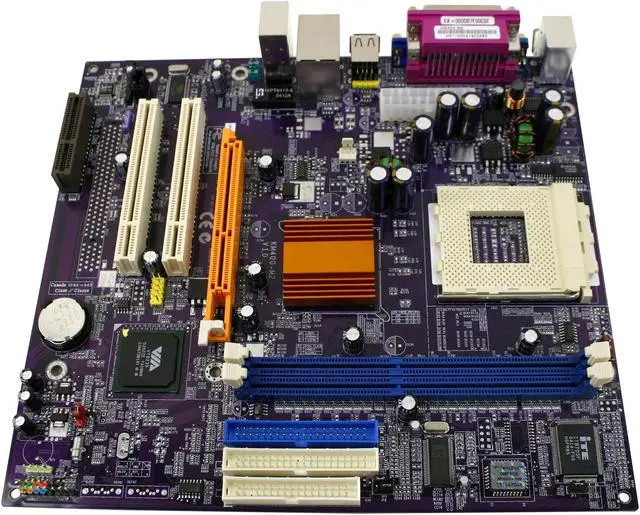

ECS KM400-M2 V1.0 462(A) VIA KM400 Micro ATX AMD Motherboard

(4) Write a Review
  • VIA KM400
  • Athlon XP / Athlon / Duron
  • DDR 333
Specs
Reviews (4)

Learn more about the ECS (EliteGroup) KM400-M2 V1.0

Model
Brand ECS
Model KM400-M2 V1.0
Supported CPU
CPU Socket Type 462(A)
CPU Type Athlon XP / Athlon / Duron
Chipsets
Chipset VIA KM400
South Bridge VIA VT8235
Memory
Number of Memory Slots 2x184pin
Memory Standard DDR 333
Maximum Memory Supported 2GB
Expansion Slots
AGP Slots 1 x AGP 4X / 8X
PCI Express x16 None
PCI Slots 2 x PCI Slots
Other Slots 1 x CNR
Onboard Video
Onboard Video Chipset S3 Graphics UniChrome 2D/3D
Onboard Audio
Audio Chipset Realtek ALC655
Audio Channels 6 Channels
Onboard LAN
LAN Chipset VIA VT6104
Max LAN Speed 100Mbps
Rear Panel Ports
Back I/O Ports 1 x COM (Serial Port) / 1 x D-Sub / 1 x LPT (Parallel Port) / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1
PS/2 2
COM 1
LPT 1
Video Ports D-Sub
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 2 x USB 2.0
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 8.7"
Features
Features Supports Plug and Play 1.0A, APM 1.2, Muli Boot, DMI
Full Support for ACPI revision 1.0 specification
Additional Information
First Listed on Newegg June 24, 2004
