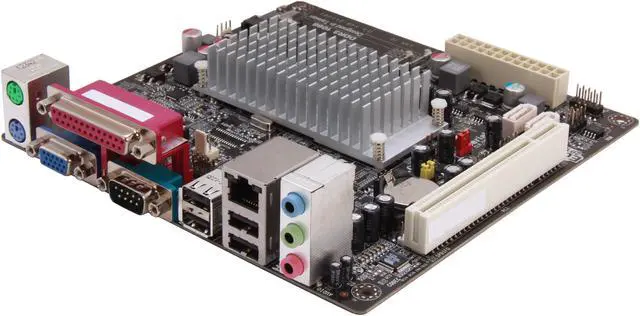

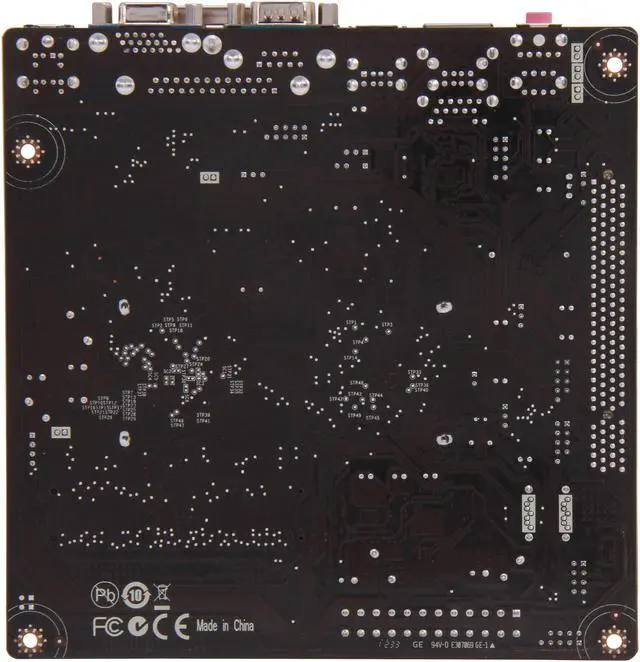

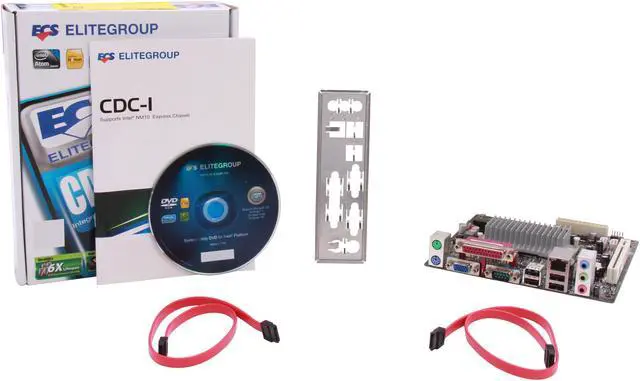

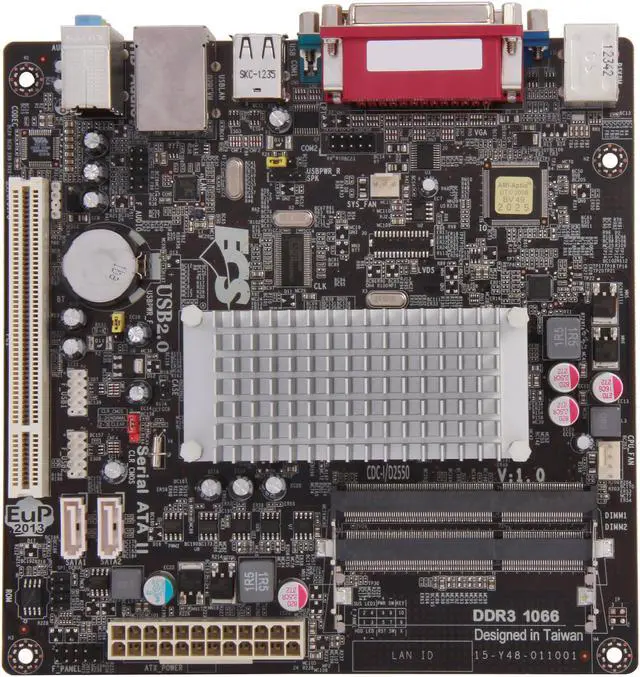

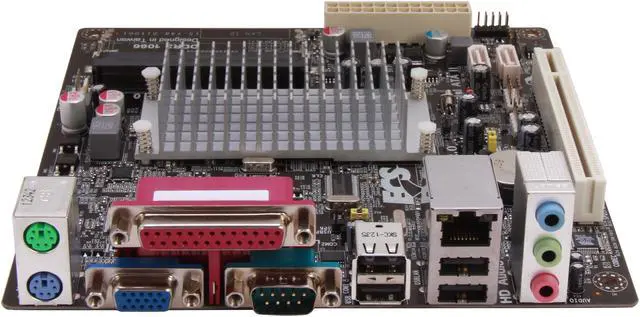

ECS CDC-I/D2550 v1.0 Intel Atom D2500 Intel NM10 Mini ITX Motherboard / CPU Combo
- Intel Atom
- DDR3 1066
Specs
Reviews (3)
Learn more about the ECS (EliteGroup) CDC-I/D2550 v1.0
| Brand | ECS |
|---|---|
| Model | CDC-I/D2550 v1.0 |
| Combo Type | Motherboard / CPU Combo |
| CPU | Intel Atom D2500 |
|---|---|
| With Cooler | Yes |
| CPU Type | Intel Atom |
|---|
| North Bridge | Intel NM10 |
|---|
| Number of Memory Slots | 2x204pin SO-DIMM |
|---|---|
| Memory Standard | DDR3 1066 |
| Maximum Memory Supported | 4GB |
| PCI Slots | 1 x PCI Slot |
|---|
| SATA | 2 x SATA 3.0Gb/s |
|---|
| Audio Chipset | VIA VT1705 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Realtek 8105E |
|---|---|
| LAN Speed | 10/100 LAN (optional Gigabit LAN) |
| Max LAN Speed | 100Mbps |
| PS/2 | 1 x PS/2 keyboard/mouse port |
|---|---|
| COM | 1 |
| LPT | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|---|
| Other Connectors | 1 x 24-pin ATX Power Supply connector 1 x 4pin CPU_FAN connectors 1 x 3-pin SYS_FAN connector 1 x Case Open header 1 x S/PDIF out header 1 x Front panel switch/LED header 1 x Front panel audio header 1 x Speaker header 1 x Clear CMOS header 1 x LVDS connector(optional) |
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.7" x 6.7" |
| First Listed on Newegg | January 23, 2013 |
|---|
