Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Sold by Newegg

Shipped by Newegg

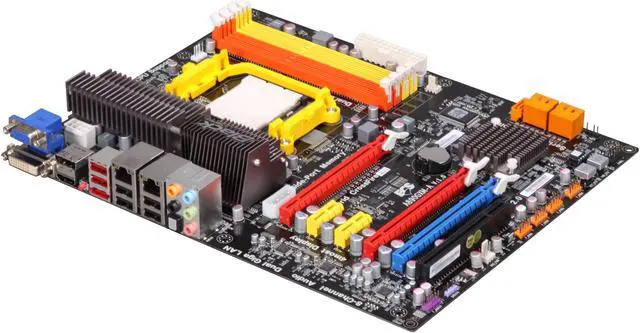

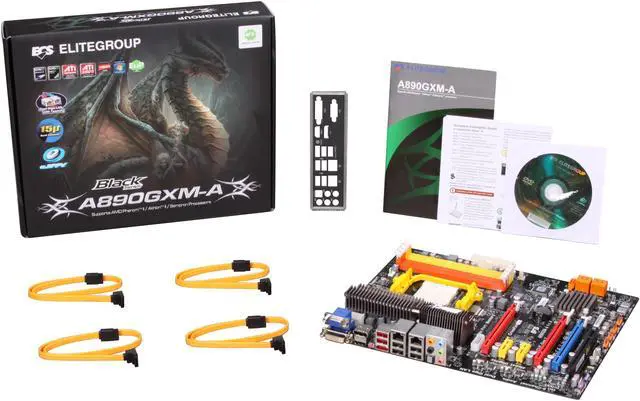

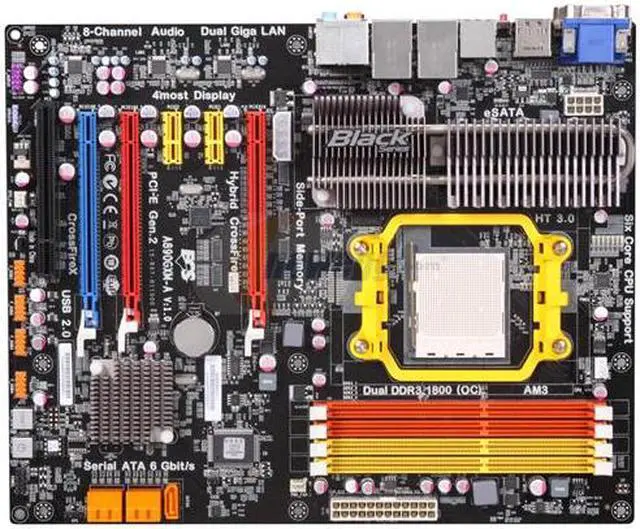

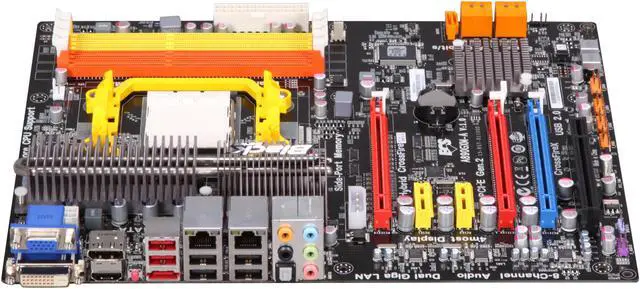

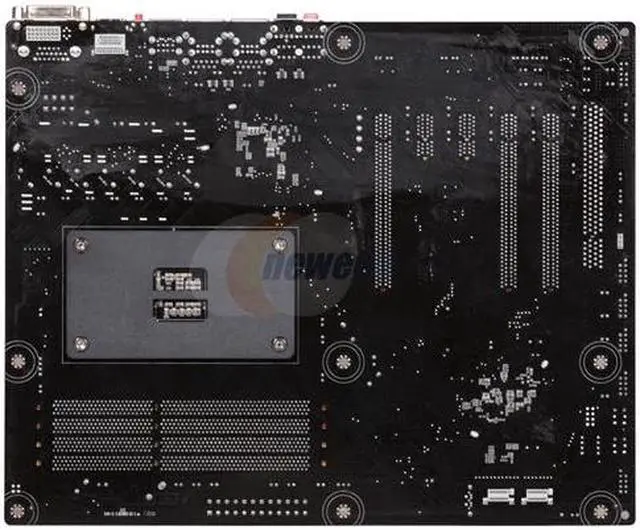

ECS Black Series A890GXM-A AM3 AMD 890GX HDMI SATA 6Gb/s ATX AMD Motherboard

Name: ECS A890GXM-A AM3 ATX AMD Motherboard
Brand: ECS (EliteGroup)
SKU: N82E16813135261
Rating: 3 (9 reviews)

Specs

Reviews (9)

Learn more about the ECS (EliteGroup) A890GXM-A

Model
Brand	ECS
Model	A890GXM-A

Supported CPU
CPU Socket Type	AM3
CPU Type	Phenom II / Athlon II / Sempron 100 Series Supports CPU up to 140W TDP

Chipsets
Chipset	AMD 890GX
South Bridge	AMD SB850

Expansion Slots
PCI Express 2.0 x16	3 x PCI Express Gen 2.0 x16 slots Note: The third PCIEX16 only support bandwidth x4
PCI Express x1	2 x PCI Express x1
PCI Slots	1 x PCI Slot

Storage Devices
Serial ATA (SATA)	5 x SATA 6Gb/s
SATA RAID	0/1/5/10

Onboard Video
Onboard Video Chipset	ATI Radeon HD 4290

Onboard Audio
Audio Chipset	Realtek ALC892
Audio Channels	8 Channels

Rear Panel Ports
Back I/O Ports	1 x D-Sub / 1 x DisplayPort / 1 x DVI / 1 x HDMI / 5 x Audio Jacks / 6 x USB 2.0/1.1
Video Ports	D-Sub + DVI + Display Port
HDMI	1 x HDMI
USB 1.1/2.0	6 x USB 2.0
eSATA	1 x eSATA 3Gb/s
S/PDIF Out	1 x Optical
Audio Ports	5 Ports

Internal I/O Connectors
Onboard USB	4 x USB 2.0 headers support additional 8 USB ports

Additional Information
First Listed on Newegg	April 06, 2010
