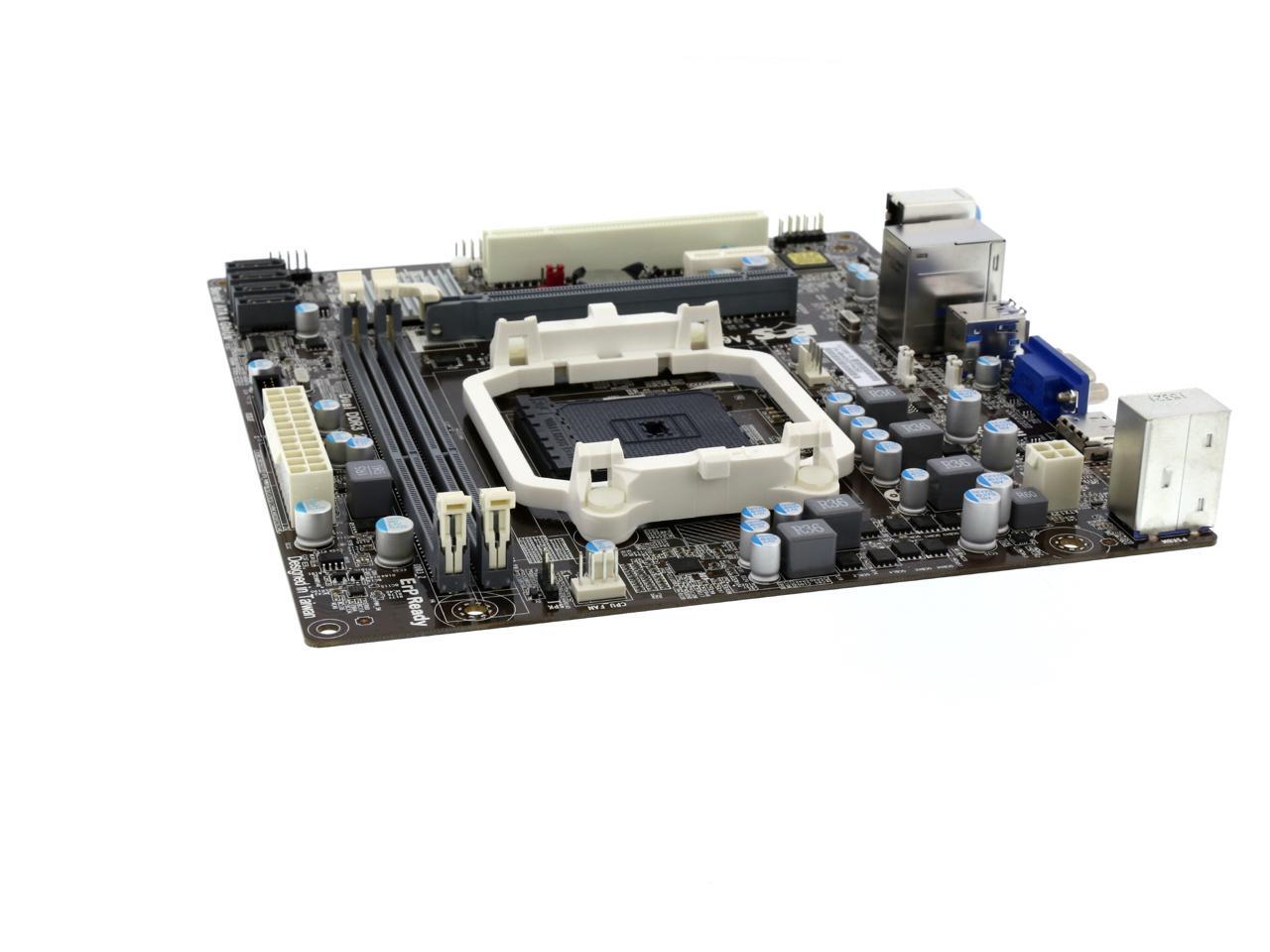

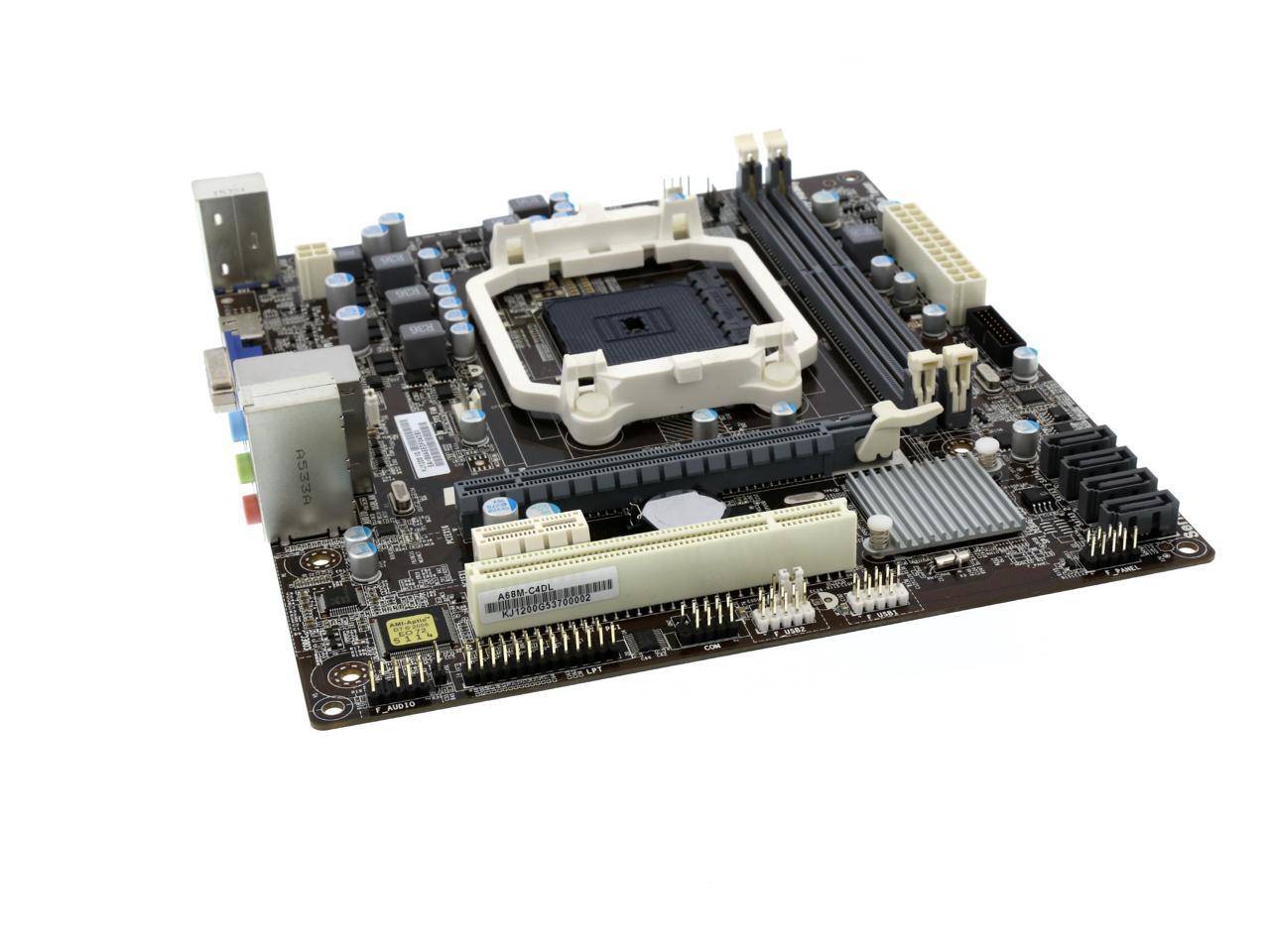

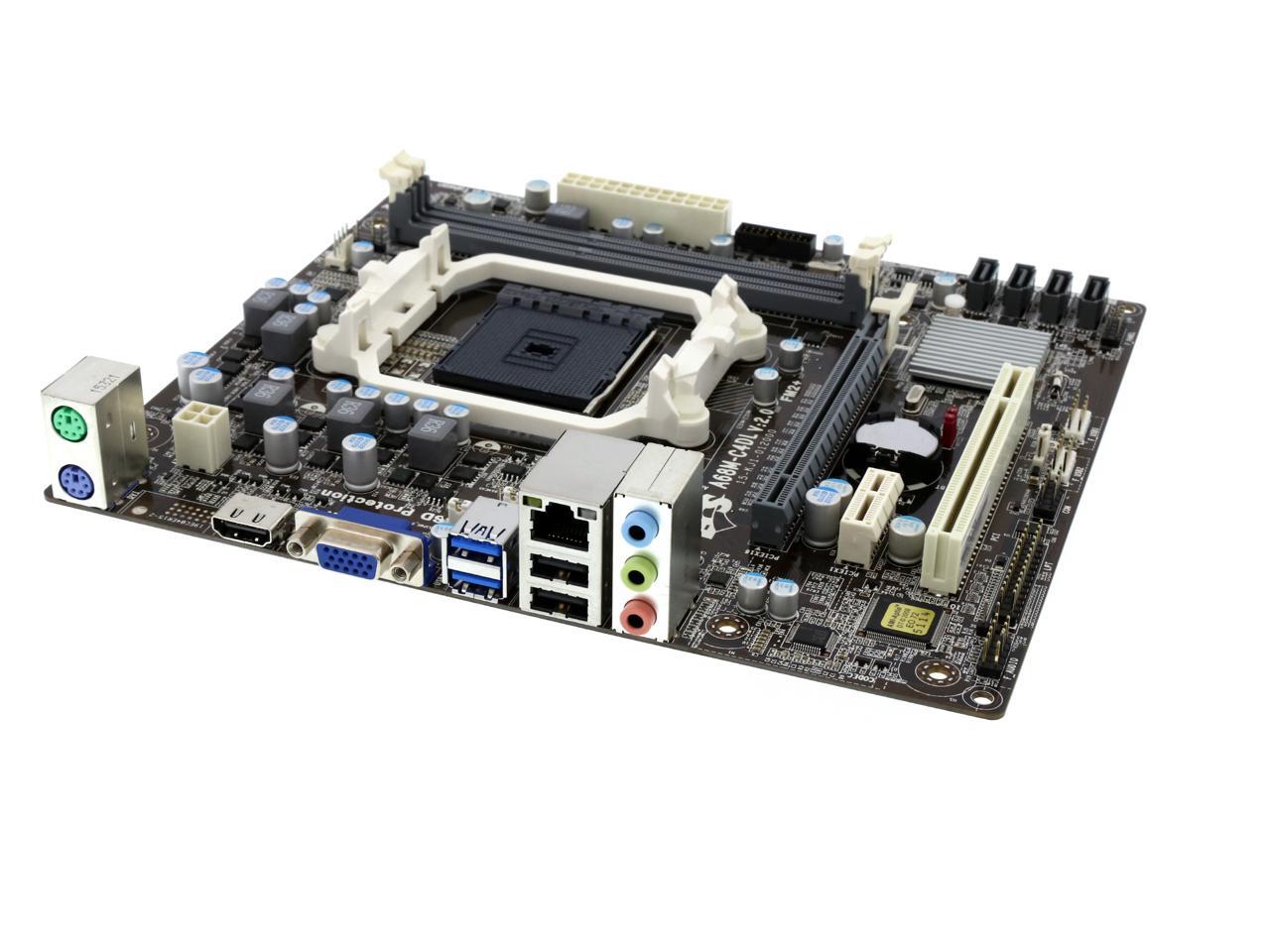

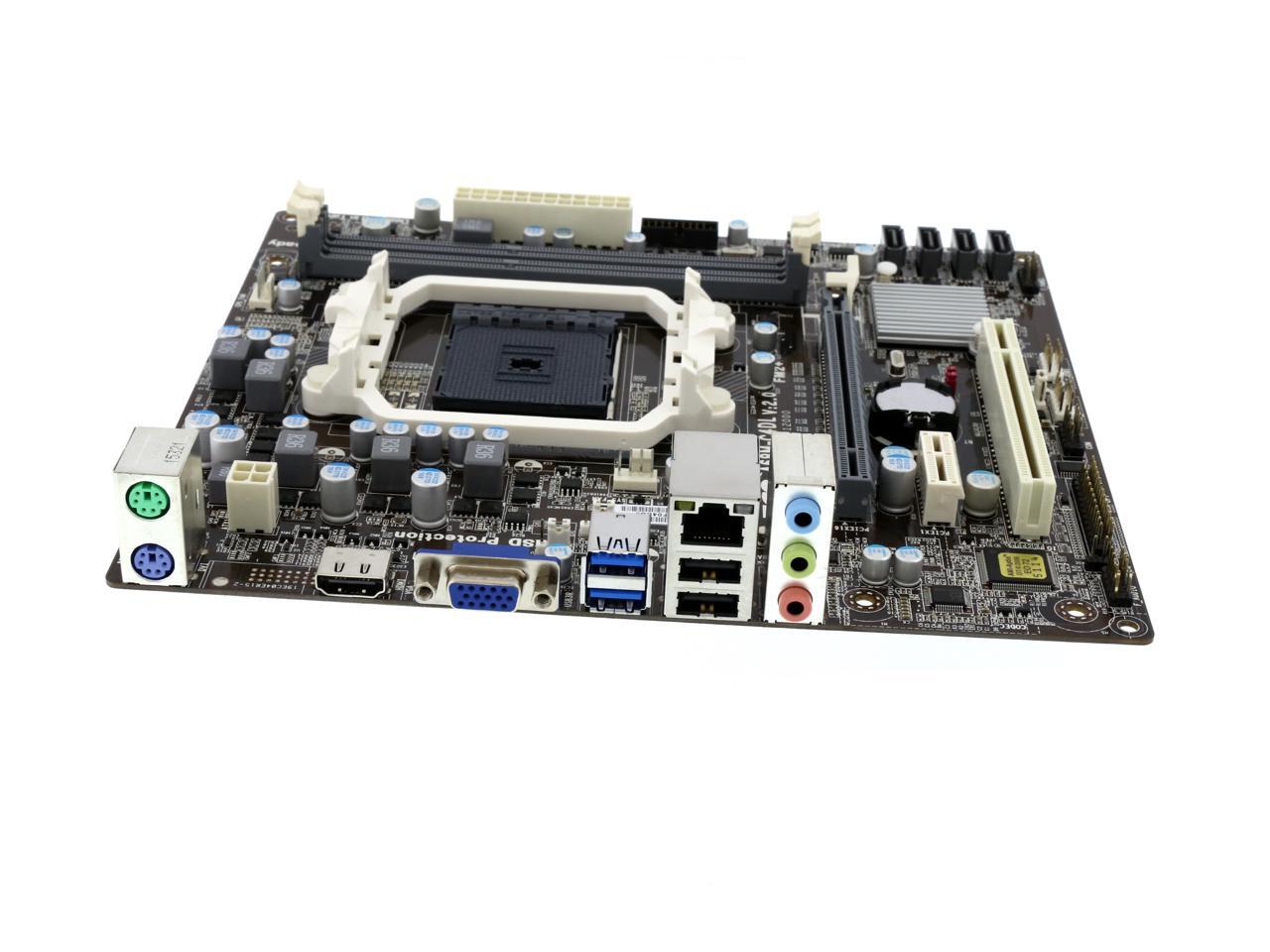

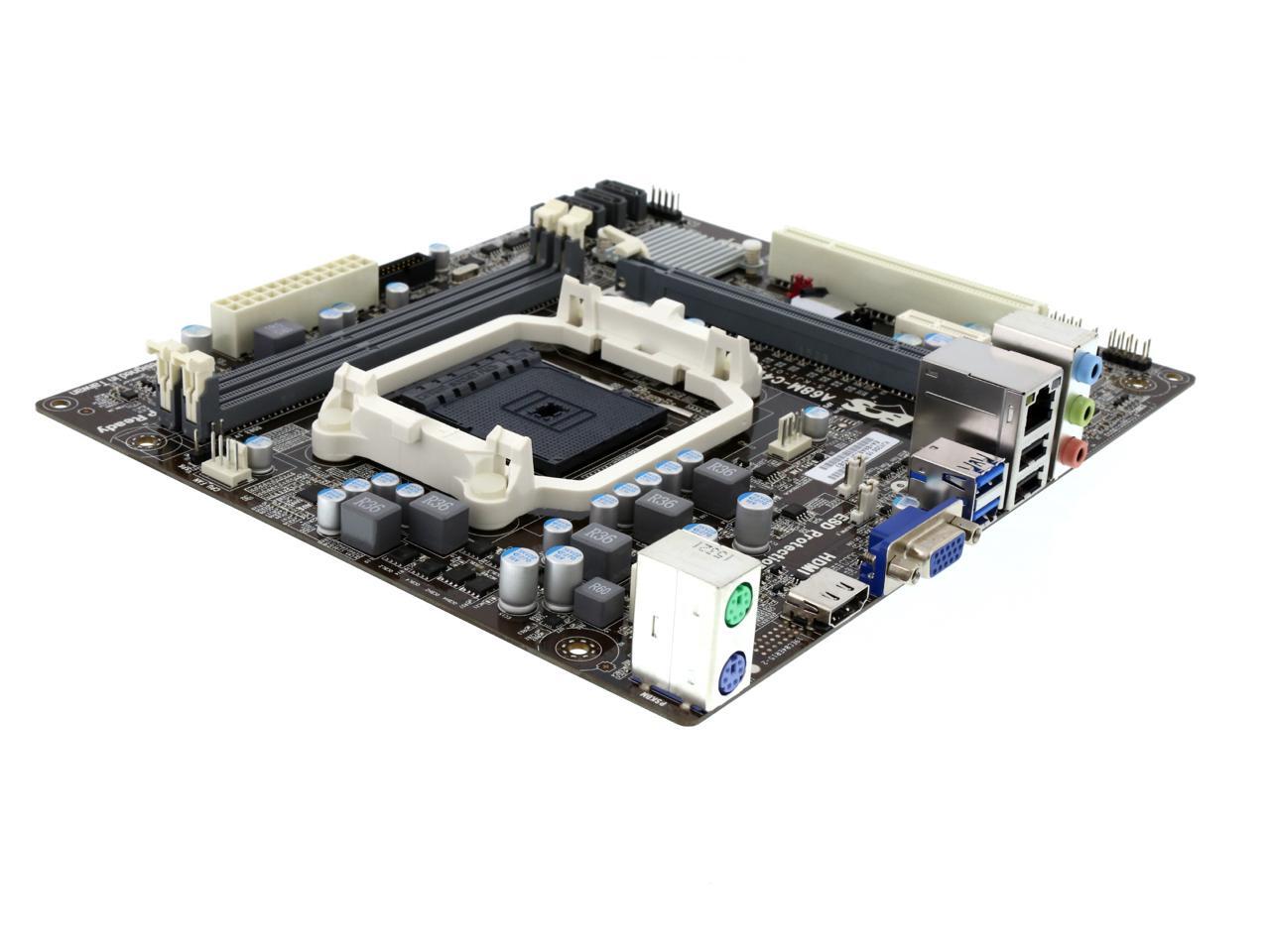

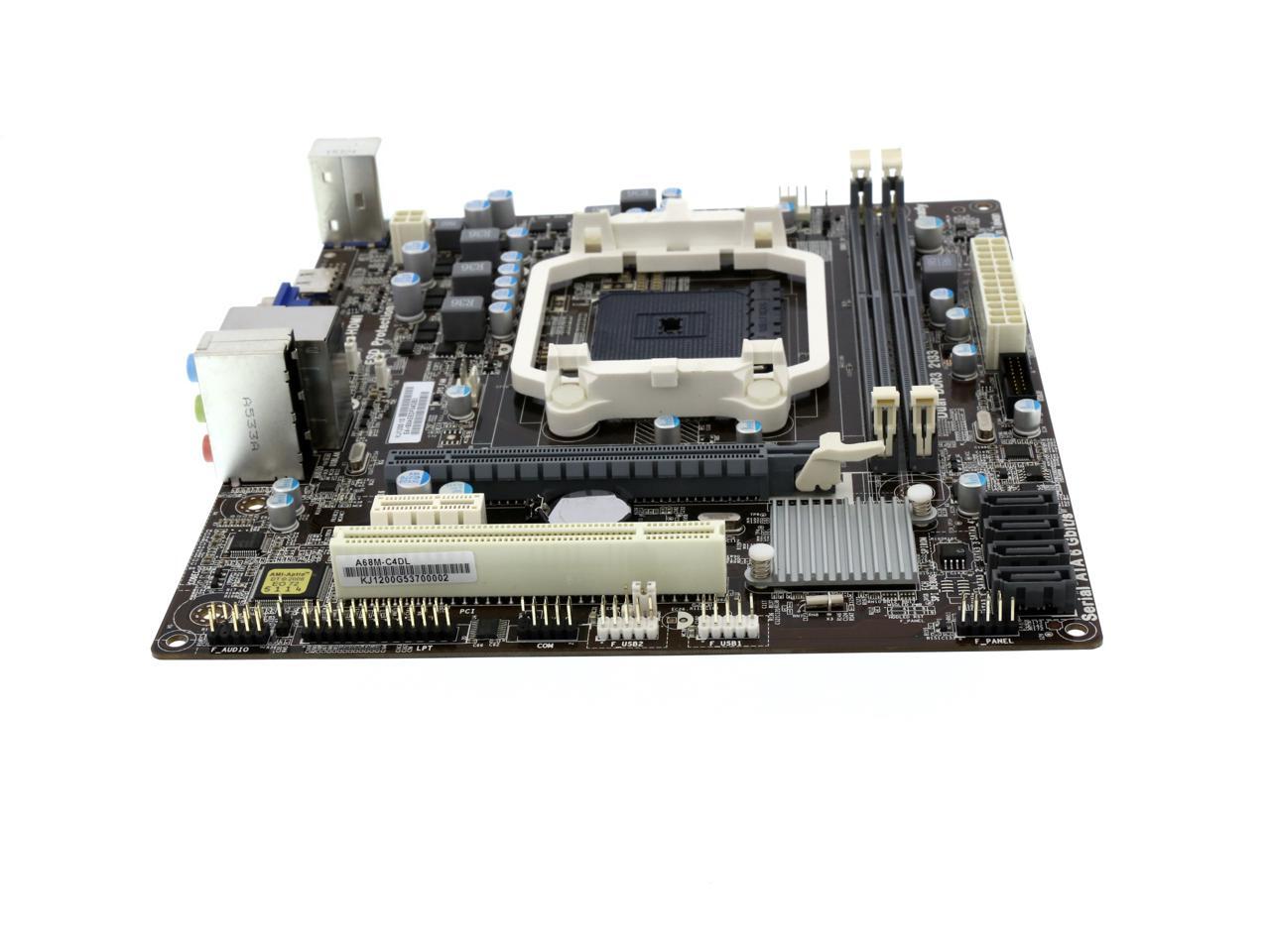

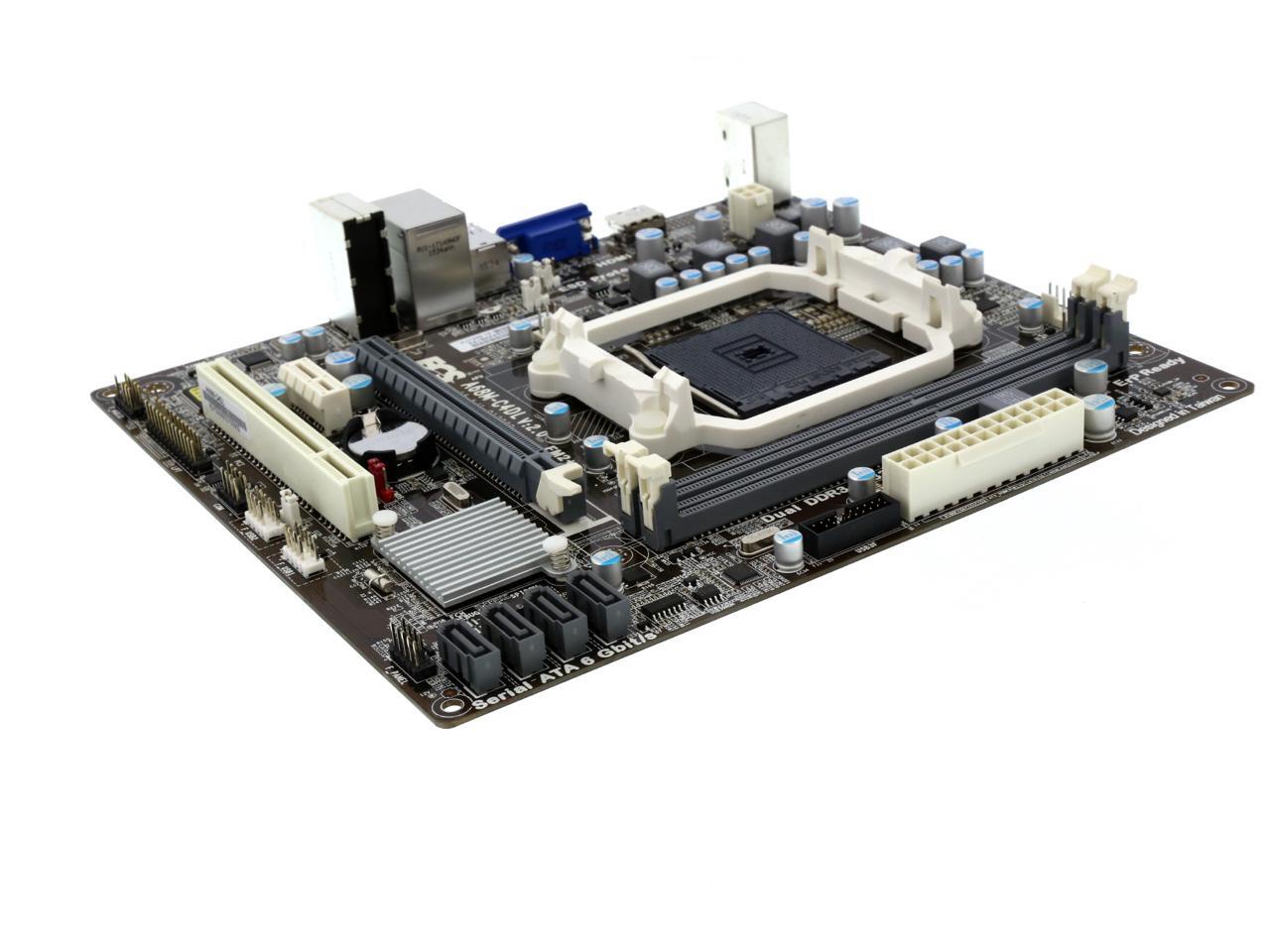

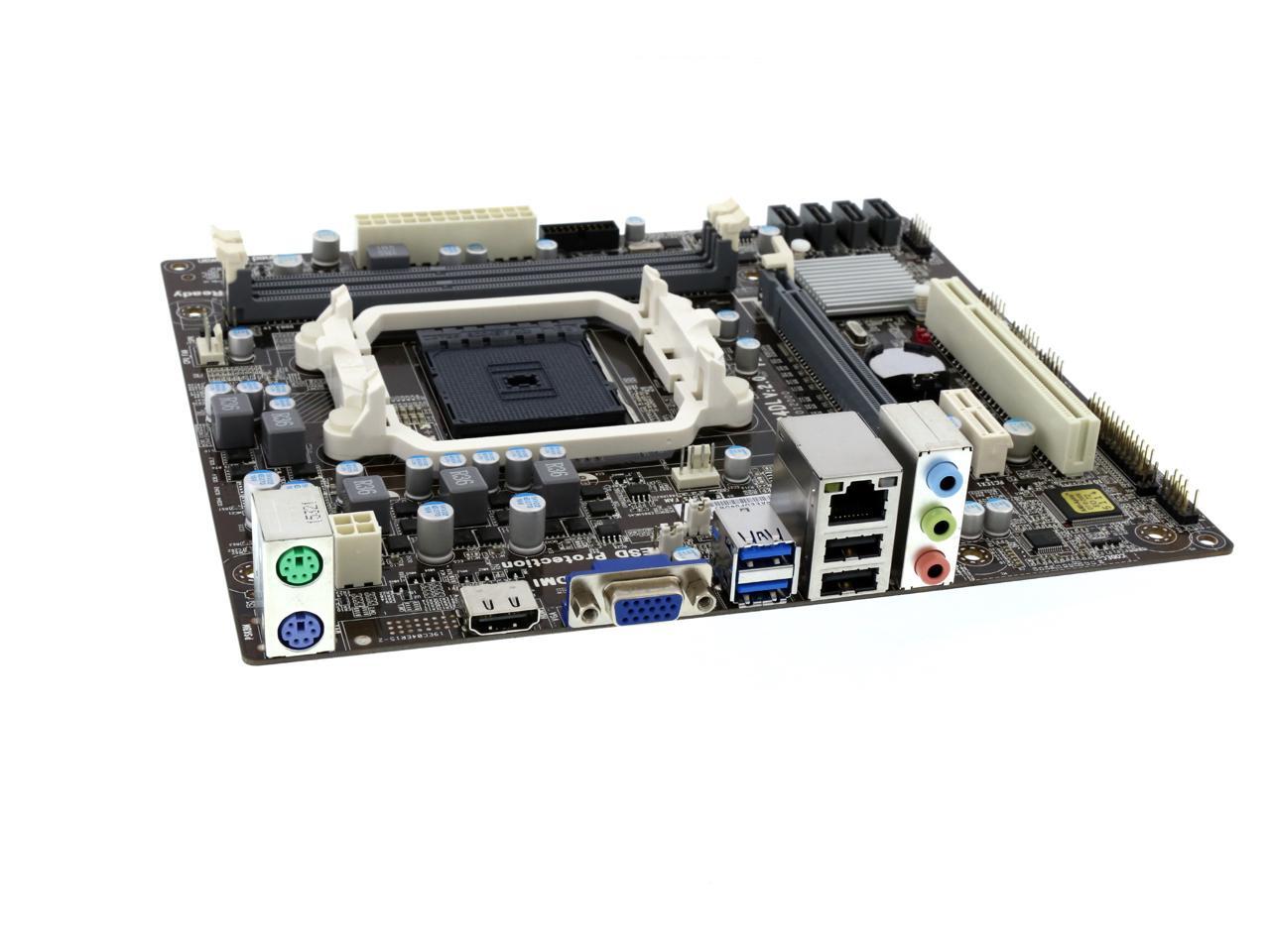

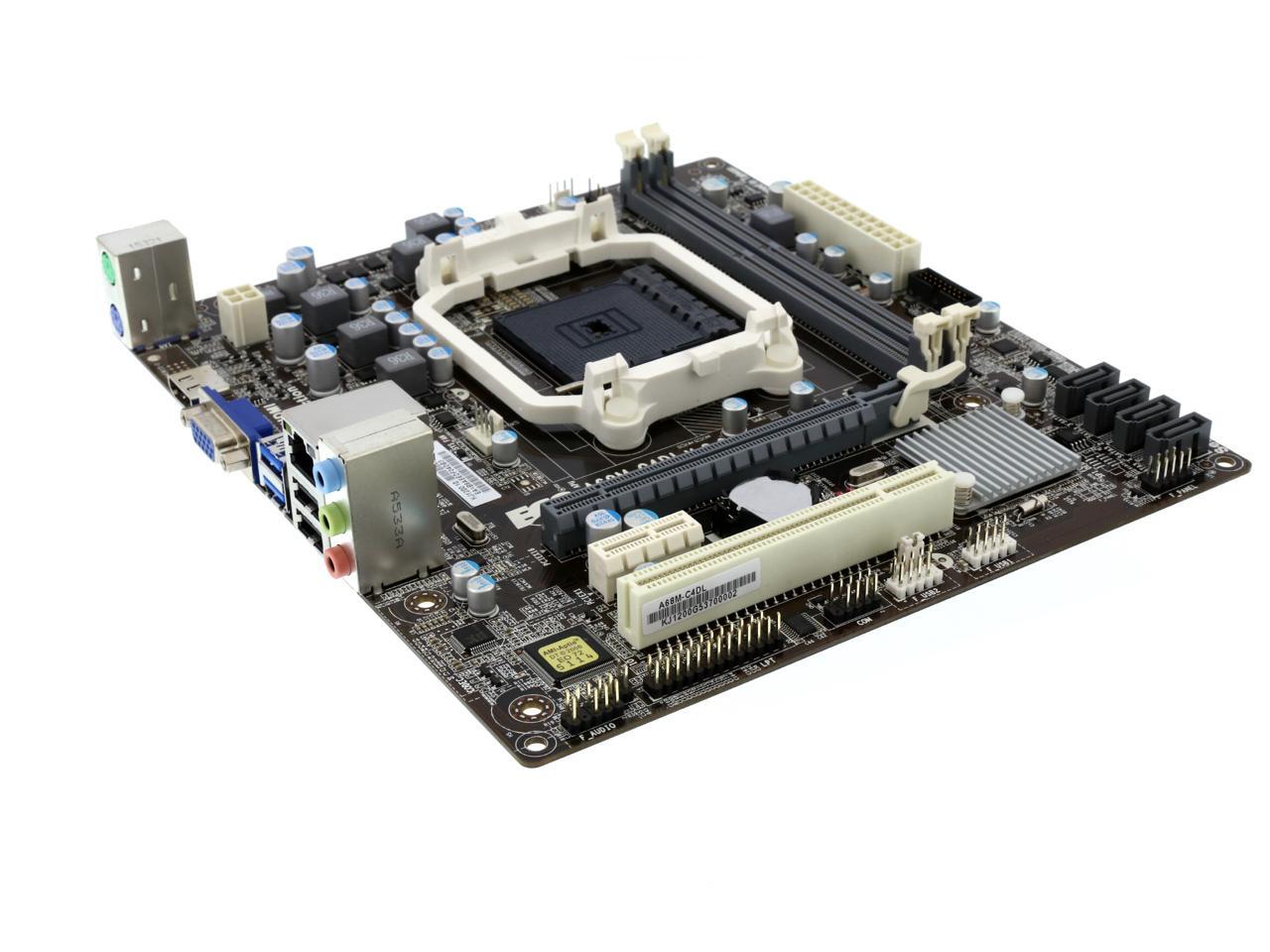

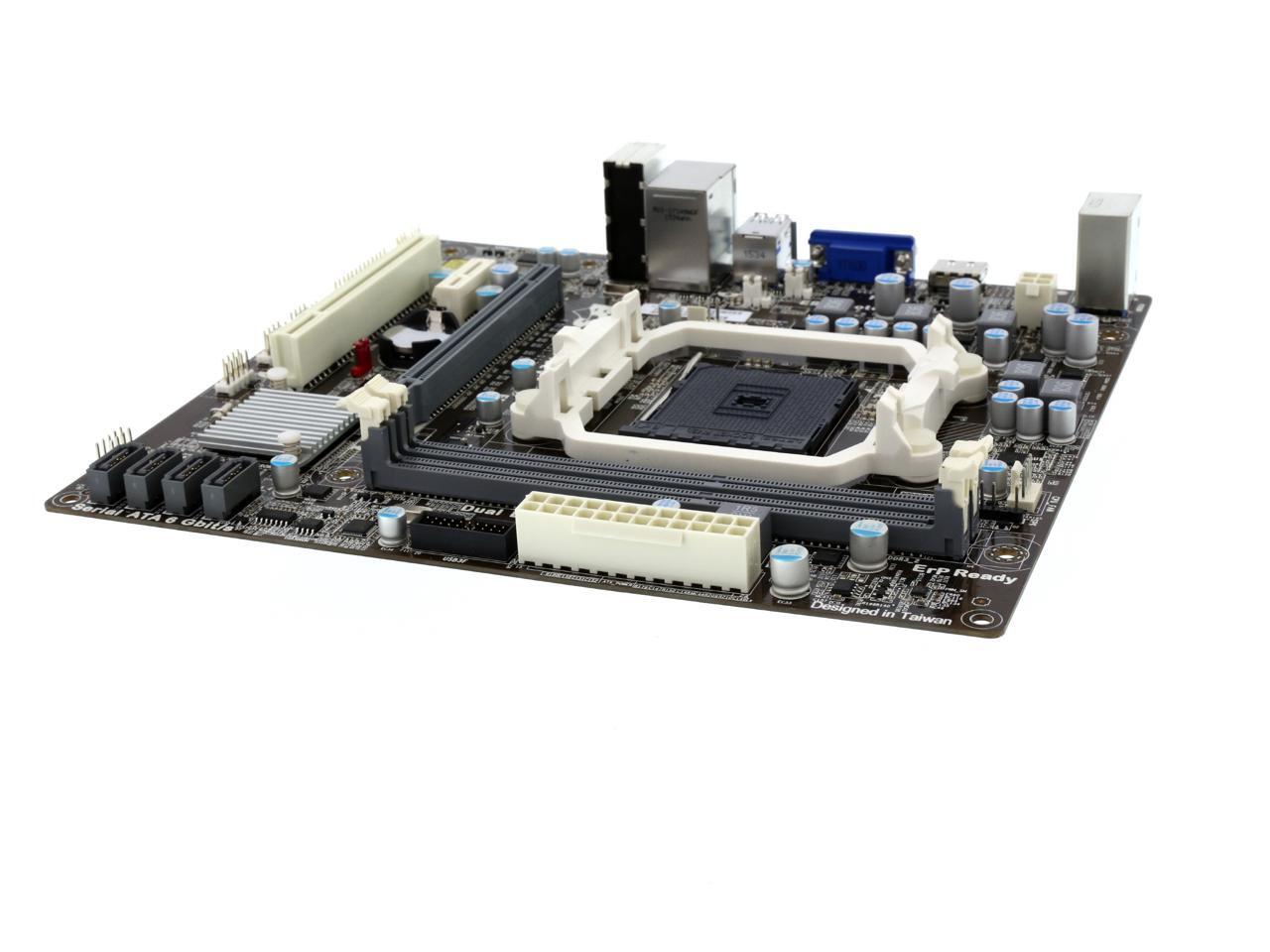

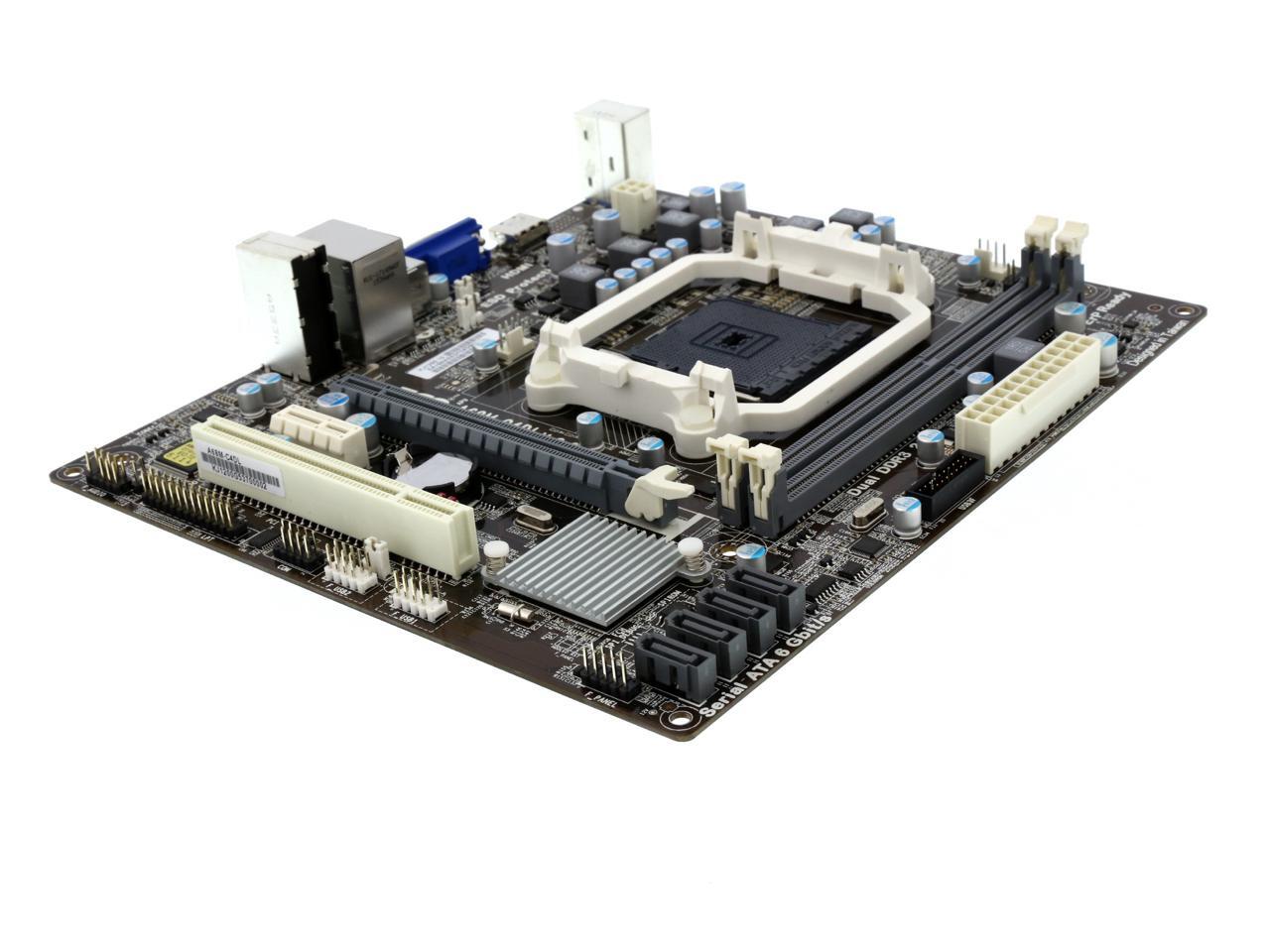

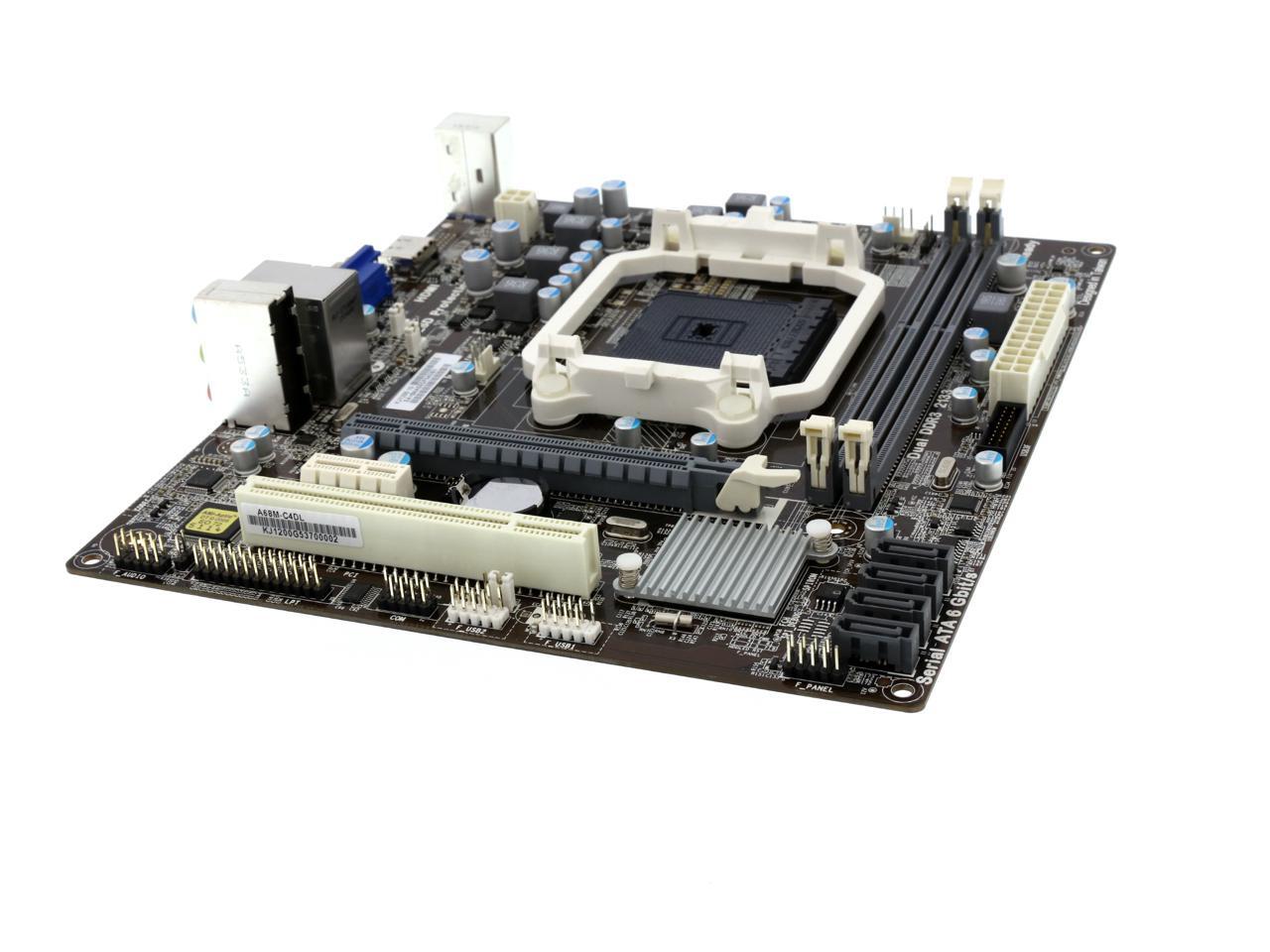

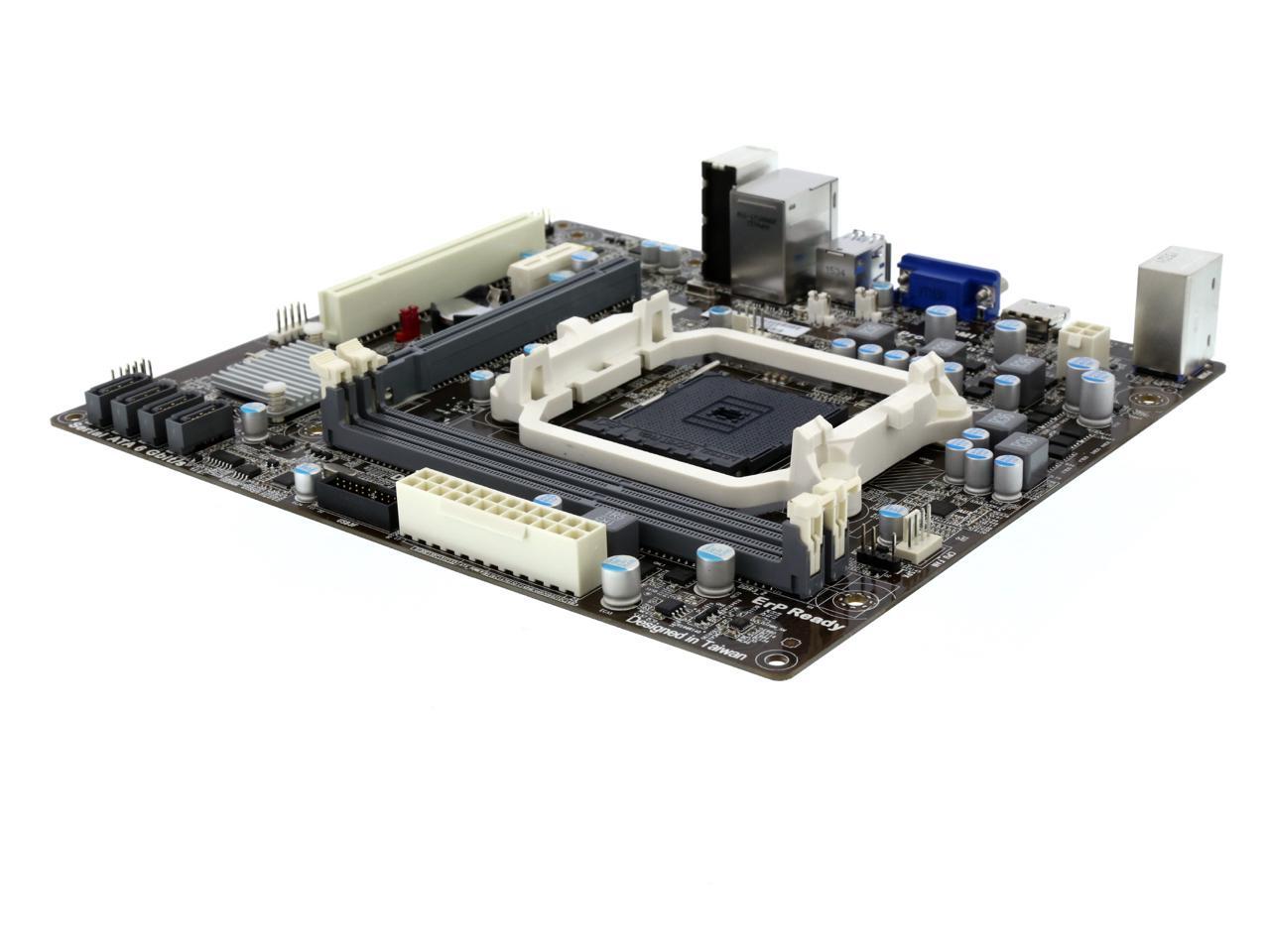

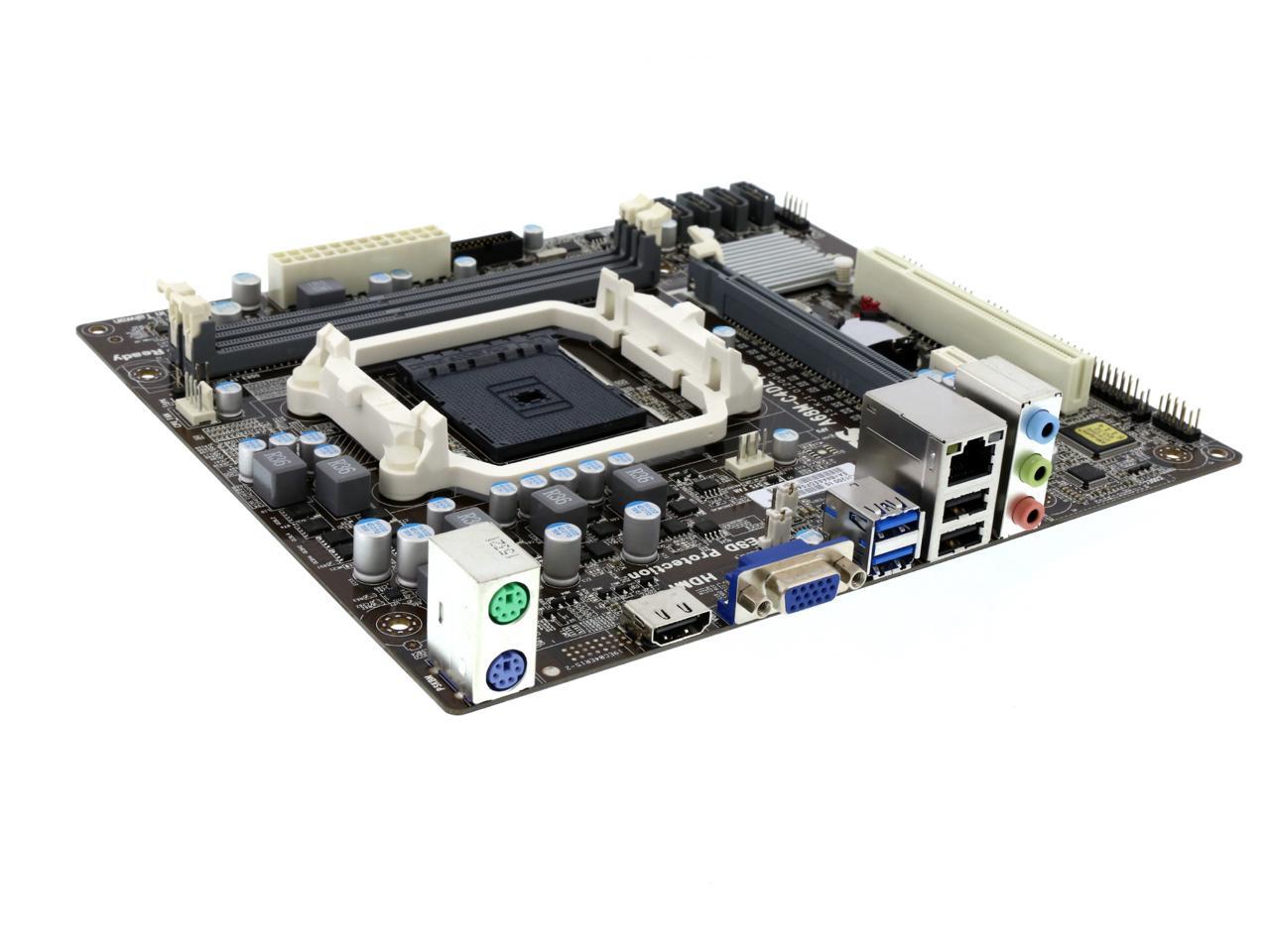

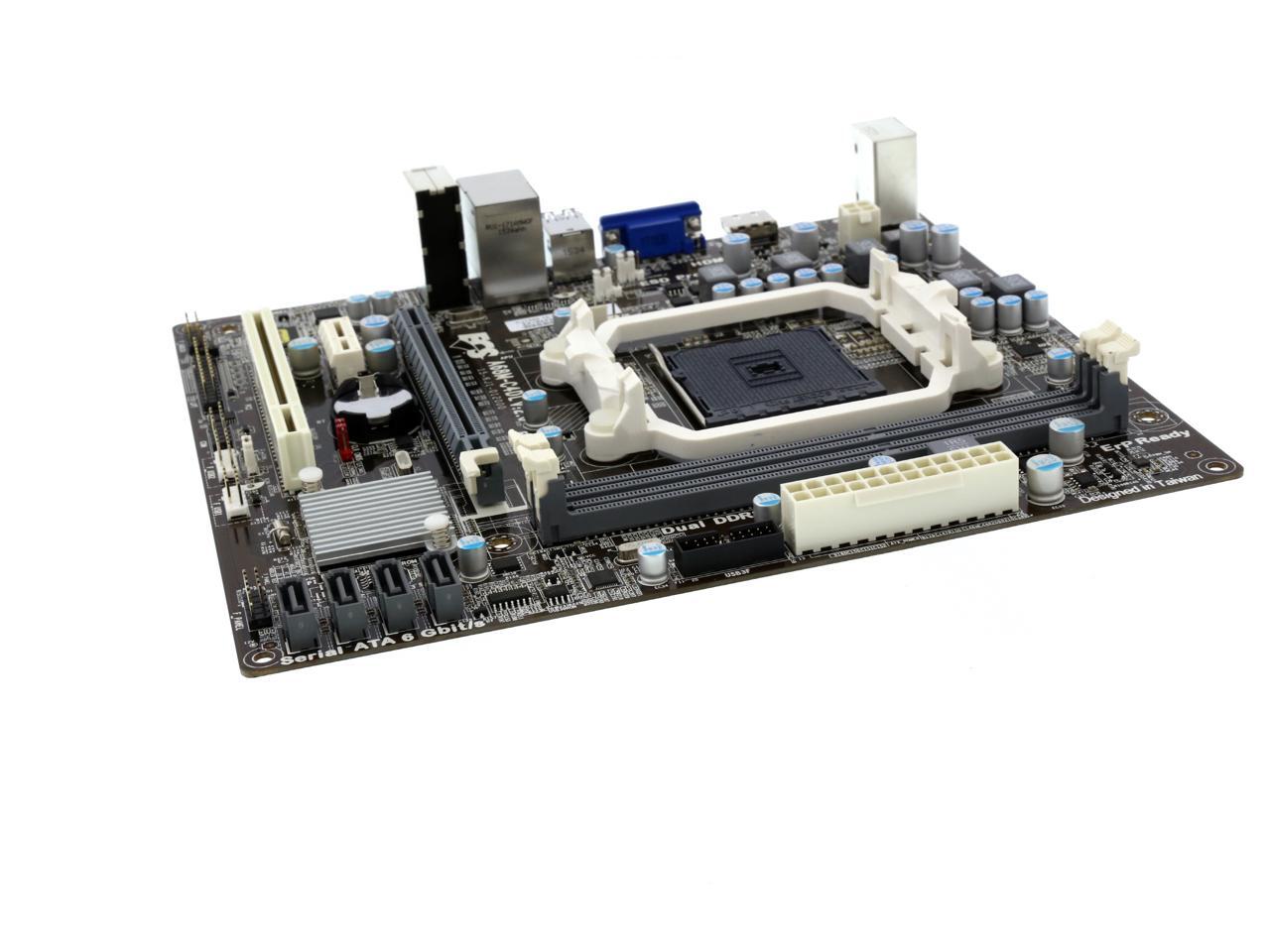

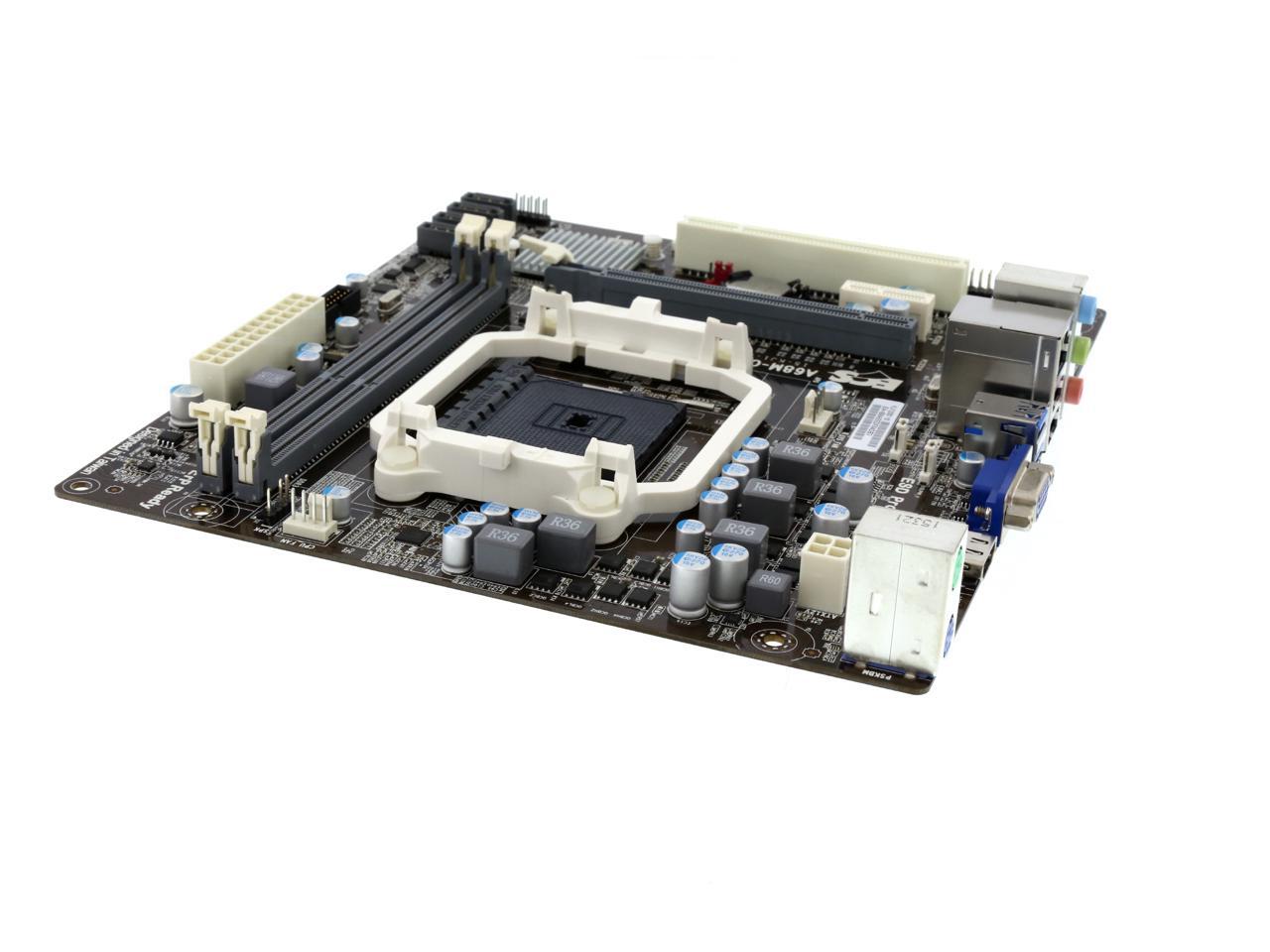

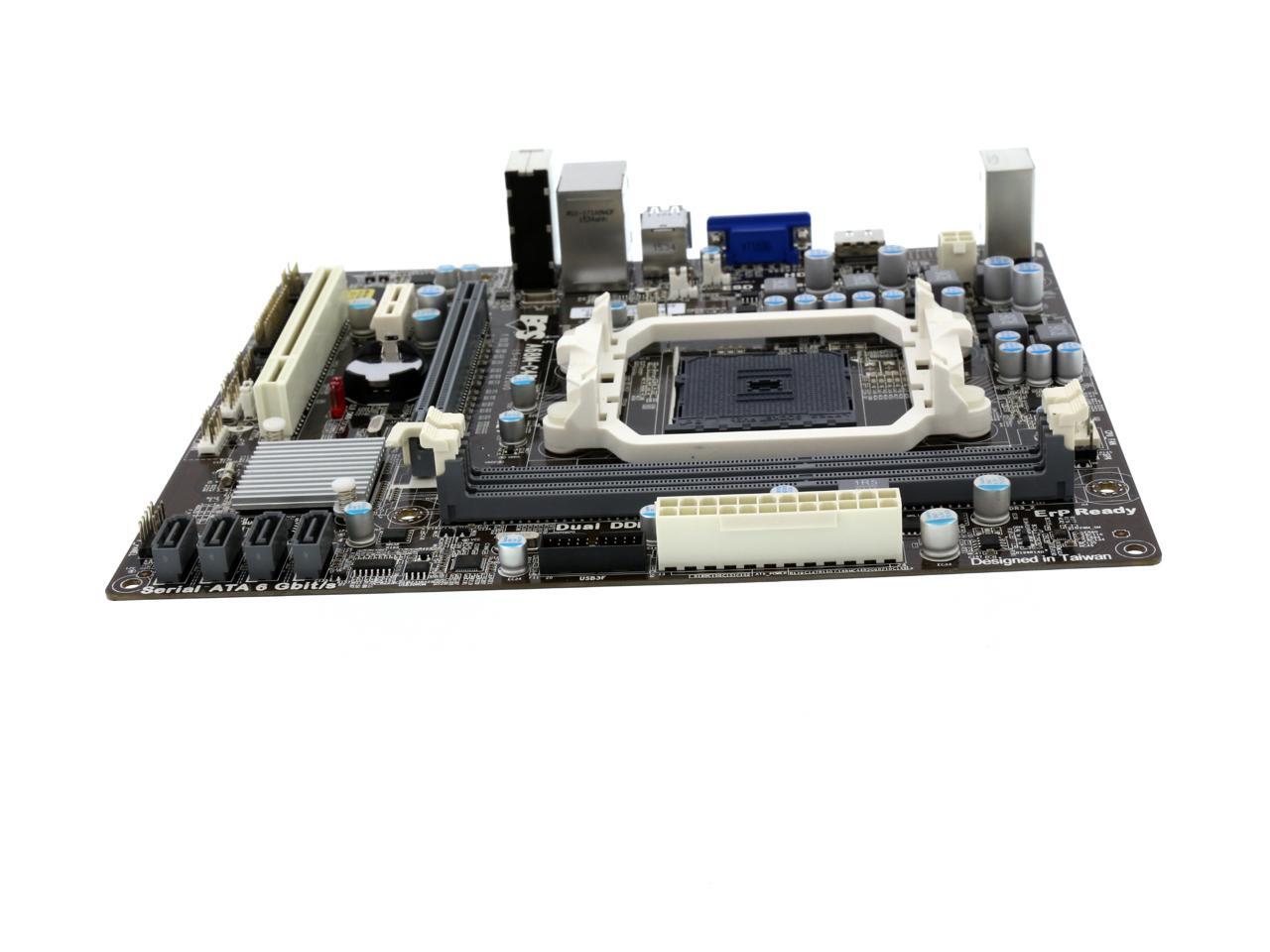

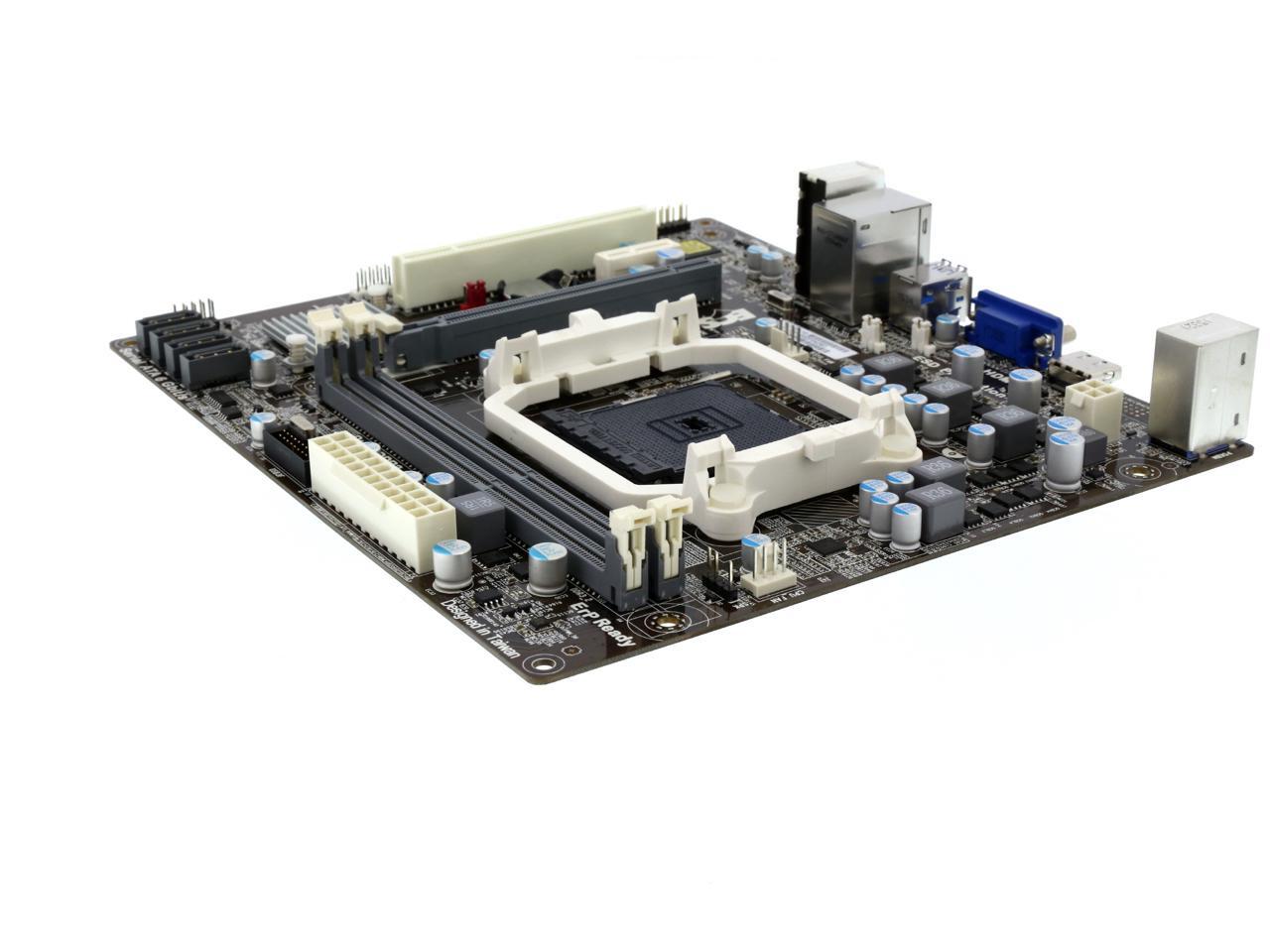

ECS A68M-C4DL (V2.0) FM2+ / FM2 AMD A68H FCH (Bolton D2H) USB 3.0 HDMI Micro ATX AMD Motherboard
- AMD A68H FCH (Bolton D2H)
- A- Series (FM2+)
- DDR3 2133
Specs
Reviews
Learn more about the ECS (EliteGroup) A68M-C4DL (V2.0)
| Brand | ECS |
|---|---|
| Model | A68M-C4DL (V2.0) |
| CPU Socket Type | FM2+ / FM2 |
|---|---|
| CPU Type | A- Series (FM2+) |
| Chipset | AMD A68H FCH (Bolton D2H) |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR3 2133 |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express 2.0 x1 |
| PCI Slots | 1 x PCI Slot |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Audio Chipset | Realtek ALC662 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Realtek 8111G |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x D-Sub / 1 x DVI-D / 1 x HDMI / 1 x LAN (RJ45) / 1 x PS/2 / 2 x USB 2.0/1.1 / 2 x USB 3.1 Gen 1 / 3 x Audio Jacks |
|---|---|
| PS/2 | 1 x PS/2 keyboard/mouse port |
| Video Ports | 1 x DVI-D port (optional) 1 x D-Sub (VGA) port |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ45 |
| USB 3.0 | 2 x USB 3.0 |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Audio Ports | 1 x Audio port (Line Out / Line In / Mic In) |
| Onboard USB | 1 x USB 3.0 header, support additional 2 USB ports 2 x USB 2.0 header, support additional 4 USB ports |
|---|---|
| Other Connectors | 1 x 24-pin ATX Power Supply connector 1 x 4-pin 12V Power connector 1 x 4-pin CPU_FAN connector 1 x 4-pin SYS_FAN connector 1 x Front Panel switch/LED header 1 x Front panel audio header 1 x Speaker header 1 x CLR_CMOS header 1 x Serial port header (COM), support additional 1 Serial Port (COM) 1 x Parallel port header (LPT) |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 8.86" x 7.87" |
| Features | Pass AMD CPU Load Line Test ECS Durathon Technology ensure the stability, reliability and performance of system ESD Protection prevents computers from electrostatic discharge damage to enhance its durability and lifespan Supports GUI UEFI for tweaking BIOS in Graphical interface within a multi language environment Supports ECS EZ BIOS for tweaking BIOS in graphical user interface within a multi language environment Integrated Printer (LPT) port / header to expand functionality Microsoft Windows 8.1 Certified Supports DirectX 11.1 to enhance graphical performance Supports AMD FM2+ / FM2 APU ECS Intelligent EZ Utility: eBLU, eDLU, eSF GRAPHICS - Supports DirectX 11 .1 - Supports AMD Dual Graphics SYSTEM BIOS - AMI BIOS with 32MB SPI Flash ROM - Supports M.I.B III Utility - Dual Display - Support ECS EZ BIOS - Support GUI UEFI BIOS - Multi-Language BIOS OS Support - Windows 7 32-bit - Windows 7 64-bit - Windows 8 32-bit - Windows 8 64-bit - Windows 8.1 32-bit - Windows 8.1 64-bit Certifications - CE/FCC Certification - WHCK Certification Bundled Software - ECS Intelligent EZ Utility: eBLU, eDLU, eSF |
|---|
| First Listed on Newegg | May 10, 2016 |
|---|
