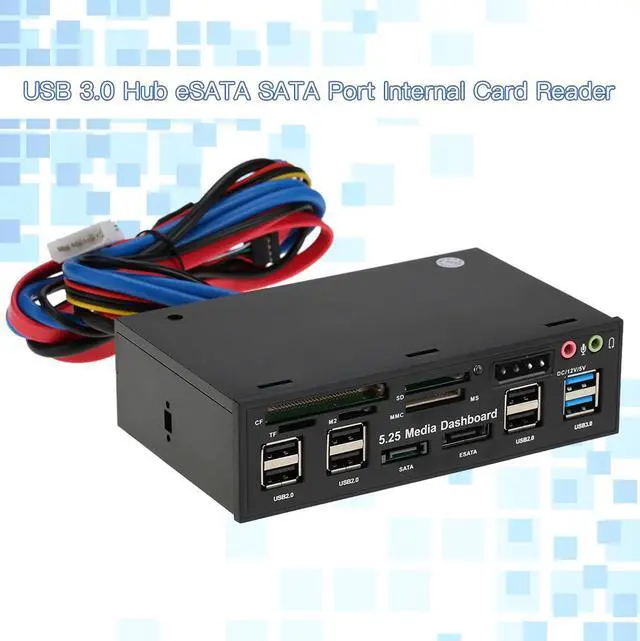

Multi-Function USB 3.0 Hub eSATA SATA Port Internal Card Reader PC Dashboard Media Front Panel Audio for SD MS CF TF M2 MMC Memory Cards Fits 5.25
High compatibility, all-in-one card reader supports most available cards, for SD card, CF card, TF card, M2 card and MMC/MS cards.
Front microphone and speaker ports on the front panel audio output interface, efficiently avoid inconvenience of plugging behind chassis.
Up to 3Gbps transmission rate of eSATA, up to 1.5Gbps transfer speed of SATA and up to 480Mbps transfer speed of USB 2.0 and 5Gbps of USB 3.0 interface, satisfy your multiple needs.
Perfectly insert with your 5.25" bay, the computer turns out to be multifunctional immediately, the eSATA, SATA, two USB 2.0 and six USB 3.0 ports on front panel for easy and quick access to external devices.
| Mode number |
WLX-525E |
| Material |
ABS |
| Interface |
USB 3.0/2.0 |
| Fits bay size |
5.25inch |
| Ports |
1 * eSATA Port ,1 * SATA Port , 2 * USB 3.0 Port,6 * USB 2.0 Port ,1 * Speaker Port ,1 * Microphone |
| Slots |
5 Slots Card Reader |
| Output voltage |
12V/5V |
| Supply port |
4pin power interface |
| Integrated card reader |
for SD card, CF card, TF card, M2 card and MMC/MS cards. |
| Operating system |
for Win98/7/8/Me/2000/XP/Vista, for Mac9.X/10.X/Linux11 |
Note:
Card reader can read only one memory card at one time.

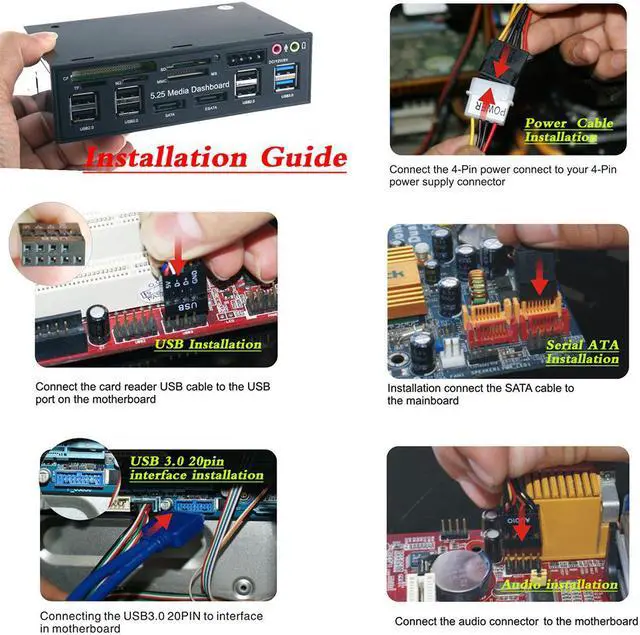

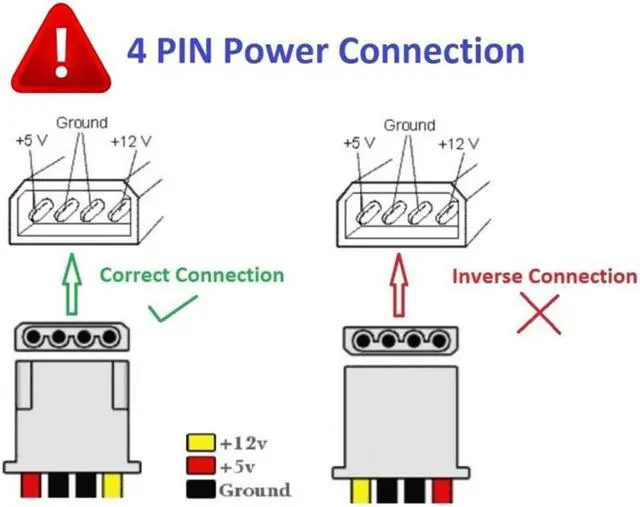

Notice the connection direction of the 4pin power connector, if not obey the correct link method, a short circuit will be caused.
Unplug the 4pin cord connected to the computer when the computer can not be shut down.
It is a multi-functional front panel with card reader,eSATA, SATA, audio ports, dual USB 3.0 hub and backward compatible with USB 2.0 and USB 1.1. eSATA ensures high speed data transmission rate between computer and personal external eSATA and USB devices without data damage and save time. Made of high quality smart chip, durable quality, super speed and safer data transfer, user-friendly performance. The card reader features five slots to provide easy and fast access to most popular cards, for SD card, CF card, TF card, M2 card and MMC/MS cards.
Features:
High compatibility, all-in-one card reader supports most available cards, for SD card, CF card, TF card, M2 card and MMC/MS cards.
Front microphone and speaker ports on the front panel audio output interface, efficiently avoid inconvenience of plugging behind chassis.

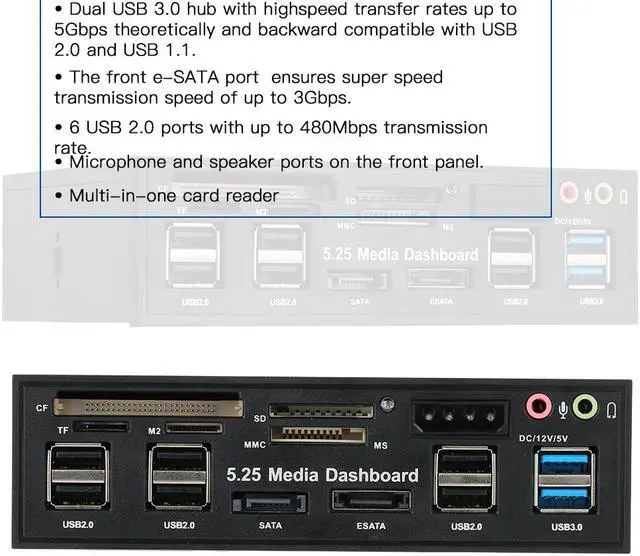

Dual USB 3.0 ports and six USB 2.0 ports hub enable eight devices fast charging & high speed transferring simultaneously, convenient and efficient.
Up to 3Gbps transmission rate of eSATA, up to 1.5Gbps transfer speed of SATA and up to 480Mbps transfer speed of USB 2.0 and 5Gbps of USB 3.0 interface, satisfy your multiple needs.

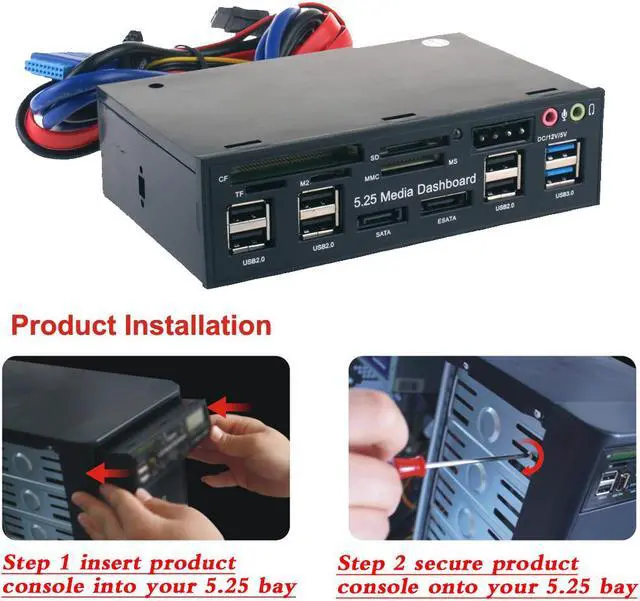

Perfectly insert with your 5.25" bay, the computer turns out to be multifunctional immediately, the eSATA, SATA, two USB 2.0 and six USB 3.0 ports on front panel for easy and quick access to external devices.
Specification:
Mode number: WLX-525E
Material: ABS
Color: Black
Interface: USB 3.0/2.0
Fits bay size: 5.25inch

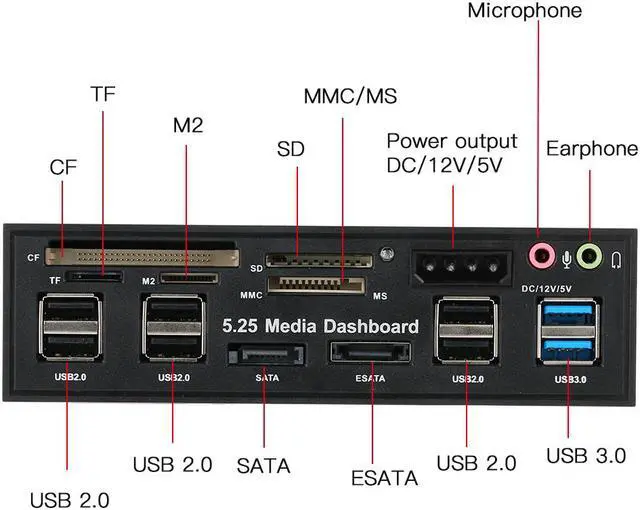

Ports:1 * eSATA Port
1 * SATA Port
2 * USB 3.0 Port
6 * USB 2.0 Port
1 * Speaker Port
1 * Microphone Port
Slots: 5 Slots Card Reader
Output voltage: 12V/5V
Supply port: 4pin power interface
Integrated card reader: for SD card, CF card, TF card, M2 card and MMC/MS cards.
Operating system: for Win98/7/8/Me/2000/XP/Vista, for Mac9.X/10.X/Linux11
Item weight: Approx. 301g/ 10.6oz
Package size: 17 * 14.3 * 4.5cm/ 6.7 * 5.6 * 1.8in(L * W * H)
Package weight: 367g/ 12.9oz
Package list:
1 * 5.25" Internal SATA e-SATA Dual USB 3.0 Six USB 2.0 Five-in-one Card Reader Multi-Function Front Panel Media Dashboard
4 * Screw
1 * User Manual(English & Chinese)
Note:
Card reader can read only one memory card at one time.
Notice the connection direction of the 4pin power connector, if not obey the correct link method, a short circuit will be caused.
Unplug the 4pin cord connected to the computer when the computer can not be shut down.
