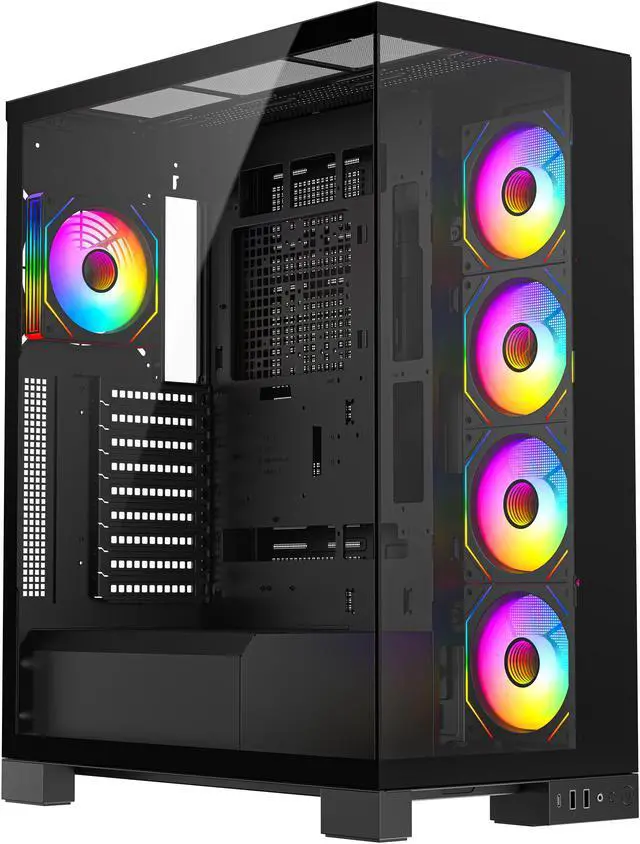

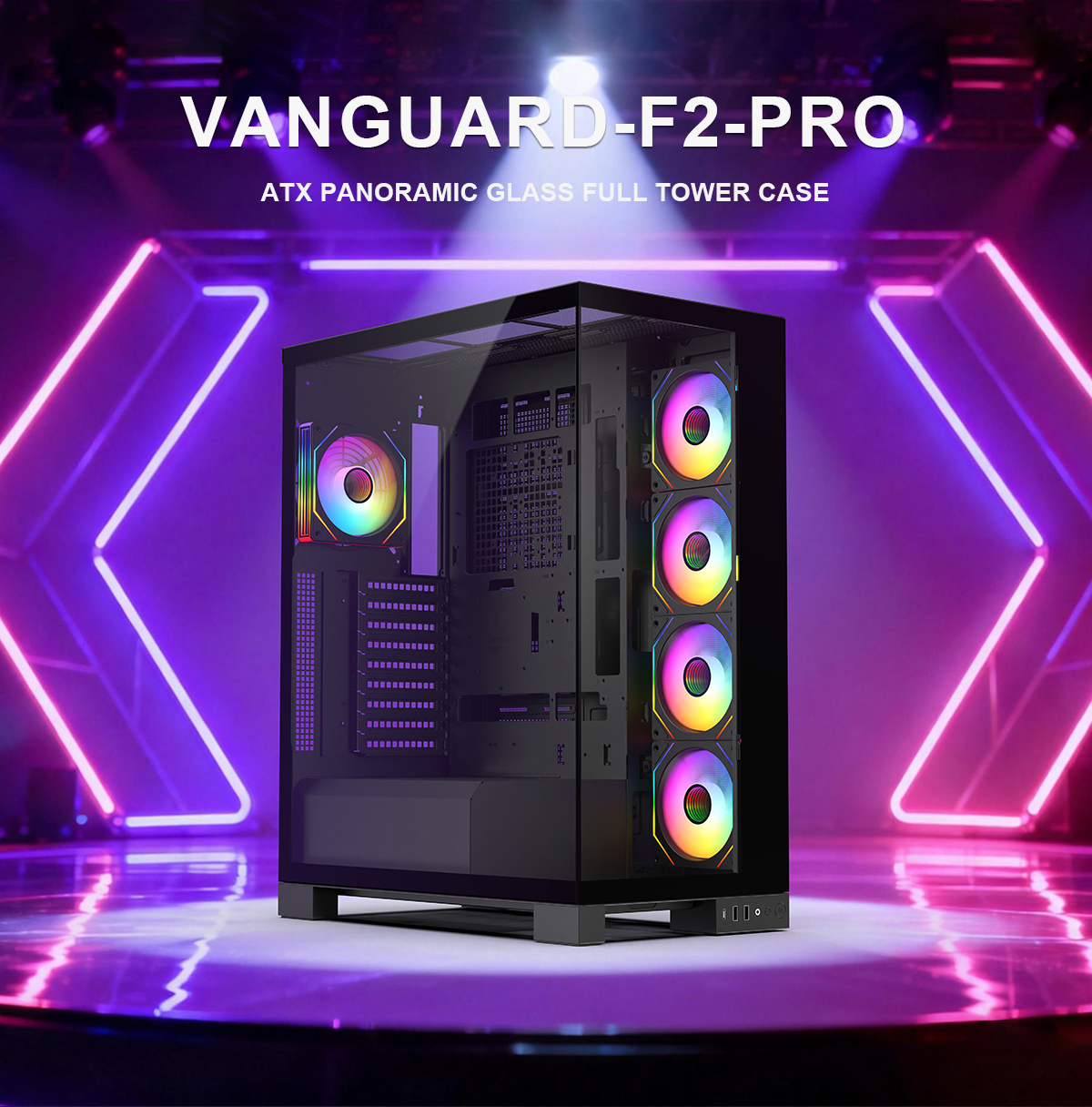

Learn more about the DIYPC Vanguard-F2-Pro
Model| Brand | DIYPC |
|---|
| Model | Vanguard-F2-Pro |
|---|
Details| Type | ATX Full Tower |
|---|
| Color | Black |
|---|
| Case Material | Steel / Tempered Glass |
|---|
| With Power Supply | No |
|---|

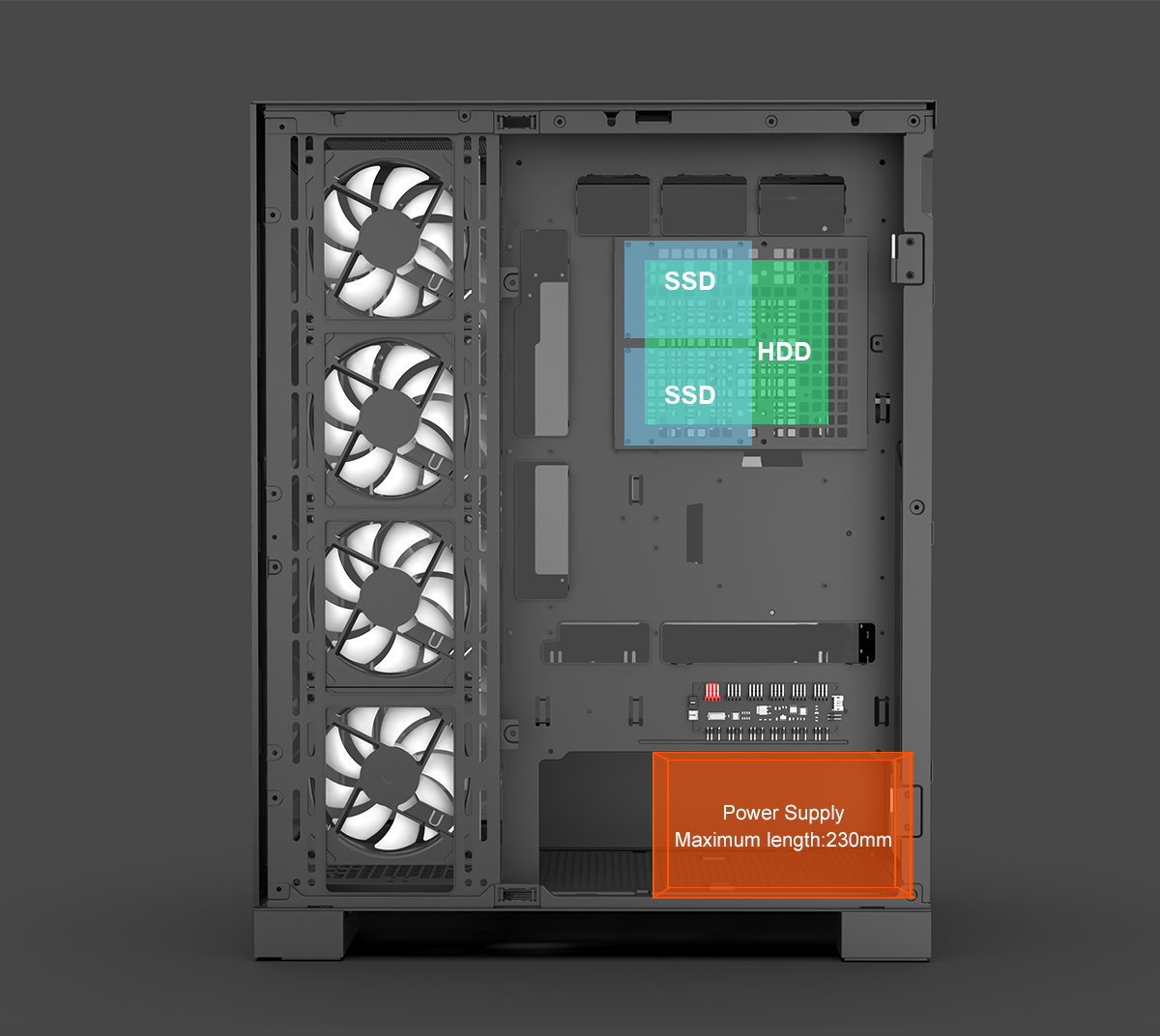

| Power Supply Mounted | Bottom |
|---|
| Motherboard Compatibility | ATX / ITX / Micro ATX |
|---|

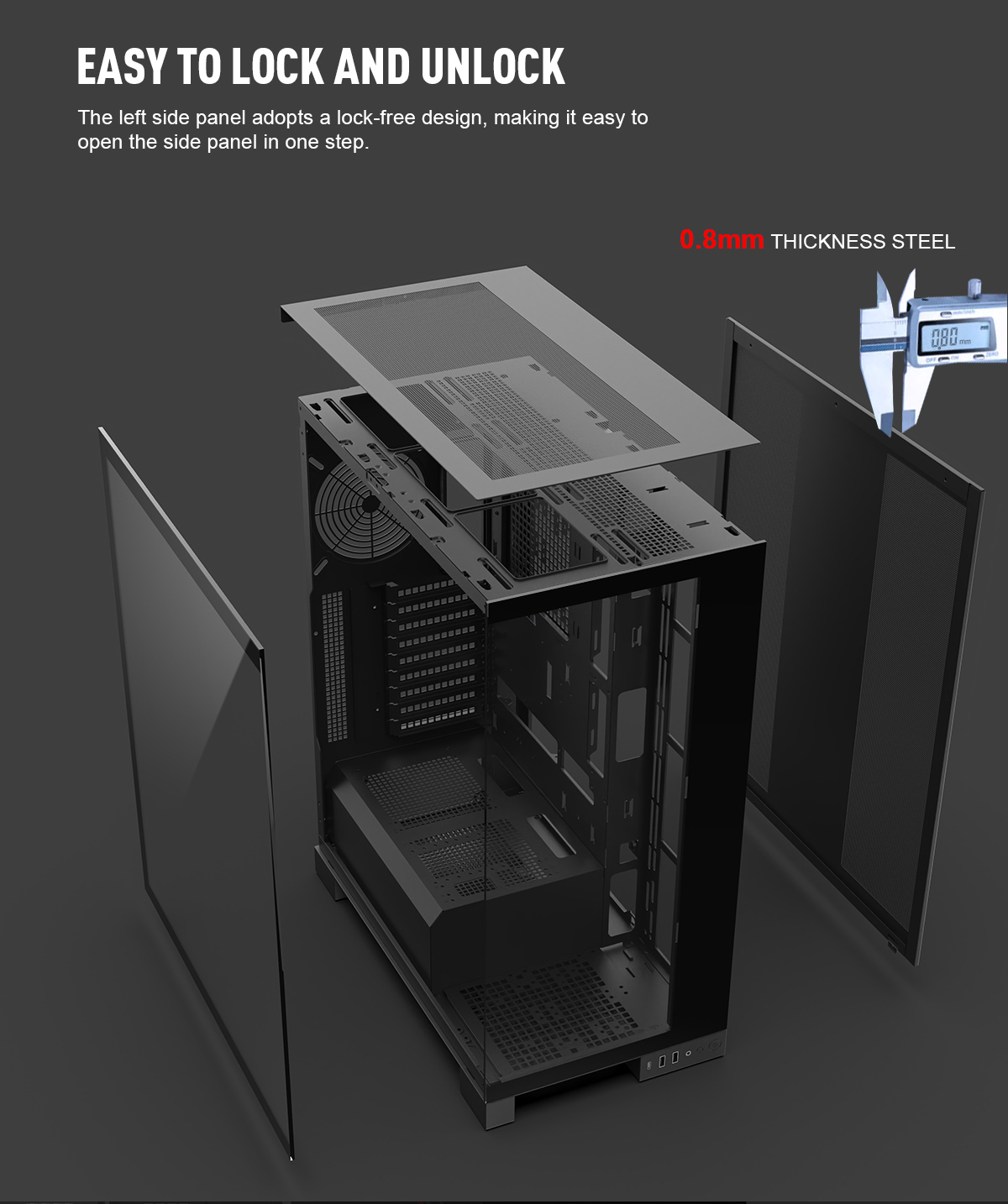

| Side Panel | yes |
|---|
| LED | ARGB |
|---|

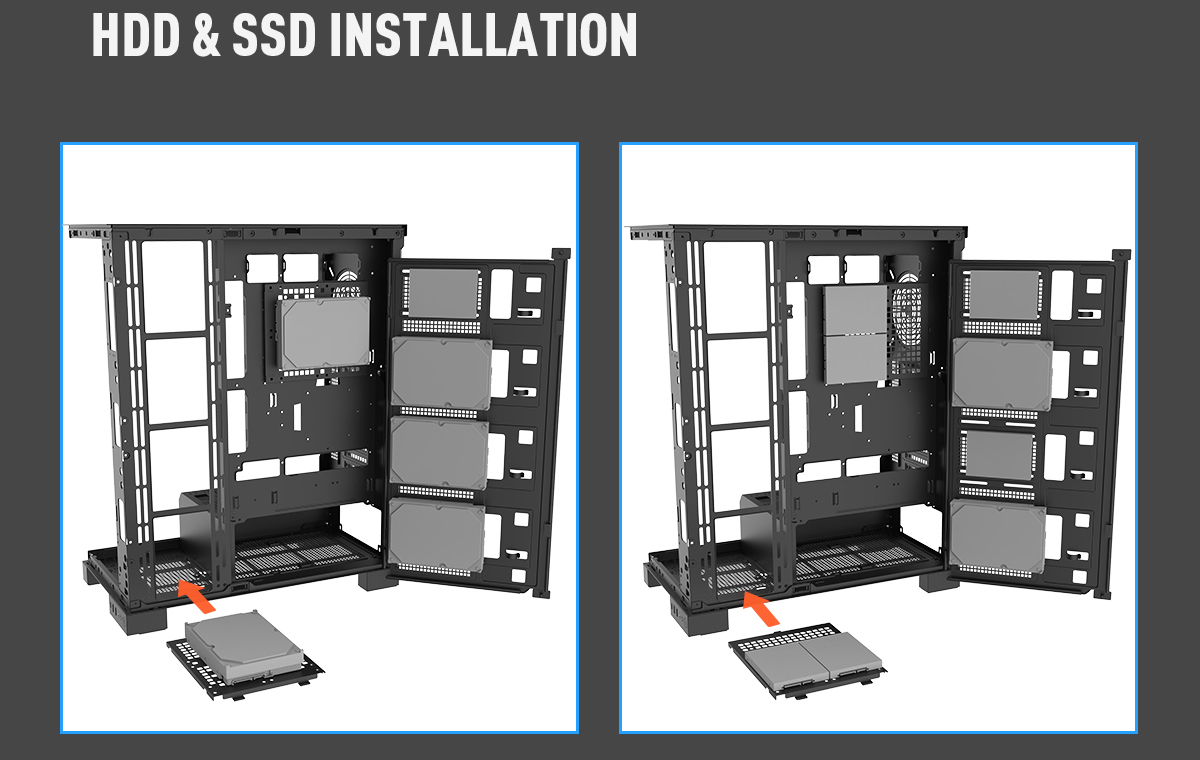

Expansion| Internal 3.5" Drive Bays | 3 |
|---|
| Internal 2.5" Drive Bays | 3 |
|---|
| Expansion Slots | 9 |
|---|

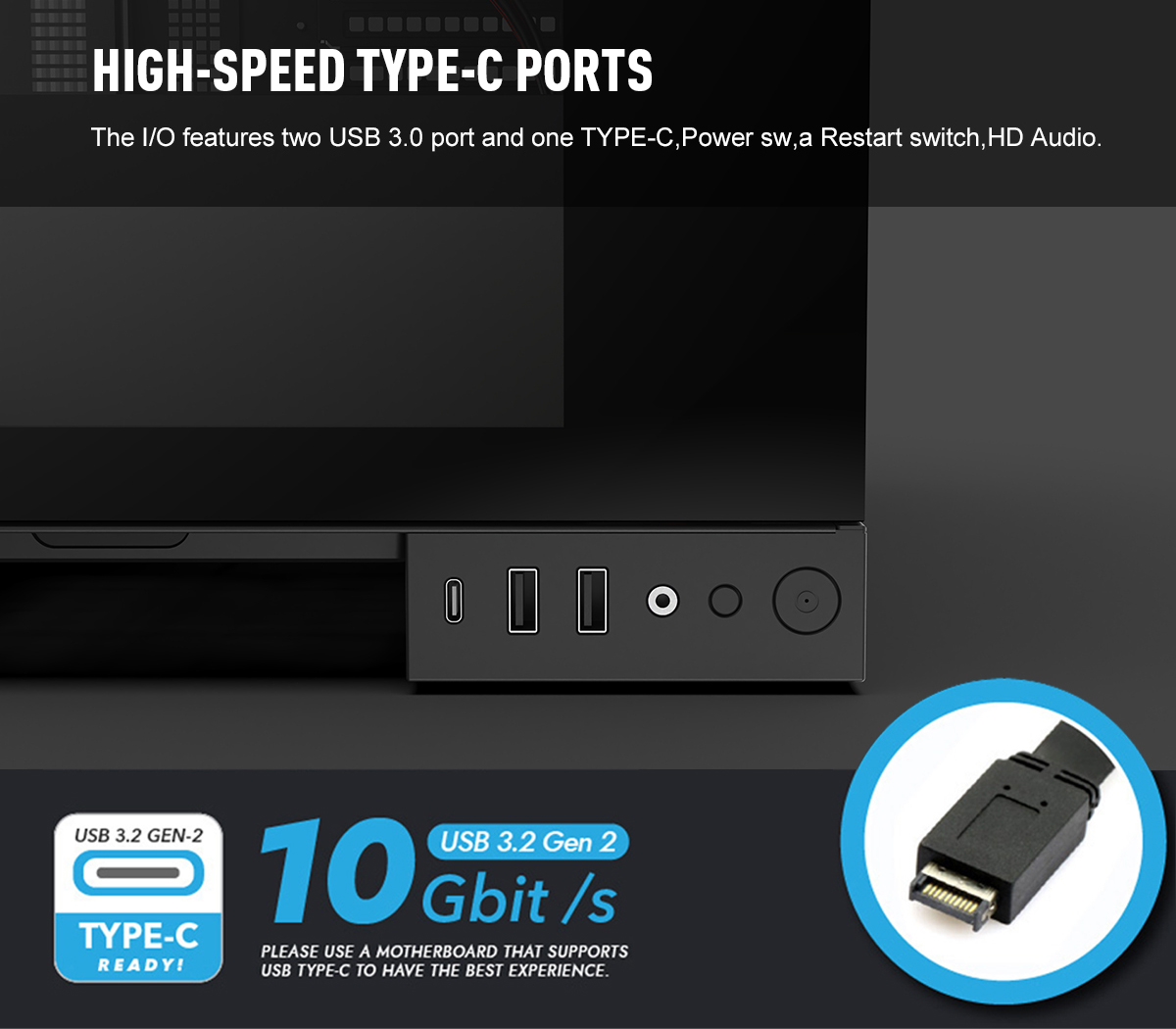

Front Panel Ports| Front Ports | 2 x USB 3.0 / 1 x Type C / Audio In & Out (HD) |
|---|

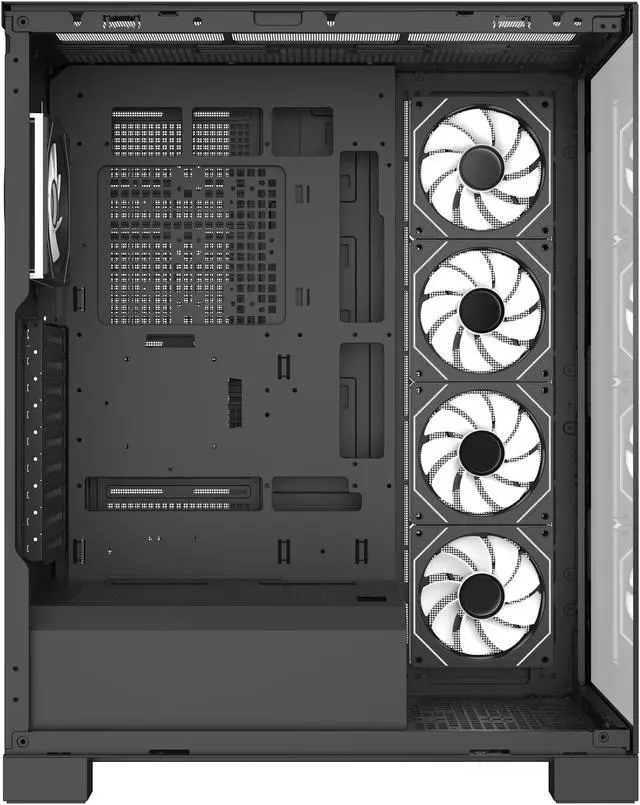

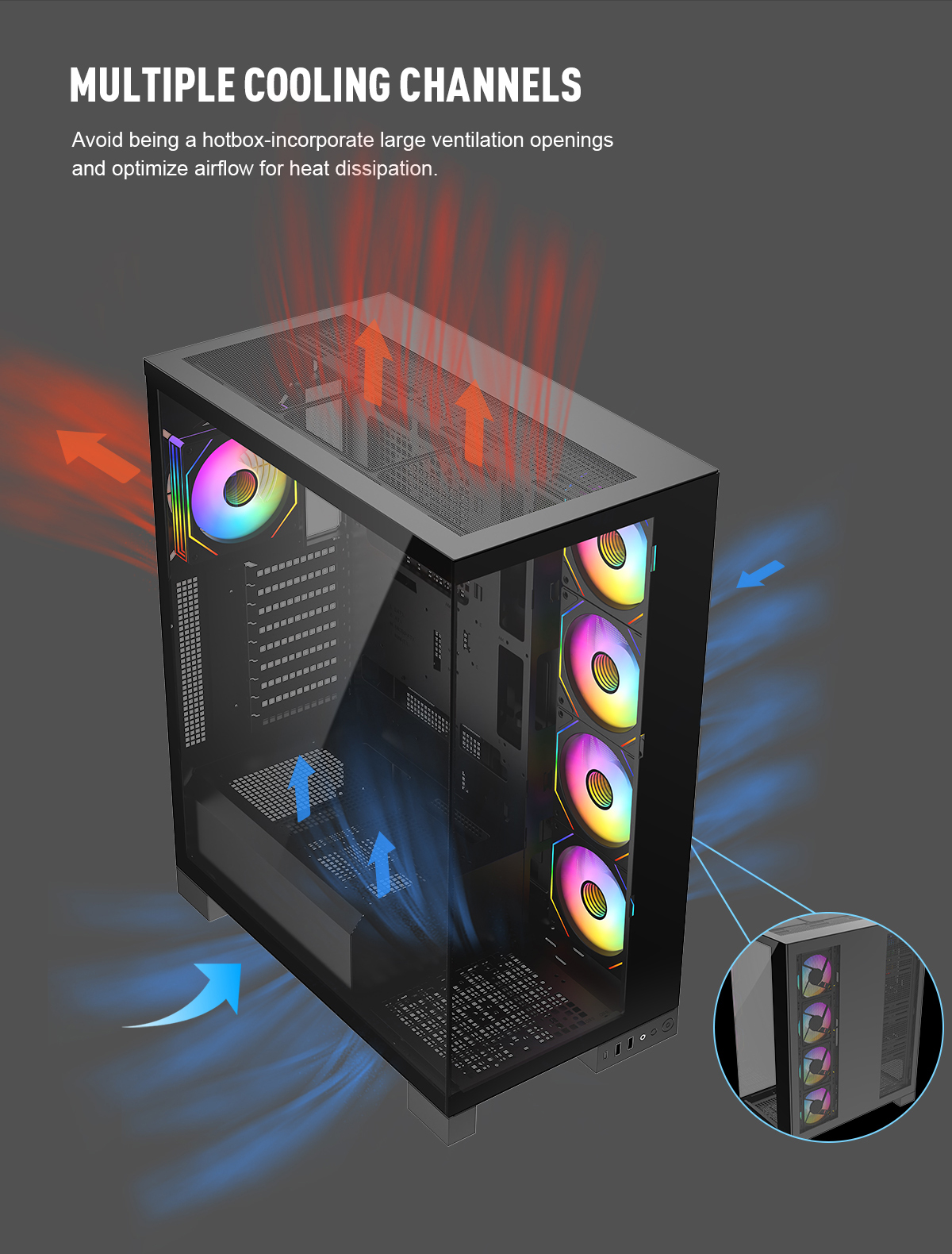

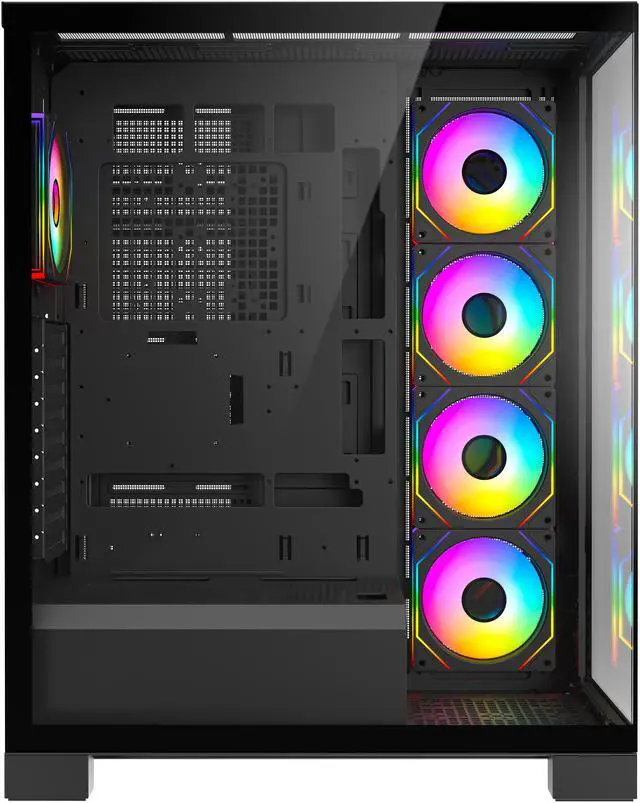

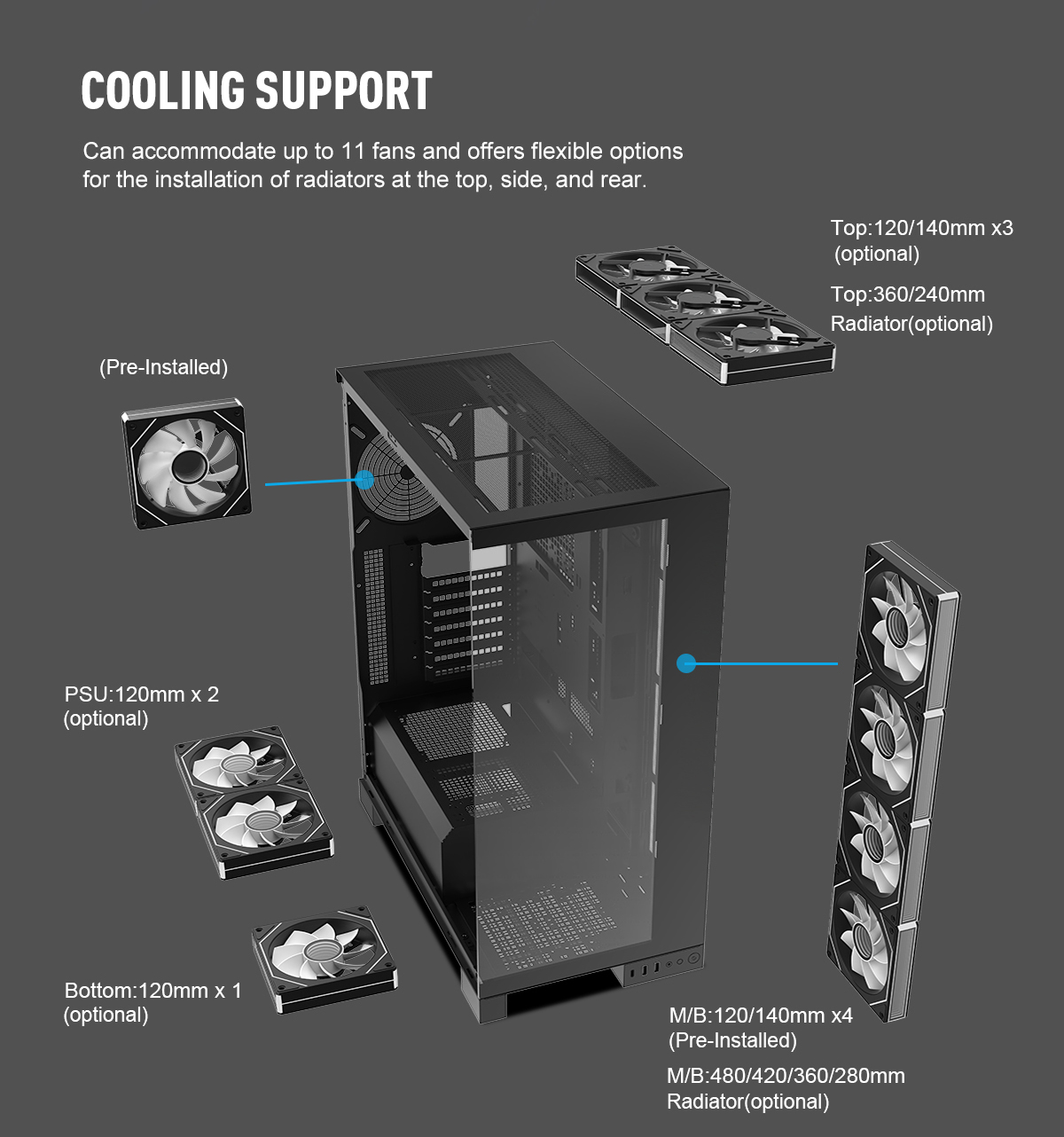

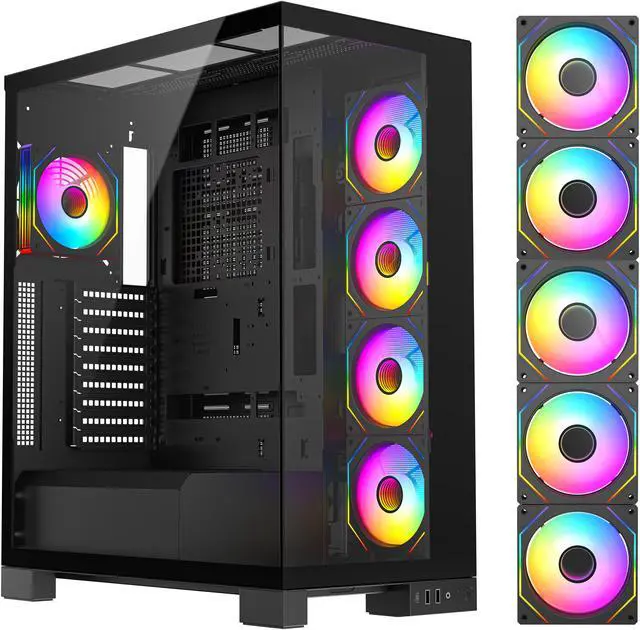

Cooling System| Fan Options | MB side - 4 x 120mm ARGB PWM Fans (Pre-installed) Top: 3 x 120mm or 3 x 140mm Fans (Optional) Rear: 1 x 140mm ARGB PWM Fan (Pre-Installed) PSU Chamber : 2 x 120mm Fan (Optional) Fan-HDD rack: 1 x 120mm (Optional) |
|---|
| Radiator Options | MB side can fit up to 480mm , top support 360mm water cooling radiator |
|---|

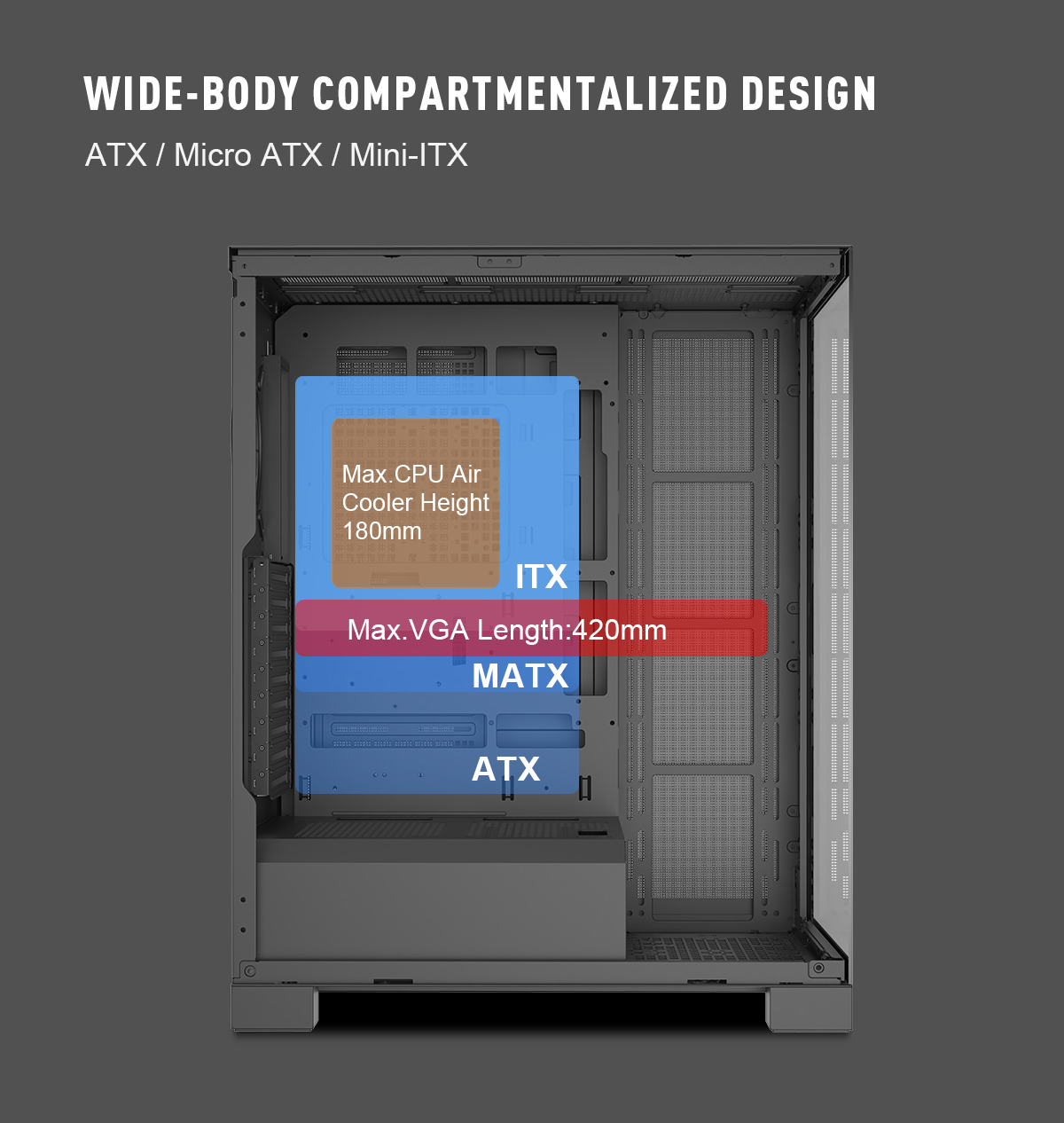

Dimensions & Weight| Max GPU Length | 420 mm |
|---|
| Max CPU Cooler Height | 180 mm |
|---|
| Max PSU Length | 250 mm |
|---|
| Dimensions | 18" x 10.32" x 22.7" |
|---|
| Weight | 16lbs |
|---|
Additional Information| First Listed on Newegg | March 02, 2026 |
|---|
