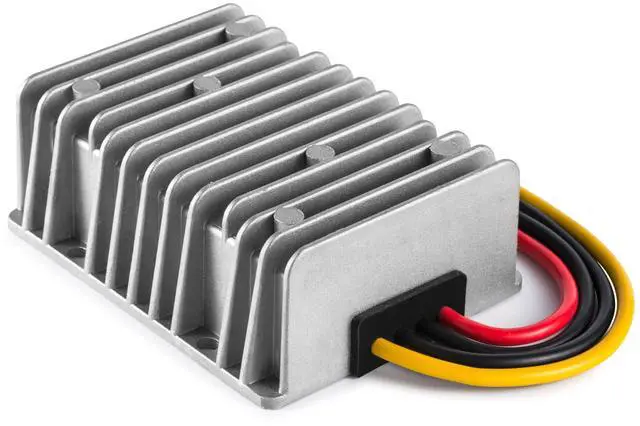

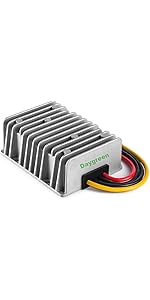

Daygreen H10-1224-48 DC-DC Boost Converter: Power Your 48V Systems with Unmatched Reliability
Transform your 12V/24V vehicle battery into a stable 48VDC power source for high-voltage appliances!
The Daygreen H10-1224-48 DC-DC converter delivers 95% ultra-high efficiency, ensuring minimal energy loss while powering heavy-duty loads like industrial equipment, telecom devices, or specialized automotive systems.
Wide Input Range (11-35VDC): Compatible with 12V/24V batteries, trucks, RVs, boats, and more.
Precision Output (48VDC ±1.5%): Stable voltage with ±0.2% line/load regulation for sensitive electronics.
High-Current Capacity (10A Continuous): Supports demanding loads up to 480W.
Military-Grade Durability: IP68 waterproof enclosure withstands dust, moisture, and extreme temperatures (-40°C to 85°C).
Safety Certified: CE & RoHS compliant, 100,000+ hours MTBF for operation.

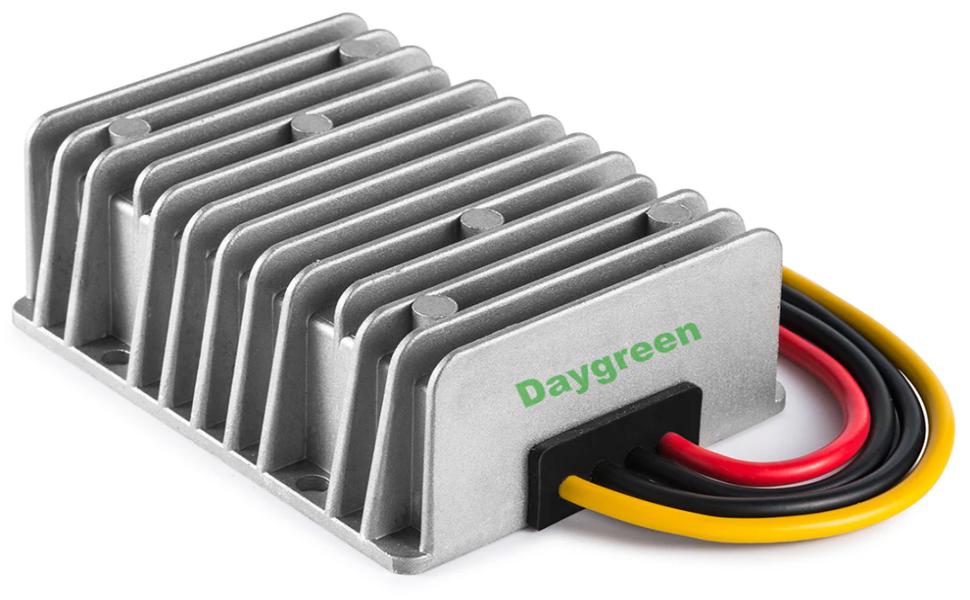

Daygreen H10-1224-48
Daygreen | DC-DC Power Converter Applications for RVs, Vans & Buses
RVs: Core Value:
-Power Independence for Off-Grid Adventures
Vans: Cold Chain Logistics:
- Maintain refrigeration units to protect perishable goods (food, pharmaceuticals).
Buses: Safety & Compliance :
-Backup power for emergency exit lights, fire suppression systems, and communication devices.
Wiring: INPUT+ to BAT+, INPUT- to BAT-, OUTPUT+ to LOAD+, OUTPUT- to LOAD-
Reminder: Never reverse the polarity. Use the big enough cables to avoid the voltage drop. Never connect to solar panels or wind turbines. Never charge the battery.
How to choose the correct current for loads?
For example, if the max current of your load device is 10A, then choose 10A/0.8=12.5A at least for resistive loads according to international standards. If the load device is a motor or compressor, you may choose 10A/0.5=20A according to real testing results since the motor and compressor starting current maybe 2-3 times than nominal current.
Sample Q&A:
Q1: Can I parallel multiple units for higher power?
A: No! Use a higher-rated model instead.
Q2: What happens if input voltage drops below 11V?
A: The converter shuts down to protect the battery from over-discharge.

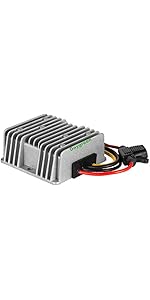

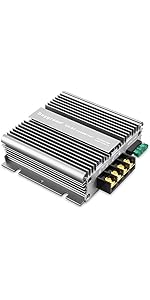

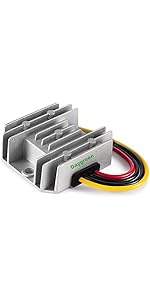

 Voltage Regulator DC DC 36V 48V Step Down to DC 12V Buck Transformer Converte... |  Voltage Regulator DC DC 24V 36V 48V Step Down to DC 12V Buck Transformer Conv... |  Voltage Regulator DC DC 36V 48V Step Down to DC 12V Buck Transformer Converte... |  Daygreen 12V 24V 36V to 48V 10A 480W Non-Isolated DC DC Step Up Boost Convert... |  Daygreen 24V to 12V 40A 480W Power Buck Module Car Step Down DC DC Converter ... | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — no data | — | — | — no data |
| Type | Step Down | Step Down | Step Down | Step Up | Step Down |
Daygreen H10-1224-48 DC-DC Boost Converter: Power Your 48V Systems with Unmatched Reliability
Transform your 12V/24V vehicle battery into a stable 48VDC power source for high-voltage appliances!
The Daygreen H10-1224-48 DC-DC converter delivers 95% ultra-high efficiency, ensuring minimal energy loss while powering heavy-duty loads like industrial equipment, telecom devices, or specialized automotive systems.
Wide Input Range (11-35VDC): Compatible with 12V/24V batteries, trucks, RVs, boats, and more.
Precision Output (48VDC ±1.5%): Stable voltage with ±0.2% line/load regulation for sensitive electronics.
High-Current Capacity (10A Continuous): Supports demanding loads up to 480W.
Military-Grade Durability: IP68 waterproof enclosure withstands dust, moisture, and extreme temperatures (-40°C to 85°C).
Safety Certified: CE & RoHS compliant, 100,000+ hours MTBF for operation.
Daygreen H10-1224-48
| Efficiency | 95% |
| Enclosures | IP68 |
| Output Stability | ±0.2% Load/Line Regulation |
| Case Operating Temperature | -40~85°C |
| Dimension | 100*80*40mm |
| Input Voltage | 11-35VDC |
| Output Voltage | 48VDC |
| Output Current | 10A |
Daygreen | DC-DC Power Converter Applications for RVs, Vans & Buses
RVs: Core Value:
-Power Independence for Off-Grid Adventures
Vans: Cold Chain Logistics:
- Maintain refrigeration units to protect perishable goods (food, pharmaceuticals).
Buses: Safety & Compliance :
-Backup power for emergency exit lights, fire suppression systems, and communication devices.
Wiring: INPUT+ to BAT+, INPUT- to BAT-, OUTPUT+ to LOAD+, OUTPUT- to LOAD-
Reminder: Never reverse the polarity. Use the big enough cables to avoid the voltage drop. Never connect to solar panels or wind turbines. Never charge the battery.
How to choose the correct current for loads?
For example, if the max current of your load device is 10A, then choose 10A/0.8=12.5A at least for resistive loads according to international standards. If the load device is a motor or compressor, you may choose 10A/0.5=20A according to real testing results since the motor and compressor starting current maybe 2-3 times than nominal current.
Sample Q&A:
Q1: Can I parallel multiple units for higher power?
A: No! Use a higher-rated model instead.
Q2: What happens if input voltage drops below 11V?
A: The converter shuts down to protect the battery from over-discharge.
