DEEPCOOL FH-04 PWM Fan Hub, Supports up to 4 Fans (3-pin or 4-pin), Occupying only One 4-pin Motherboard Header (System Fan or CPU Fan)
- If 3-pin non-PWM fans are connected to this fan hub, this fan hub CANNOT give them extra PWM function. They will run at FULL SPEED.
- If 4-pin PWM fans are connected to this fan hub, DUTY RATIO of all PWM fans can be adjusted at the same time. That is, all PWM fans will run at the same DUTY RATIO. Only speed of Fan 1 can be identified by the system.
- Capable of connecting to 4 PC fans simultaneously for cooling the computer system.
- Support cable management.
- Double-sided adhesive installation.
+
+
Overview
Specs
Reviews
Features:
- FH-04 enables users to greatly expand cooling capability within the chassis and enjoy enhanced system performance.
- FH-04 is able to extend up to 4 fans and compatible with 3-pin/4-pin Fans.
- PWM function If non-PWM fans are connected to this fan hub, this fan hub CANNOT give them extra PWM function. They will run at full speed.
- If PWM fans are connected to this fan hub, speed of all PWM fans can be adjusted at the same time. That is, all PWM fans will run at the same DUTY RATIO, not the same speed.
- Only speed of Fan 1 can be identified by the system.

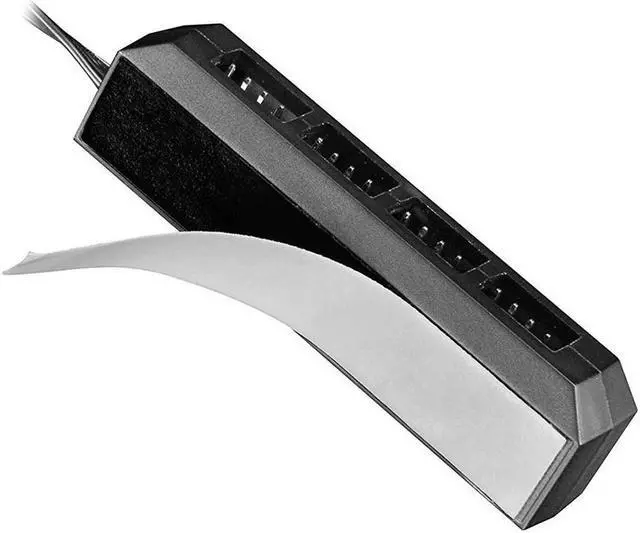

- Adhesive FH-04 is easily installed by included double-sided adhesive.
Specifications:
Product Dimension: 2.7" × 0.5" × 0.7" (68×13× 17.5 mm)
Net Weight: 0.05 lb. (22g)
Port Type: 4-pin×1
Extension Port: 4-pin×4 Length of
HUB Strip Cable: 15.7" (400mm)
Mounting Method: Double-faced Adhesive
- FH-04 enables users to greatly expand cooling capability within the chassis and enjoy enhanced system performance.
- FH-04 is able to extend up to 4 fans and compatible with 3-pin/4-pin Fans.
- PWM function If non-PWM fans are connected to this fan hub, this fan hub CANNOT give them extra PWM function. They will run at full speed.
- If PWM fans are connected to this fan hub, speed of all PWM fans can be adjusted at the same time. That is, all PWM fans will run at the same DUTY RATIO, not the same speed.
- Only speed of Fan 1 can be identified by the system.
- Adhesive FH-04 is easily installed by included double-sided adhesive.
Specifications:
Product Dimension: 2.7" × 0.5" × 0.7" (68×13× 17.5 mm)
Net Weight: 0.05 lb. (22g)
Port Type: 4-pin×1
Extension Port: 4-pin×4 Length of
HUB Strip Cable: 15.7" (400mm)
Mounting Method: Double-faced Adhesive
