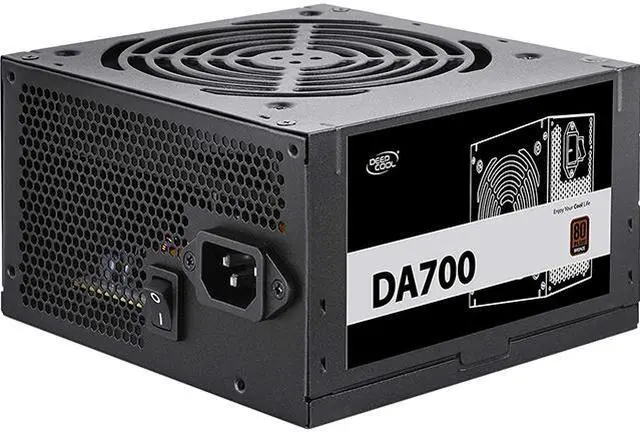

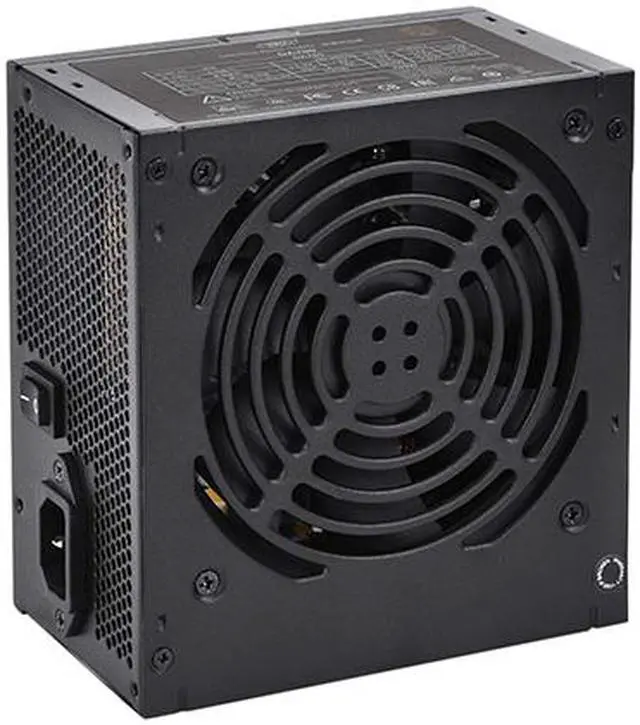

Deepcool DA700 DP-BZ-DA700N 700 W ATX 12V V2.4 SLI CrossFire 80 PLUS BRONZE Certified Non-Modular Active PFC Power Supply

Specs

Reviews

Learn more about the DEEPCOOL DP-BZ-DA700N

Details
Type	ATX 12V V2.4
Maximum Power	700 W

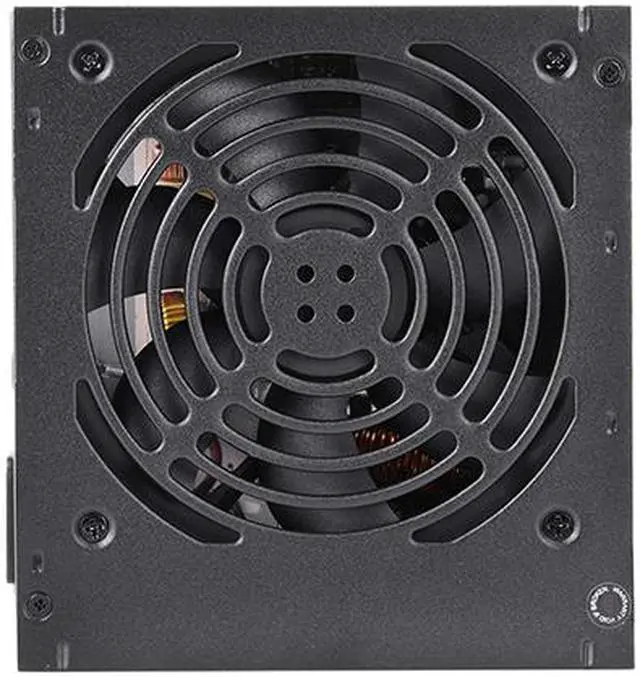

Fans	1 x 120 mm
PFC	Active
Main Connector	20+4Pin
+12V Rails	Single
PCI-Express Connector	4 x 6+2-Pin
SATA Power Connector	5
SLI	Yes
CrossFire	Yes
Max PSU Length	140 mm
Modular	Non-Modular
Power Good Signal	100-500ms
Hold-up Time	>16ms
Efficiency	85% Under Typical Load
Energy-Efficient	80 PLUS BRONZE Certified
Protection	OVP / UVP / SCP / OPP
Input Voltage	100 - 240 V
Input Frequency Range	47 - 63 Hz
Input Current	10A

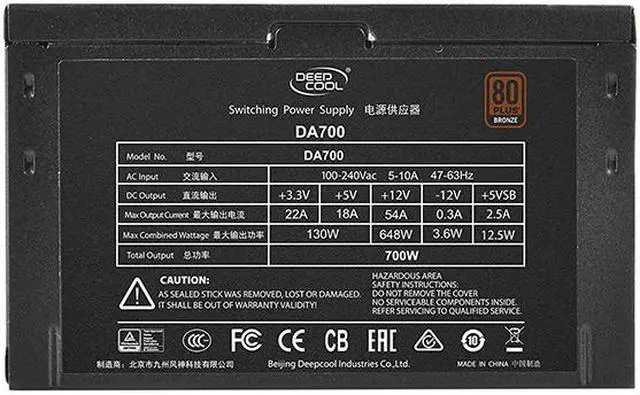

Output	+3.3V@22A, +5V@18A, +12V@54A, [email protected], [email protected]
MTBF	>100,000 Hours
Approvals	CE / FCC / CCC / CB / EAC
Connectors	1 x 24 pin (20+4) ATX 1 x 8 pin (4+4) EPS (CPU) 4 x 8 pin (6+2) PCIe 5 x SATA 3 x 4 pin Peripheral
Cable Spec	20+4Pin MB: One cable (450mm) 4+4Pin CPU: One cable (550mm) 2 x PCI-E 6+2Pin: Two cables (450+100mm) 3 x SATA + 1 x 4-pin Peripheral: One cable (350+100+100+100mm) 2 x SATA + 2 x 4-pin Peripheral: One cable (350+100+100+100mm)

Features
Features	Compatible with Intel ATX12V V2.4. Integrated Active PFC + PWM Combo Controller boost the exchange efficiency and achieve a PFC of higher than 99%. 80 PLUS Bronze certified to achieve up to 85% efficiency. 120 mm silent fan with temperature control function. Longer cable design for enhancing cable management. Double-Layer EMI Filter for protection against electromagnetic interference (EMI) and for noise control. Smart eco-friendly chipset, consuming only < 0.3W in off-mode. Compliant to ErP standards. CircuitShield - OVP, UVP, SCP, and OPP. Support Multi-Way SLI / CrossFire + Multi-Core CPUs. High reliability with at least 100,000-hour MTBF.

Dimension & Weight

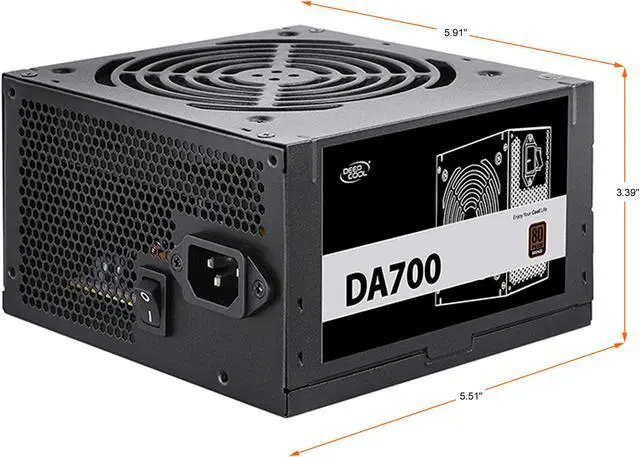

Dimensions	3.39" x 5.91" x 5.51"

Additional Information
First Listed on Newegg	April 04, 2022

Return for refund within: 30 days

Return for replacement within: 30 days
