$158.56
Meet Your Seller

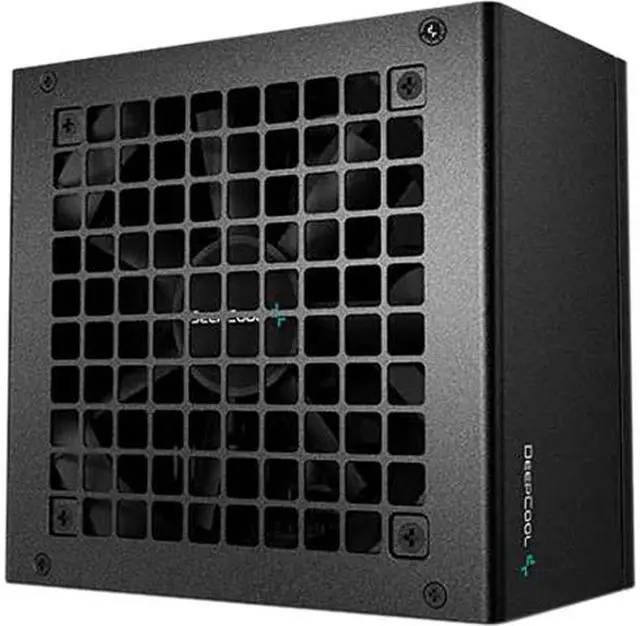

Deepcool PQ850M R-PQ850M-FA0B-US 850 W ATX12V V2.4 80 PLUS GOLD Certified Full Modular Active PFC Power Supply
- ATX12V V2.4
- Full Modular
- 80 PLUS GOLD Certified
- 100 - 240 V 50/60 Hz
- +3.3V@20A, +5V@20A, +12V@70A, -12V@0.3A, +5VSB@3A
+
+
Specs
Reviews (10)
Learn more about the DEEPCOOL R-PQ850M-FA0B-US
| Brand | Deepcool |
|---|---|
| Series | PQ850M |
| Model | R-PQ850M-FA0B-US |
| Type | ATX12V V2.4 |
|---|---|
| Maximum Power | 850 W |
| Fans | 1 x 120mm FDB fan |
| PFC | Active |
| Main Connector | 20+4Pin |
| +12V Rails | Single |
| PCI-Express Connector | 3 x 6+2-Pin |
| SATA Power Connector | 10 |
| Max PSU Length | 140 mm |
| Modular | Full Modular |
| Power Good Signal | 100-500ms |
| Hold-up Time | >=16ms (90% load) |
| Efficiency | >=90% Under Typical Load(50% Loading) |
| Energy-Efficient | 80 PLUS GOLD Certified |
| Protection | OPP / OVP / SCP / OTP / OCP / UVP |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 12-6A |
| Output | +3.3V@20A, +5V@20A, +12V@70A, -12V@0.3A, +5VSB@3A |
| MTBF | >100,000 Hours |
| Approvals | CCC / CE / FCC / TUV-SUD / cTUVus / RCM / EAC / CAN ICES-003(B) / NMB-003(B) / UKCA |
| Connectors | 1 x 24 pin (20+4) ATX 2 x 8 pin (4+4) EPS (CPU) 3 x 8 pin (6+2) PCIe 10 x SATA 5 x 4 pin Peripheral |
| Cable Spec | 20+4Pin MB: One cable (610mm) 4+4Pin CPU: Two cables (650mm) PCI-E 6+2Pin: Three cables (750mm) 4 x SATA: Two cables (450+120+120+120mm) 2 x SATA + 2 x Molex: One cable (450+120+120+120mm) 3 x Molex: One cable (450+120+120mm) |

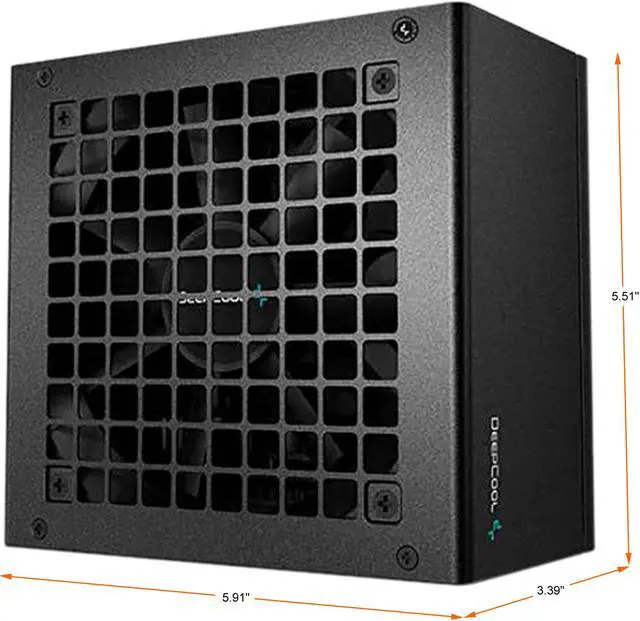

| Dimensions | 3.39" x 5.91" x 5.51" |
|---|
| First Listed on Newegg | June 05, 2025 |
|---|
