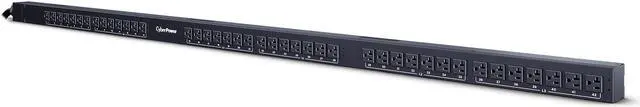

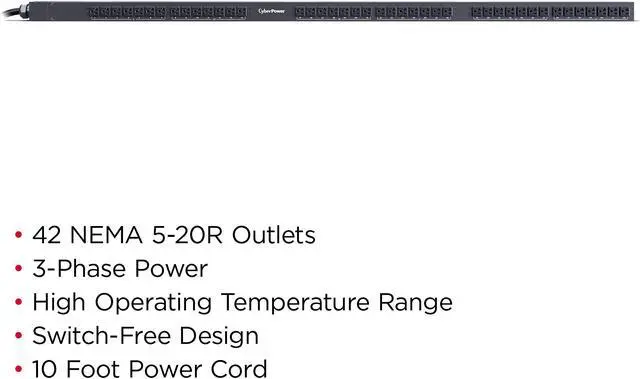

CyberPower PDU13101 208V/20A 3 Phase Power Distribution Units

Delivers AC power to servers, equipment, and connected devices via a power distribution unit.
Operates in data center hot aisle up to 140°F (60°C).
Safeguards against accidental power shut down.
Reaches distant power sources, allowing the PDU to be placed where it’s needed.
Includes all hardware required for 0U vertical rackmount installation.
Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.
Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.
Highly-durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.

This item is covered under the Manufacturer Only Return Policy.

Overview

Specs

Reviews

Details
Type	Basic
Rack Size	0U
Style	Rackmount
Rack Mounting Kit	1 Set Adjustable Mounting Bracket
Certifications	Environmental RoHS Compliant Safety UL60950-1 FCC Class A CB
ROHS	Yes

Input
Input Voltage	Nominal Input Voltage: 208 VAC
Input Frequency	50 Hz – 60 Hz
Maximum Input Current	20A
Regulatory Derated Input Current	16 A
Input Connector(s)	NEMA L21-20P
Cord Length	10 ft (3.0 m)

Output
Output Voltage	120 VAC
Output Connector(s)	42 – NEMA 5-20R

Environmental
Operating Environment	23 – 140 °F (-5 – 60 °C)
Operating Relative Humidity	0 – 95 % (non-condensing)
Operating Elevation	0 – 11480 ft (0 – 3499 m)

Dimensions & Weight

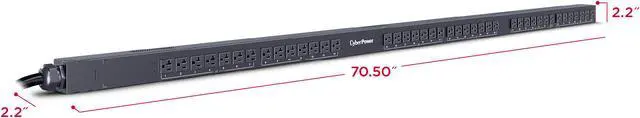

Dimensions	2.2 x 70.5 x 2.2 (in)
Weight	12.1 (lb)
