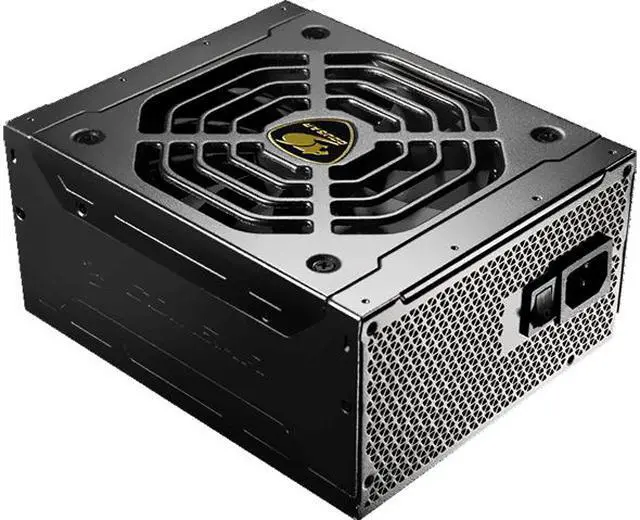

COUGAR GEX1050 1050 W ATX12V / EPS12V 80 PLUS GOLD Certified Full Modular Power Supply
- ATX12V / EPS12V
- Full Modular
- 80 PLUS GOLD Certified
- 100 - 240 V 47 - 63 Hz
- +3.3V@20A, +5V@20A, [email protected], [email protected], +5VSB@3A
+
+
Specs
Reviews
Learn more about the COUGAR GEX1050
| Brand | COUGAR |
|---|---|
| Model | GEX1050 |
| Type | ATX12V / EPS12V |
|---|---|
| Maximum Power | 1050 W |
| Fans | 1 x 135 mm |
| Main Connector | 20+4Pin |
| +12V Rails | Single |
| PCI-Express Connector | 8 x 6+2-Pin |
| SATA Power Connector | 12 |
| Max PSU Length | 180 mm |
| Modular | Full Modular |
| Energy-Efficient | 80 PLUS GOLD Certified |
| Protection | UVP (Under Voltage Protection) OCP (Overcurrent Protection) SCP (Short-Circuit Protection) OVP (Over Voltage Protection) OTP (Over Temperature Protection) OPP (Over Power Protection) |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 47 - 63 Hz |
| Input Current | 13 - 6A |
| Output | +3.3V@20A, +5V@20A, [email protected], [email protected], +5VSB@3A |
| Connectors | 1 x 24 pin (20+4) ATX 1 x 8 pin (4+4) EPS (CPU) 1 x 8 pin CPU 8 x 8 pin (6+2) PCIe 12 x SATA 4 x Peripherals |
| Cable Spec | 20+4Pin MB: One cable (650mm) 4+4Pin CPU: One cable (650mm) 8Pin CPU: One cable (650mm) 2 x PCI-E 6+2Pin: Four cables (650mm) 4 x SATA: Three cables (500+120+120+120mm) 4 x Peripheral: One cable (500+120+120+120mm) |
| Features | 80PLUS Gold Certified Up to 92% efficiency power conversion to cut down your electricity bill Fully Modular Power Supply Unit Connect only the cables you need for less clutter and better airflow Durable HDB Fan Hydro Dynamic Bearing Fan: Extended durability and lower noise levels Superior fan Curve Tuning Advanced technology for noise minimization Flawless Operation at 40°C Powerful performance at 40°C ambient temperature Compatible with The Lastest PC Technology Created for user with current and next-generation multi-core CPU platforms Support PCI Express 4.0 Next Generation Graphics Cards with 8(6+2) Pin PCI-E Connector Strong Safeguards: OCP, OPP, OVP, UVP, SCP & OTP Maximum safety for your key system components |
|---|

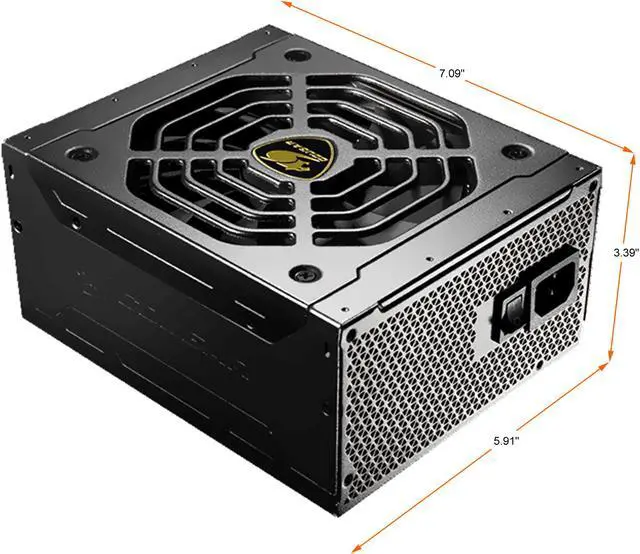

| Dimensions | 3.39" x 5.91" x 7.09" |
|---|---|
| Weight | 4.61 lbs. |
| First Listed on Newegg | January 19, 2023 |
|---|
