30mm thickness for a larger fan blade and greater performance
PWM controlled speeds up to 1,600 RPM
Very high static pressure of 2.4mm-H2O
Premium liquid crystal polymer construction
CORSAIR AirGuide technology for concentrated cooling
Quiet operation with Magnetic Dome bearing
+
+
Overview
Specs
Reviews (1)

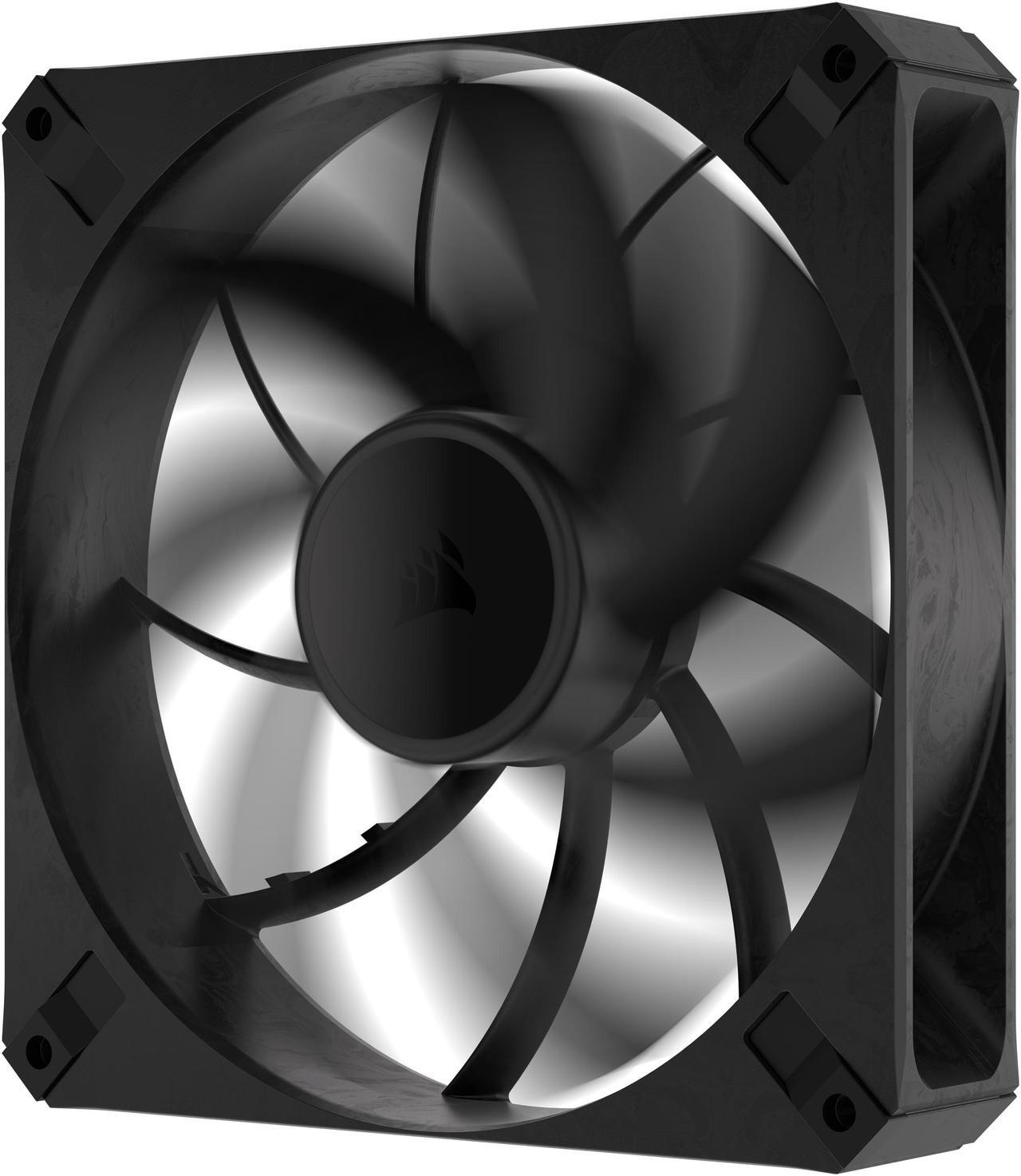

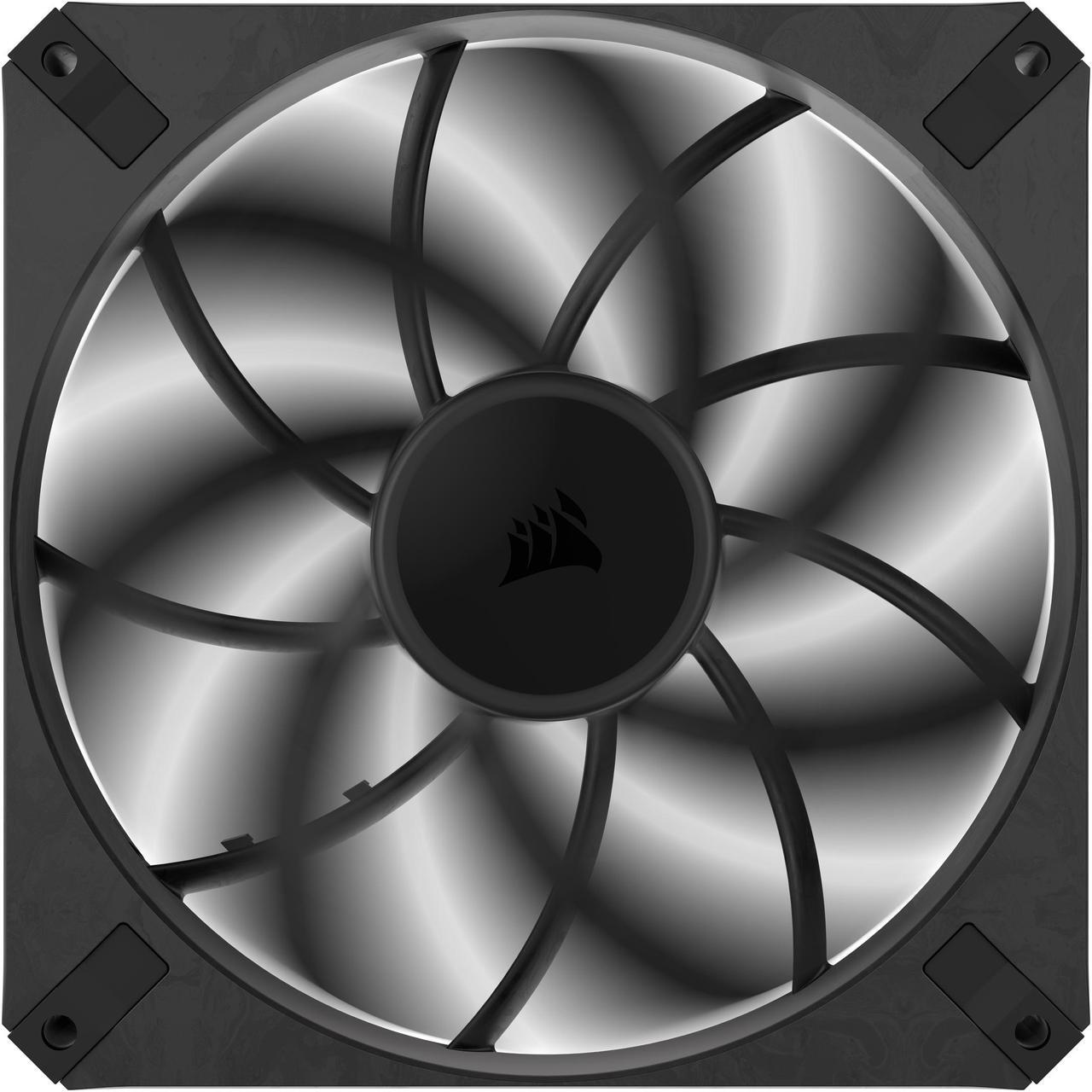

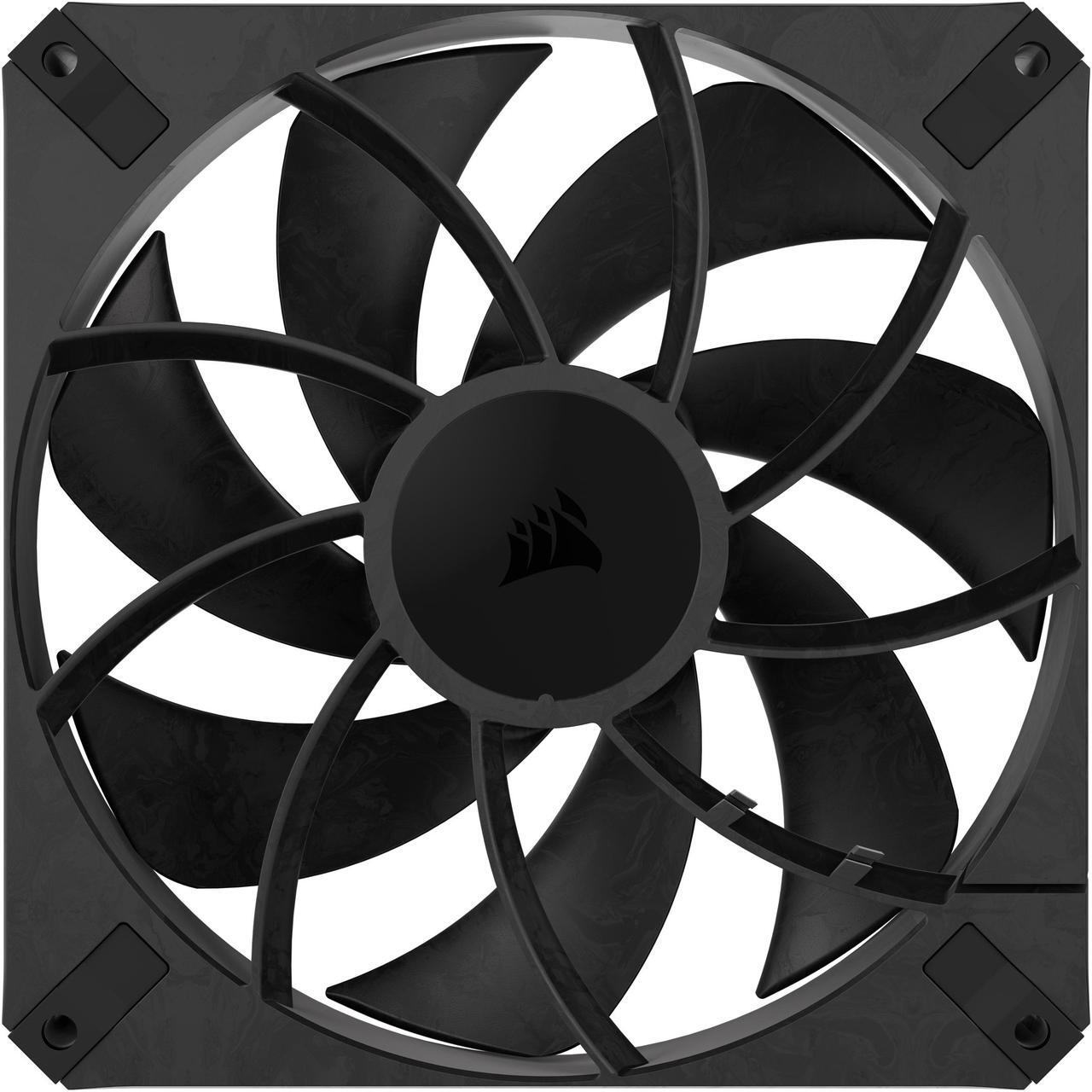

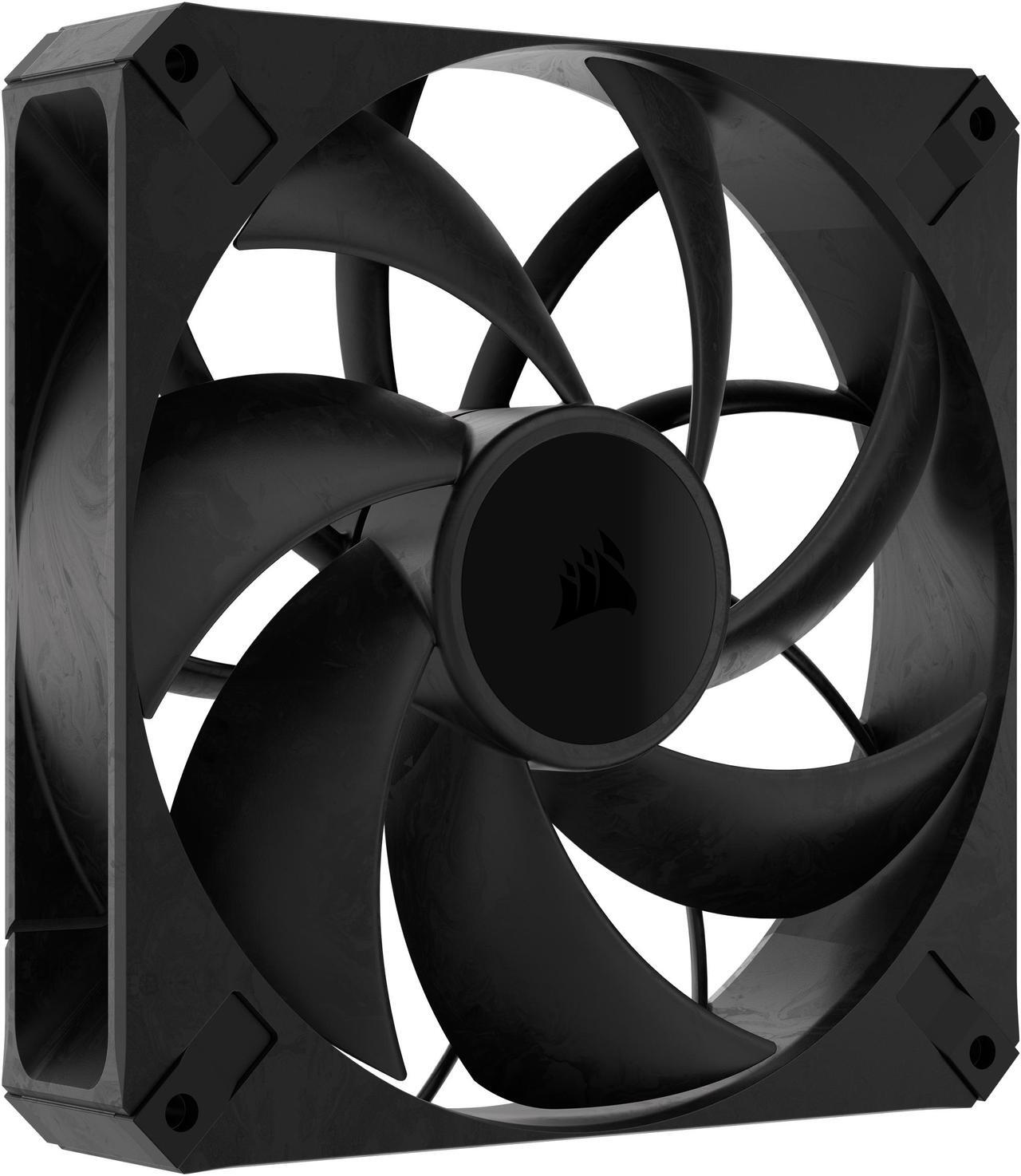

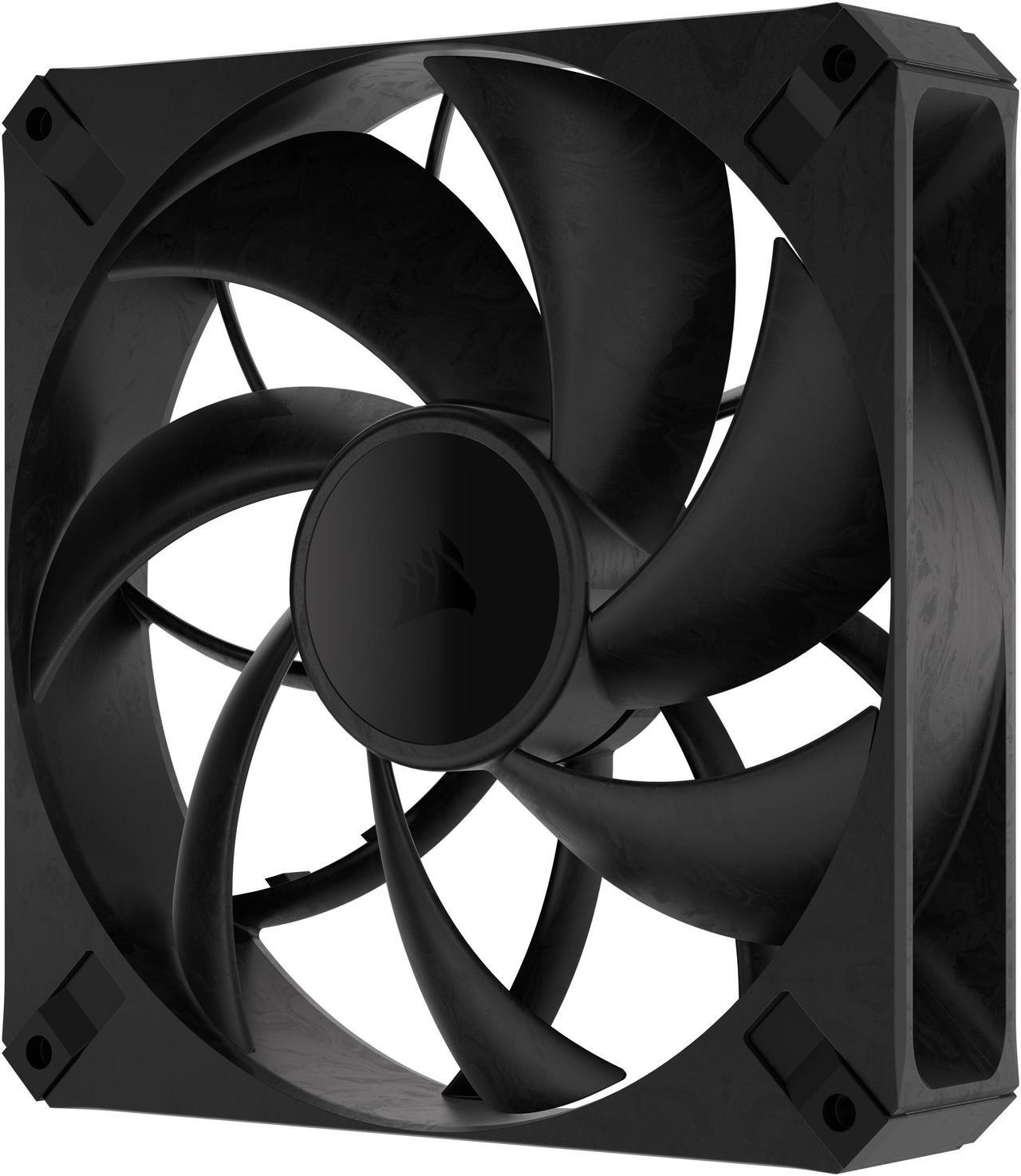

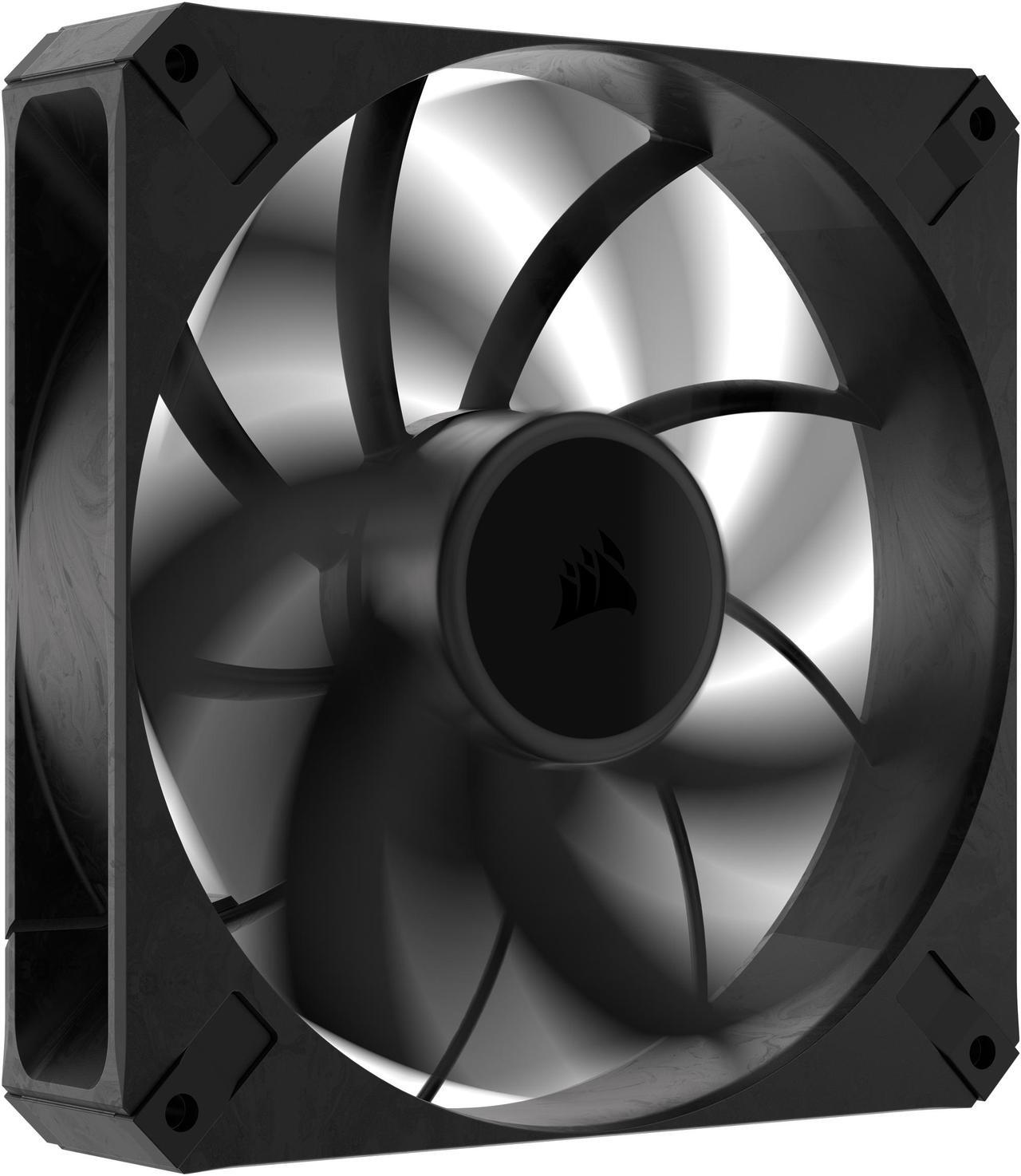

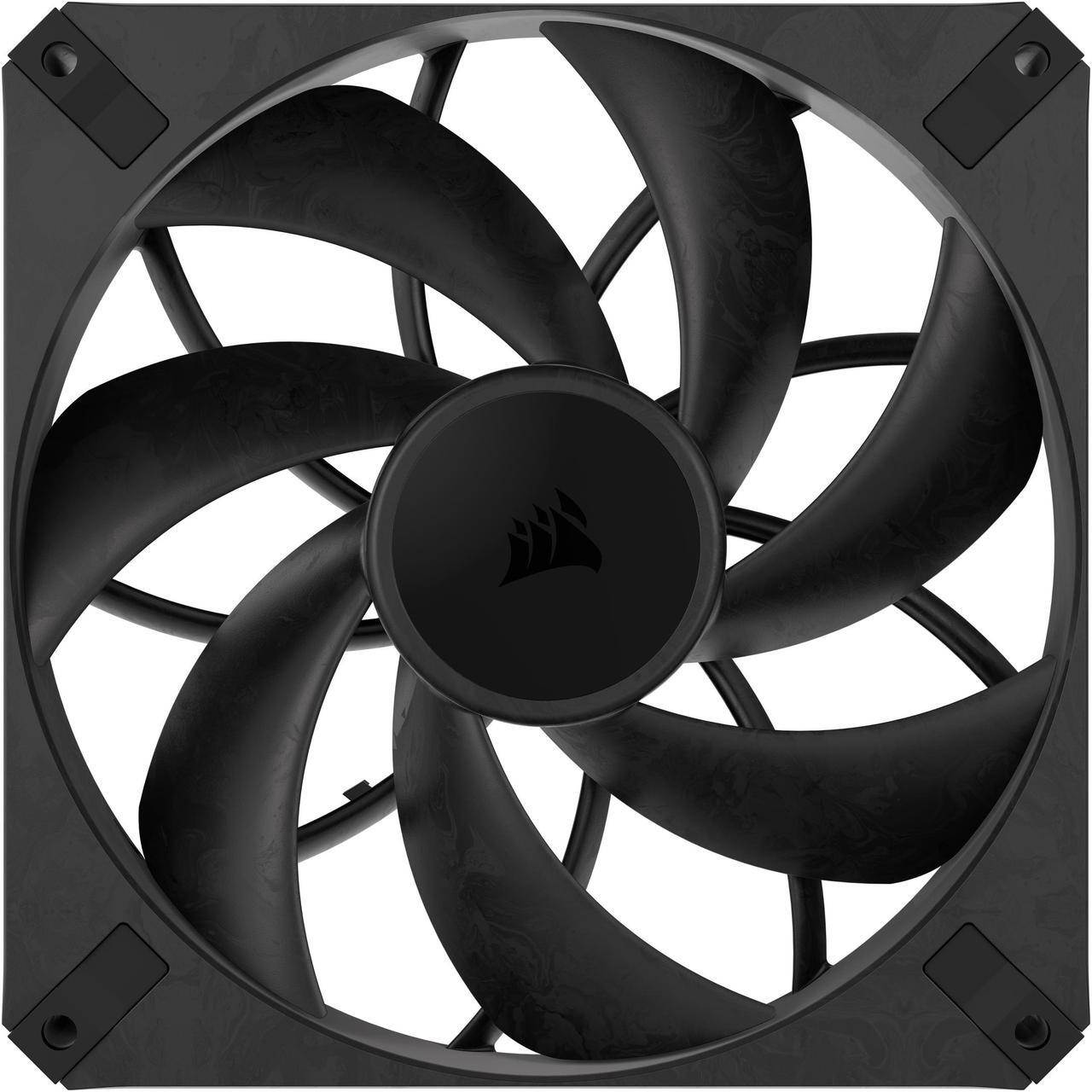

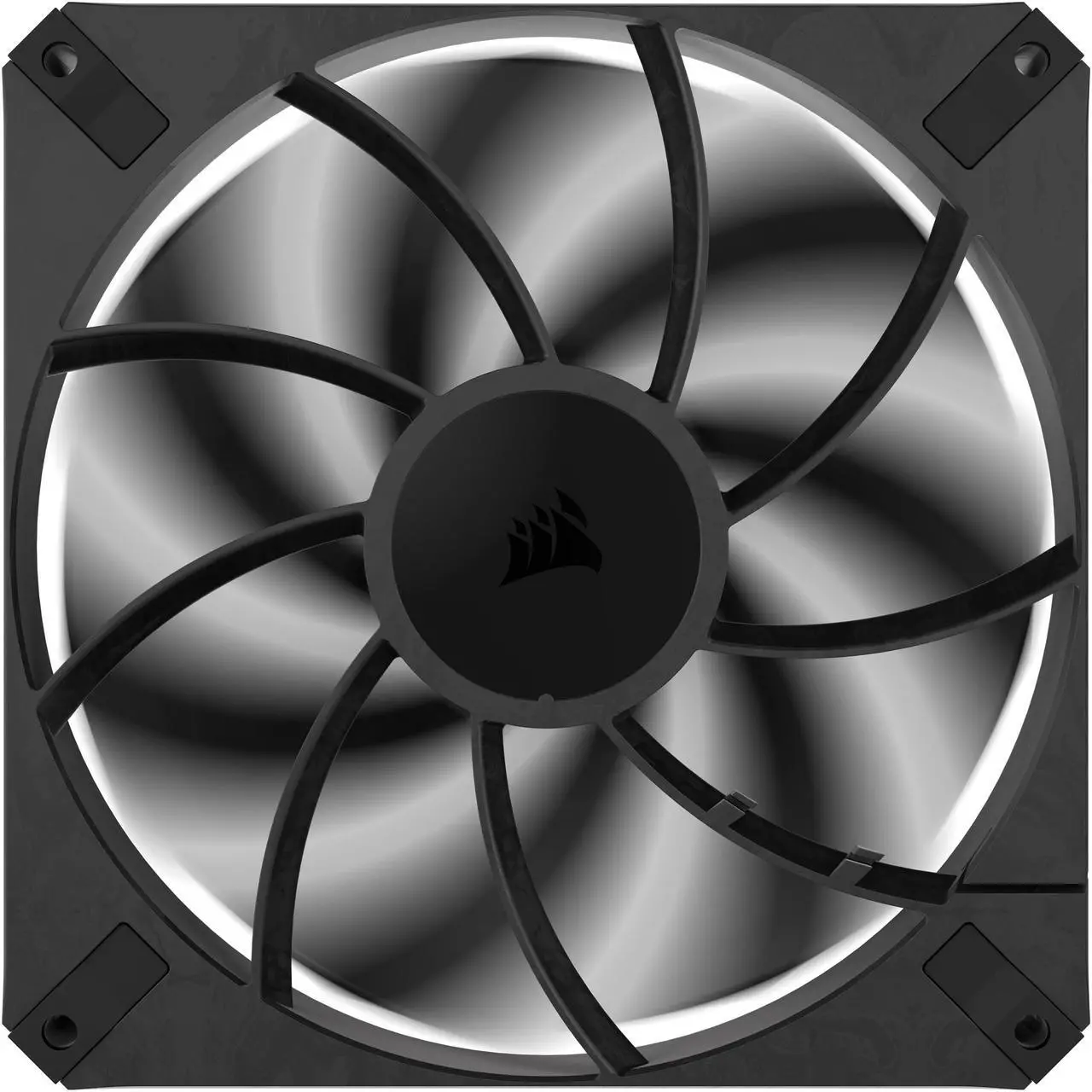

Learn more about the Corsair RS140 MAX
Model
Brand
Corsair
Model
RS140 MAX
Part Number
CO-9050175-WW
Details
Fan Counts

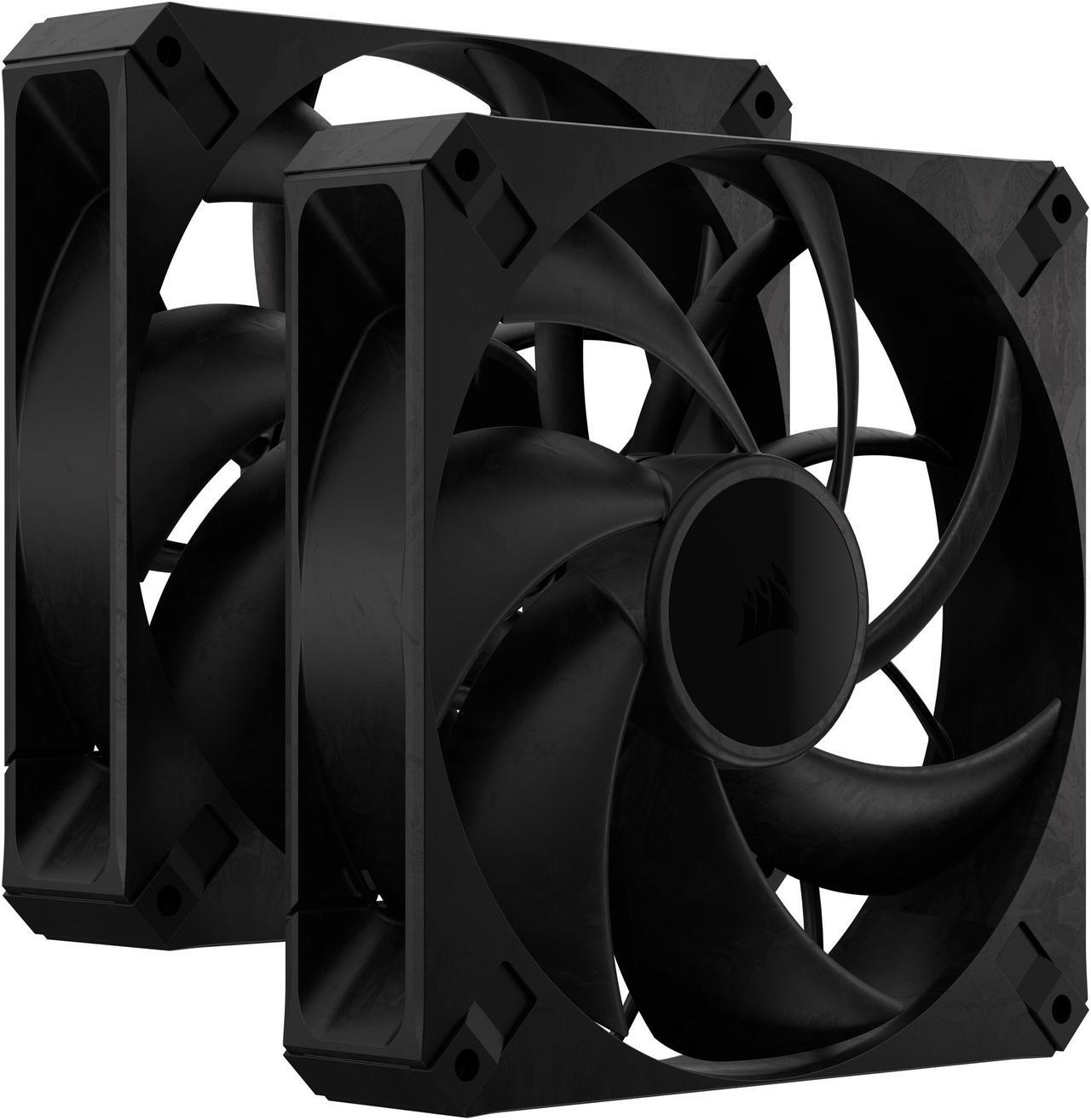

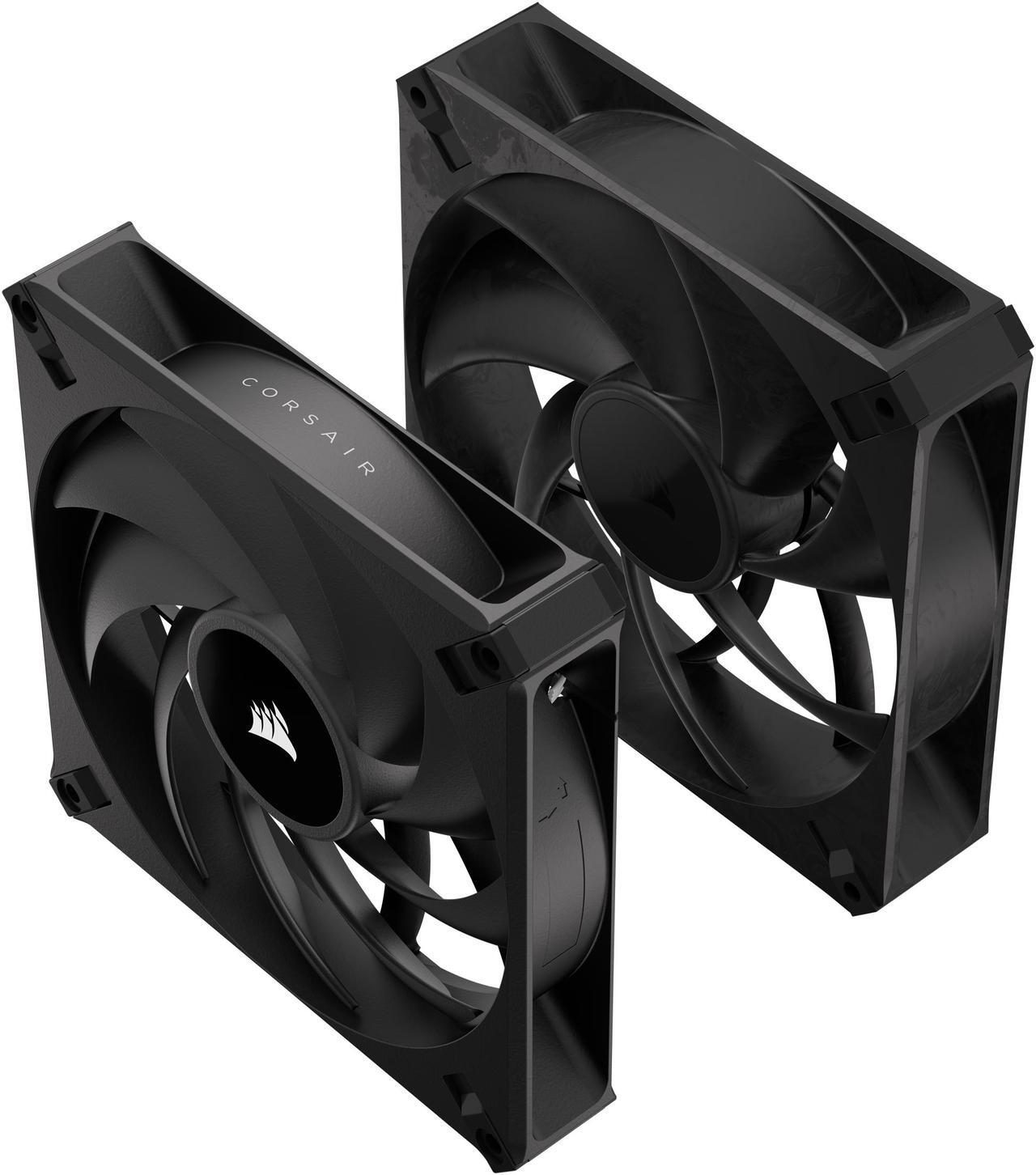

2 Fans
Type
Case Fan
Compatibility
Case
Fan Size
140mm
Fan Thickness
30mm
Bearing Type
Magnetic Dome
RPM
0, 400 - 1600 RPM +/- 10%
Air Flow
27.5 - 104 CFM
Air Pressure
0.2 - 2.4 mm-H2O
Noise Level
10 - 31 dBA
Power Connector
4 Pin
Color
Black
LED
Non-LED
Features
Features
30mm Thickness: An increase of 5mm over standard fan thickness allows for a larger fan blade, improving cooling performance.
PWM Controlled Speeds: A 4-pin PWM header allows precise control of fan speeds (up to 1,600 RPM), while providing up to 104 CFM airflow when needed by your system.
High Static Pressure: The RS140 MAX's increased thickness results in 2.4mm-H2O of static pressure, perfect for pushing air through obstructions such as high density radiators.
Premium Liquid Crystal Polymer Construction: Incredibly strong and durable with excellent rigidity, reducing blade vibration and increasing performance.
CORSAIR AirGuide Technology: Anti-vortex vanes direct airflow at your hottest components for concentrated cooling, whether used for intake, exhaust, or mounted to a radiator or heatsink.
Quiet Operation with Magnetic Dome Bearing: CORSAIR's Magnetic Dome bearing minimizes noise and reduces friction for greater longevity.
Dimensions & Weight
Dimensions
140 x 140 x 30mm
Package Contents
Package Contents

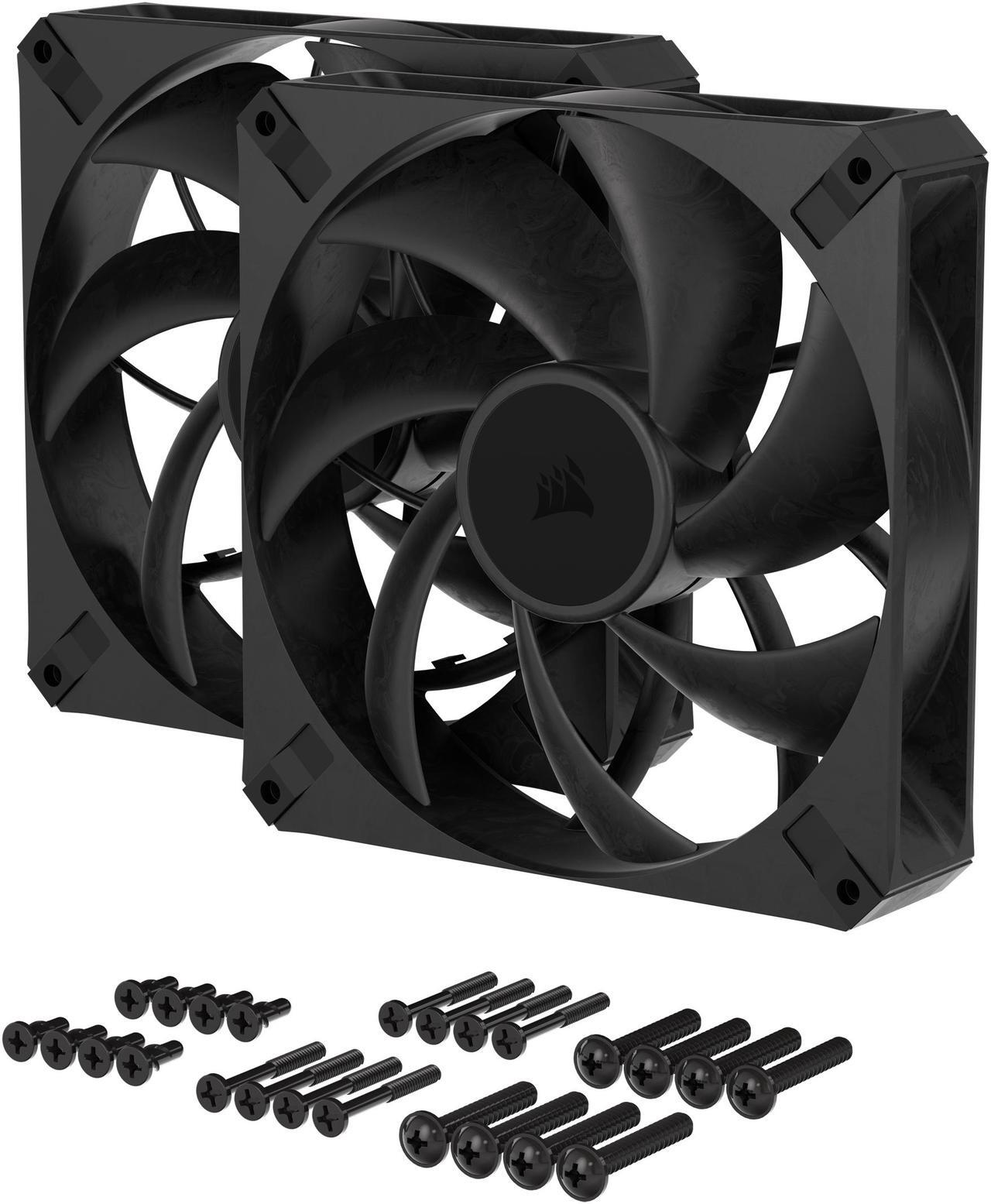

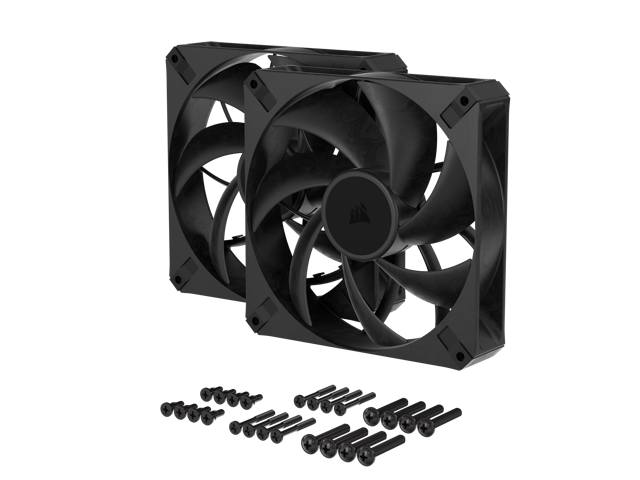

2 x RS140 MAX Fan 8 x AIO Radiator Mounting Screws 8 x HydroX Radiator Mounting Screws 8 x QuikTurn Mounting Screws
