30mm thickness for a larger fan blade and greater performance
PWM controlled speeds up to 1,600 RPM
Very high static pressure of 2.4mm-H2O
Premium liquid crystal polymer construction
CORSAIR AirGuide technology for concentrated cooling
Quiet operation with Magnetic Dome bearing
Overview
Specs
Reviews (2)

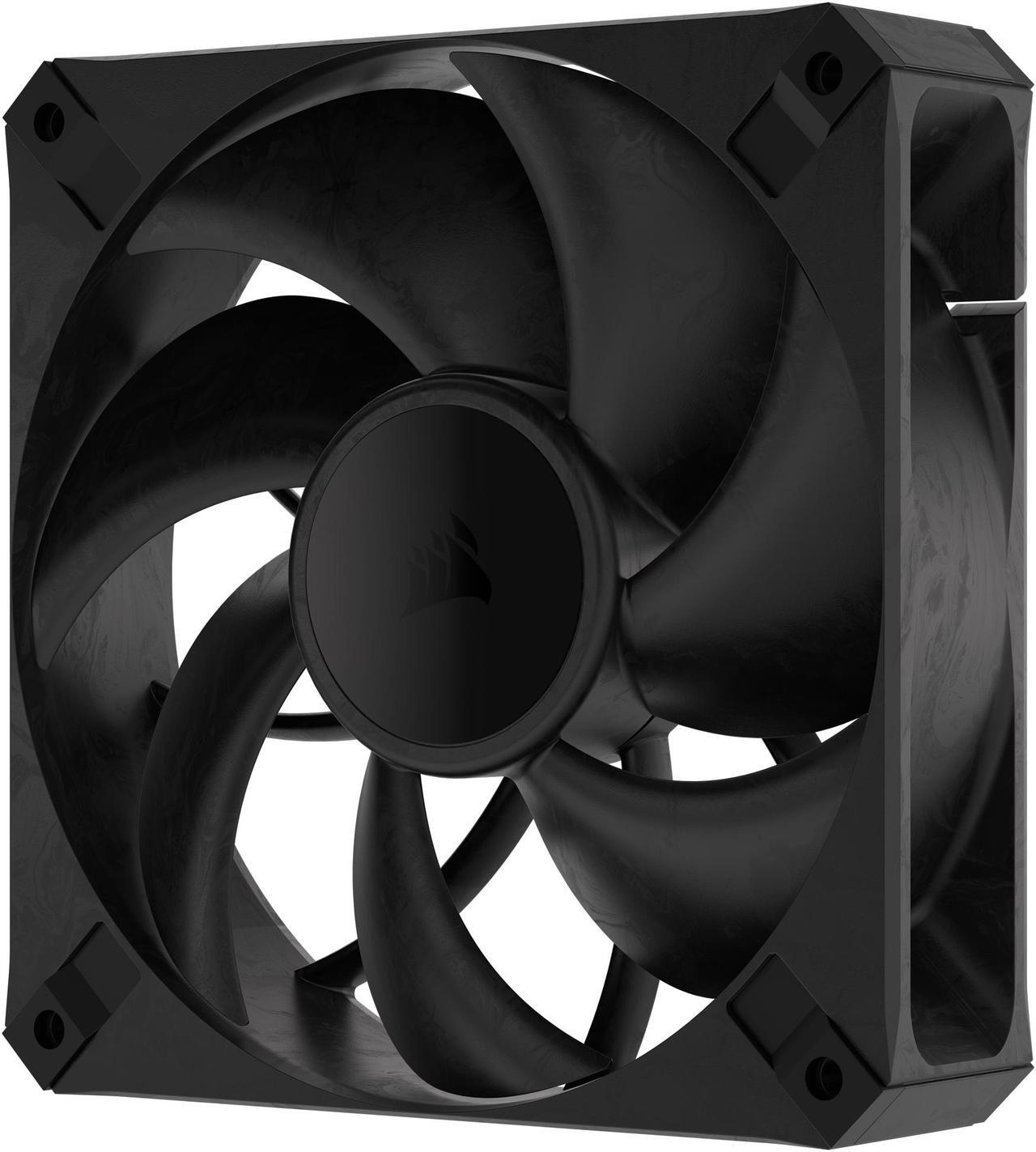

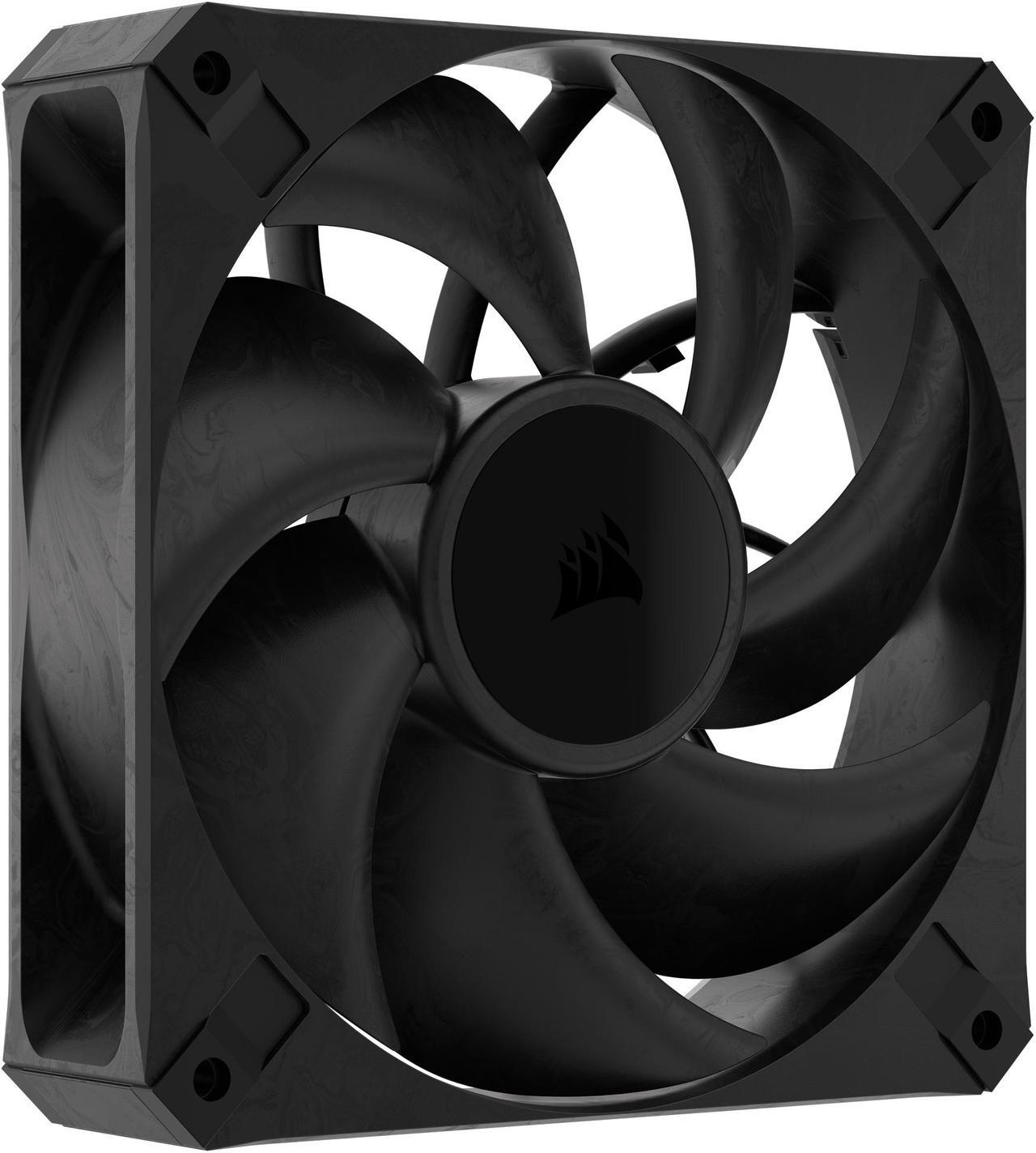

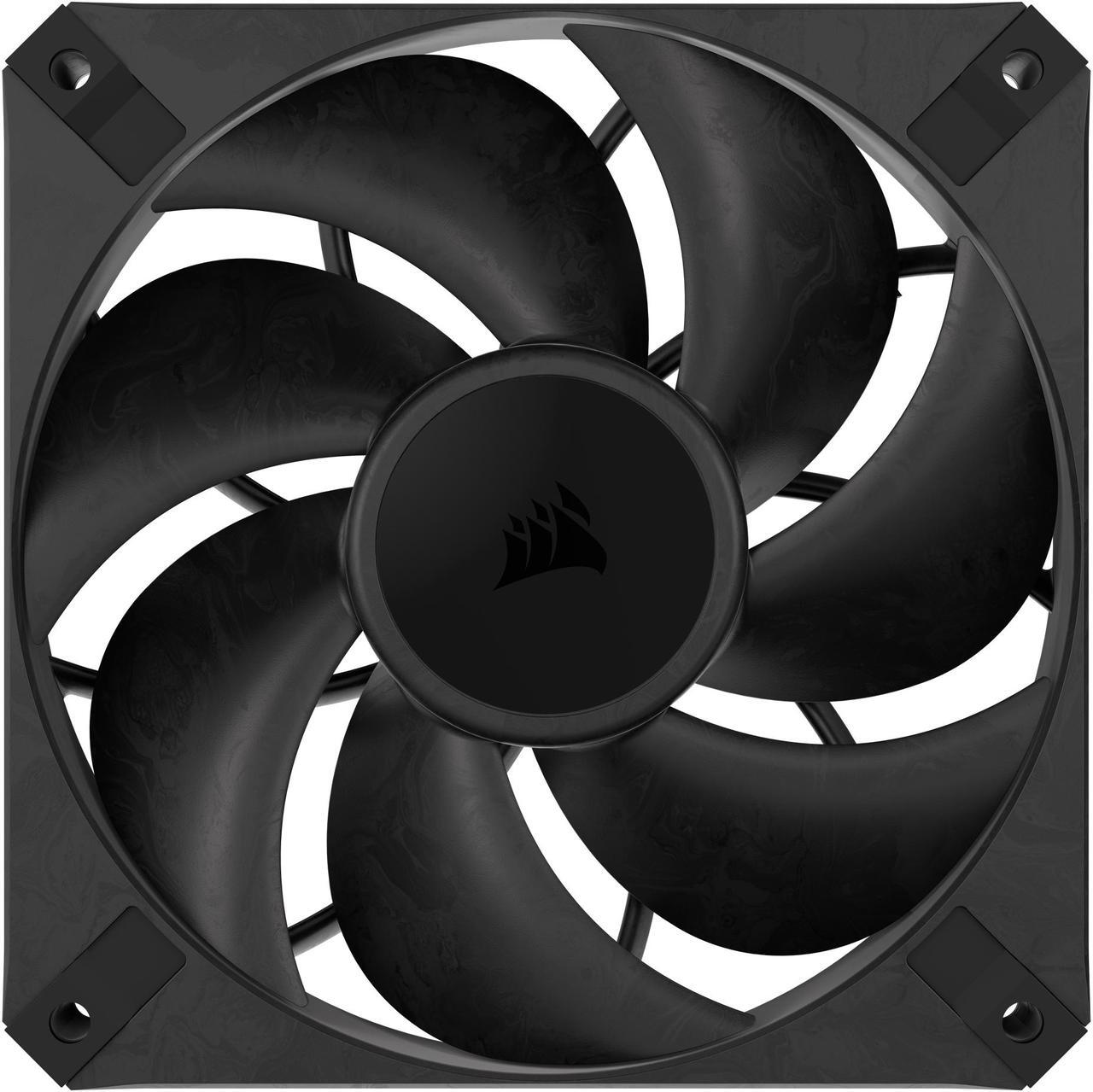

Learn more about the Corsair RS140 MAX
Model
Brand
Corsair
Model
RS140 MAX
Part Number
CO-9050174-WW
Details
Fan Counts
1 Fan
Type
Case Fan
Compatibility
Case
Fan Size
140mm
Fan Thickness
30mm
Bearing Type
Magnetic Dome
RPM
0, 400 - 1600 RPM +/- 10%
Air Flow
27.5 - 104 CFM
Air Pressure
0.2 - 2.4 mm-H2O
Noise Level
10 - 31 dBA
Power Connector
4 Pin
Color
Black
LED
Non-LED
Features
Features
30mm Thickness: An increase of 5mm over standard fan thickness allows for a larger fan blade, improving cooling performance.
PWM Controlled Speeds: A 4-pin PWM header allows precise control of fan speeds (up to 1,600 RPM), while providing up to 104 CFM airflow when needed by your system.
High Static Pressure: The RS140 MAX's increased thickness results in 2.4mm-H2O of static pressure, perfect for pushing air through obstructions such as high density radiators.
Premium Liquid Crystal Polymer Construction: Incredibly strong and durable with excellent rigidity, reducing blade vibration and increasing performance.

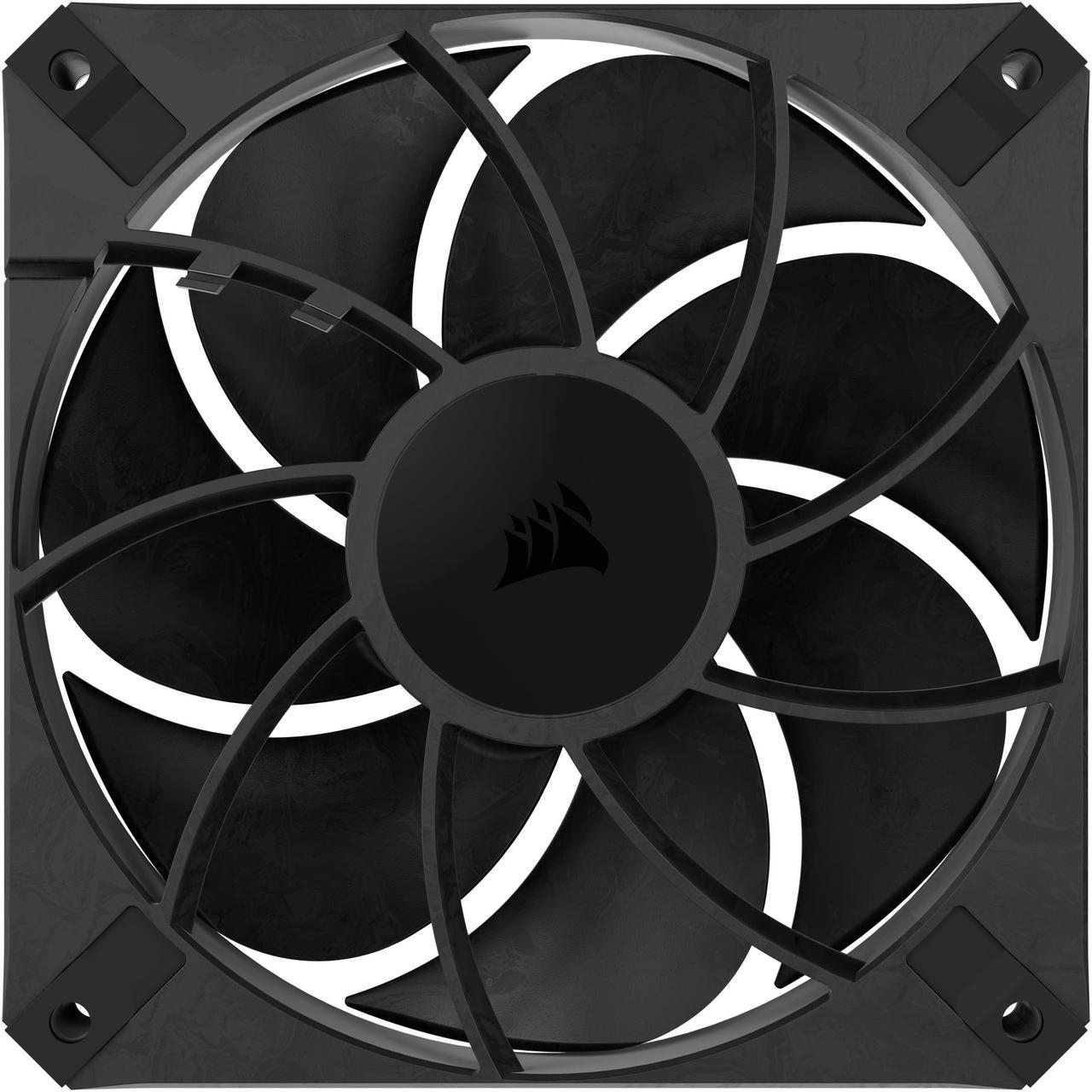

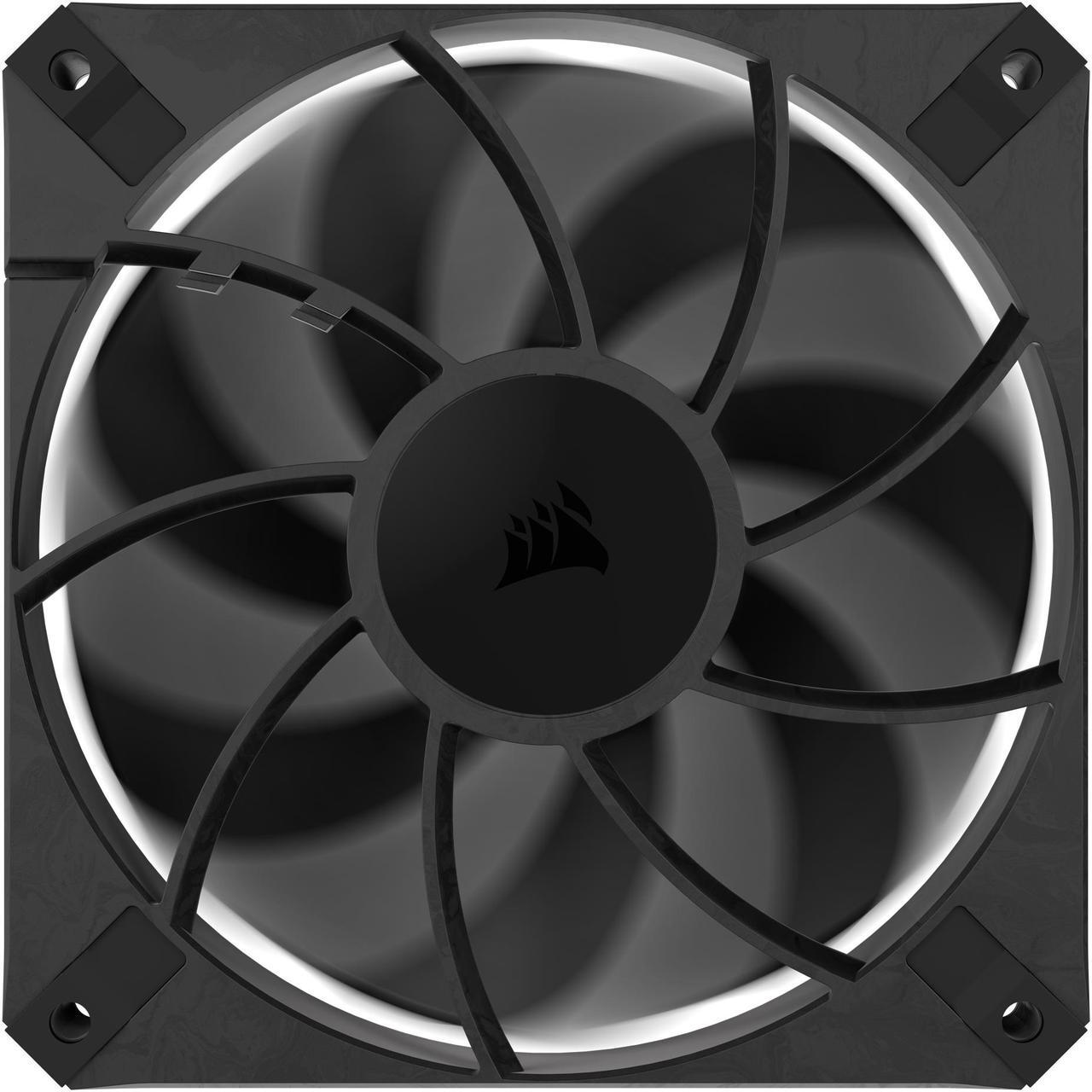

CORSAIR AirGuide Technology: Anti-vortex vanes direct airflow at your hottest components for concentrated cooling, whether used for intake, exhaust, or mounted to a radiator or heatsink.
Quiet Operation with Magnetic Dome Bearing: CORSAIR's Magnetic Dome bearing minimizes noise and reduces friction for greater longevity.
Dimensions & Weight
Dimensions
140 x 140 x 30mm
Package Contents
Package Contents

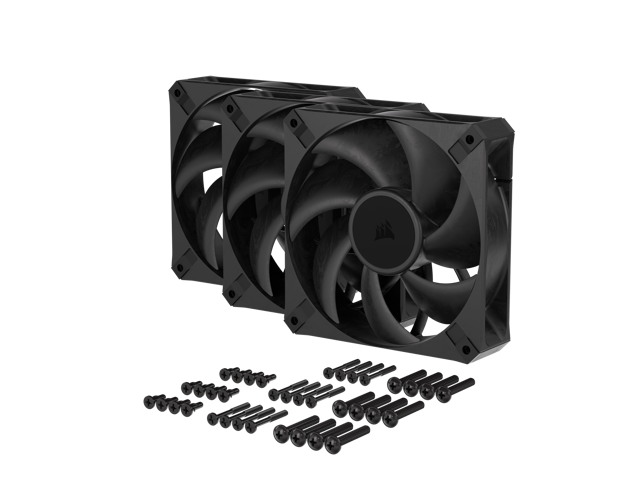

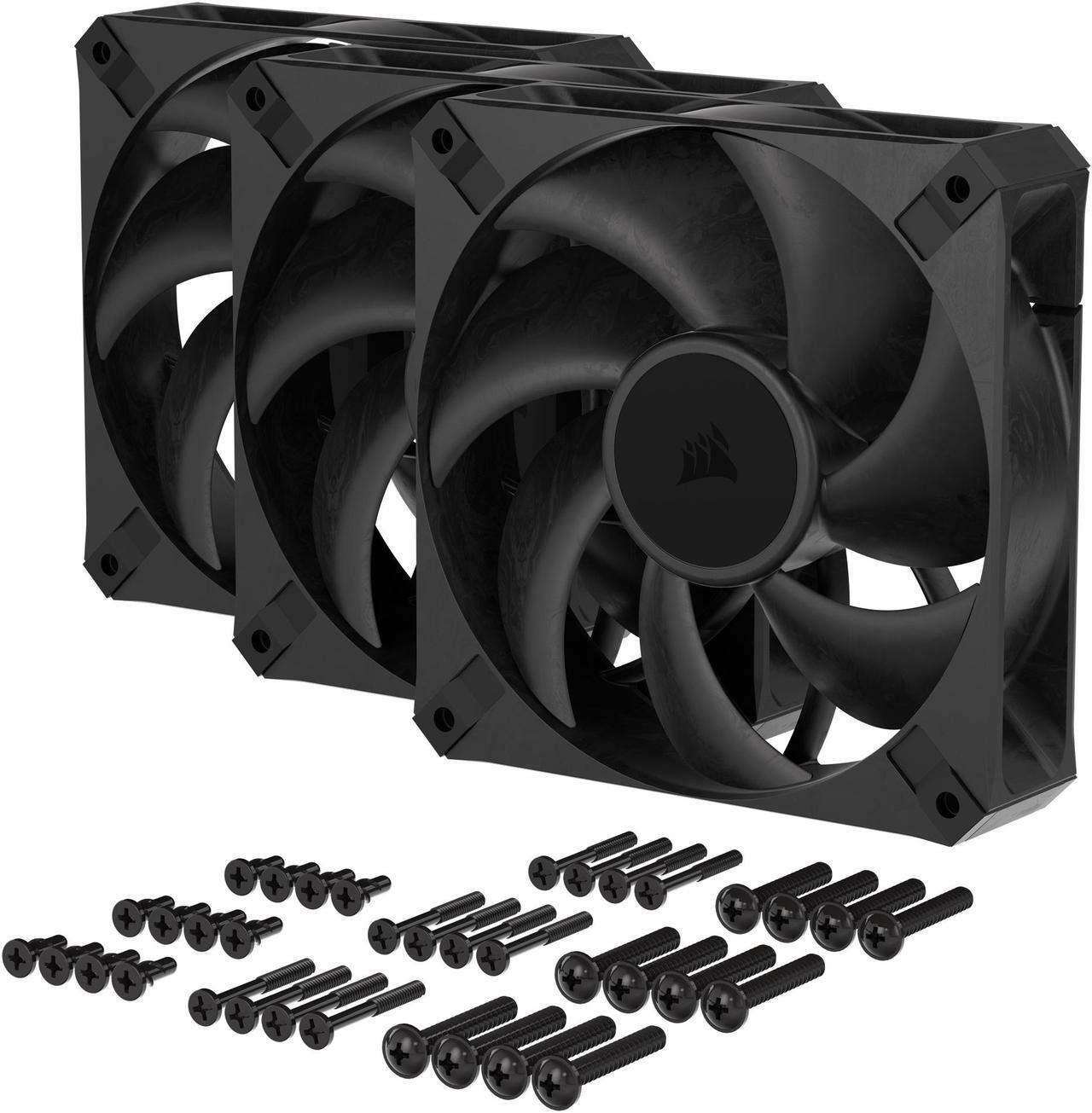

1 x RS140 MAX Fan 4 x AIO Radiator Mounting Screws 4 x HydroX Radiator Mounting Screws 4 x QuikTurn Mounting Screws
