CORSAIR CV Series CV650 CP-9020236-NA 650 W ATX12V / EPS12V 80 PLUS BRONZE Certified Non-Modular Active PFC Power Supply

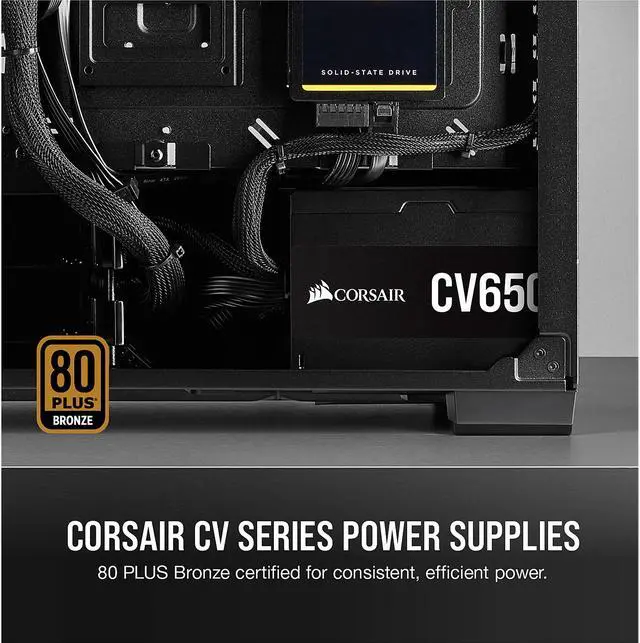

- 80 PLUS Bronze Certified: Provides up to 88% operational efficiency, generating less heat and lowering your energy costs.
- Full Continuous Power: CORSAIR CV Series power supplies are guaranteed to deliver their full rated wattage of continuous power.

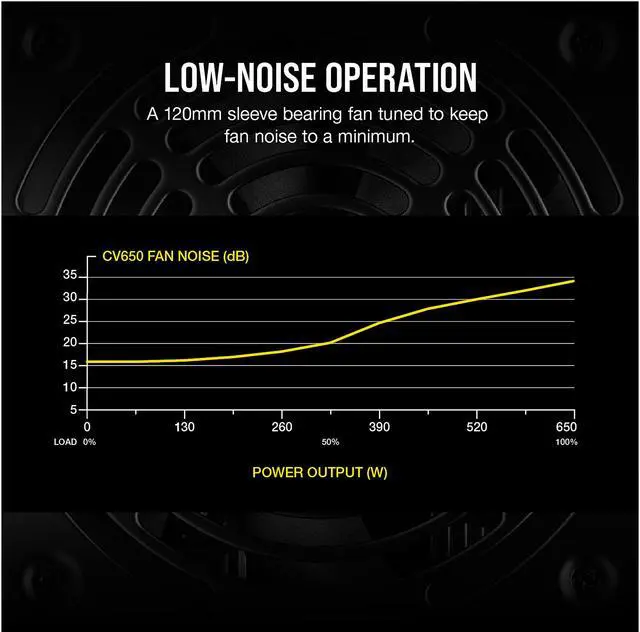

- Low-Noise Cooling: A 120mm thermally controlled low-noise cooling fan only spins at high speed when your power supply is under heavy stress, slowing down for quieter operation at lower loads.

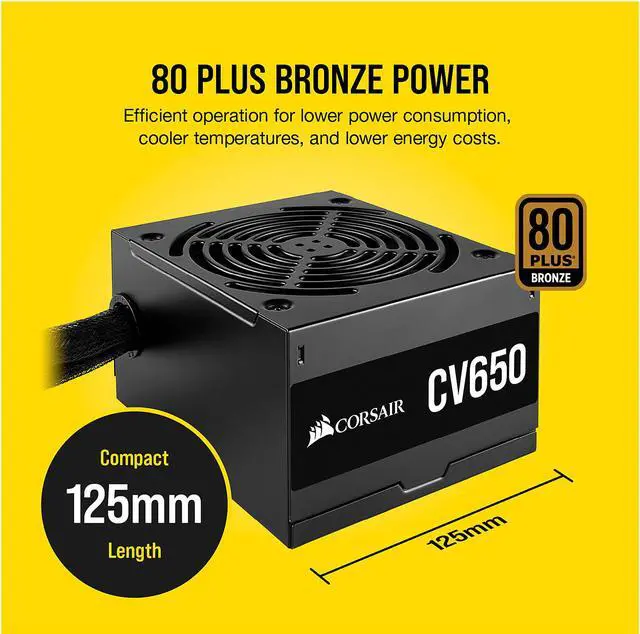

- Compact Casing: 125mm length ensures an easy fit in almost all modern PC cases.
- Black Sleeving and Casing: Black sleeved cables and a black powder-coated casing seamlessly fits your PC’s style.
- Three-Year Warranty: Your guarantee of reliable operation, backed by the CORSAIR global technical support team.
+
+
Specs
Reviews
Learn more about the Corsair CP-9020236-NA
| Brand | CORSAIR |
|---|---|
| Series | CV Series CV650 |
| Model | CP-9020236-NA |
| Type | ATX12V / EPS12V |
|---|---|
| Maximum Power | 650 W |
| Fans | 1 x 120mm fan |
| PFC | Active |
| Main Connector | 24Pin |
| +12V Rails | Single |
| PCI-Express Connector | 2 x 6+2-Pin |
| SATA Power Connector | 6 |
| Max PSU Length | 125 mm |
| Modular | Non-Modular |
| Energy-Efficient | 80 PLUS BRONZE Certified |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 47 - 63 Hz |
| Input Current | 10A - 5A |
| Output | +3.3V@24A, +5V@20A, +12V@54A, -12V@0.3A, +5VSB@3A |

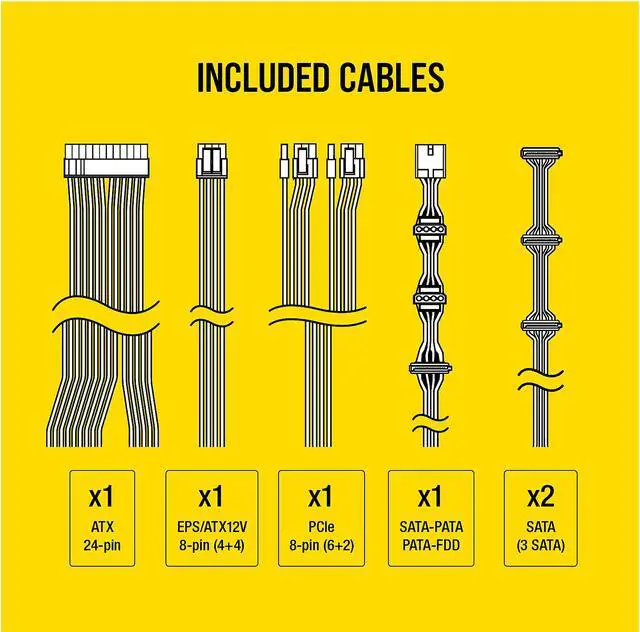

| Connectors | 1 x Main Power Connector (24 pin) 2 x ATX 12V (4+4 pin) 2 x PCI-E (6+2 pin) 7 x SATA (5 pin) 2 x Peripheral (4 pin) 1 x Floppy Adapter |
| Features | 80 PLUS Bronze Certified: Provides up to 88% operational efficiency, generating less heat and lowering your energy costs. Full Continuous Power: CORSAIR CV Series power supplies are guaranteed to deliver their full rated wattage of continuous power. Low-Noise Cooling: A 120mm thermally controlled low-noise cooling fan only spins at high speed when your power supply is under heavy stress, slowing down for quieter operation at lower loads. Compact Casing: 125mm length ensures an easy fit in almost all modern PC cases. Black Sleeving and Casing: Black sleeved cables and a black powder-coated casing seamlessly fits your PC’s style. Three-Year Warranty: Your guarantee of reliable operation, backed by the CORSAIR global technical support team. |
|---|
| Dimensions | 3.39" x 5.91" x 4.92" |
|---|---|
| Weight | 4.19 lbs. |

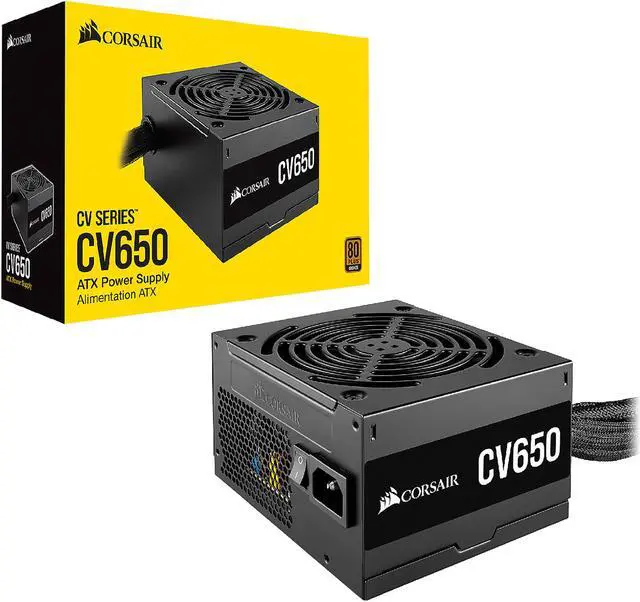

| Package Content | CV Series ATX Power Supply AC Power Cord Mounting Screws Warranty Documentation |
|---|
| First Listed on Newegg | March 21, 2023 |
|---|
