$269.99
Ships from Hong Kong.
Most customers receive within 10-17 days.
Meet Your Seller

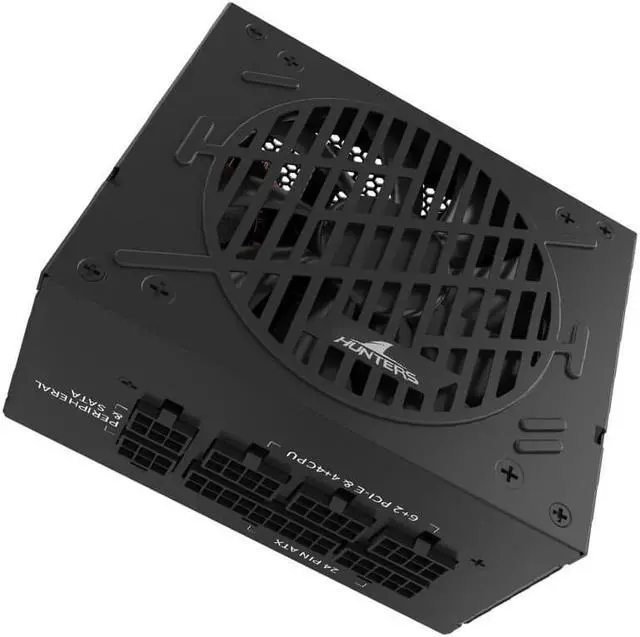

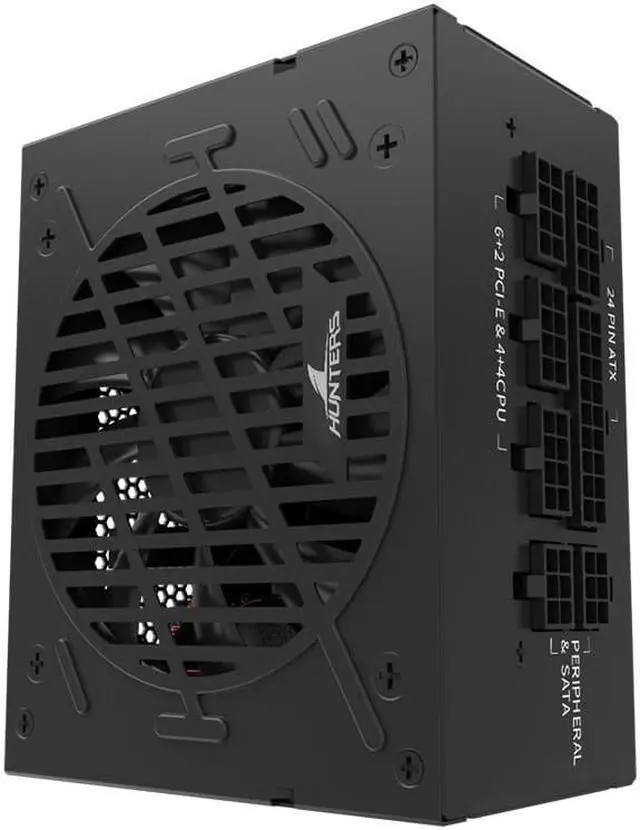

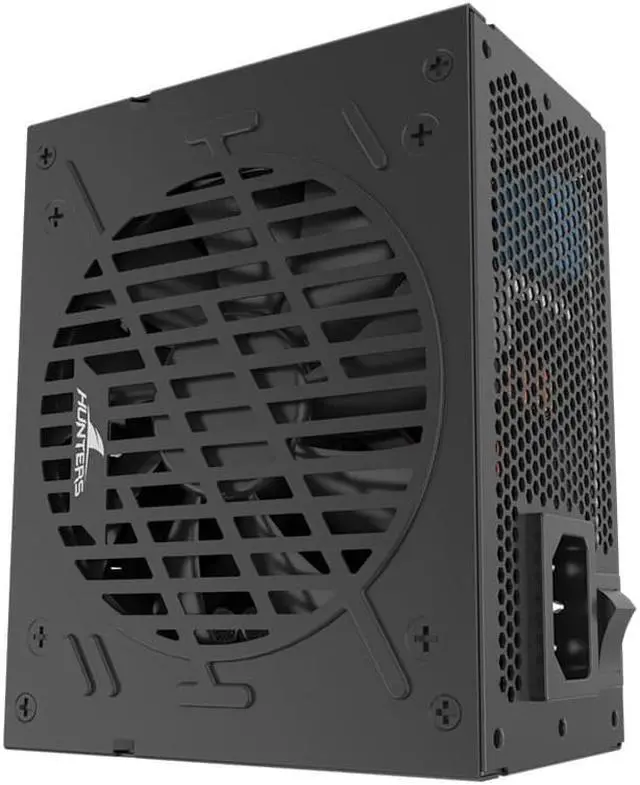

Great Wall TF750 SFX Power Supply, 750W 80 Plus Gold Medal Full Module, 90mm Intelligent Temperature Control Fan, Using 105° High Apecification Strong Capacitor - Black
- 90 mm intelligent control fan
- Active PFC,LLC Resonance+DC-DC+SR Synchronous Rectification
- 80 Plus gold medal full module
- Input voltage 100 ~ 240V
- 3C security certification
- Size 125 × 100 × 63.5 mm
- The conversion efficiency is as high as 91.6%
- High quality high temperature resistant 105° capacitor
+
+
Overview
Specs
Reviews
Basic parameters
Power type type desktop power supply
Scope of application support Intel and AMD full series CPU
Power version ATX 12V 2.31
Motherboard interface 20+4pin
PFC type active type
Power module full module power supply
80Plus certification gold medal
Rated power 750W
Power interface
Motherboard interface (20+4pin) 1
CPU interface (4+4pin) 2
4 graphics card interface (6+2pin) 2
SATA interface 8
3 power supply interface (4pin) 4
Performance parameters
AC input 100-240V (width), 10-5A, 460/50Hz
3.3V output current 20A
5V output current 20A
5VSB output current 2.5A
12V output current 62.5A
-12V output current 0.3A
Other parameters
Conversion efficiency 91.6 % (50% Load 230V)
Protective function overvoltage protection OVP, over -current protection OCP, over -power protection OPP, short -circuit protection SCP, low voltage protection UVP, over -temperature protection OTP, waves protection SPD
Power type type desktop power supply
Scope of application support Intel and AMD full series CPU
Power version ATX 12V 2.31
Motherboard interface 20+4pin
PFC type active type
Power module full module power supply
80Plus certification gold medal
Rated power 750W
Power interface
Motherboard interface (20+4pin) 1
CPU interface (4+4pin) 2
4 graphics card interface (6+2pin) 2
SATA interface 8
3 power supply interface (4pin) 4
Performance parameters
AC input 100-240V (width), 10-5A, 460/50Hz
3.3V output current 20A
5V output current 20A
5VSB output current 2.5A
12V output current 62.5A
-12V output current 0.3A
Other parameters
Conversion efficiency 91.6 % (50% Load 230V)
Protective function overvoltage protection OVP, over -current protection OCP, over -power protection OPP, short -circuit protection SCP, low voltage protection UVP, over -temperature protection OTP, waves protection SPD
