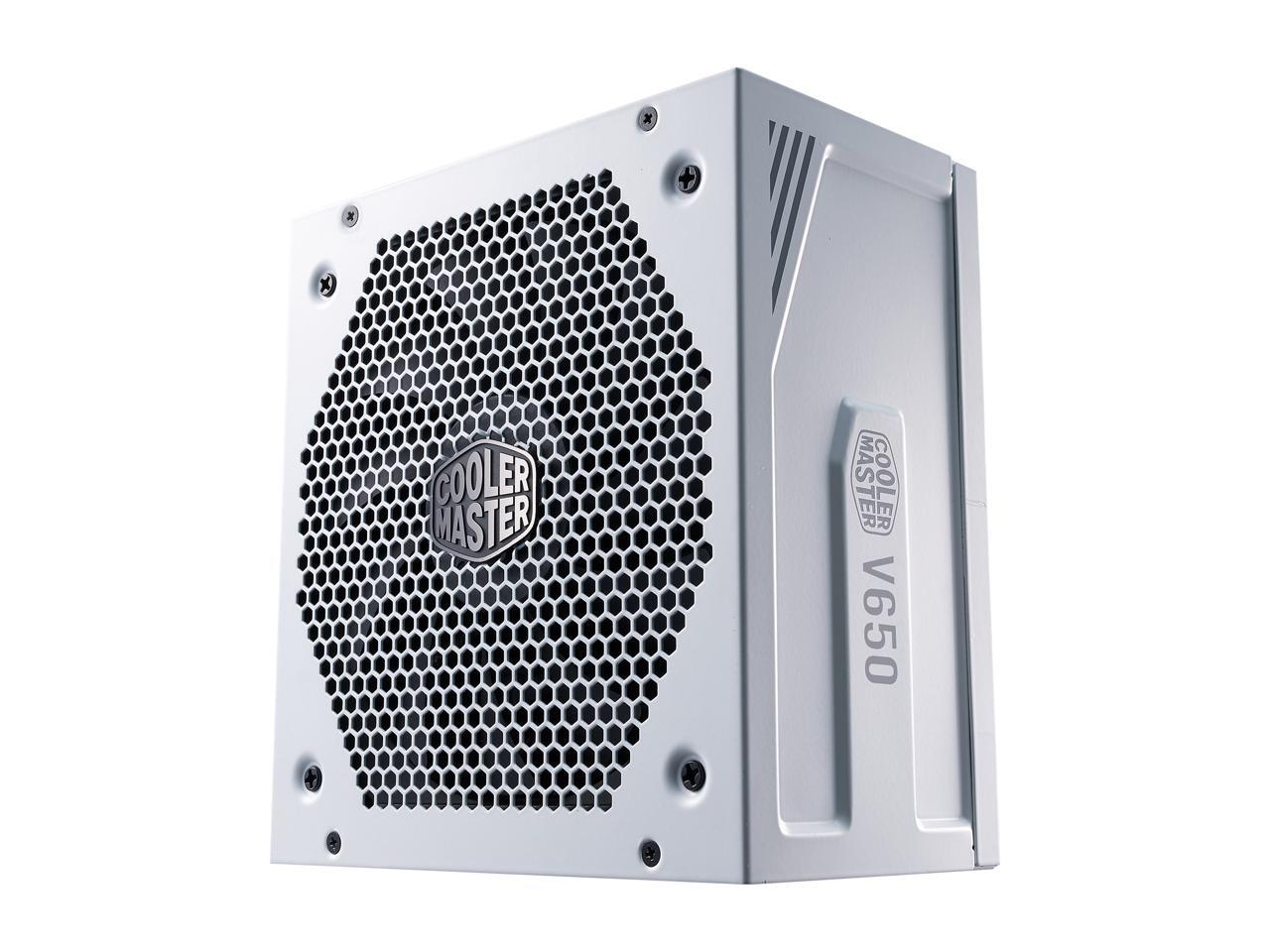

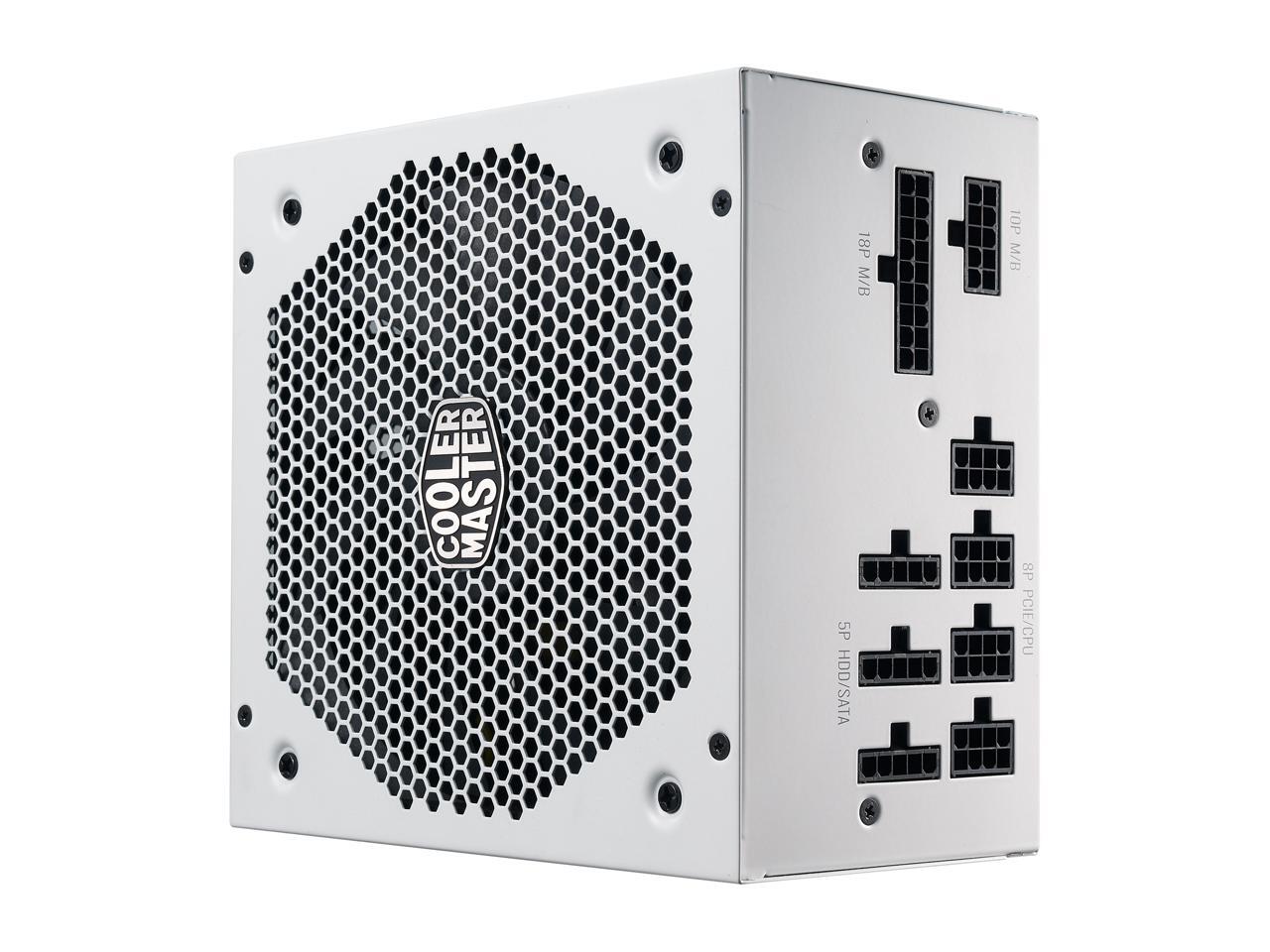

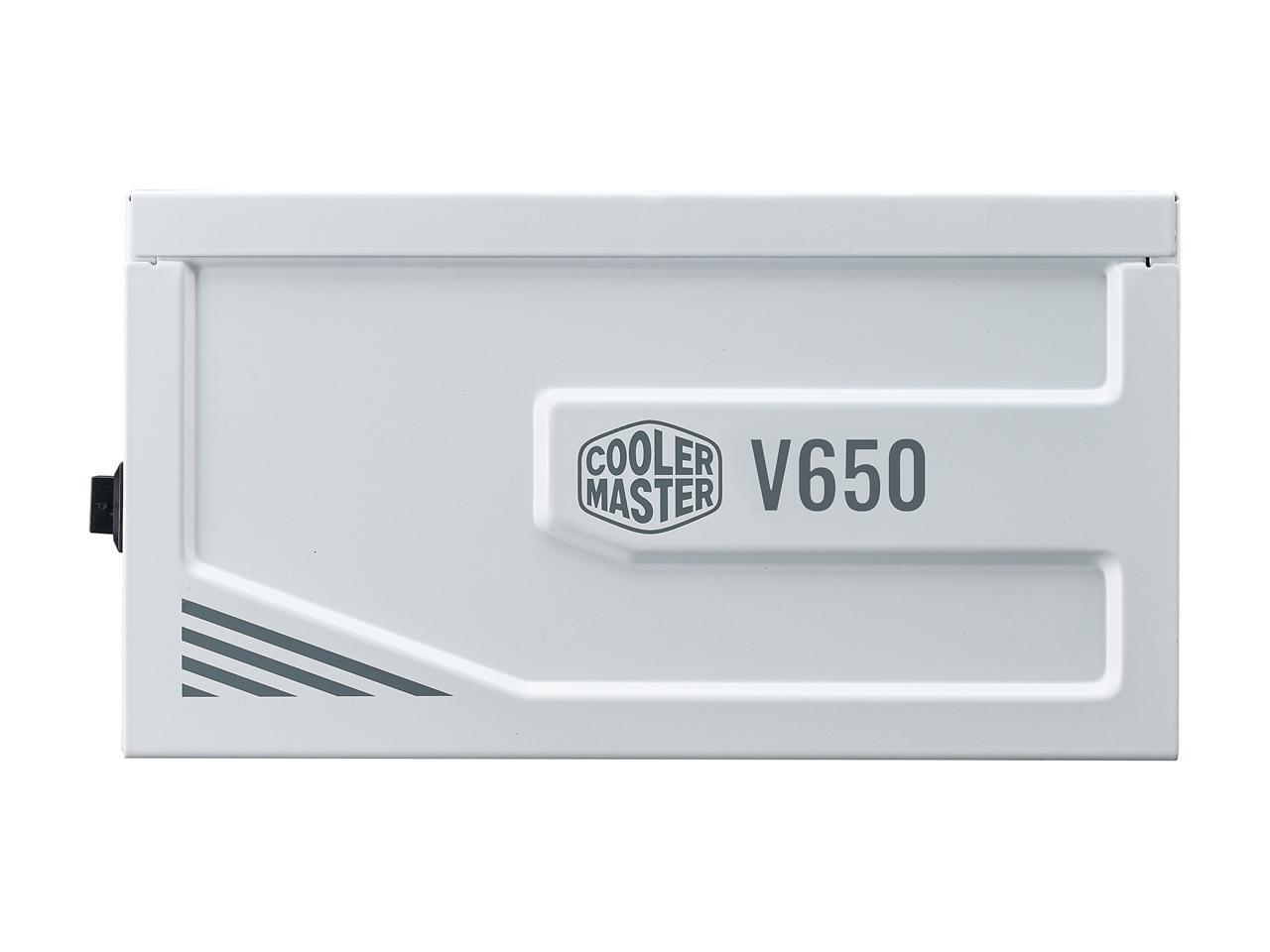

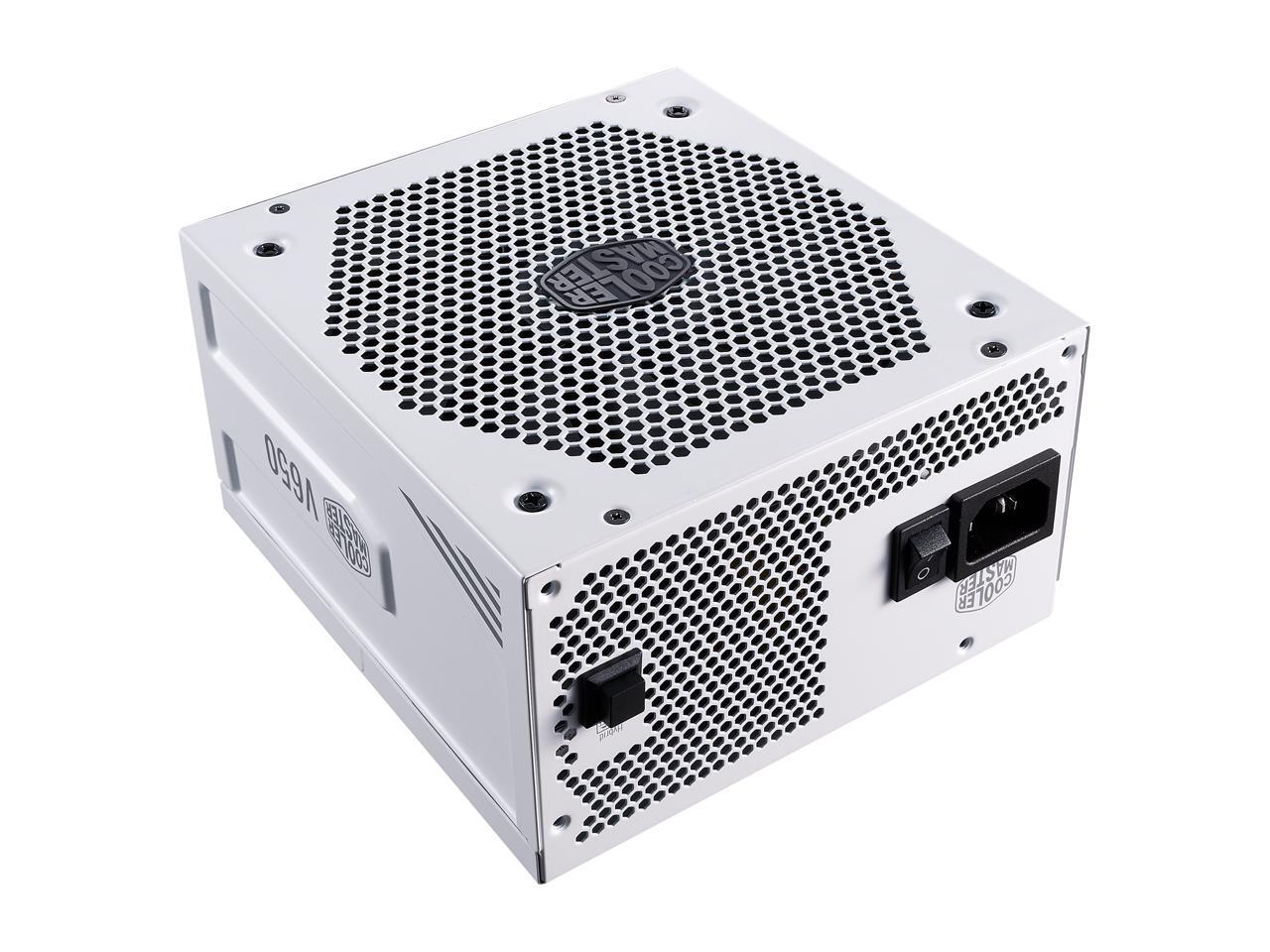

Cooler Master V650 Gold V2 White Edition Full Modular, 650W, 80+ Gold Efficiency, Semi-fanless Operation, 16AWG PCIe High-efficiency Cables, 10 Year Warranty
See more "650w psu"
Check more best sellers of "Power Supplies"
Check more lowest price of "Power Supplies"
Check more deals of "Power Supplies"
In stock. Limit 2 per customer.
Ships from United States.
Fees for brokerage and duty included in price.

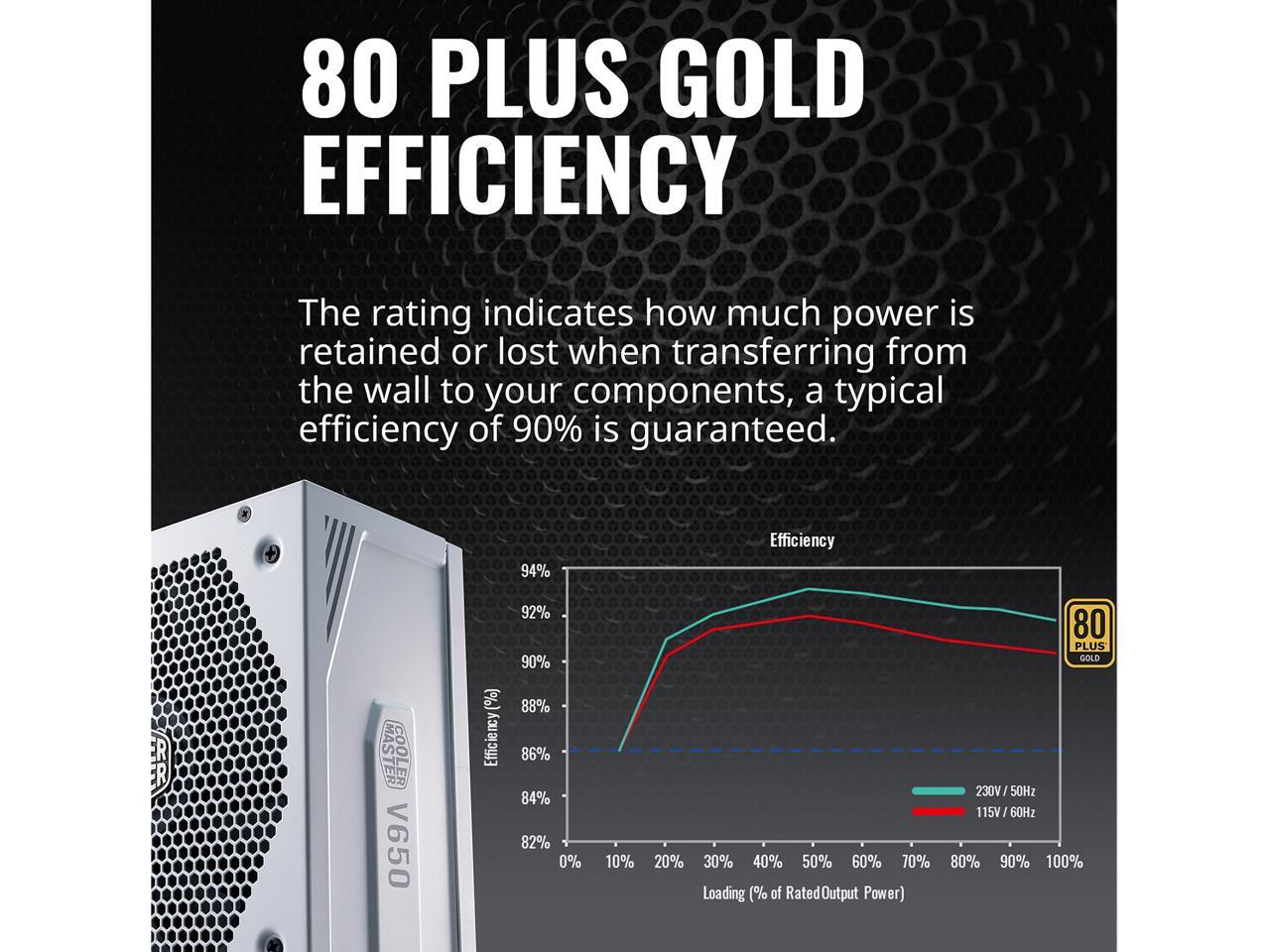

- 80 PLUS Gold Certified: This certification guarantees a typical efficiency of 90% under normal operating conditions.

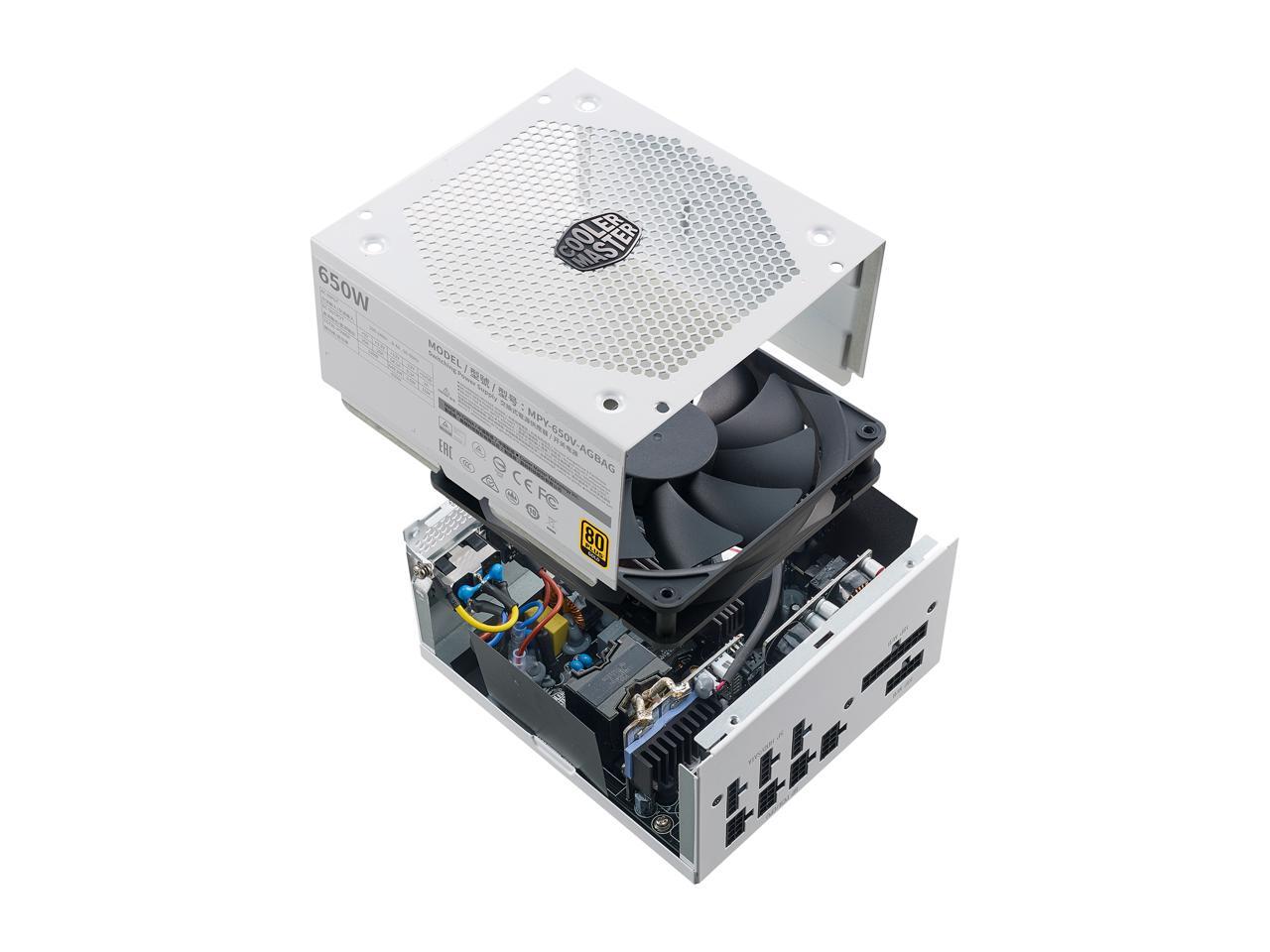

- Performance Driven Topology: The half-bridge LLC resonant converter and DC-DC technology offer reliable and stable voltage outputs for safer, more reliable performance and higher efficiency.

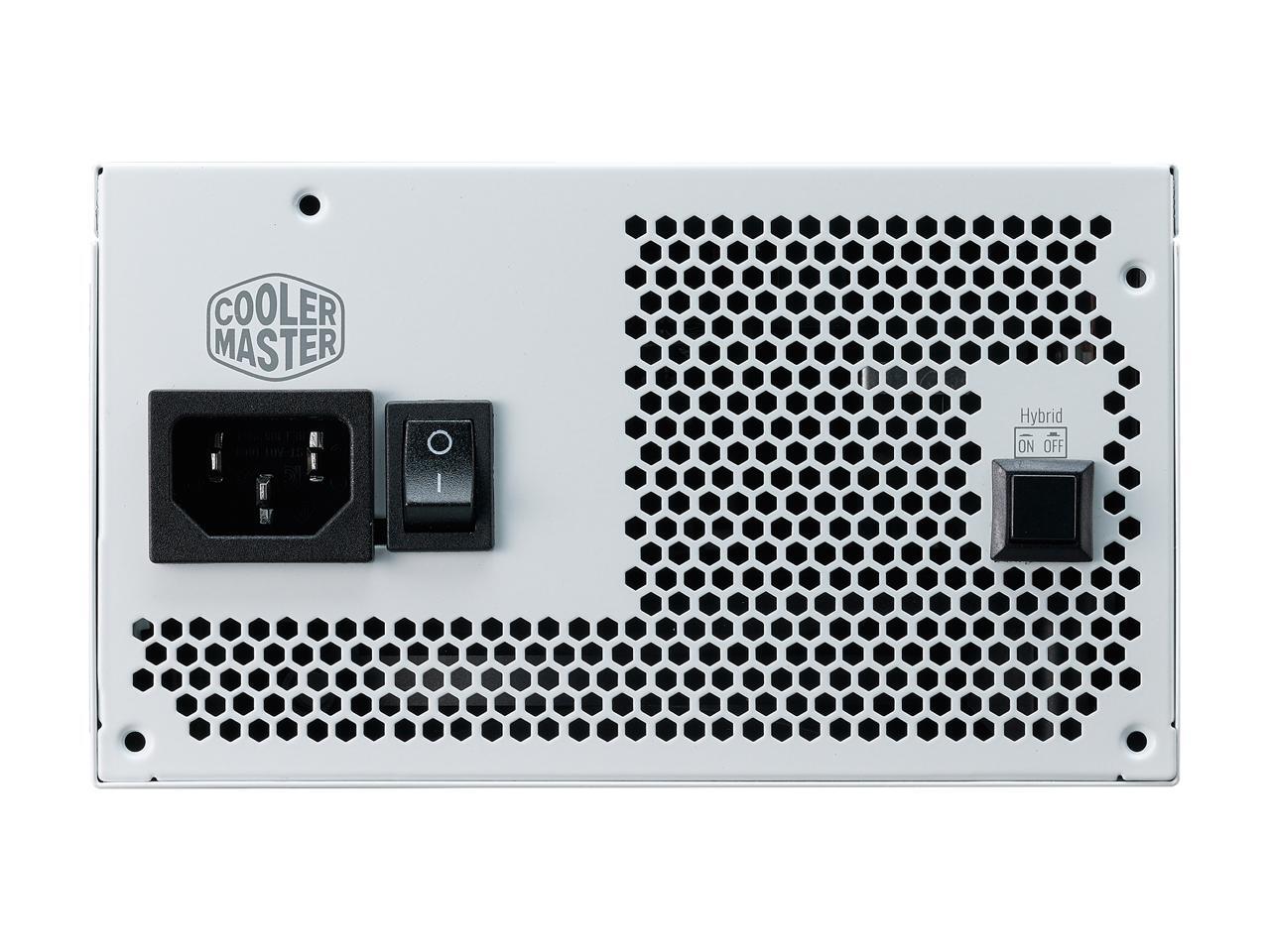

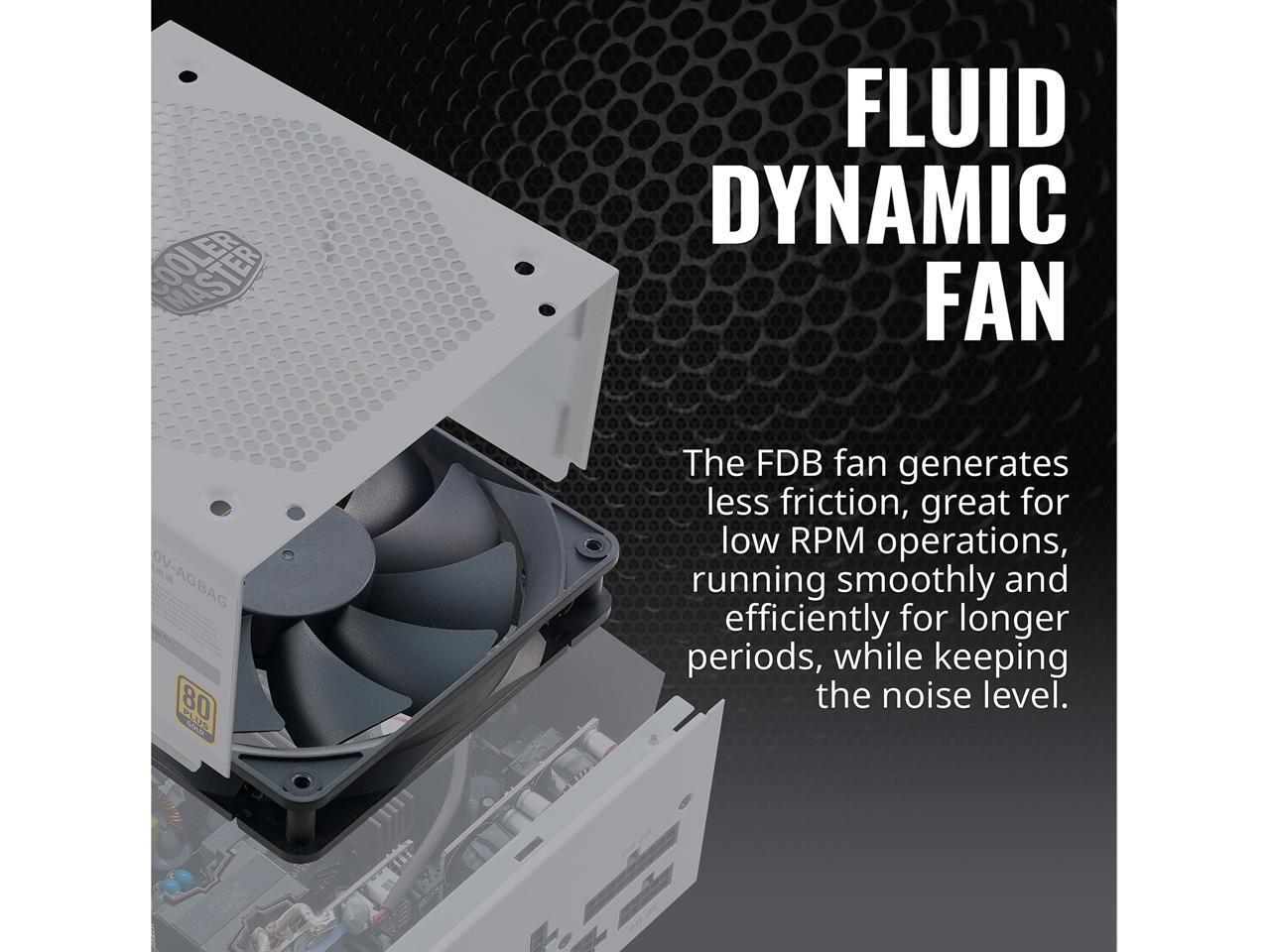

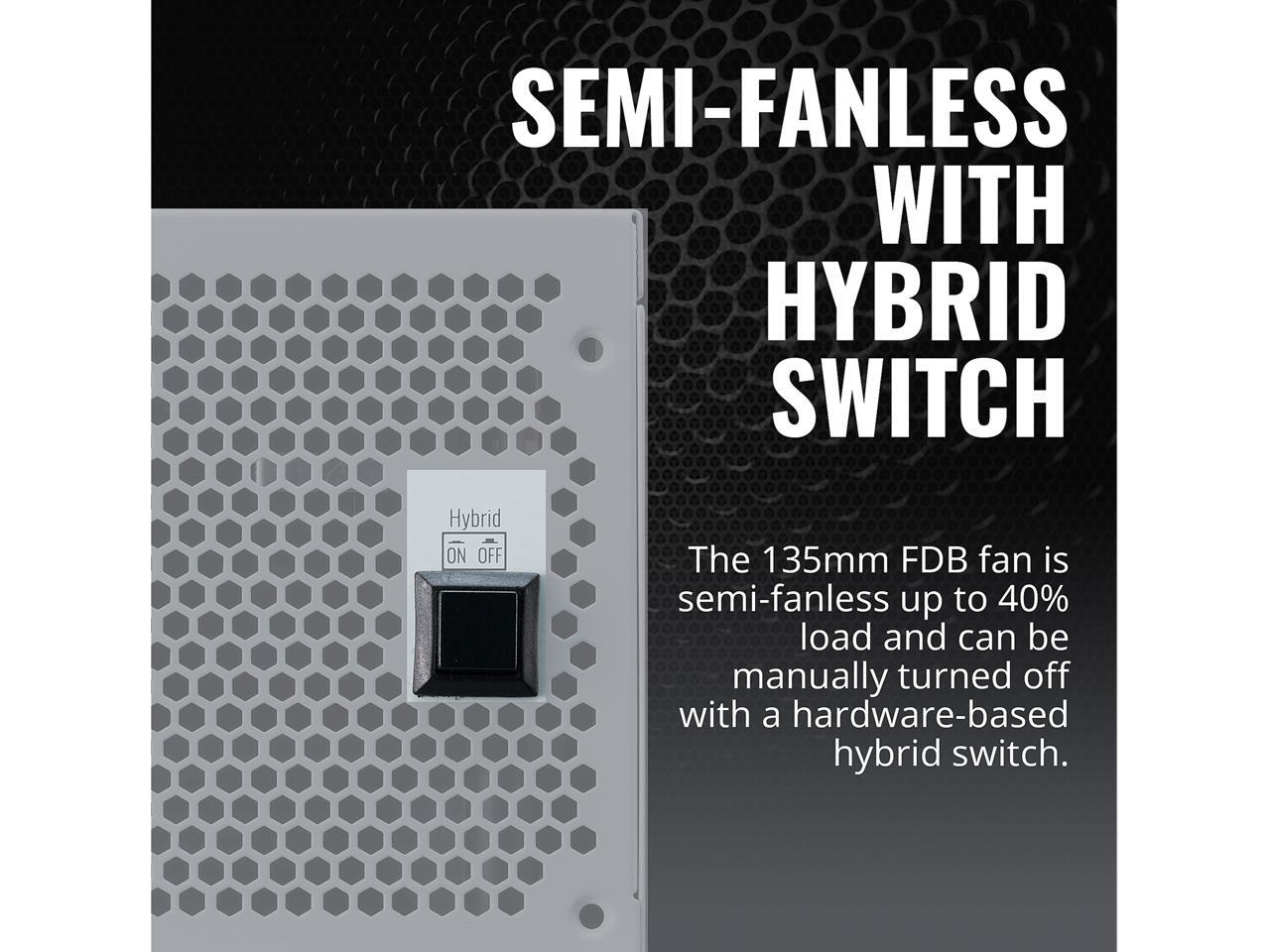

- Semi-Fanless Mode with Hybrid Switch: The 135mm FDB fan is semi-fanless up to 40% load and can be manually turned off with a hardware-based hybrid switch.

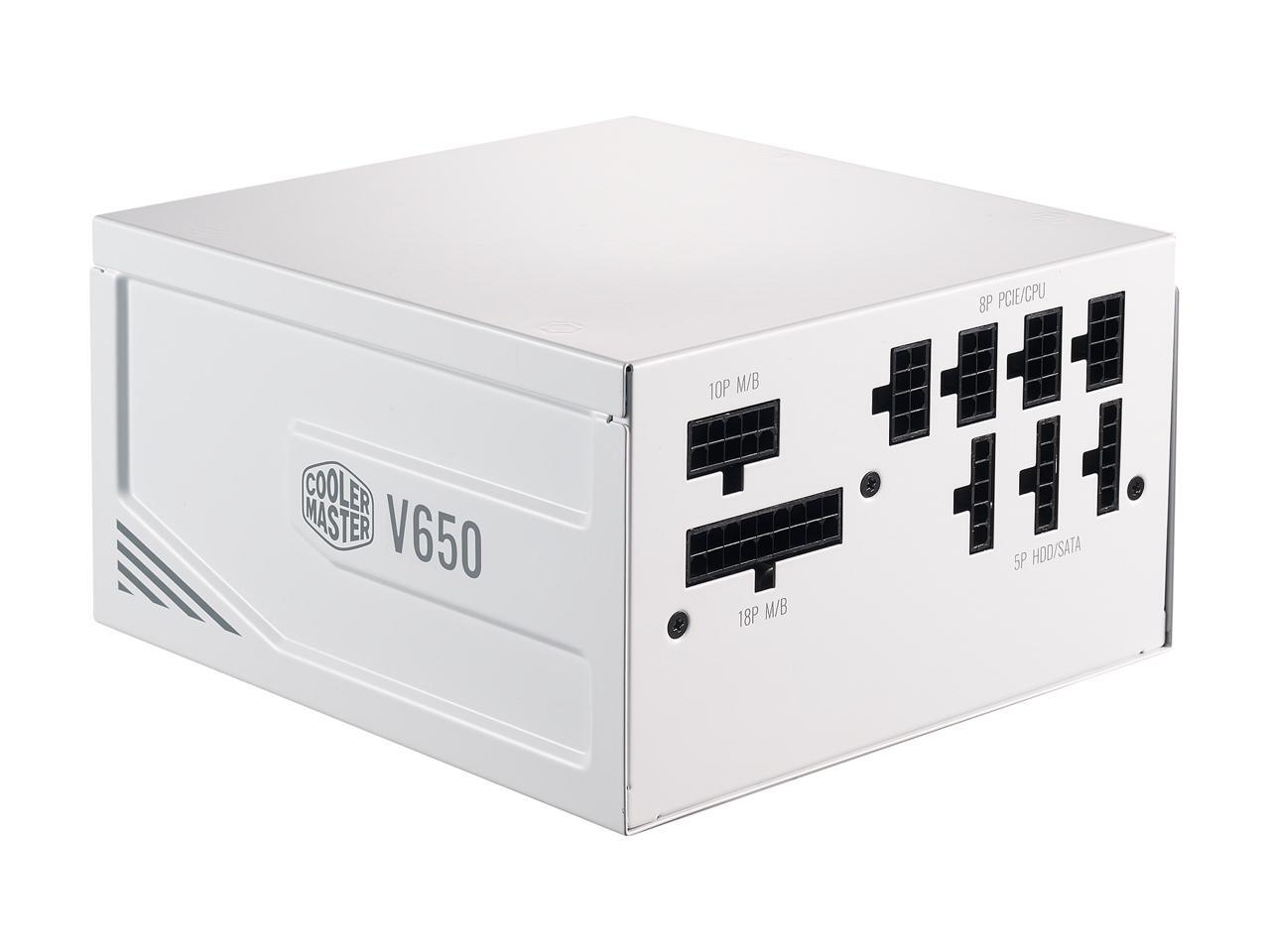

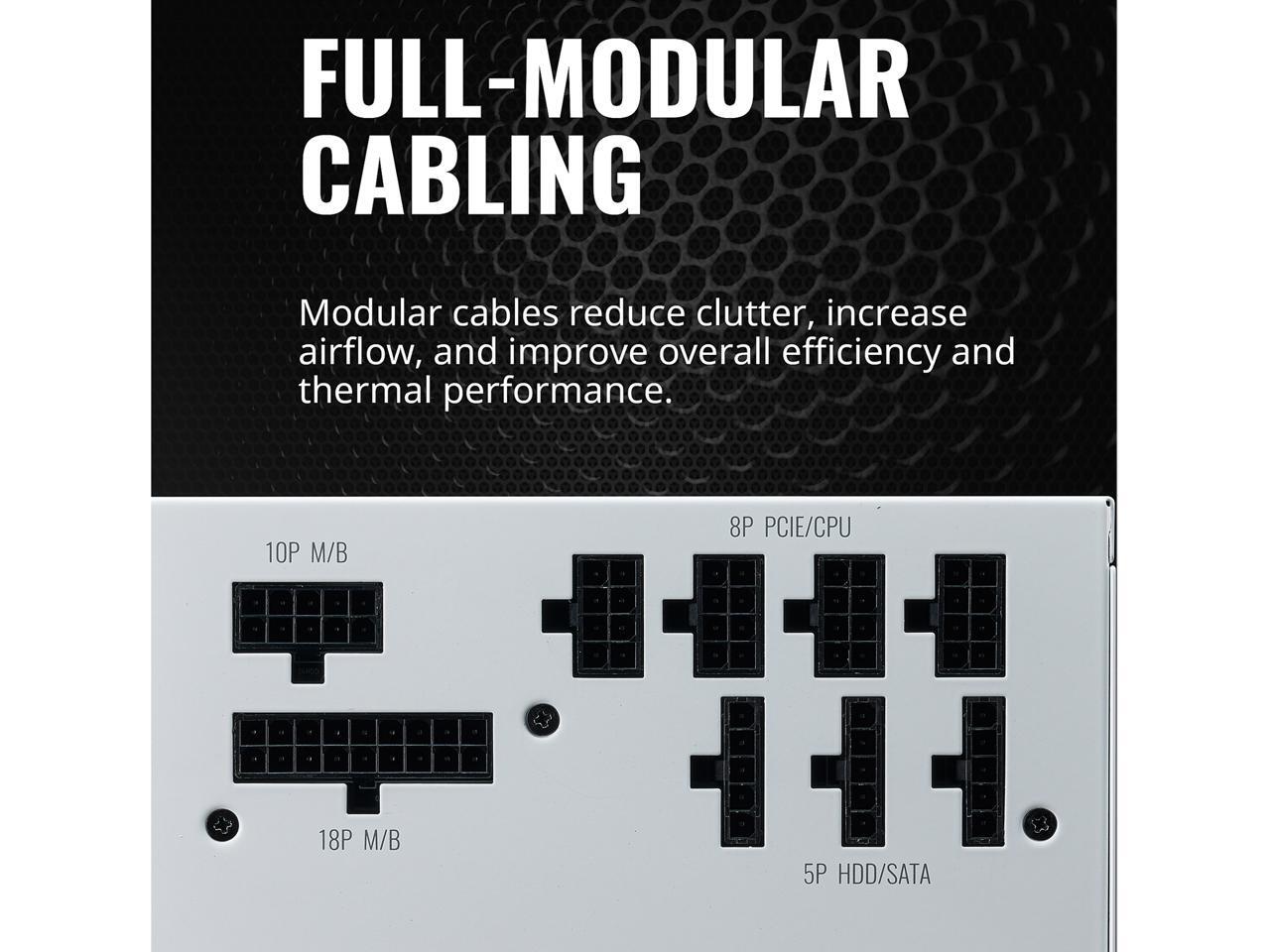

- Full-Modular Cabling: Modular cables reduce clutter, increase airflow, and improve overall efficiency and thermal performance.

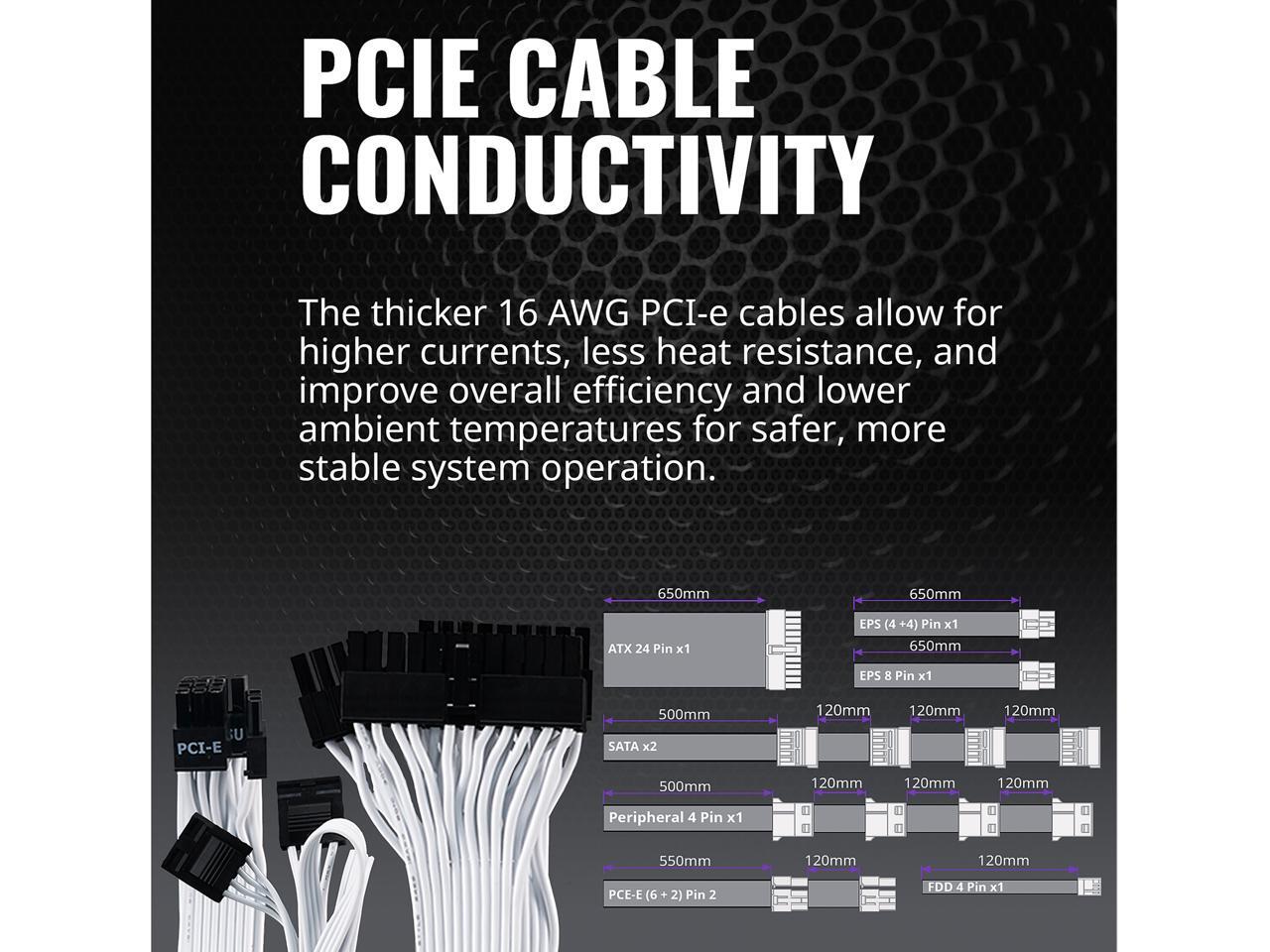

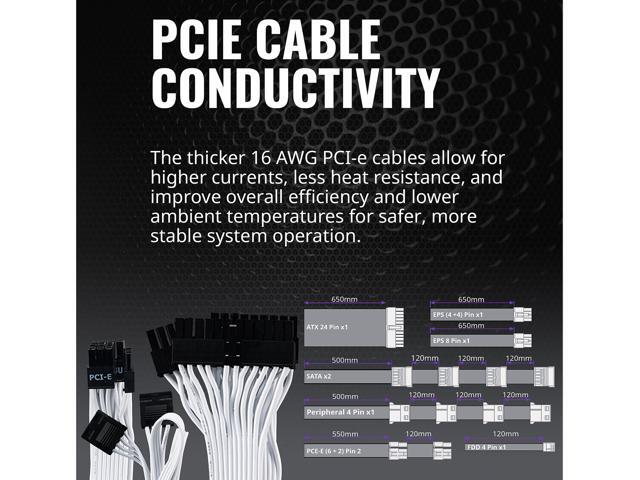

- 16 AWG PCI-e Cables: The thicker 16 AWG PCI-e cables allow for higher currents, thereby improving both efficiency and safety.
- 10 Year Warranty: This unit comes with a standard limited manufacturing warranty of 10 years from the date of purchase.
+
+
Specs
Reviews
Learn more about the Cooler Master MPY-650V-AGBAG-US
| Best Seller Ranking | #49 in Power Supplies |
|---|
| Brand | Cooler Master |
|---|---|
| Series | V650 Gold V2 White Edition |
| Model | MPY-650V-AGBAG-US |
| Color | White |
|---|---|
| Type | ATX 12V Ver. 2.52 |
| Maximum Power | 650 W |

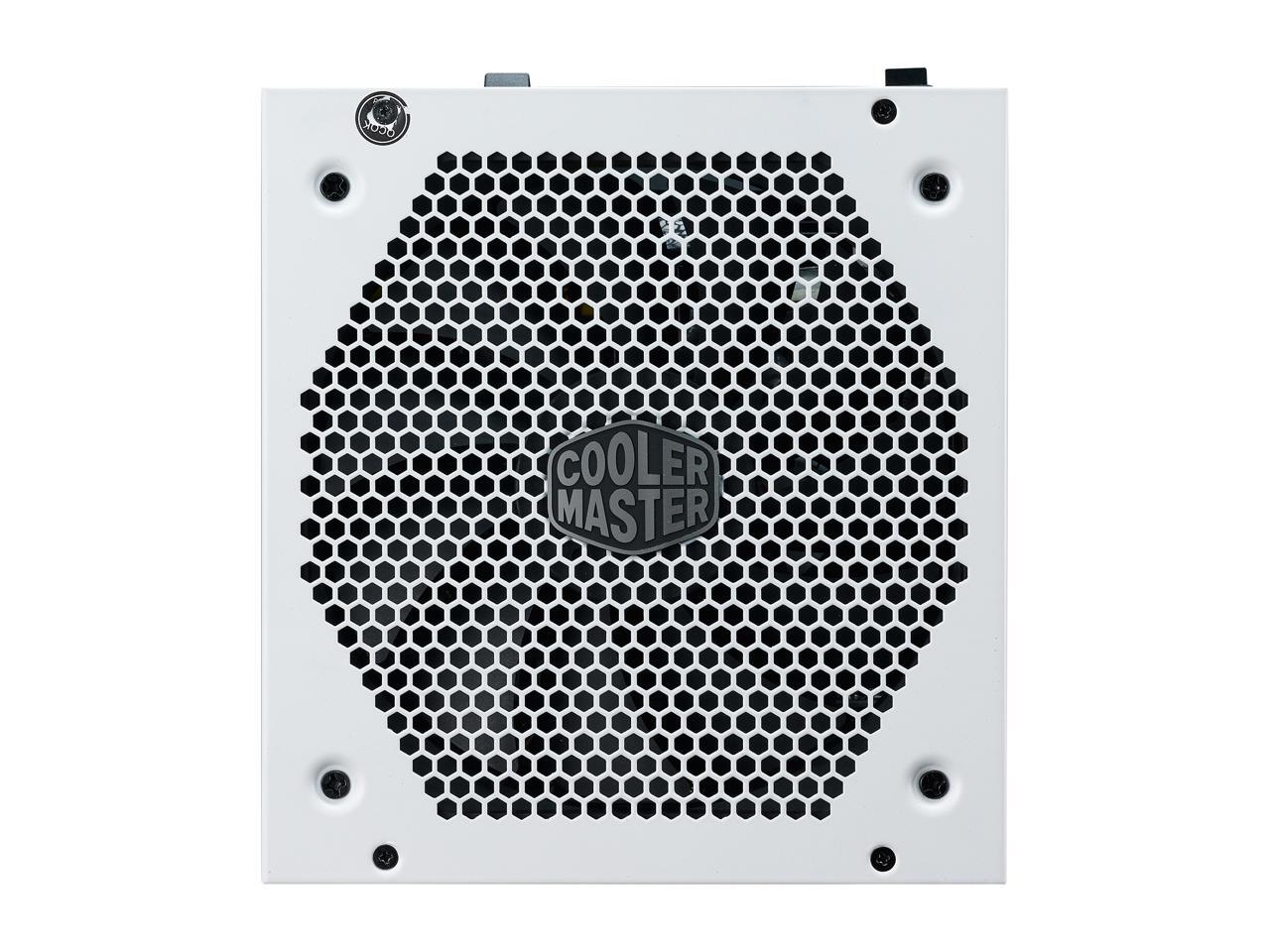

| Fans | 1 x 135mm FDB fan |
| PFC | Active |
| Main Connector | 20+4Pin |
| +12V Rails | Single |
| PCI-Express Connector | 4 x 6+2-Pin |
| SATA Power Connector | 8 |
| Max PSU Length | 160 mm |
| Modular | Full Modular |
| Power Good Signal | 100-500ms |
| Hold-up Time | 17ms min. |
| Efficiency | 90% @ Typical Load |
| Energy-Efficient | 80 PLUS GOLD Certified |
| Protection | OVP / OPP / SCP / OCP / UVP / OTP |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 9 - 4.5 A |

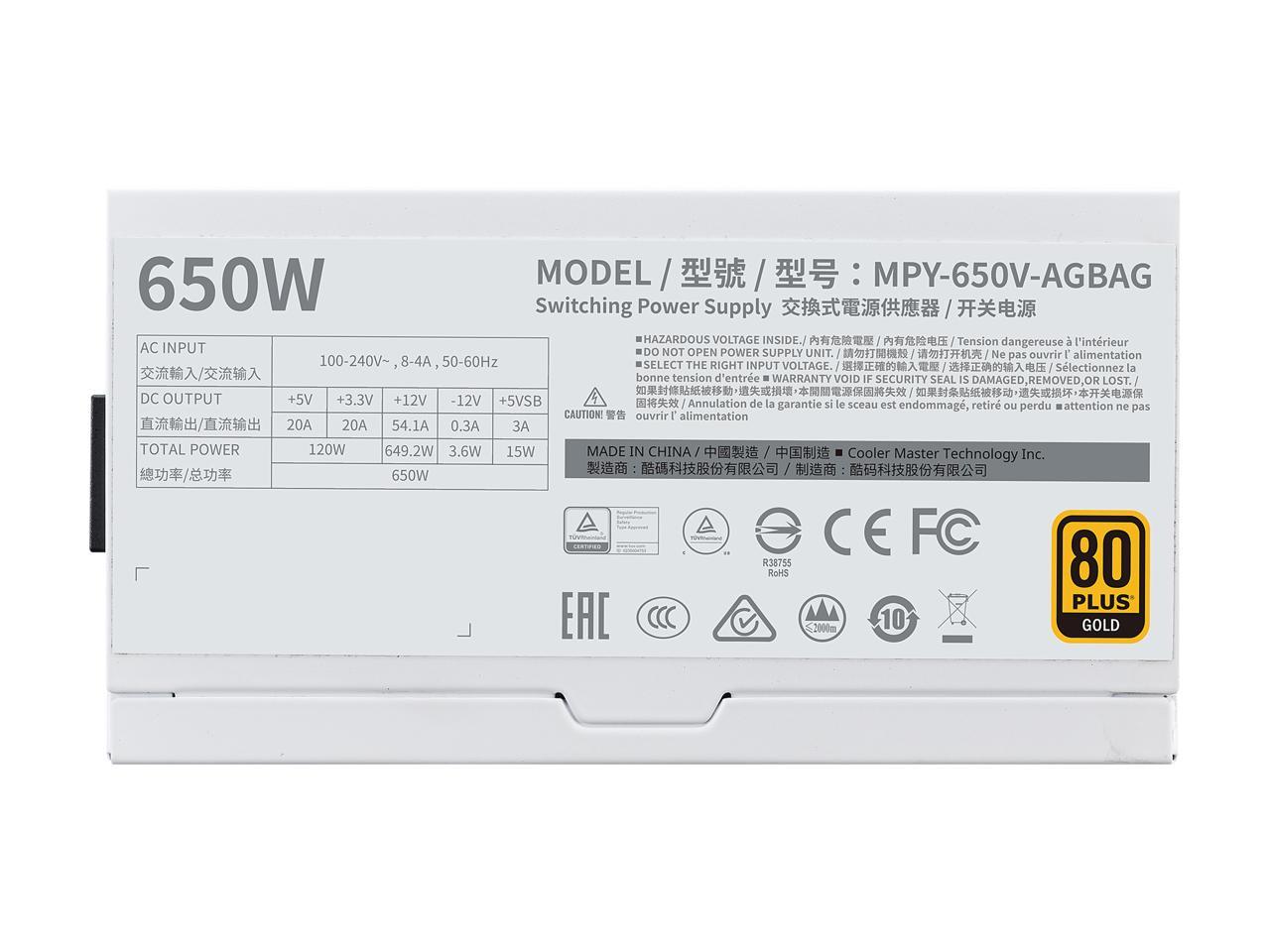

| Output | +3.3V@20A, +5V@20A, +12V@54A, -12V@0.3A, +5VSB@3A |
| MTBF | >100,000 Hours |
| Approvals | CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB |
| Connectors | 1 x ATX 24 Pin 1 x EPS 4+4 Pin 1 x EPS 8 Pin 4 x PCI-e 6+2 Pin 8 x SATA 4 x Peripheral 4 Pin 1 x FDD |
| Features | 80 PLUS Gold Certified: This certification guarantees a typical efficiency of 90% under normal operating conditions. Performance Driven Topology: The half-bridge LLC resonant converter and DC-DC technology offer reliable and stable voltage outputs for safer, more reliable performance and higher efficiency. Semi-Fanless Mode with Hybrid Switch: The 135mm FDB fan is semi-fanless up to 40% load and can be manually turned off with a hardware-based hybrid switch. Full-Modular Cabling: Modular cables reduce clutter, increase airflow, and improve overall efficiency and thermal performance. 16 AWG PCI-e Cables: The thicker 16 AWG PCI-e cables allow for higher currents, thereby improving both efficiency and safety. 10 Year Warranty: This unit comes with a standard limited manufacturing warranty of 10 years from the date of purchase. |
|---|
| Dimensions | 3.39" x 5.91" x 6.30" |
|---|---|
| Weight | 4.32 lbs. |
| Date First Available | September 21, 2020 |
|---|
